Overview

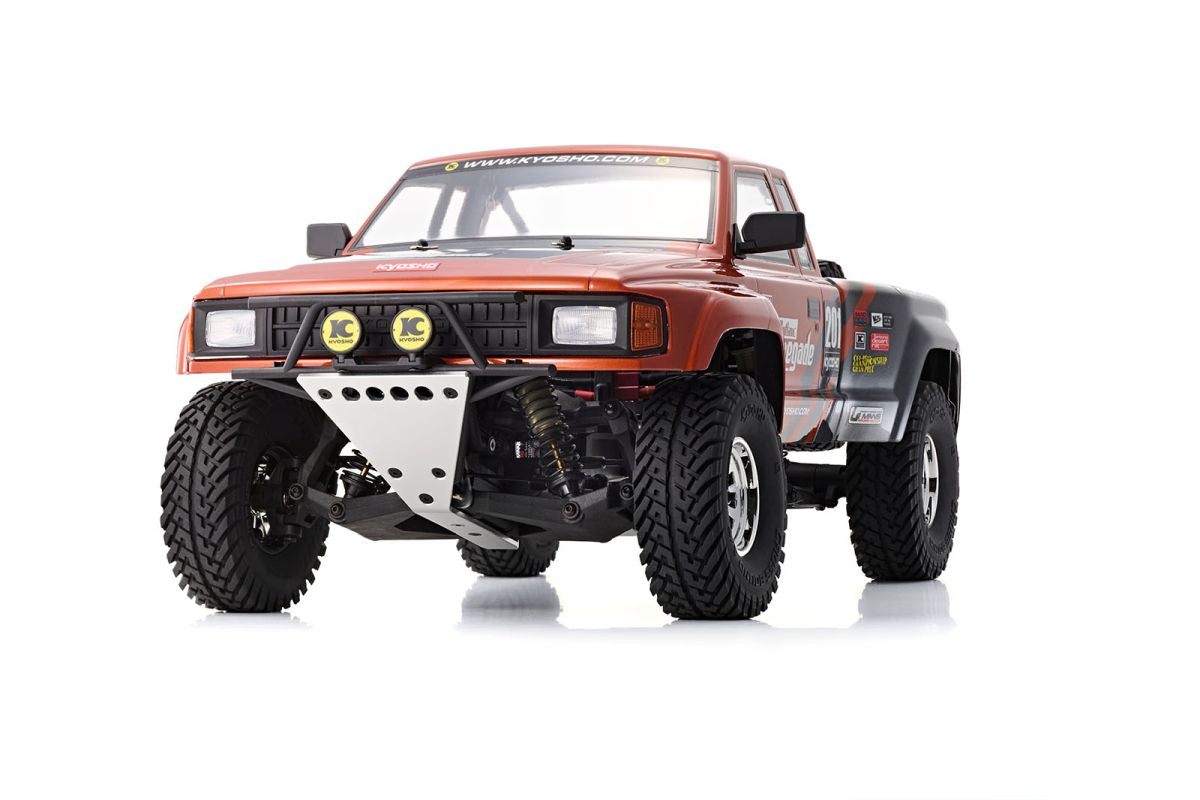

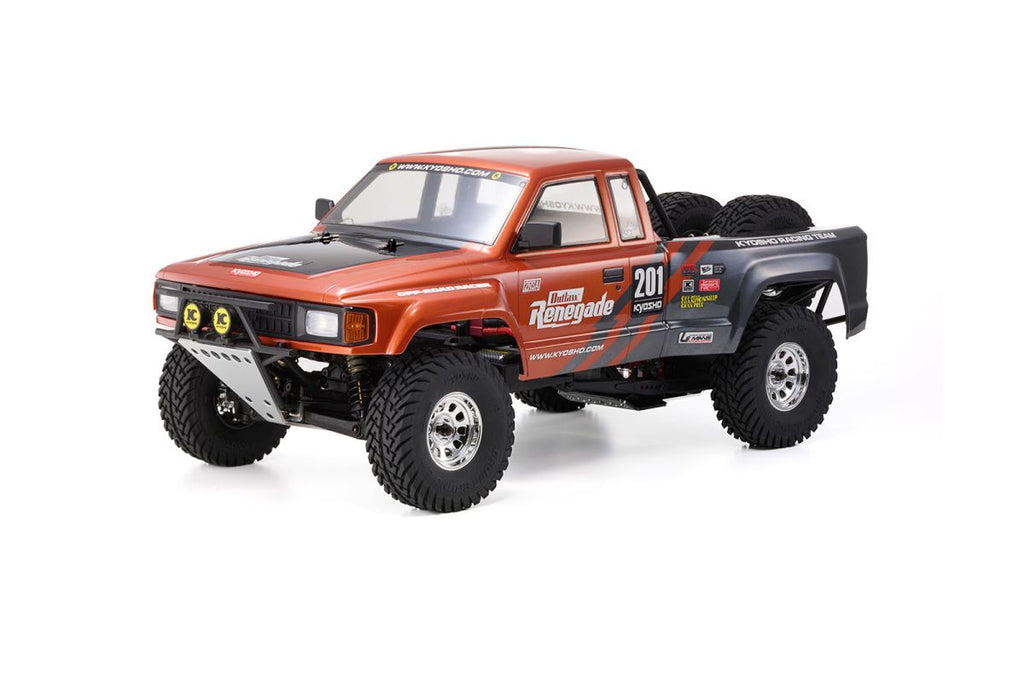

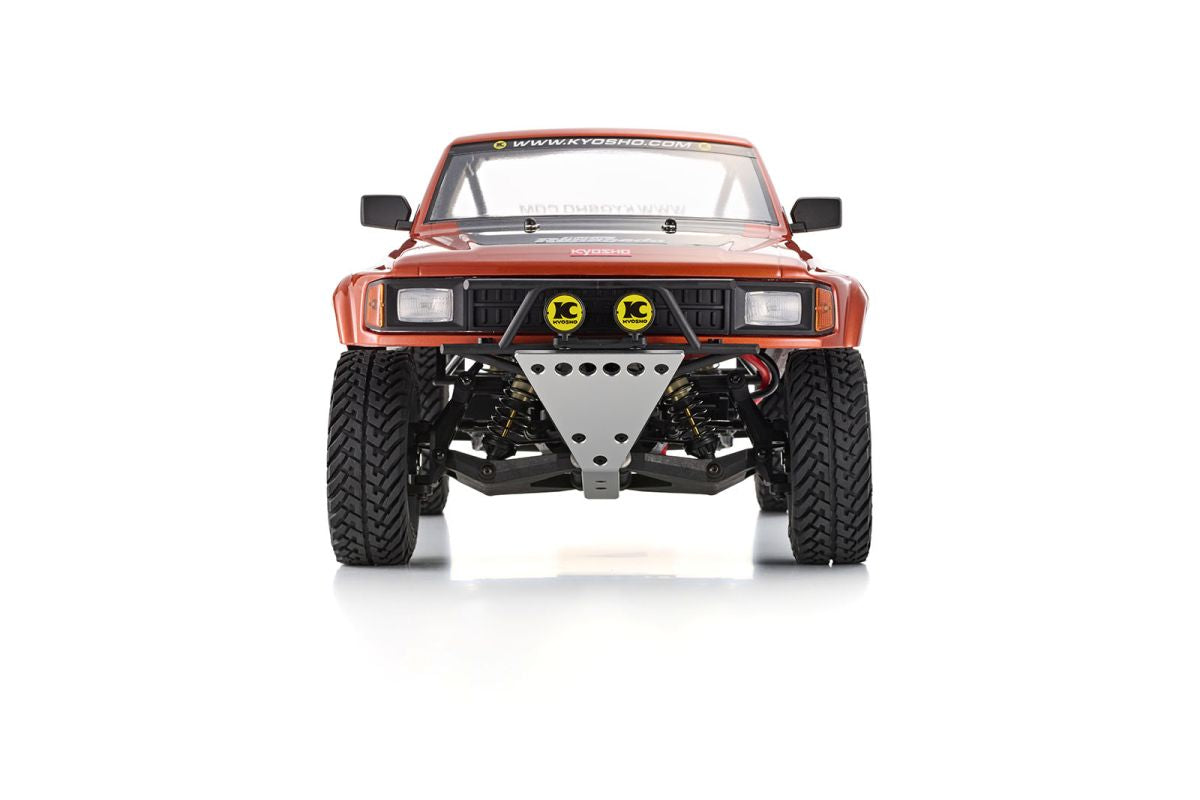

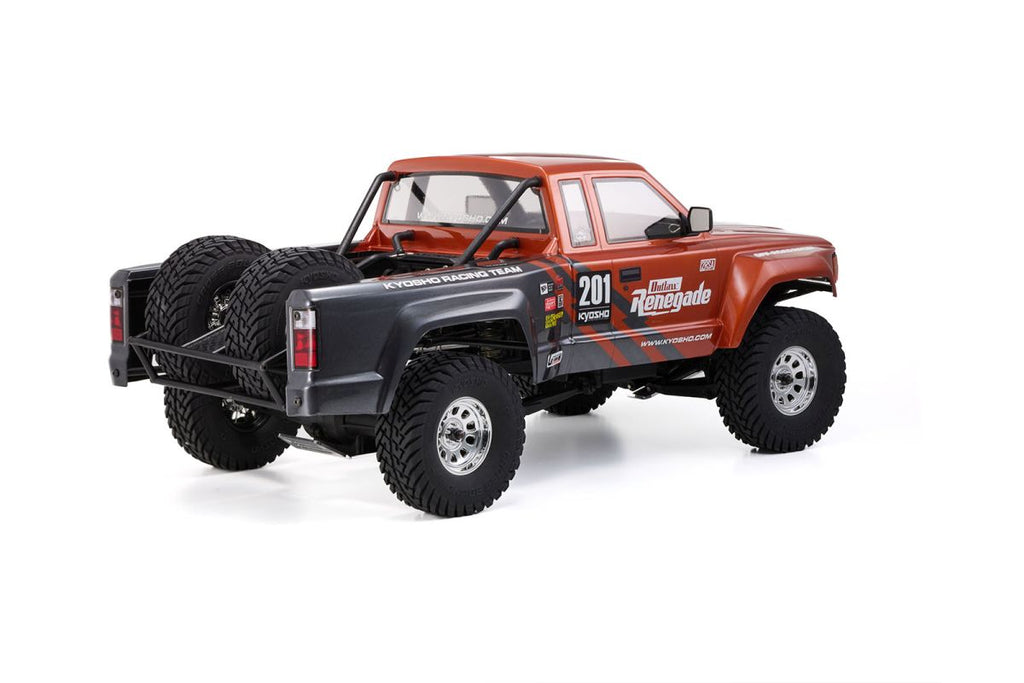

The Kyosho Outlaw Renegade is a 1/10 scale electric 2WD truck from the 2RSA (2WD Rear Solid Axle) series, wearing a pickup-style body inspired by the trucks of the 1980s. It is built on the proven Outlaw Rampage PRO 2.0 chassis, tuned for a lower, wider stance.
Wider front and rear track and a lower motor position make it stable and confident on high-grip surfaces while keeping the off-road ability of the solid-axle platform. It comes as an ARR kit, approximately 70% factory assembled, ready for your choice of electronics.
Key Features
- Retro 1980s pickup-style clear body, cut and pre-drilled, with decals
- Two front grille options: square or round headlights
- New wheel hubs and drive shafts widen the track 5mm per side (10mm total) versus the Rampage PRO 2.0
- Shorter rear upper links lower the motor position at ride height for a lower center of gravity

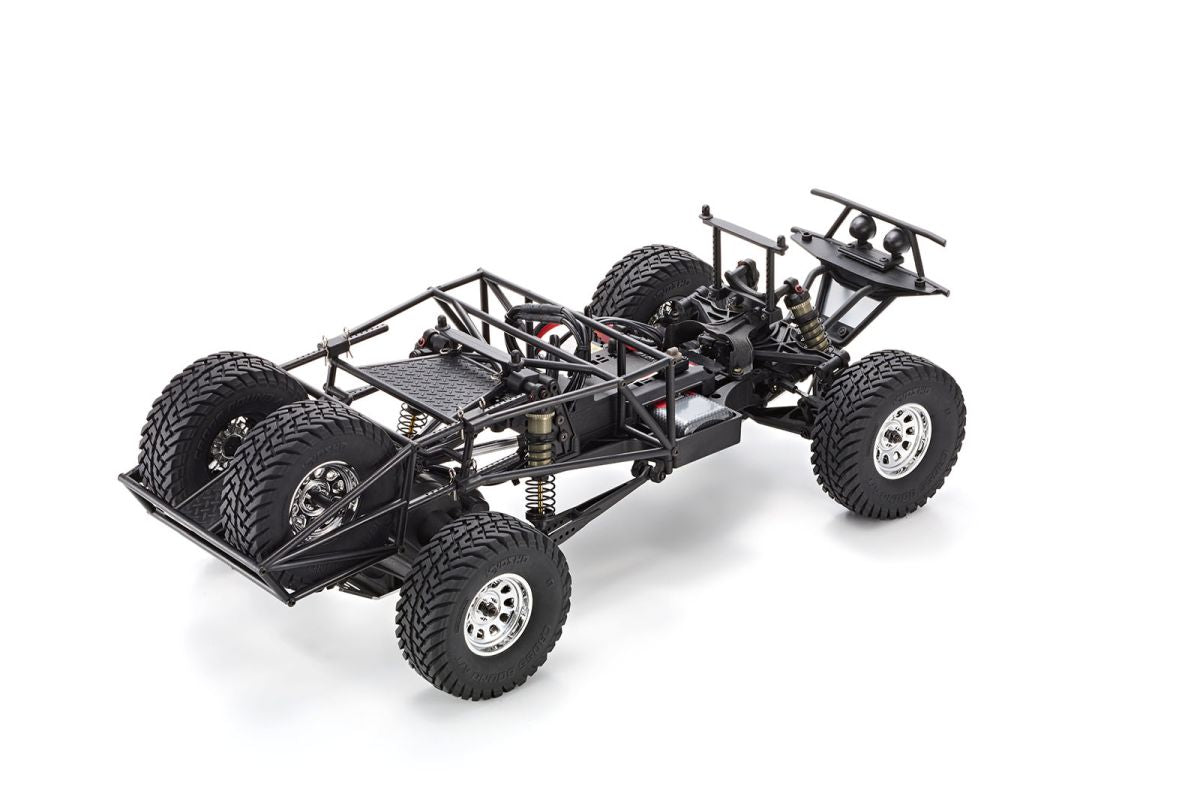

- Front double wishbone suspension and 4-link solid rear axle
- V2 gears, full ball-bearing drivetrain and aluminum oil shocks with titanium-coated shafts
- Aluminum front skid plate, spare resin skid plate and three-piece front bumper
- Scale-pattern tires on silver-plated wheels, plus two spare tires
- Lever-lock battery holder for quick battery changes
Performance Benefits
- Wider track and lower motor improve stability in fast corners
- Equally at home on dirt or on-road and high-grip surfaces
- Runs either brushed or brushless 540-class power
- Proven Rampage PRO 2.0 chassis means durable, well-supported parts
Usage Notes
- Paint the clear body with polycarbonate-compatible paint before use
- Accepts optional Kyosho LED light units (97054-2H or 97054-4H) and optional fog lamps (SCW017B), sold separately
- Follow the included instructions to finish assembly and install electronics
Technical Specs
- Brand: Kyosho
- Item No.: KYO34364 (Kyosho 34364)
- Scale: 1/10
- Drive: 2WD, rear solid axle (2RSA)
- Power Source: Electric
- Assembly Level: ARR, approx. 70% assembled
- Length: 561mm
- Width: 272mm (with body)
- Height: 220mm (with body)
- Wheelbase: 335mm
- Track (F/R): 214mm
- Tires (F/R): 108 x 38mm
- Gear Ratio: 12.65:1
- Weight: approx. 2,500g
What's Included
- (1) ARR chassis kit, approx. 70% pre-assembled
- (1) Cut and pre-drilled clear pickup body with decals
- (1) Hex wrench set (1.5/2.0/2.5mm) and cross wrench (4/5/5.5/7mm)
- (1) Diff oil (#10000) and shock oil (#350)
- (1) Set of setting spacers, shock pistons (1.2mm/1.4mm) and front/rear stabilizer bars (1.8mm/2.6mm)
- (1) Plastic front skid plate, body posts and spare tire mounting hardware
Needed to Complete
- 2-channel transmitter and receiver
- Steering servo
- 540-class motor (brushed or brushless)
- ESC
- Drive battery and charger
- Polycarbonate body paint
- Transmitter batteries
- Basic tools
Summary
- 1/10 EP 2WD 2RSA solid-axle truck ARR kit
- Retro 1980s pickup body with two grille choices
- 10mm wider track and lower motor for added stability
- Based on the Outlaw Rampage PRO 2.0 chassis
