Overview

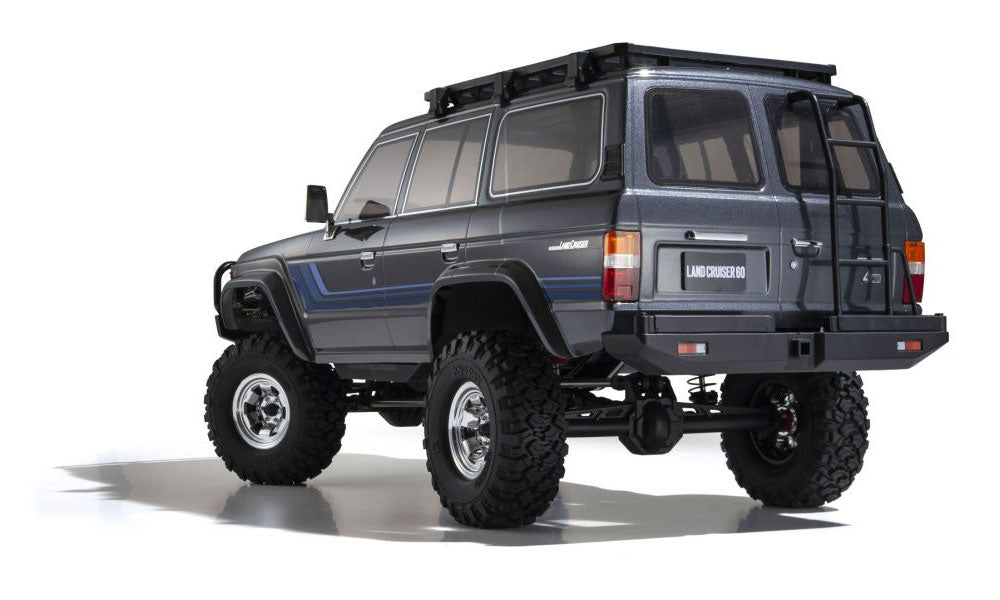

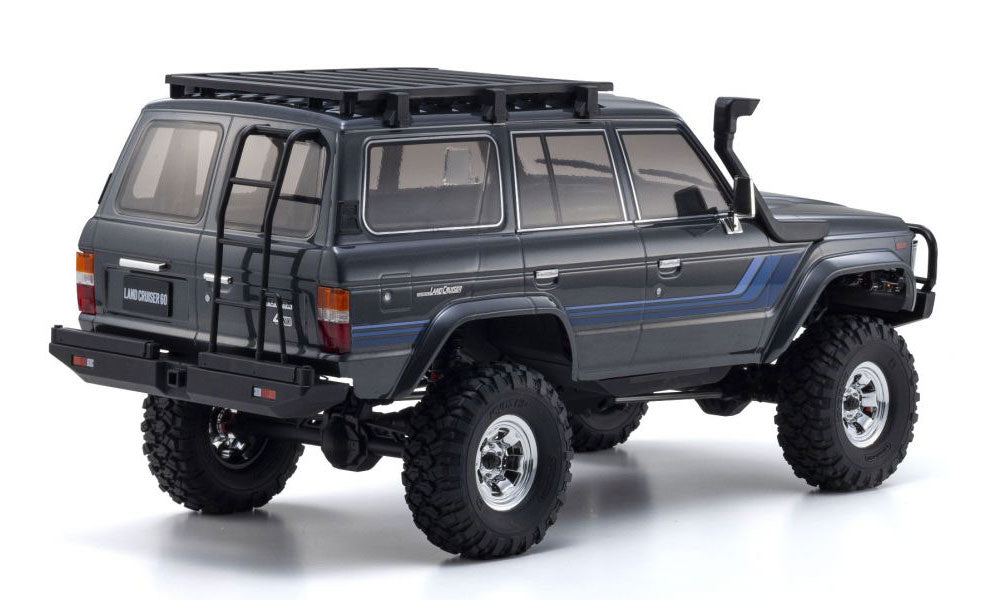

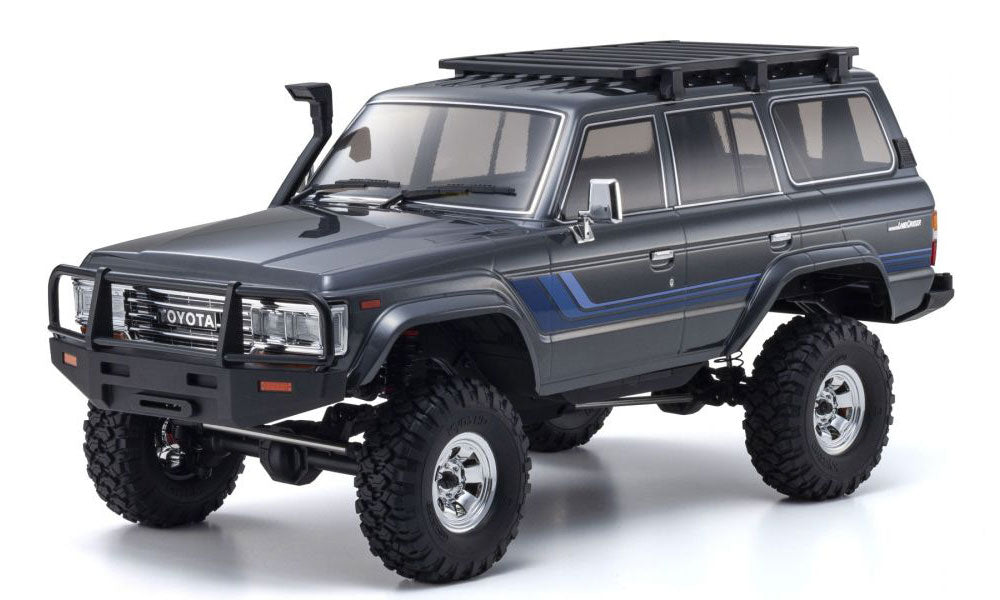

Experience off-road adventure with the Kyosho KC10 Toyota Land Cruiser 60 ReadySet, a striking blend of scale realism and serious crawling capability powered by the all-new KC10 chassis. This 1/10 scale electric crawler features a faithful reproduction of the iconic Toyota Land Cruiser 60 (Type 2 with door mirrors), complete with separate roof rack and rear ladder for authentic scale detail.

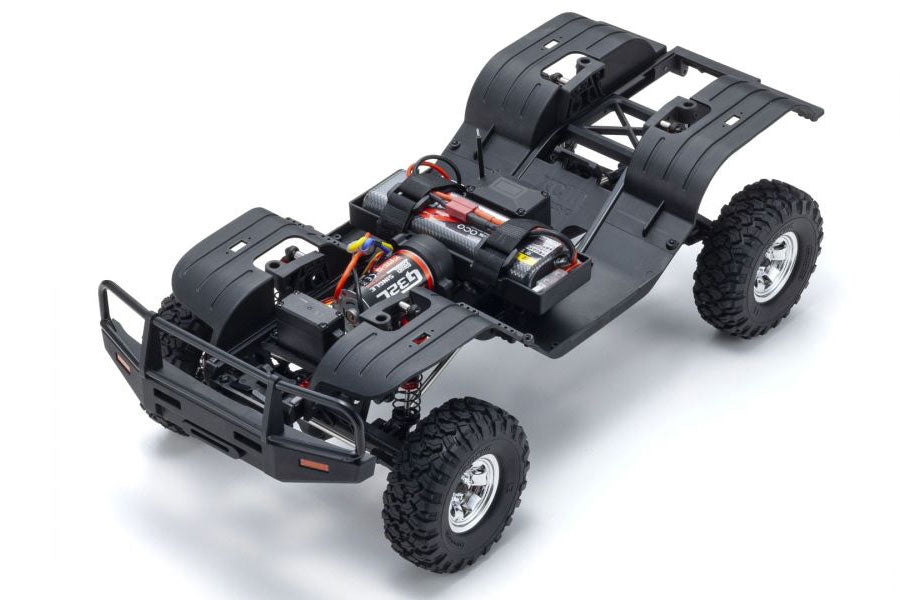

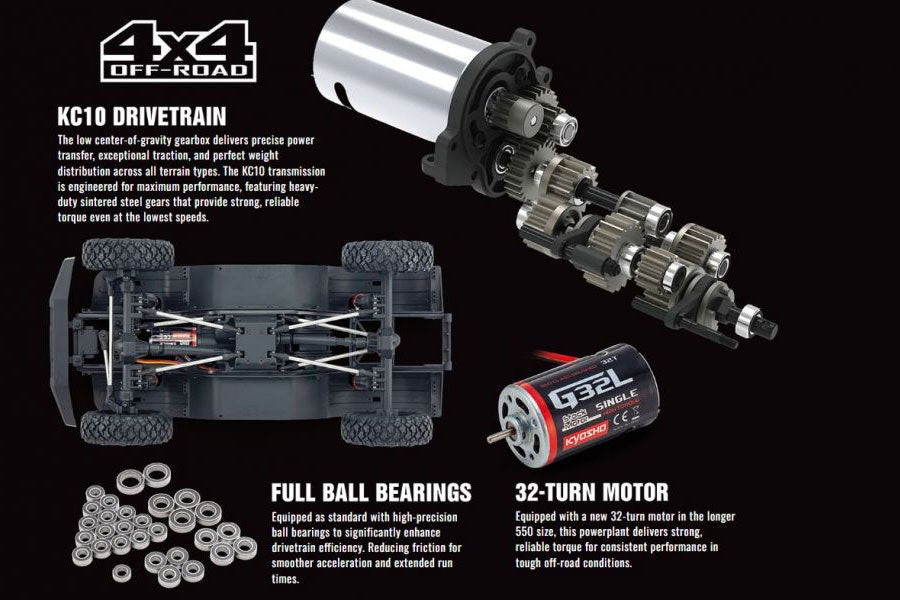

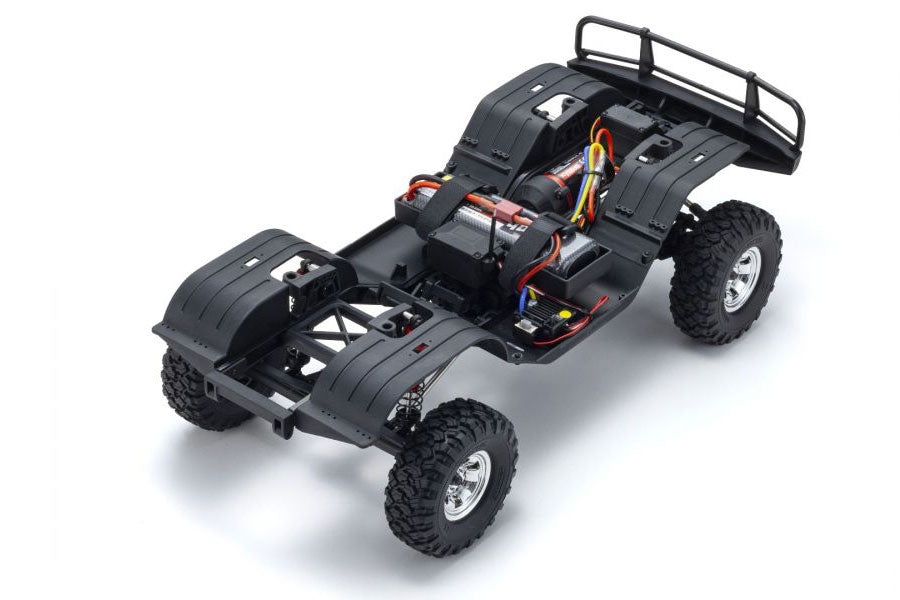

At its core is a high-rigidity pressed steel ladder frame paired with a sophisticated suspension setup incorporating 3-link front with lateral rod and 4-link rear system. Combined with a shaft-driven 4WD drivetrain featuring heavy-duty sintered steel gears, the KC10 delivers impressive crawling performance across the most challenging terrain.
Key Features
- 1/10 scale officially licensed Toyota Land Cruiser 60 body
- All-new KC10 crawler chassis
- Pressed steel ladder frame construction
- Multi-link suspension (3-link front, 4-link rear)
- Heavy-duty sintered steel gears
- Full ball bearing drivetrain
- 550-size 32T brushed motor
- 15kg high-torque servo
- 60A waterproof brushed ESC
- 1.9-inch beadlock wheels
- Clipless body mounting system
- DIG and 2-Speed ready (optional kits sold separately)
Performance Benefits
- Maximum climbing angle: 50 degrees
- Maximum stable tilt angle: 38 degrees
- Exceptional articulation and ground clearance
- Approximately 80 minutes run time (2S LiPo 4000mAh)
- Scale appearance with hidden body mounts
Usage Notes
Ready for trail adventures out of the box. Optional DIG Kit (CLW002) enables rear wheel locking for tight turns. Optional 2-Speed Kit (CLW001) adds high gear capability. A 4-channel transmitter is required to use both functions simultaneously.
Technical Specs
- Scale: 1/10
- Length: 552mm
- Width: 236mm (excluding mirrors)
- Height: 255mm
- Wheelbase: 317mm
- Tread: 208mm
- Weight: 3,080g (with 2S LiPo)
- Tire Diameter: 110mm
- Gear Ratio: 49.11:1 (Low) / 21.05:1 (High with CLW001)
- Motor: G32L 32T Brushed (550 class)
- Max Speed: 5km/h (11km/h in High with CLW001)

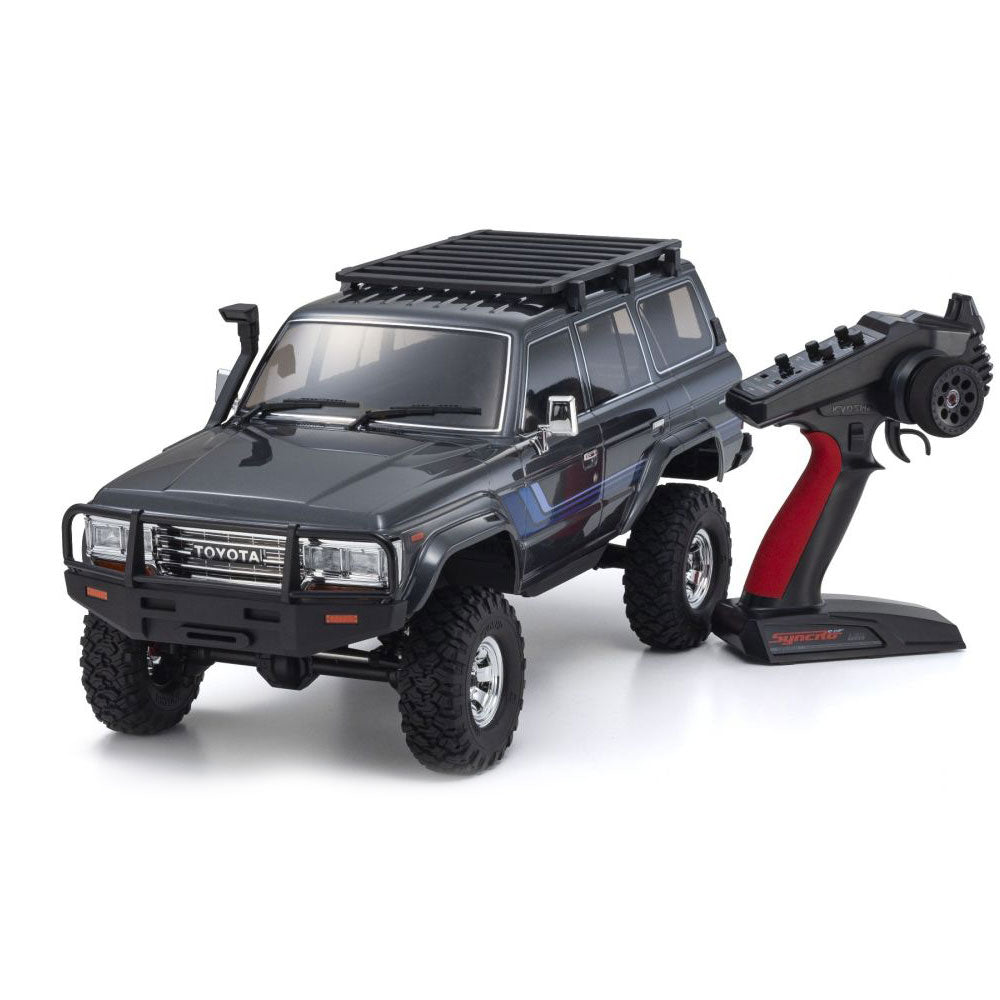

What's Included
- Factory assembled KC10 chassis
- Pre-painted Toyota Land Cruiser 60 Type 2 body
- Roof rack and rear ladder
- Syncro KT-231P+ 2.4GHz transmitter
- 15kg metal gear servo
- 60A waterproof brushed ESC
- 550-size 32T brushed motor
- L-shaped hex wrench (1.5mm, 2.0mm)
- Cross wrench (4/5/5.5/7mm)
Needed to Complete
- 4x AA batteries for transmitter
- 7.2V Ni-MH or 2S LiPo battery (max 143×47×30mm)
- Battery charger
Summary
The Kyosho KC10 Toyota Land Cruiser 60 delivers the full thrill of off-road crawling in stunning 1/10 scale detail. With its robust chassis, advanced suspension, and highly detailed body, this ReadySet is perfect for scale enthusiasts and trail adventurers alike.
