Overview

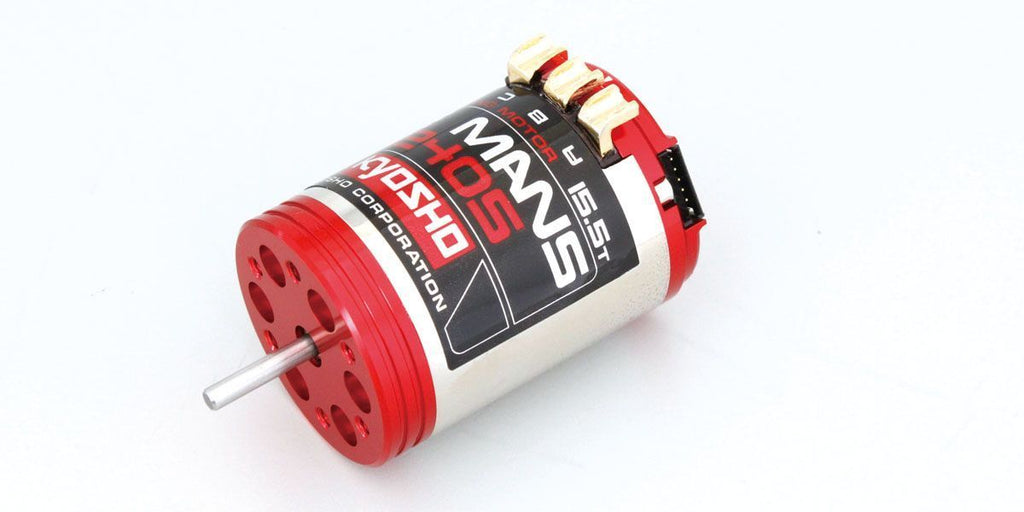

The Kyosho LE MANS 240S Brushless Motor 15.5T is a premium sensored brushless competition motor designed specifically for 1/10 scale 4WD racing applications. Carrying the legendary LE MANS name that dominated RC racing in the 1980s, this motor combines nostalgic styling with modern brushless technology to deliver championship-level performance.
Engineered for stock and spec racing classes, the 240S provides smooth, linear power delivery with exceptional thermal stability. The dustproof design without cooling holes makes it ideal for rear-mounted motor configurations like the Vintage Series, protecting internal components from dust and debris during intense competition.
Key Features
- 15.5-turn sensored brushless motor optimized for 4WD racing
- Dustproof design without cooling holes for rear-motor applications
- Nickel-plated motor can with brilliant mirror finish
- CNC-machined front and rear bells with red anodized finish
- 6-ball front bell design inspired by classic 1980s motors
- Adjustable end bell timing with easy-to-read scales
- Gold-plated A, B, C terminals with U-shape for easy soldering
Performance Benefits
- Smooth, linear throttle response for precise control
- Ultra-smooth startup from sensored design
- Excellent thermal stability for consistent performance
- High 90% efficiency reduces heat buildup
- Consistent power output through long mains
Usage Notes
Compatible RC Scales: 1/10 scale 4WD touring cars, buggies, and on-road vehicles
Best For: Stock/spec racing classes, 4WD competition, club racing, organized events
Requires a compatible sensored brushless ESC. The 15.5T specification is one rank above typical stock class for strong performance without strain.
Technical Specs
Motor Specifications
-
Brand: Kyosho
-
Series: LE MANS 240S
-
Turns: 15.5T
-
Motor Type: Sensored Brushless
-
KV Rating: 2550 RPM/V
-
RPM @ 7.4V: 18,870
-
Operating Voltage: 1-3S / 12.6V max
-
Max Current: 38A
-
Max Power: 320W
-
Efficiency: 90%
-
Weight: 179g
-
Motor Diameter: 35.8mm
-
Motor Length: 51.2mm
-
Shaft Diameter: 3.175mm
-
Shaft Length: 15mm
-
Part Number: 37032B
What's Included
- (1) Kyosho LE MANS 240S 15.5T Sensored Brushless Motor
- (1) Rotor maintenance tool (plastic parts)
- (1) Instruction manual
Fitment
- Kyosho 1/10 scale 4WD touring cars
- Kyosho 4WD buggies (Optima, Ultima series)
- Kyosho Vintage Series with rear-mounted motor
- Compatible with any sensored brushless ESC
Summary
The Kyosho LE MANS 240S Brushless Motor 15.5T combines legendary heritage with modern racing technology. With its dustproof design, exceptional efficiency, and precise sensored control, this motor delivers the smooth, consistent power that 4WD racers need for competitive stock and spec class racing. The classic styling pays homage to Kyosho's championship-winning legacy while providing cutting-edge brushless performance.
