Description
Overview
The Kyosho LE MANS 240S Low Profile Servo KS4241-08M is a high-performance steering servo designed for 1/10 scale RC racing applications. Featuring a thin, lightweight low-profile design, this servo delivers exceptional speed and torque while fitting perfectly in chassis with limited vertical clearance.
Part of Kyosho's respected LE MANS 240S series, this servo features a hybrid internal gear design combining four materials - steel, brass, aluminum, and plastic - for optimal performance and durability. The coreless motor technology produces superior speed and precise throttle response, making it an excellent upgrade from standard RTR servos.
Key Features
- Low-profile design (21mm height) fits tight chassis spaces
- Hybrid 4-material gear train: steel, brass, aluminum, plastic
- Aluminum servo horn with ball bearing support (top and bottom)
- Coreless motor for superior speed and torque
- Wide voltage range: 6.0V - 7.4V operation
- Lightweight 42.1g construction
Performance Benefits
- Fast 0.08 sec/60° response at 7.4V for quick steering
- Strong 8.2 kg-cm torque at 7.4V for precise control
- Ball bearing supported output for smooth, precise movement
- Reduced weight improves overall vehicle handling
- Direct upgrade path from standard RTR servos
Usage Notes
Compatible RC Scales: 1/10 scale on-road and off-road vehicles
Best For: Touring cars, buggies, drift cars, low-profile chassis designs, RTR upgrades
Verify servo mounting dimensions and connector compatibility before installation.
Technical Specs
- Brand: Kyosho
- Series: LE MANS 240S
- Model: KS4241-08M
- Dimensions: 40.5 × 26.5 × 21mm (Low Profile)
- Weight: 42.1g
- Operating Voltage: 6.0V - 7.4V
- Speed: 0.08 sec/60° (7.4V) / 0.09 sec/60° (6.0V)
- Torque: 8.2 kg-cm (7.4V) / 7.0 kg-cm (6.0V)
- Gear Material: Hybrid (Steel/Brass/Aluminum/Plastic)
- Motor Type: Coreless
- Part Number: 37061

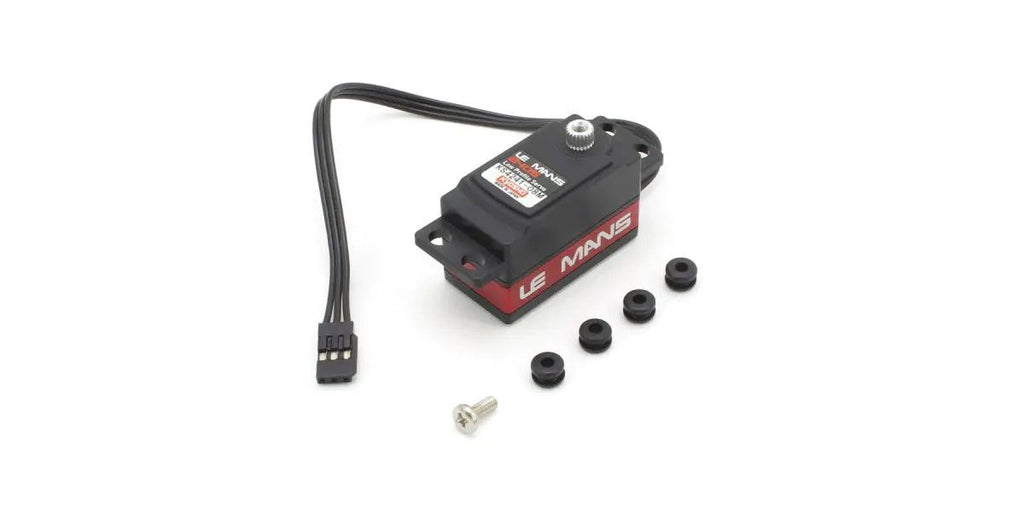

What's Included
- (1) Kyosho LE MANS 240S Low Profile Servo KS4241-08M
- (1) Grommet set
- (1) Horn set screw
- (1) Instruction manual
Fitment
- Kyosho 1/10 scale touring cars and buggies
- Kyosho Fazer, Optima, Ultima platforms
- Low-profile chassis requiring slim servo height
- Universal fit for most 1/10 scale RC vehicles
Summary
The Kyosho LE MANS 240S Low Profile Servo KS4241-08M delivers premium steering performance in a compact, lightweight package. With its hybrid gear design, coreless motor technology, and impressive speed/torque specifications, this servo provides a significant upgrade for competitive racers seeking precise, responsive steering control.
