Overview

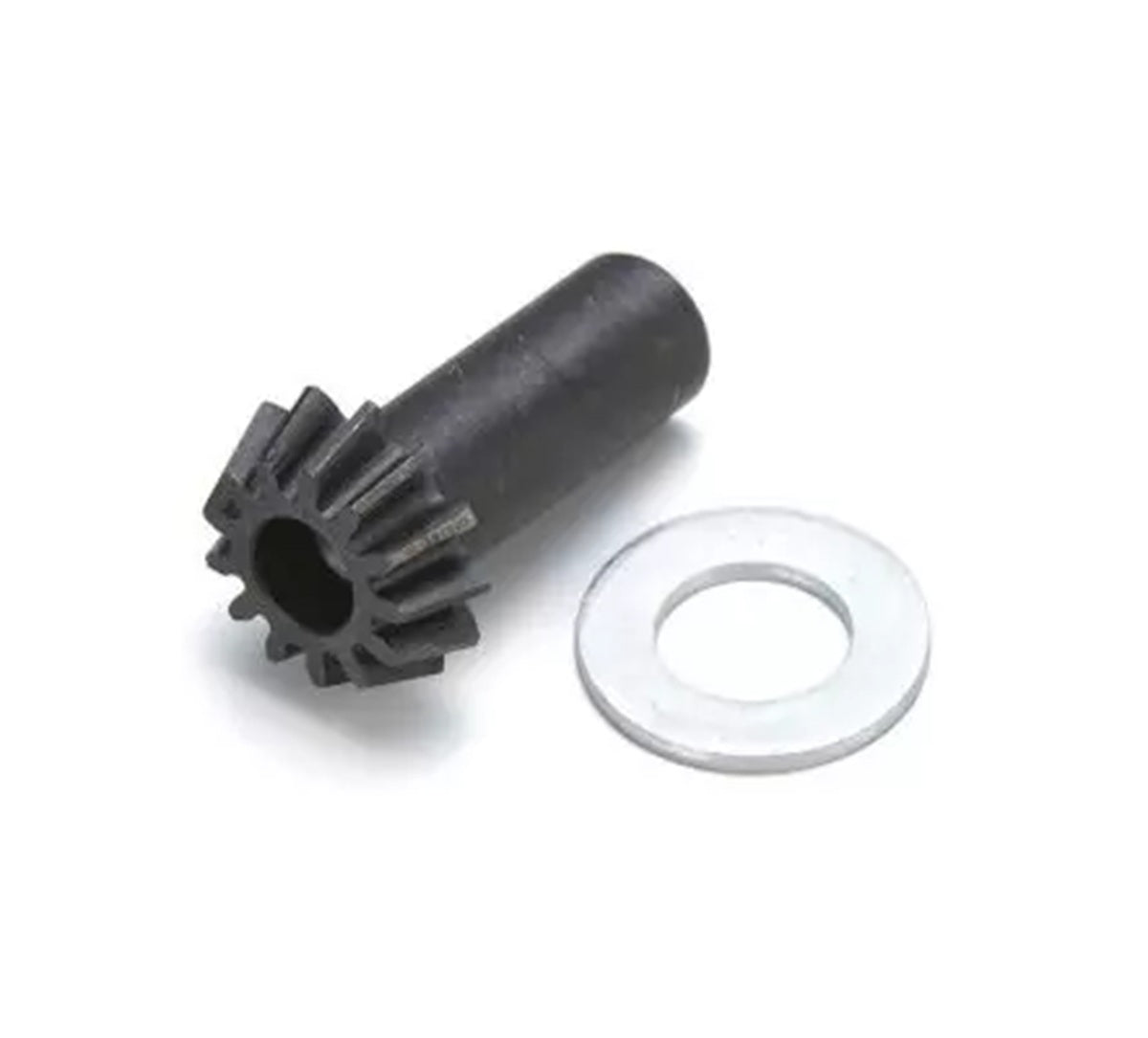

This genuine Kyosho 13-tooth drive bevel gear is a replacement part for Kyosho's 1/8 scale Inferno platform and related models. It is the small pinion-style bevel gear on the input shaft of the differential. It meshes with the differential ring gear and turns drive from the center driveshaft into rotation of the front or rear differential.
The gear is made of steel to handle the load of nitro and brushless power. A drive bevel gear with worn or chipped teeth can make noise, slip under load and damage the ring gear it runs against. Replacing it keeps the differential running smoothly.
Key Features
- 13-tooth drive (input) bevel gear
- Steel construction
- Genuine Kyosho replacement part
- Used across many Inferno-based Kyosho models
Performance Benefits
- Restores clean, quiet gear mesh with the differential ring gear
- Steel teeth resist wear and chipping under hard acceleration and landings
- Replacing a worn gear helps prevent further damage to the ring gear
Usage Notes
- Inspect the ring gear when replacing the drive bevel gear; if both are worn, replace them as a pair for best mesh
- Check the input shaft bearings in the differential case at the same time
- Grease the gear mesh inside the differential case as described in your model's manual
- Check your model's parts list to confirm IF21 is the drive gear it uses
Technical Specs
- Part type: drive bevel gear (differential input)
- Tooth count: 13T
- Material: steel
What's Included
Fitment
Compatible RC vehicles: Kyosho Inferno MP7.5, Inferno MP777, Inferno NEO (including NEO 2.0 / 3.0 and VE), Inferno GT, GT2 and GT2 VE, Mad Force Kruiser (GP / VE / 2.0), FO-XX (GP / EP), Mad Crusher (GP / EP) and USA-1 (GP / EP).
Summary
- Genuine Kyosho 13T steel drive bevel gear
- Meshes with the differential ring gear to drive the diff
- Fits Inferno MP7.5, MP777, NEO and GT series and related Kyosho models
- Replace it when worn to protect the ring gear
