Overview
The MStyle R/C Set is an all-in-one electronics package for building or upgrading a 1/10 scale electric RC car. It pairs the MStyle T-401 2.4GHz 4-channel pistol-grip transmitter with a waterproof R-401 receiver, a water-resistant S-602W 6kg steering servo, a 7.2V 2000mAh NiMH stick pack and a C-U02 USB delta-peak charger.
Crystal-free 2.4GHz FHSS technology means you can drive alongside friends without worrying about frequency conflicts, and the waterproof receiver and water-resistant servo let you run in mud, rain, puddles and snow. Add an ESC and motor and your car is ready to go.
Key Features
- MStyle T-401 digital 2.4GHz FHSS 4-channel pistol-grip transmitter
- Waterproof R-401 4-channel receiver with built-in failsafe
- S-602W water-resistant servo: 6kg-cm at 4.8V, 7kg-cm at 6V
- 7.2V 2000mAh NiMH stick pack with Tamiya plug
- C-U02 USB delta-peak charger for 2-8 cell NiMH packs
- Servo reversing, steering dual rate, end point adjustment and center trim
- Foam-covered steering wheel and audible low-battery / left-on warnings
- Built-in light controller channel for compatible LED light kits
Performance Benefits
- Matched transmitter, receiver, servo, battery and charger take the guesswork out of choosing electronics
- Frequency-hopping 2.4GHz gives a stable, interference-resistant link
- Waterproof receiver and water-resistant servo make it suitable for all-weather bashing
- Adjustable failsafe protects your car if the signal is lost
- Lightweight transmitter runs on just 4 AA batteries
Usage Notes
- An ESC and motor are not included; the receiver needs a 6V BEC with at least 35mA output
- The transmitter needs 4 AA batteries (not included)
- The charger runs from a USB power adapter; one rated at 2A is recommended
- Bind the transmitter and receiver, set the failsafe and do a range check before your first run
- Fully charge the NiMH pack before first use
Technical Specs
- Brand: MStyle
- Item No.: MSL542409

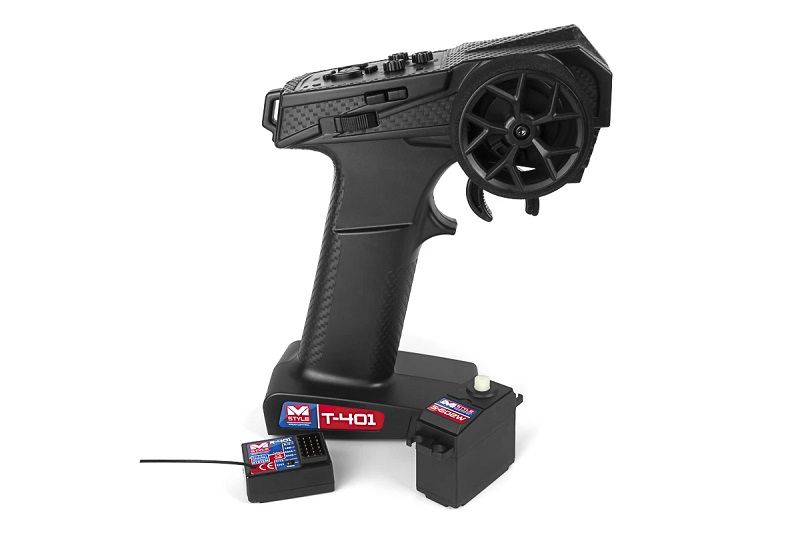

- Transmitter: T-401, 2.4GHz FHSS, 4 channels, 4x AA powered

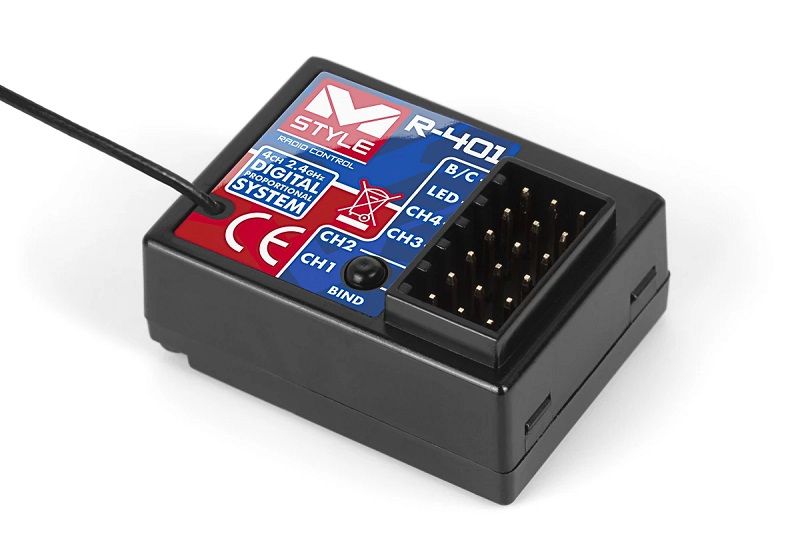

- Receiver: R-401, 4 channels, waterproof, 35 x 26 x 17mm, 13g

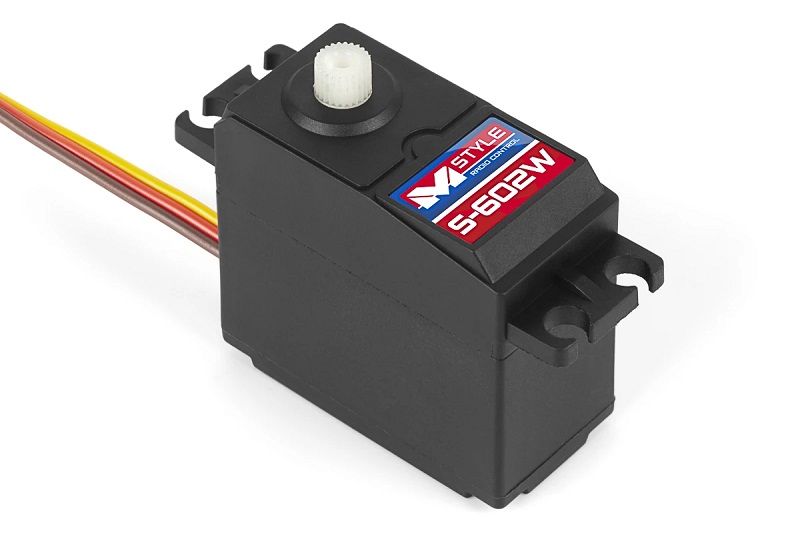

- Servo: S-602W, 4.8-6V, 0.18 sec/60° and 6kg-cm at 4.8V, 0.16 sec/60° and 7kg-cm at 6V, 25T spline, 40 x 37.5 x 20mm, 46g

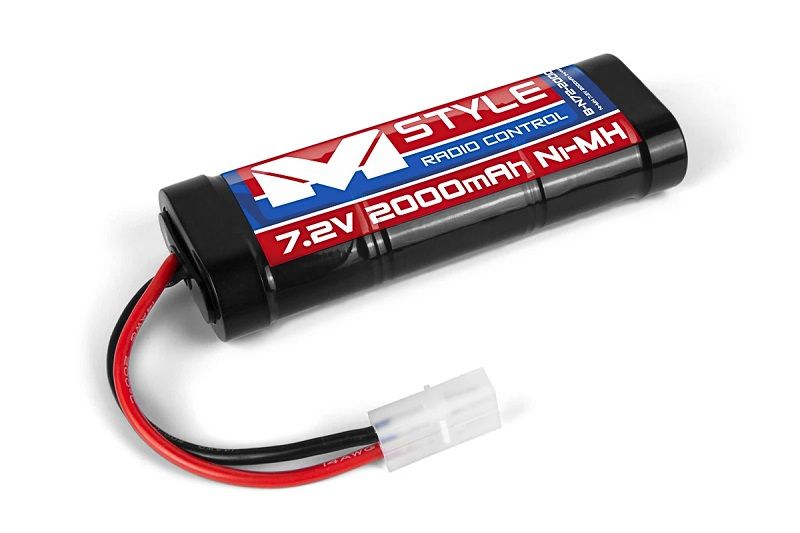

- Battery: 7.2V 2000mAh NiMH stick pack, Tamiya connector

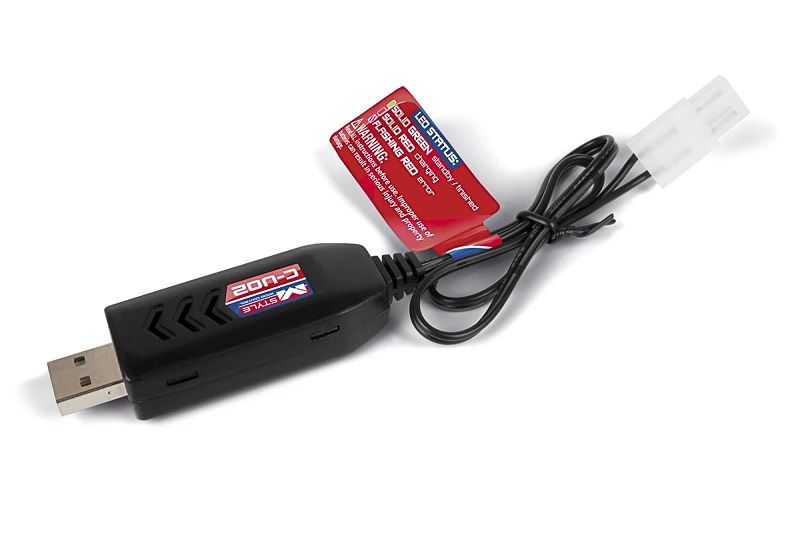

- Charger: C-U02 USB delta-peak, 2-8 cell NiMH (600-2500mAh), 5V USB input (2A recommended), Tamiya connector
What's Included
- (1) MStyle T-401 2.4GHz 4-channel transmitter
- (1) MStyle R-401 4-channel waterproof receiver
- (1) MStyle S-602W 6kg water-resistant servo
- (1) 7.2V 2000mAh NiMH stick pack with Tamiya plug
- (1) MStyle C-U02 USB NiMH charger
Needed to Complete
- (4) AA batteries for the transmitter
- Electronic speed control (ESC) with a 6V BEC and a motor
- USB power adapter (2A recommended) for the charger
Fitment
Compatible RC vehicles: 1/10 scale electric RC cars and trucks that take a standard-size steering servo and a 7.2V stick pack with a Tamiya connector.
Summary
- Complete MStyle radio, receiver, servo, battery and charger set
- 2.4GHz 4-channel T-401 radio with waterproof R-401 receiver
- 6kg water-resistant servo and 7.2V 2000mAh NiMH pack with USB charger
- Just add an ESC, motor and 4 AA batteries
