MyTrickRC 2-Way LED Splitter with Quick Disconnect -RY2QD

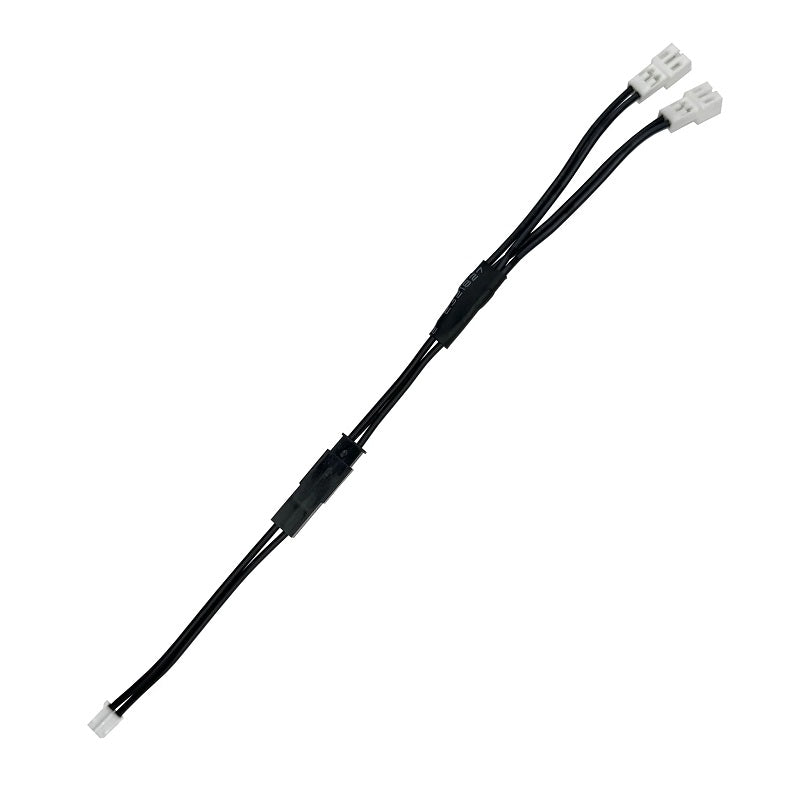

MyTrickRC's 2-Way LED Splitter with Quick Disconnect lets you connect up to two LEDs to one Port on your MyTrickRC Lighting Controller - giving you the ability expand your lighting capabilities!

The 2-Way LED Splitter with Quick Disconnect can be used with any of their Lighting Controllers, making expanding your lighting system easier than ever. The parallel black wires are optimized for clean installs in either 1/10th or 1/18th scale vehicles. This cable can be used either with Standard Power LEDs like our 3mm & 5mm LEDs, or with High Power Lights such as their Attack Light Bars, Rock Lights, Pods, Spot Lights, Wafer Headlights, and Halos!

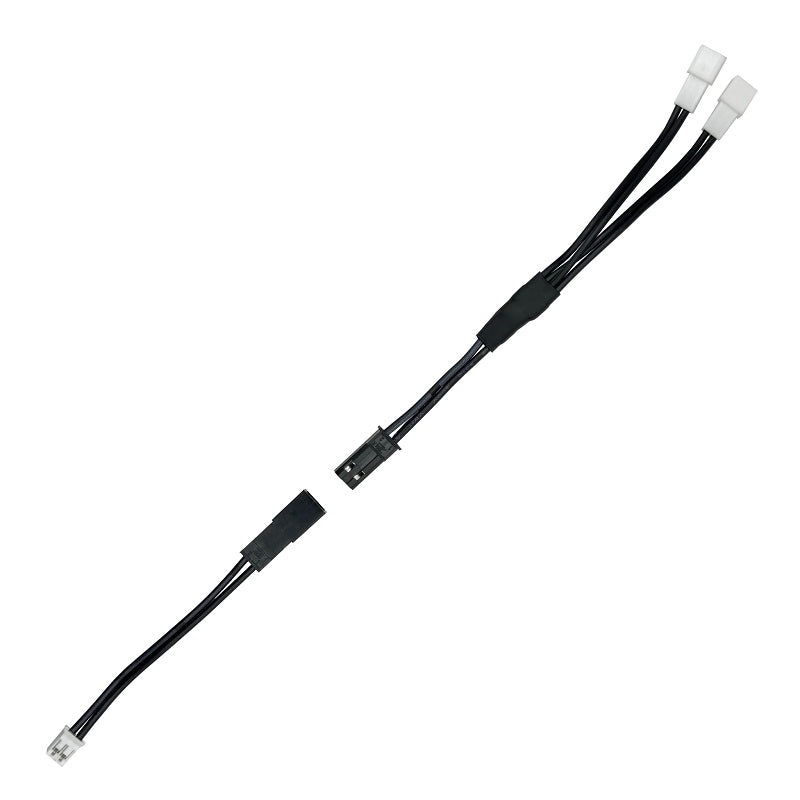

Quick Disconnect Feature

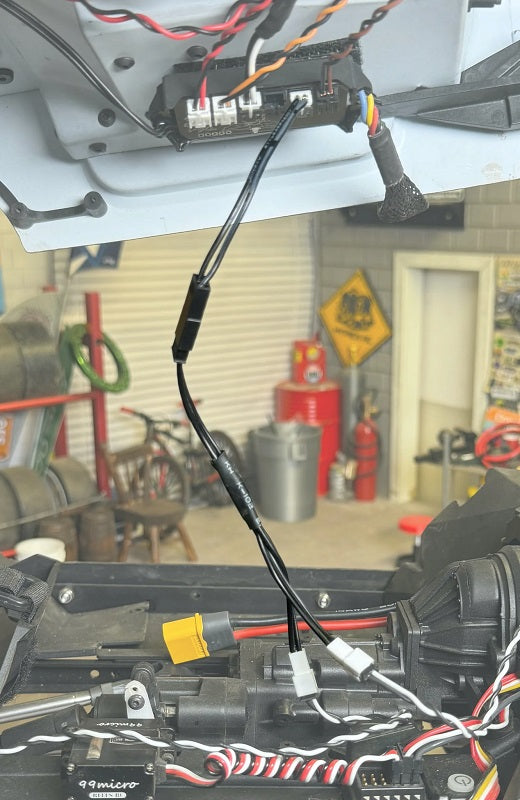

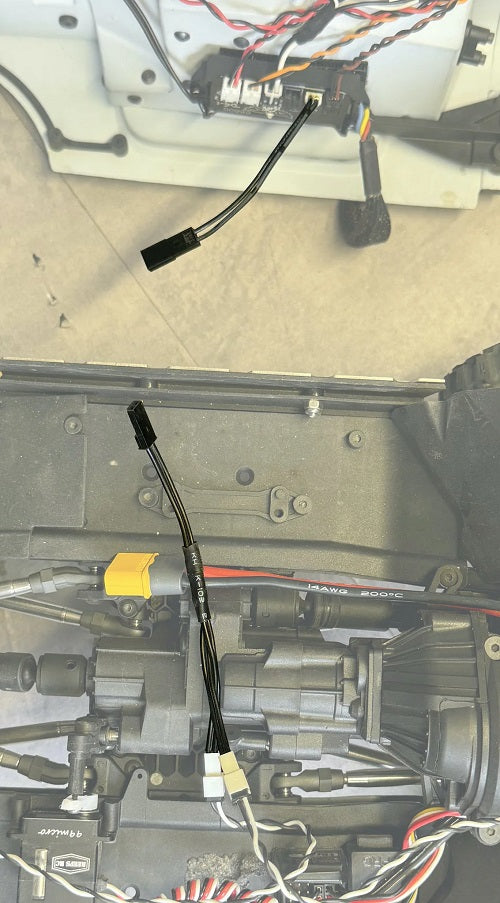

This cable's handy Quick Disconnect feature lets you easily disconnect your vehicle Body from the Chassis so you can work on it without having to remove your lights.

NOTES
Group A = RED, ORANGE, and AMBER LEDs (are compatible with each other)
Group B = WHITE, BLUE, and GREEN LEDs (are compatible with each other)
Groups A & B are not compatible with each other. So, if you connect a RED and WHITE LED together, only the RED will turn on. This is because Group A LEDs have a lower voltage drop, so Group A steals all the power if combined together.
When using these with High Power Attack Lighting, DO NOT connect more than two Light Bars, or four pairs of Attack Headlights, Rock Lights, Spot Lights, Halos, or Wafer LEDs to this cable - you risk overheating it.
The 2-Way LED Splitter with Quick Disconnect can be used with the DG-1 or UF-7C controllers. However, if you have a UF-7C you will also need a Standard Light Bar Regulator. The Standard Light Bar Regulator will ensure that your Rock Lights never receive too high of a voltage, which could damage them.
