Overview
The MyTrickRC Arrma Gorgon/Quake Light Kit adds blue underglow lighting to the 1/10 scale Arrma Gorgon and Arrma Quake monster trucks. The kit has two high-brightness underglow light bars, made to scale for the left and right sides of the truck, which light up the ground under the chassis.
The kit is plug and play. The light bars connect to MyTrickRC's dual-output Attack Light Regulator, and the regulator is powered directly from the truck's receiver, so no extra battery is needed. On the Quake, the included servo splitter shares the steering channel with the regulator. On the Gorgon, the splitter is not needed.
Key Features
- (2) high-brightness blue underglow light bars, made to scale for the left and right sides
- Dual-output Attack Light Regulator
- Powered by the receiver with plug and play wiring
- Light bars screw to the chassis
- Servo splitter included for the Quake
- Zip ties included for tidy cable routing
Performance Benefits
- Makes the truck easy to see and follow at dusk and at night
- Screwed-on light bars stay in place when bashing
- No separate light battery to charge or switch on
Usage Notes
- Tools needed: 2 mm hex (Allen) driver and a nipper to trim the zip ties
- Quake: plug the regulator and steering servo into the receiver's steering socket using the included servo splitter
- Gorgon: the servo splitter is not needed
- Route and zip-tie the wires away from the driveshafts, spur gear and suspension
- The lights are on whenever the receiver is powered
Technical Specs
- Light color: Blue
- Light bars: (2) underglow bars, left and right
- Controller: MyTrickRC dual-output Attack Light Regulator
- Power: from the receiver (servo connector)
- Mounting: screws to the chassis

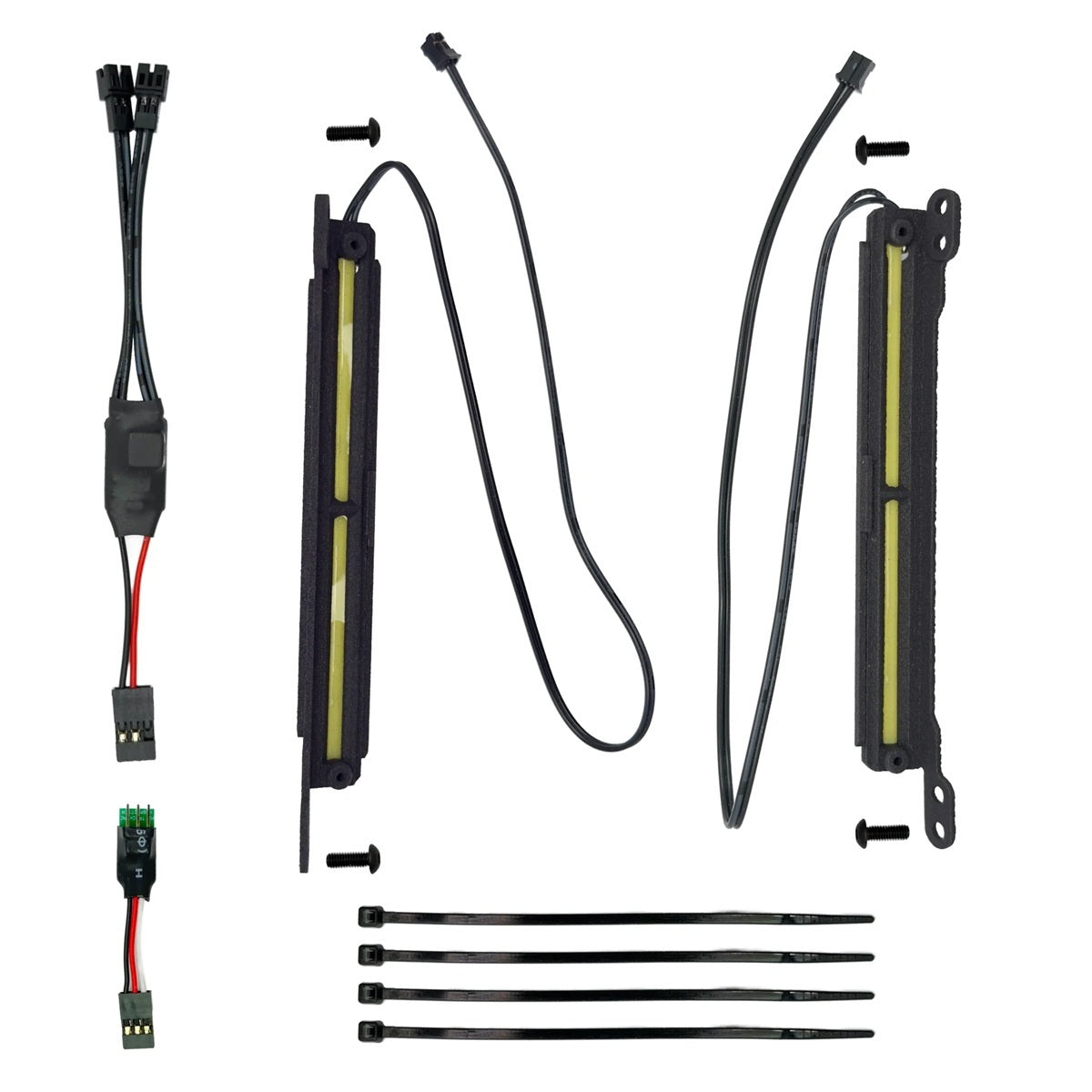

What's Included
- (2) Underglow light bars, left and right
- (1) Dual-output Attack Light Regulator
- (1) Servo splitter
- Mounting screws
- Zip ties
Fitment
Compatible RC vehicles: Arrma Gorgon 1/10 scale monster truck and Arrma Quake 1/10 scale monster truck.
Summary
- Blue underglow light kit for the Arrma Gorgon and Quake 1/10 monster trucks
- Two high-brightness light bars with a dual-output Attack Light Regulator
- Powered by the receiver with plug and play wiring, so no extra battery is needed
- Includes a servo splitter for the Quake, plus mounting screws and zip ties
