Overview
The MyTrickRC Gorgon/Quake Light Kit in white is a bolt-on underglow lighting system made for the ARRMA Gorgon and ARRMA Quake 1/10 scale 2WD monster trucks. Two high-brightness underglow light bars mount to the left and right sides of the chassis and light up the underside of the truck in white.
The kit powers directly from the truck's receiver through the included Dual Output Attack Light Regulator, so no separate lighting battery is needed. A servo splitter is supplied to share the receiver's steering channel with the lights; it is required on the Quake and optional on the Gorgon.
Key Features
- Two high-brightness underglow light bars (left and right) in white
- Custom-shaped light bars made to mount on the Gorgon/Quake chassis
- Dual Output Attack Light Regulator feeds both light bars
- Powers from the receiver – no extra battery or switch harness required
- Servo splitter included for connection through the steering channel
- Plug-and-play installation with supplied screws and zip ties
Performance Benefits
- Makes the truck easy to see and track when driving at dusk or at night
- Lights come on automatically whenever the receiver is powered
- No added battery pack keeps the install light and simple
- Zip-tie wire management keeps the harness clear of moving suspension and drivetrain parts
Usage Notes
- Tools needed for installation: 2mm hex driver and side cutters (nippers)
- The light bars mount to the chassis; the regulator plugs into the receiver
- On the ARRMA Quake, use the included servo splitter on the receiver's steering port to power the lights alongside the steering servo
- On the ARRMA Gorgon, the servo splitter is optional
- Route and secure all wiring with the included zip ties away from the spur gear, driveshafts and suspension
- Also offered in white, red, green, blue, yellow and purple
Technical Specs
- Brand: MyTrickRC
- Light type: LED underglow light bars
- Light color: White
- Number of light bars: 2 (left and right)
- Power source: Receiver (via Dual Output Attack Light Regulator)
- Scale: 1/10

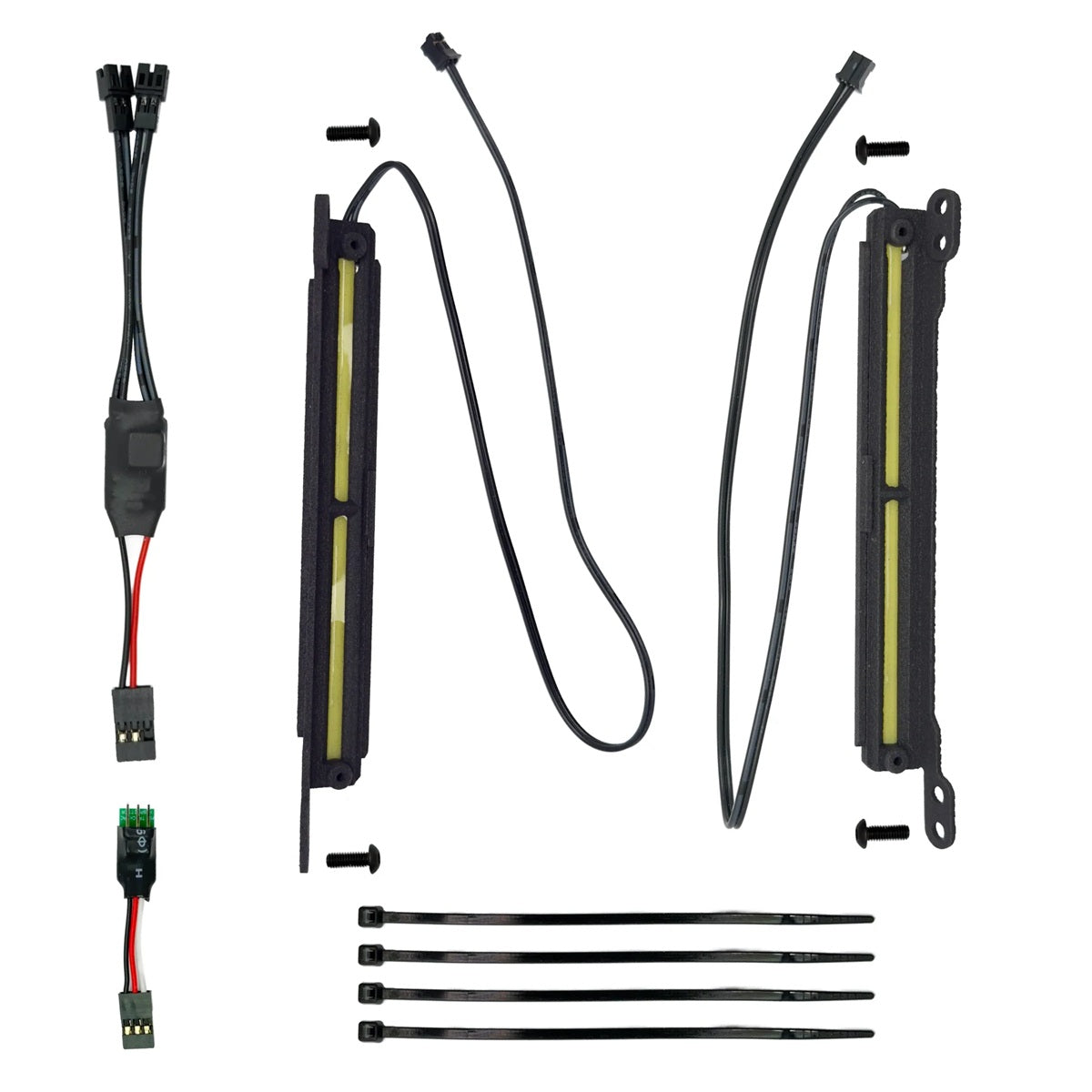

What's Included
- (2) Custom scale underglow light bars, white (left and right)
- (1) Dual Output Attack Light Regulator
- (1) Servo splitter
- (1) Set of mounting screws
- (1) Set of zip ties
Fitment
Compatible RC vehicles: ARRMA Gorgon 1/10 2WD monster truck; ARRMA Quake 1/10 2WD monster truck.
Summary
- White LED underglow kit for the ARRMA Gorgon and Quake
- Two chassis-mounted light bars powered from the receiver
- Regulator, servo splitter, screws and zip ties included
- Installs with a 2mm hex driver and side cutters
