Overview

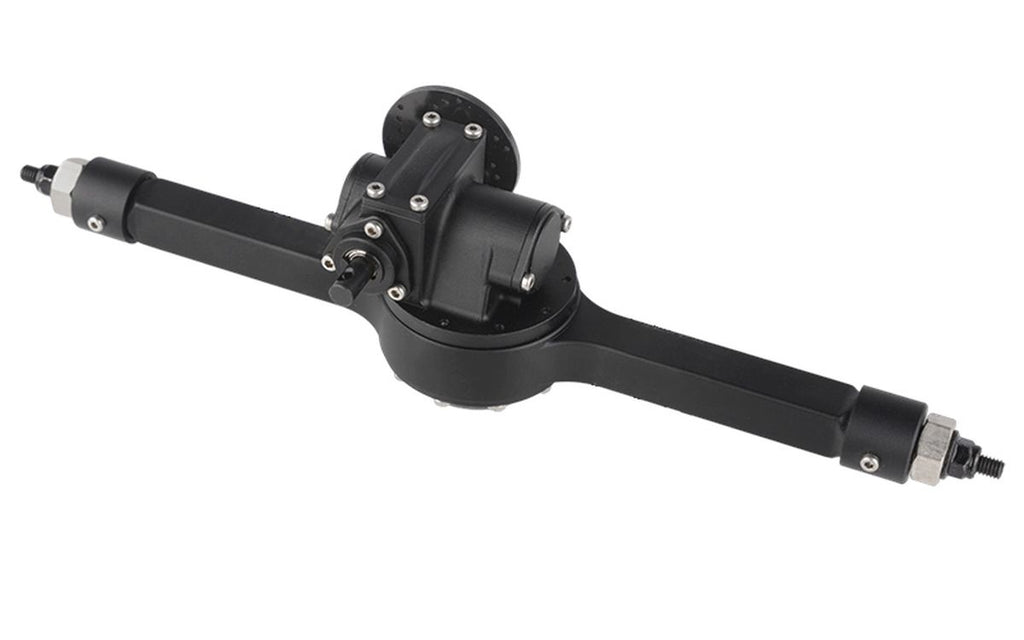

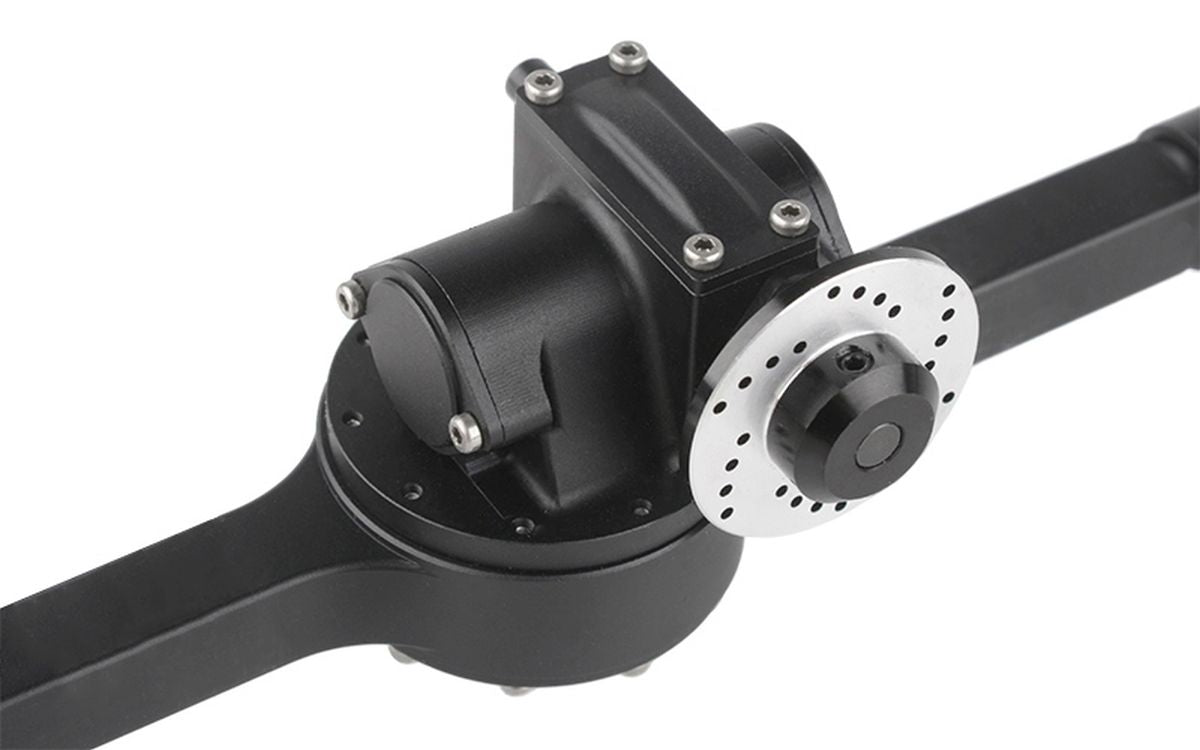

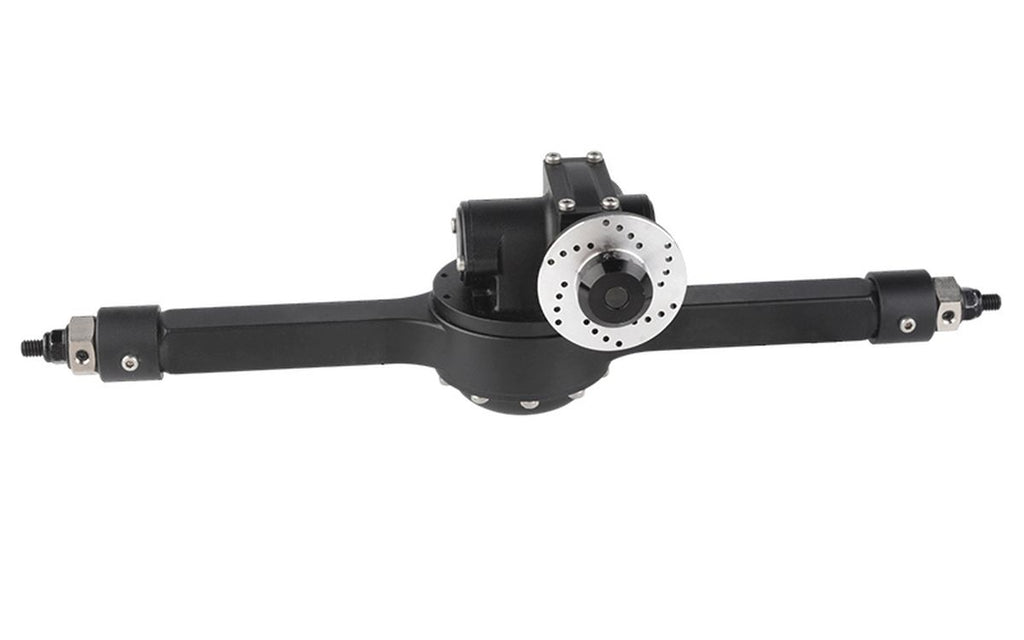

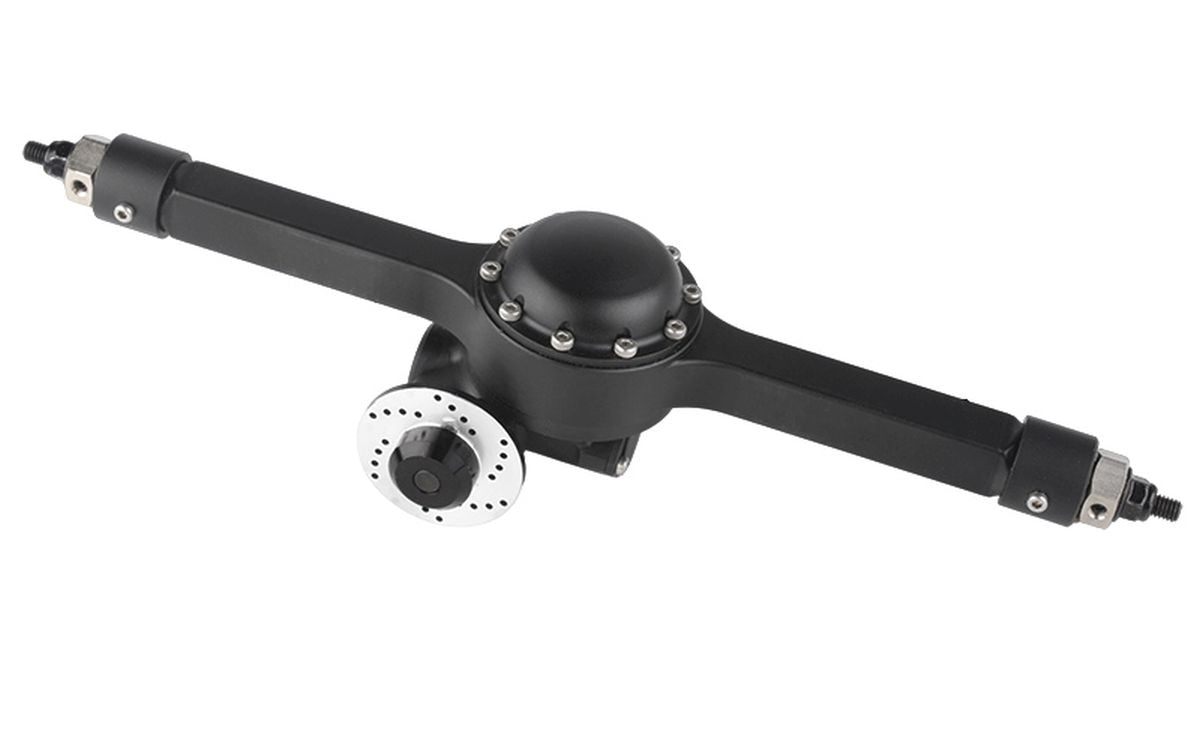

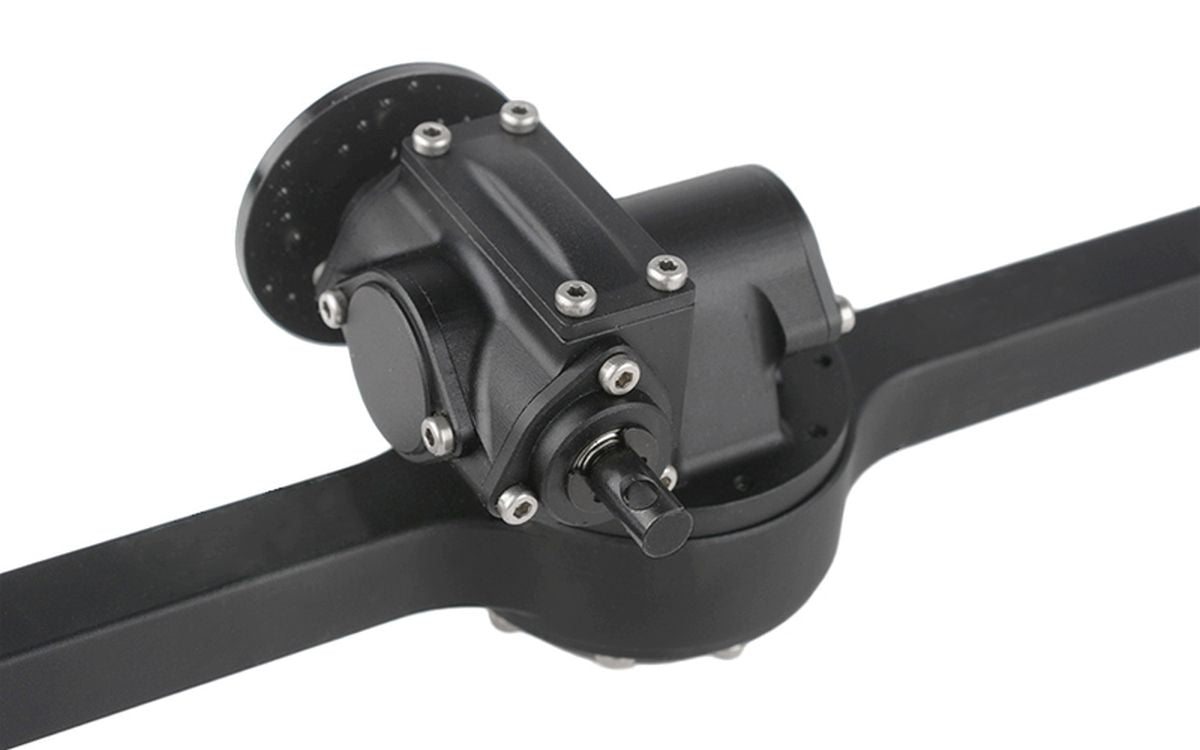

The RC4WD Blackwell Scale Machined Axle V2 (Rear) is a CNC-machined billet aluminum axle assembly for 1/10 scale trail trucks and crawlers, finished in smooth black anodizing for a clean, realistic look.
Inside, hardened steel gears with a 3.76:1 ratio run on full ball bearings and drive 5mm output shafts to 12mm steel wheel hexes, giving you a rugged, serviceable axle for serious scale builds.
Key Features
- CNC-machined billet aluminum axle housing
- Smooth black anodized finish
- Hardened steel ring and pinion gears, 3.76:1 ratio
- Full ball bearings throughout
- 5mm axle output shafts with 12mm steel wheel hexes
Performance Benefits
- Machined aluminum construction resists flex and impact damage on rocks and trails
- Hardened steel gears handle high-torque crawling loads
- Ball bearings keep the driveline smooth and efficient
- Scale machined appearance upgrades the look of any 1/10 build
Usage Notes
- Perform routine maintenance: check the grease around the gears and oil the bearings
- Do not over-tighten screws, as the threads can strip
- Use thread-locking compound sparingly; too much can damage the housing
- Optional matching parts: RC4WD Steering Links for Blackwell Axle V2 (Z-S0881) and Link and Leaf Spring Mounts (Rear, Z-S1171)
Technical Specs
- Brand: RC4WD
- Item No.: RC4ZA0033
- CNC machined billet aluminum housing
- Smooth black anodized finish
- 5mm axle output shaft
- Full ball bearings
- Hardened steel gears
- Gear ratio: 3.76:1
- Hex-to-hex width: 7.42in / 188.5mm
- 12mm steel wheel hex
- Weight: 9.45oz / 268g
- Scale: 1/10
What's Included
- (1) RC4WD Blackwell Scale Machined Axle V2 (Rear)
Fitment
Compatible RC vehicles: RC4WD Trail Finder 2 (shown installed by RC4WD on the Trail Finder 2 RTR chassis) and other 1/10 scale trail trucks built around the Blackwell Axle V2 platform; pairs with the Blackwell Axle V2 (Front).
Summary
- Billet aluminum Blackwell V2 rear axle for 1/10 scale crawlers
- 3.76:1 hardened steel gears on full ball bearings
- 5mm outputs with 12mm steel wheel hexes
- Black anodized, scale machined appearance
