Overview

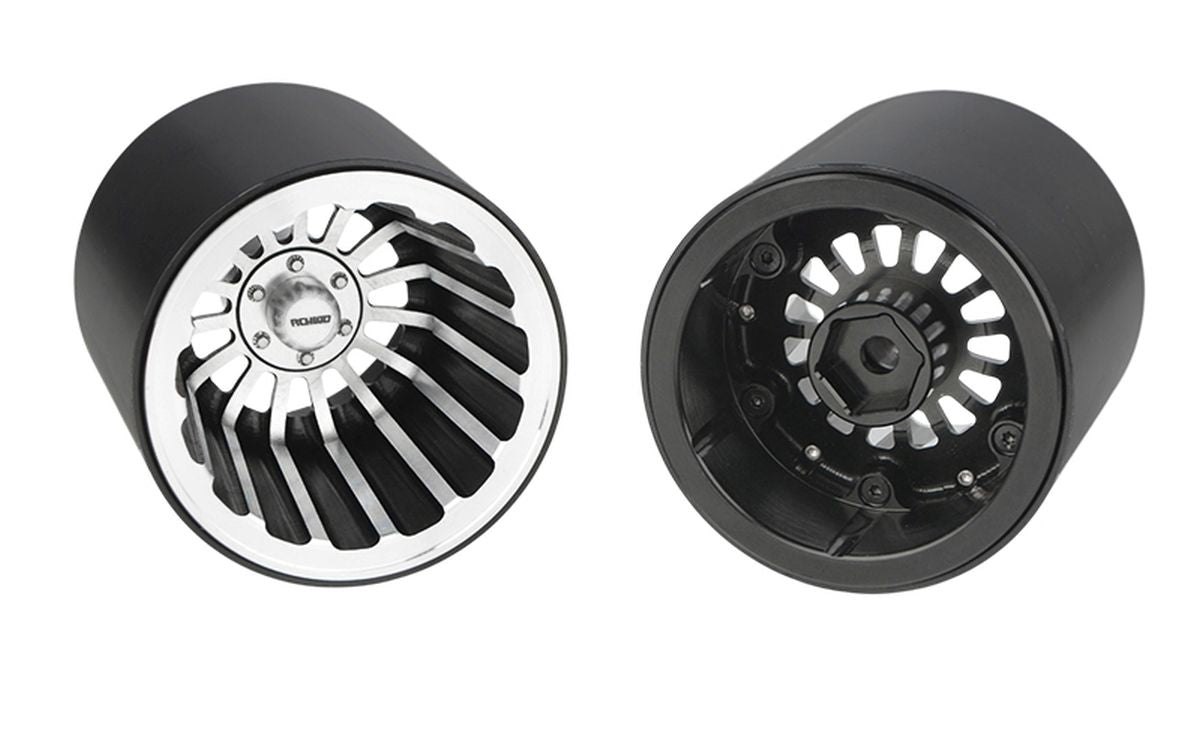

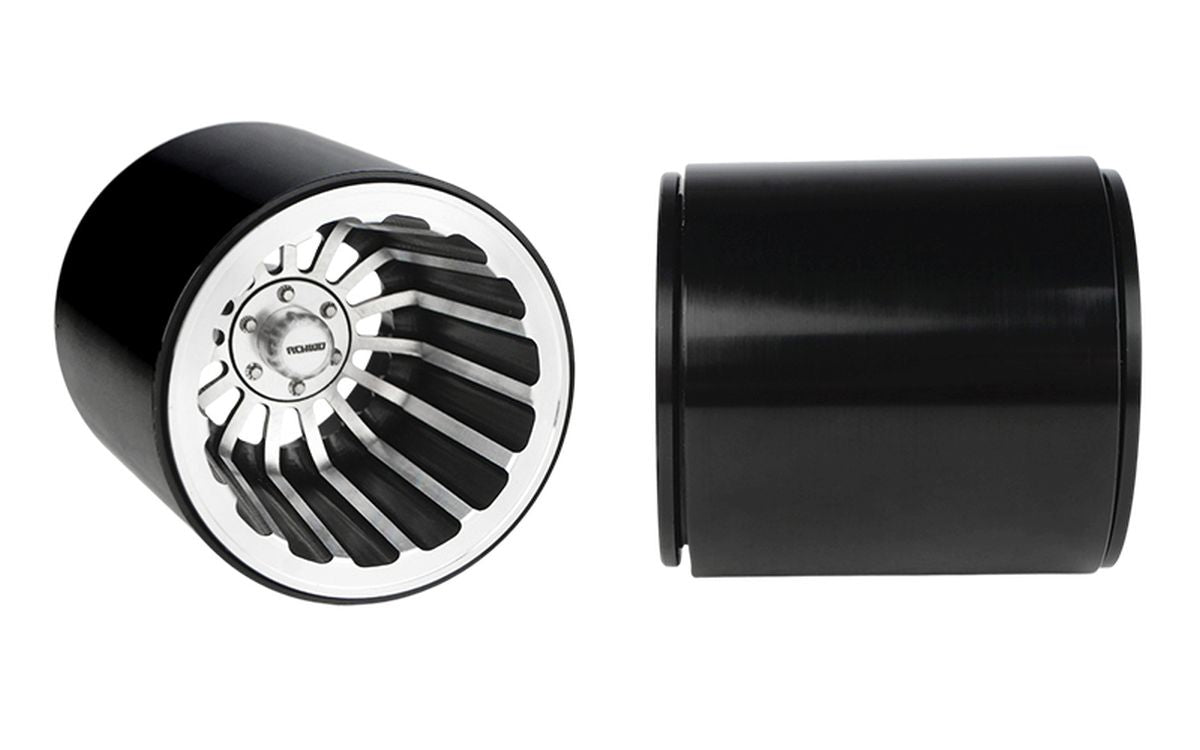

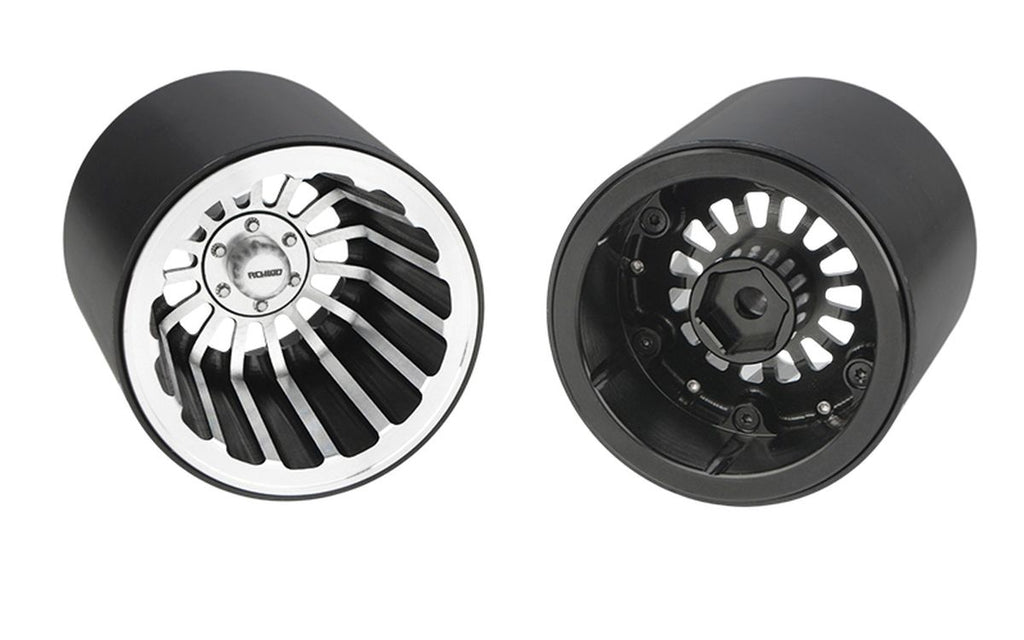

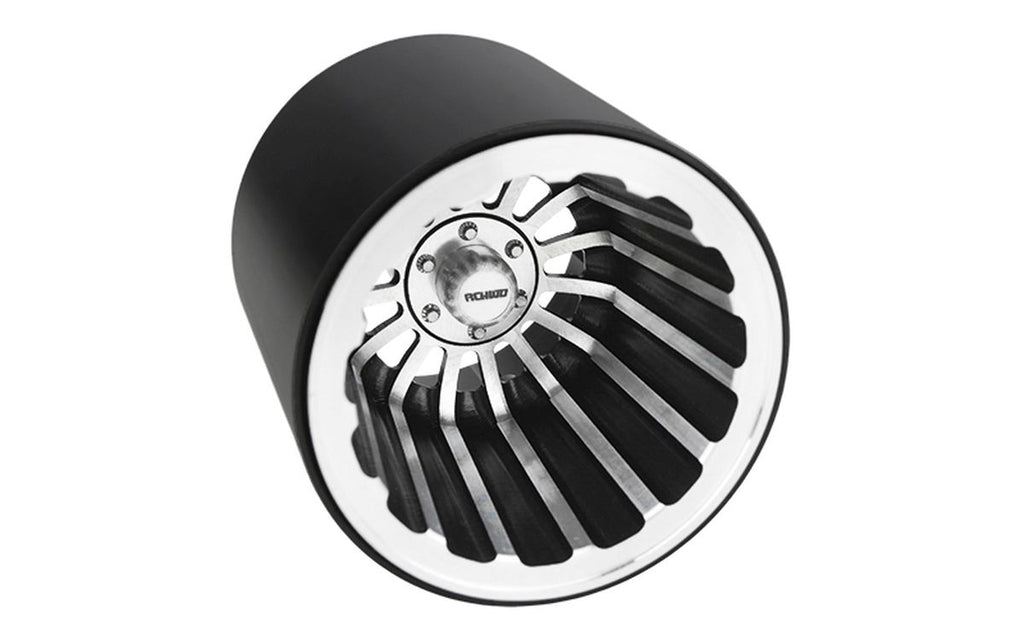

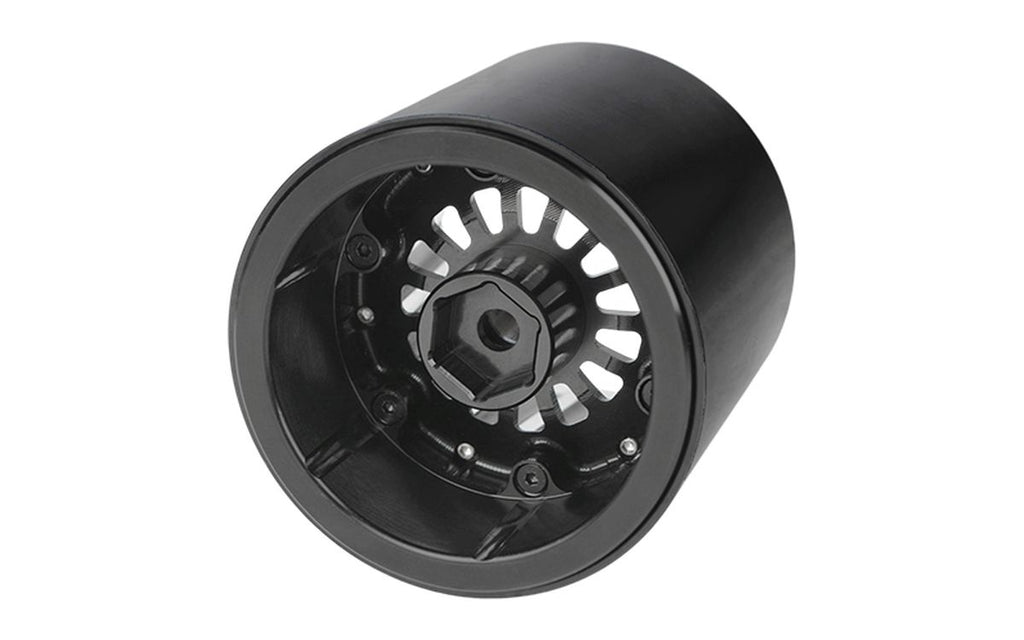

The RC4WD Turbine 1.9" Super Deep Dish Aluminum Beadlock Wheels give 1/10 scale crawlers and trail trucks an aggressive, wide-stance look with true beadlock tire retention.
Each wheel is CNC machined from billet aluminum with a silver anodized finish and fits standard 12mm hex hubs. This set includes four wheels and a hex tool for the scale bolts.
Key Features
- CNC-machined billet aluminum
- Super deep dish design with negative offset
- Beadlock ring design, no tire gluing required
- Silver anodized finish
- Fits standard 12mm hex
Performance Benefits
- Deep negative offset widens track width for added stability
- Beadlock design allows easy tire changes
- Lightweight aluminum construction for scale trail use
Usage Notes
- Fits 1.9" scale tires; RC4WD recommends pairing with RC4WD tires
- Shown with RC4WD Interco Super Swamper TSL BIAS 1.9" tires (Z-T0074), not included
- Replacement hardware: M1.6 x 4mm socket head cap screws, M2.5 x 6mm flat head screws (Z-S1205), M1.6 x 5mm scale hex bolts (Z-S1759)
Technical Specs
- Brand: RC4WD
- Item No.: RC4ZW0097
- Wheel size: 1.9"
- Hex: Standard 12mm
- Material: Billet aluminum, CNC machined
- Finish: Silver anodized
- OD: 2.12 in / 54.0 mm
- Width: 2.40 in / 61.0 mm
- Negative offset: 0.57 in / 14.7 mm
- Center hole OD: 0.20 in / 5.2 mm
- Weight: 4.76 oz / 135 g each
What's Included
- (4) Turbine 1.9" Super Deep Dish Aluminum Beadlock Wheels
- (1) Miniature scale hex bolt tool for M1.6 bolts, 1.5mm hex (Z-S1328)
Fitment
Compatible RC vehicles: 1/10 scale crawlers and trail trucks that use 1.9" tires and standard 12mm wheel hexes, such as the RC4WD Trail Finder 2.
Summary
- Set of four 1.9" super deep dish beadlock wheels
- CNC billet aluminum with silver anodized finish
- Standard 12mm hex fitment for 1/10 crawlers
