Overview

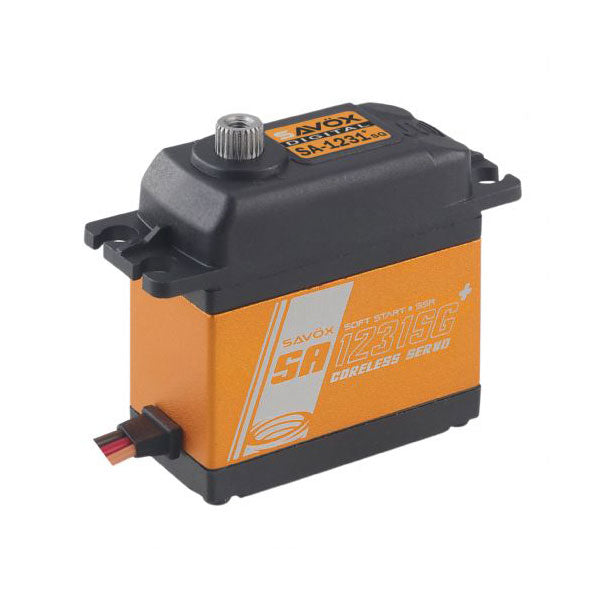

The Savox SA1231SGP Coreless Digital Steel-Gear Servo (SA-1231SG+) is a high-torque servo for those who need extra torque without using high voltage as a power source, producing 32 kg (444.4 oz-in) at 6V.
Its uniquely strong steel gear train has minimized backlash designed for aircraft use, and it is equally at home in monster trucks and crawlers. The slightly taller case uses an aluminum middle section for cooler operating temperatures, and as a "Plus" series servo it features Soft Start and Sanwa SSR compatibility.
Key Features
- Extremely strong, unique steel gear train
- Minimized backlash for precise control
- Coreless motor
- Aluminum middle case for cooler operating temperatures
- "Plus" series with Soft Start and Sanwa SSR compatibility
- Slightly taller case design
Performance Benefits
- High torque on standard 6V power – no HV setup required
- Steel gears for long life and durability
- Cooler running under sustained loads
Usage Notes
- Best suited to 1/10 scale monster trucks and rock crawlers, plus large RC aircraft
- Slightly taller than a typical standard servo – check mount clearance before installation
- Set endpoints carefully and make sure your BEC can supply the current a high-torque servo draws
Technical Specs
-
Brand: Savox
-
Item No.: SA1231SG+
-
Motor Type: Coreless
-
Control: Digital
-
Gear Type: Steel
-
Case: Aluminum middle case
-
Torque @ 6.0V: 32 kg / 444.4 oz-in
-
Speed @ 6.0V: 0.14 sec/60°
-
Dimensions: 40.3 × 20.2 × 44.9 mm
-
Weight: 79 g
What's Included
- (1) Savox SA1231SGP Coreless Digital Steel-Gear Servo
Fitment
Compatible RC vehicles: Universal fit – all RC vehicles.
Summary
- High-torque steel-gear coreless digital servo
- 444.4 oz-in / 0.14 sec at 6V – no HV required
- Soft Start and Sanwa SSR compatible
- Great for crawlers, monster trucks and aircraft
