Overview

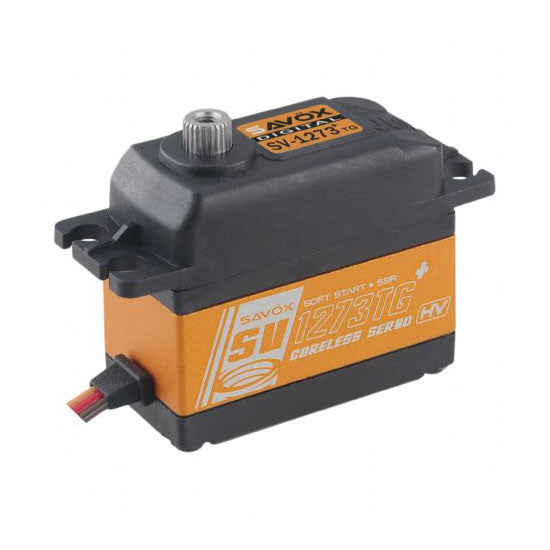

The Savox SV1273TGP High-Voltage Coreless Digital Servo is an ultra-speed, high-voltage digital servo with super-strong, precision-made titanium gears. It is ideal for 1/10 buggies and some heli applications.
As a "Plus" series servo, the SV1273TGP includes Soft Start and Sanwa SSR compatibility.
Key Features
- Coreless digital servo
- Precision titanium gears built to survive heavy use
- High-voltage capable up to 8.4V
- Soft Start and Sanwa SSR compatible
- 347.2 oz-in of torque at 8.4V
Performance Benefits
- Very fast 0.055 sec/60° response on HV power
- Titanium gears for durability under heavy use
- Soft Start gives a smooth power-up
Usage Notes
- Best suited to 1/10 scale buggies and some heli applications
- Use a receiver power system (BEC or receiver pack) rated for 8.4V to reach the rated speed and torque
- Soft Start and Sanwa SSR mode work with the servo's "Plus" series electronics; SSR requires a compatible Sanwa radio system
Technical Specs
-
Brand: Savox
-
Item No.: SV1273TGP
-
Scale: 1/10
-
Motor: Coreless
-
Gears: Titanium
-
Torque @ 8.4V: 25 kg / 347.2 oz-in
-
Speed @ 8.4V: 0.055 sec/60°
-

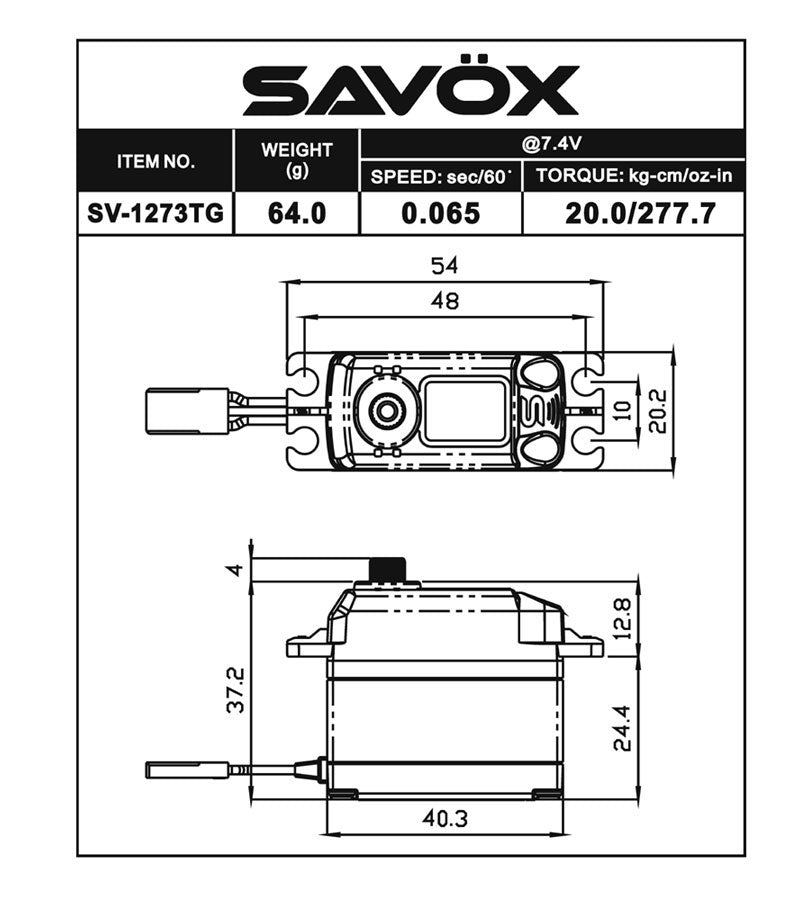

Dimensions: 40.3 x 20.2 x 37.2 mm
-
Weight: 64.0 g
What's Included
- (1) Savox SV1273TGP High-Voltage Digital Servo
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Summary
- HV coreless titanium-gear servo
- 347.2 oz / 0.055 sec at 8.4V
- Soft Start / Sanwa SSR compatible
- For 1/10 buggies and helis
