Overview

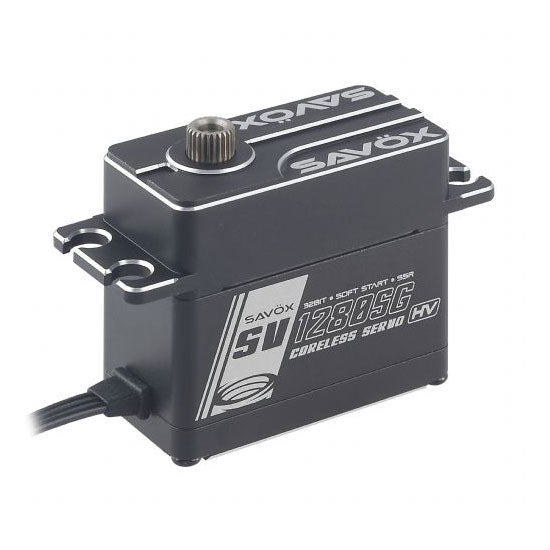

The Savox SV1280SGP High-Voltage Coreless Steel-Gear Monster Torque Servo combines super-strong, precision-made steel gears with an all-aluminum case for heavy-duty applications. It produces 763.8 oz-in of torque at 8.4V.
It is ideal for large-scale aircraft, 1/8 off-road and other off-road vehicles. "Plus" models feature Soft Start and Sanwa SSR compatibility.
Key Features
- High-voltage coreless servo
- Precision steel gears built to survive heavy use
- All-aluminum case for heavy-duty applications
- Fast and high torque for numerous applications
- Soft Start and Sanwa SSR compatible
Performance Benefits
- 763.8 oz-in of torque at 8.4V for large tires and heavy loads
- 0.12 sec/60° transit at 8.4V
- Aluminum case helps manage heat
Usage Notes
- Best suited to 1/8 scale off-road vehicles and large-scale aircraft
- Use a receiver power system (BEC or receiver pack) rated for 8.4V to reach the rated speed and torque
- Soft Start and Sanwa SSR mode work with the servo's "Plus" series electronics; SSR requires a compatible Sanwa radio system
Technical Specs
-
Brand: Savox
-
Item No.: SV1280SGP
-
Scale: 1/8
-
Motor: Coreless
-
Gears: Steel
-
Case: Aluminum
-
Torque @ 7.4V: 45 kg / 624.9 oz-in
-
Torque @ 8.4V: 55 kg / 763.8 oz-in
-
Speed @ 7.4V: 0.14 sec/60°
-
Speed @ 8.4V: 0.12 sec/60°
-

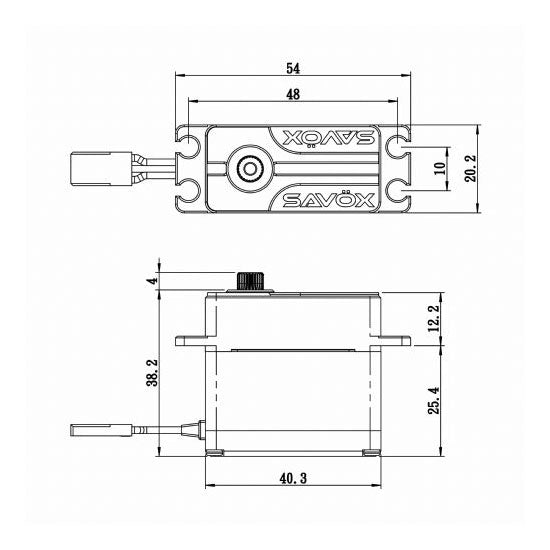

Dimensions: 40.3 x 20.2 x 38.2 mm
-
Weight: 76 g
What's Included
- (1) Savox SV1280SGP Monster Torque Servo
Fitment
Compatible RC vehicles: All 1/8 scale RC vehicles.
Summary
- HV coreless Monster Torque servo
- Steel gears with all-aluminum case
- 763.8 oz-in / 0.12 sec at 8.4V
- Soft Start / Sanwa SSR compatible
