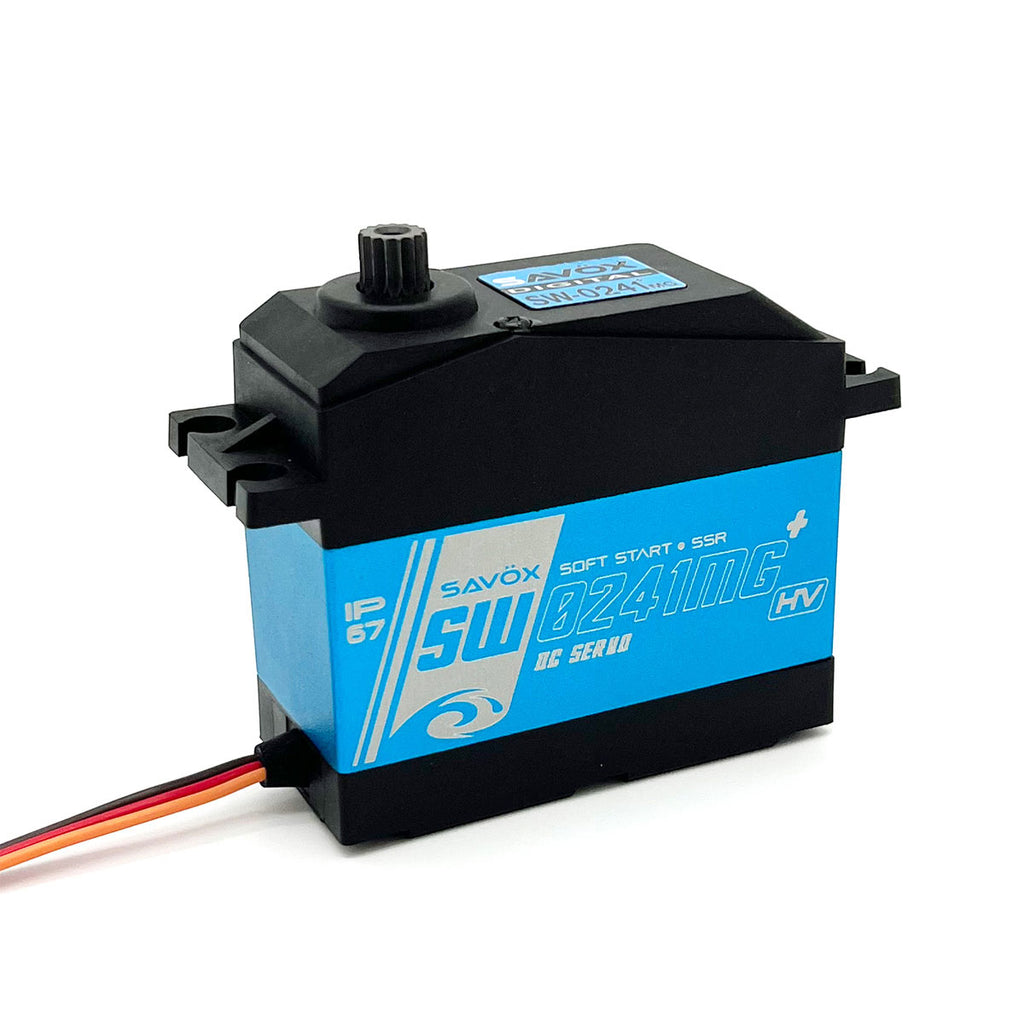

The SW-0241MGP is a waterproof, large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
- Ideal for 1/5 scale off road, large scale boat and aircraft applications
- Waterproof case design.
- Strong metal gear train for added durability.
Specifications:
- Torque @6v - 30.0kg/416.6oz-in
- Torque @7.4v - 40.0kg/555.5oz-in
- Speed @6v - 0.21 sec/60 deg
- Speed @7.4v - 0.17 sec/60 deg
- Dimensions L x W x H (mm): 65.8 x 30.0 x 59.1
- Weight: 200.0g
Technical Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 150mA @6.0V, 180mA @7.4V
- Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 15 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (800 → 2200 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
