Overview

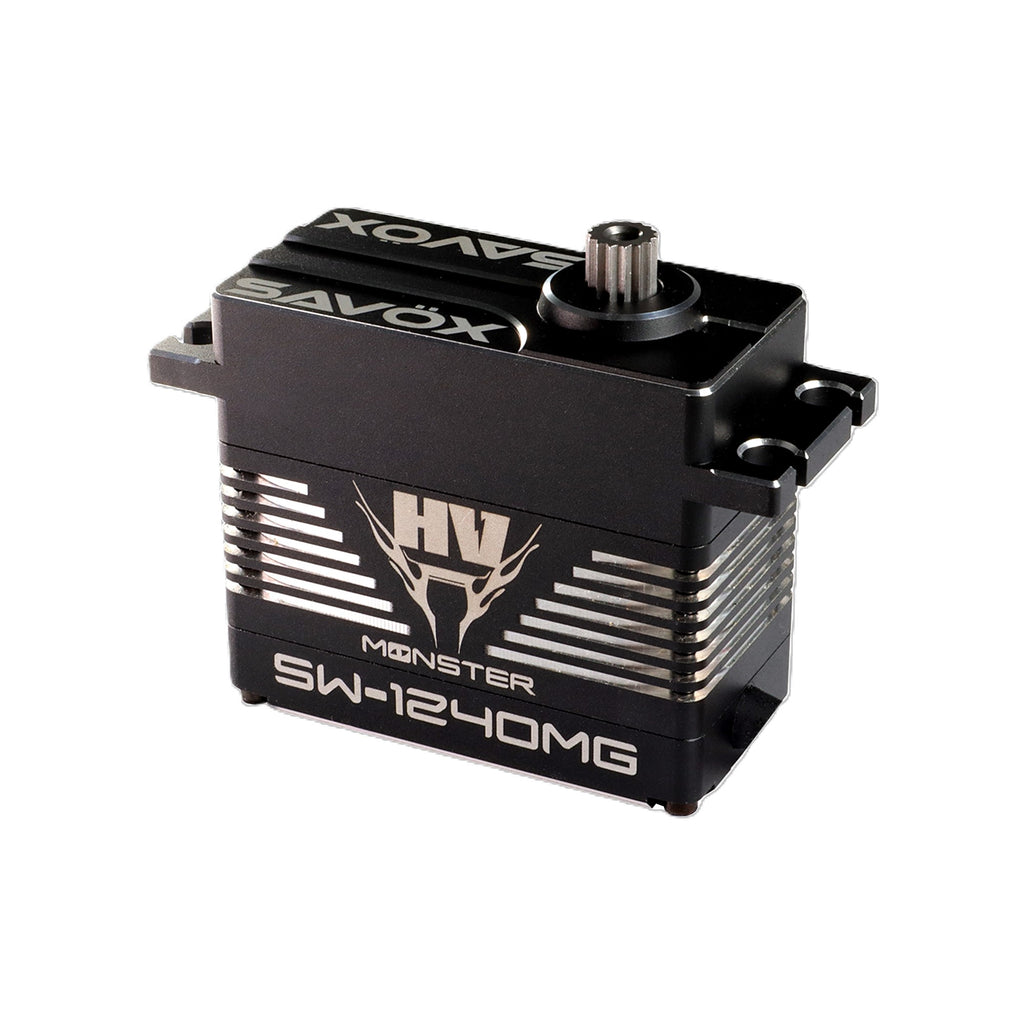

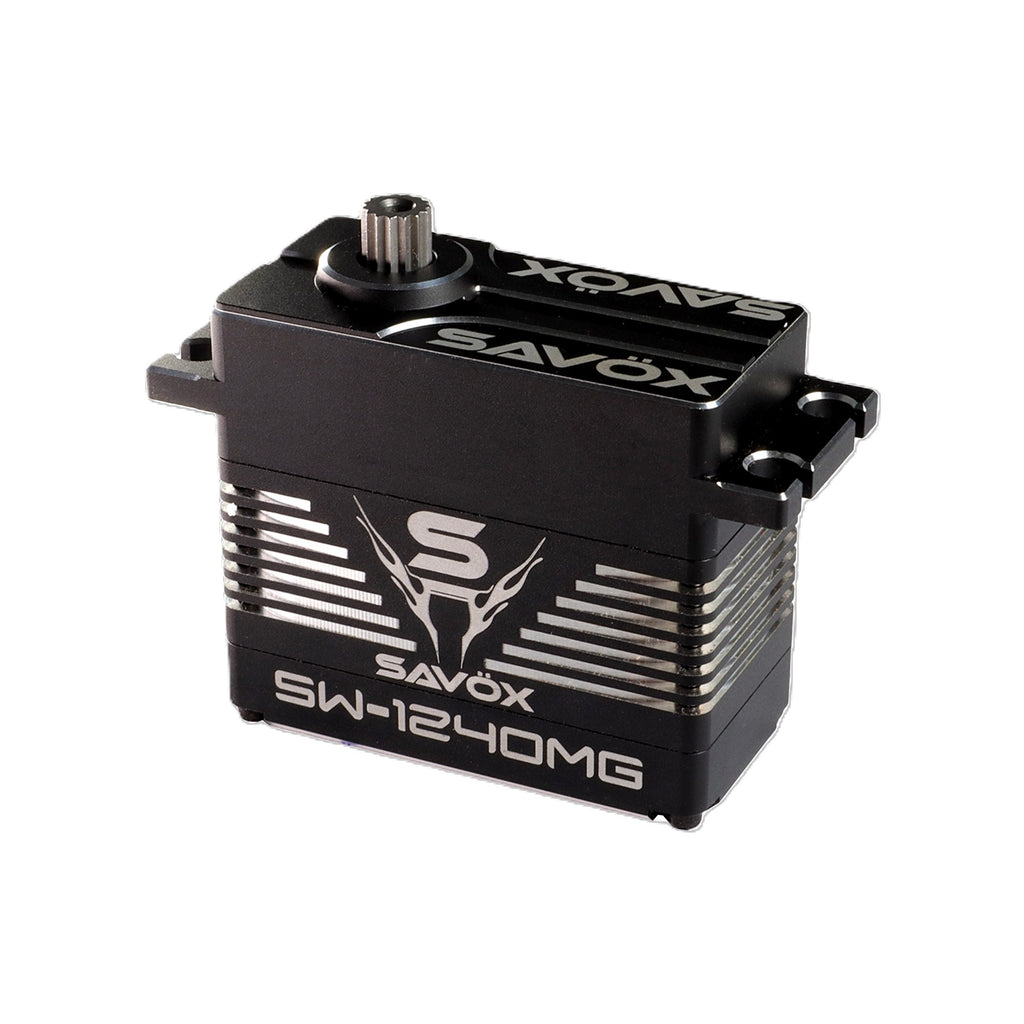

The Savox SW1240MG-BE Black Edition is a premium high-voltage waterproof coreless digital servo engineered for large-scale RC vehicles. Featuring IP67 waterproof protection and a robust full aluminum case, this servo delivers exceptional performance in the most demanding 1/5 scale applications where reliability and raw power are non-negotiable.
Built with a next-generation high-efficiency coreless motor and specialized steel gears, the SW1240MG-BE provides smooth, responsive control with up to 75 kg-cm of torque at 8.4V. The sleek Black Edition finish adds a premium aesthetic while maintaining the durability Savox servos are known for worldwide.
Key Features
- IP67 waterproof rating for all-weather operation
- High-voltage coreless motor (6.0V-8.4V compatible)
- Full aluminum case for superior heat dissipation
- Specialized steel gear train for maximum durability
- Dual ball bearing support for smooth operation
- Premium Black Edition finish
- Sanwa SSR compatible with 32-bit PCB board
Performance Benefits
- Massive 75 kg-cm torque output at 8.4V handles oversized tires with ease
- Fast 0.15 sec/60° response at 8.4V for precise steering control
- Coreless motor delivers fade-free performance under sustained loads
- Waterproof construction enables confident driving in mud, rain, and dust
- Aluminum housing provides excellent thermal management during extended runs
Usage Notes
- Ideal for 1/5 scale RC vehicles including monster trucks, buggies, and truggies
- Recommended for 1/7 scale high-power bashers
- Perfect for large-scale crawlers and custom high-power builds
- Best suited for steering applications requiring high torque
- Compatible with HV LiPo battery systems
Technical Specs
- Dimensions: 59 x 54.35 x 29 mm
- Weight: 196g
- Speed @ 6.0V: 0.20 sec/60°
- Torque @ 6.0V: 50 kg-cm
- Speed @ 7.4V: 0.17 sec/60°
- Torque @ 7.4V: 65 kg-cm
- Speed @ 8.4V: 0.15 sec/60°
- Torque @ 8.4V: 75 kg-cm
- Gear Type: Specialized Steel
- Bearings: 2 Ball Bearings
- Case Material: Aluminum
- Servo Horn Spline: 15 Tooth
- Protection: IP67 Waterproof
What's Included
- (1) Savox SW1240MG-BE Black Edition Waterproof HV Coreless Digital Servo
- Servo horn hardware
Summary
The Savox SW1240MG-BE Black Edition delivers elite 1/5 scale performance with IP67 waterproof protection, 75 kg-cm of torque, and premium coreless motor technology. Built for enthusiasts who demand uncompromising power and reliability in any condition.
