Overview

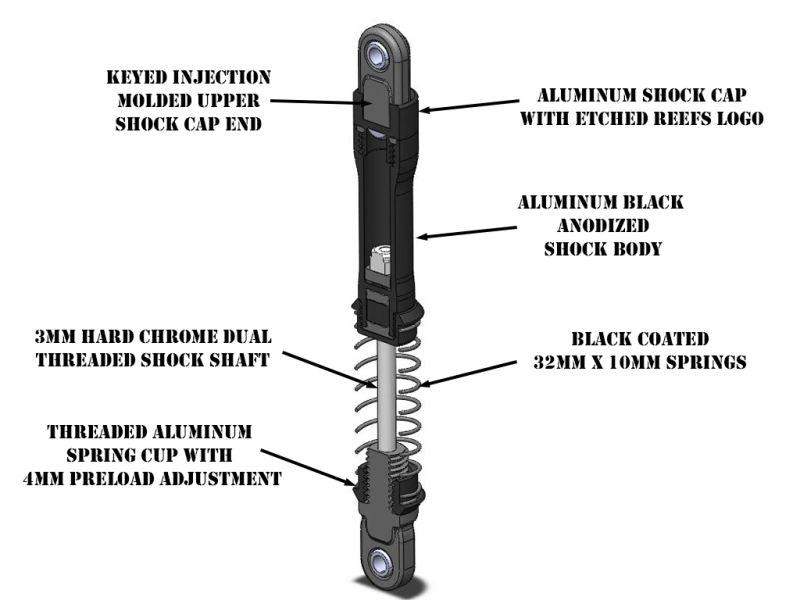

The Reef's RC XP Aluminum Shocks 90mm deliver premium suspension performance for 1/10 scale rock crawlers. Featuring a slim 9mm CNC-machined aluminum body and hard chrome 3mm shock shaft, these shocks provide smooth, adjustable damping with superior durability.
Innovative threaded spring cups offer 4mm of tool-free preload adjustment for quick suspension tuning. X-ring seals ensure leak-proof operation, while the E-clip-free design simplifies maintenance. Pre-assembled and ready for oil filling.
Key Features
- 90mm eye-to-eye fully extended
- 9mm CNC machined aluminum body
- 3mm hard chrome shock shaft

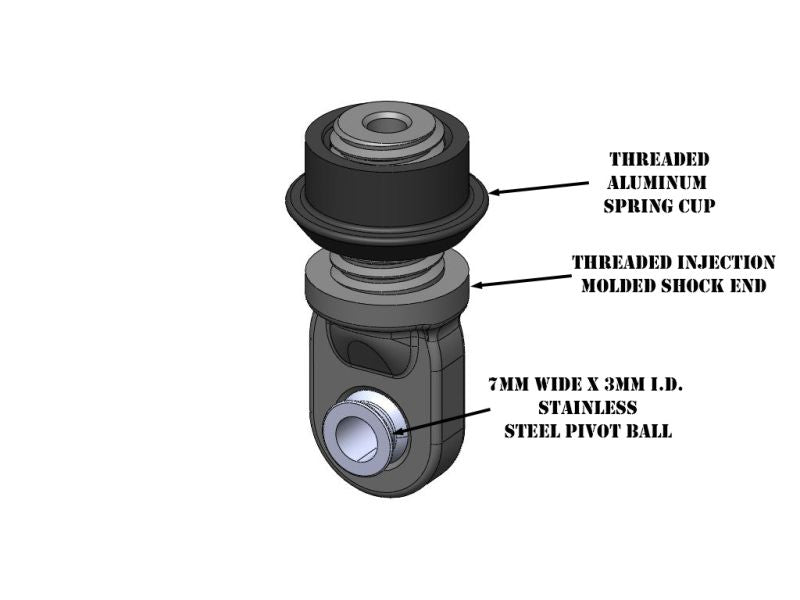

- Threaded spring cups with 4mm preload

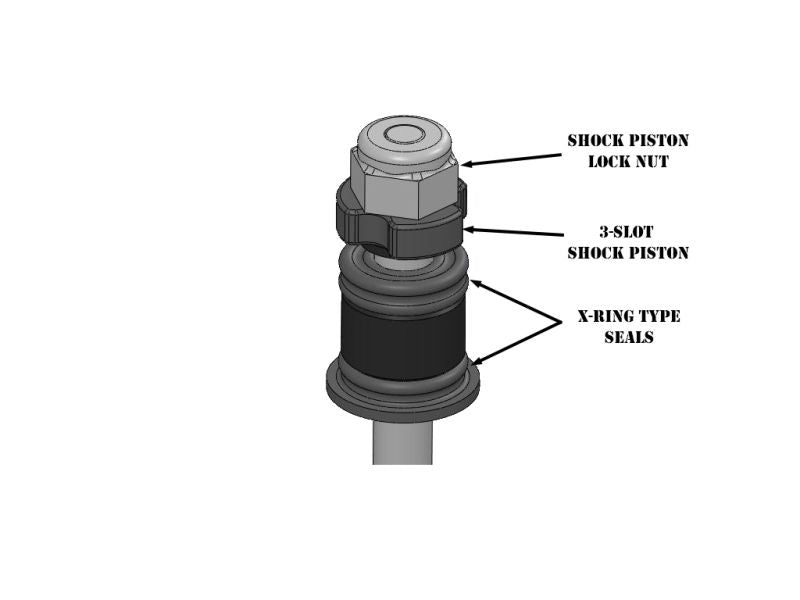

- 3-slot 7mm piston
- X-ring seals - leak proof
- E-clip free construction

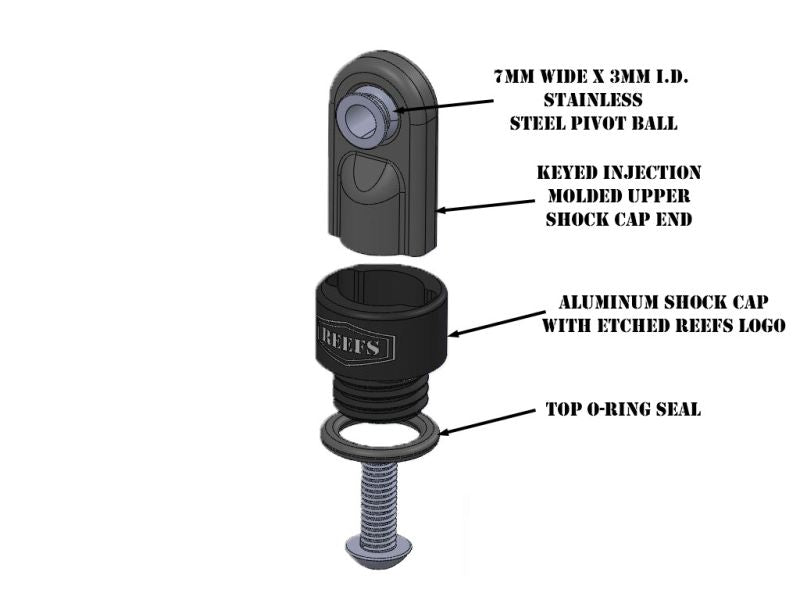

- Keyed-in upper rod end
Performance Benefits
- Smooth, consistent damping
- Tool-free preload adjustment
- Leak-resistant sealing
- Easy maintenance
- Balanced performance
Usage Notes
Optimized for 30wt/350cSt silicone shock oil (not included). Compatible with XP Shock Spring Set for additional tuning. Industry-standard 90mm length fits most 1/10 crawlers.
Technical Specs
- Length Extended: 90mm (eye-to-eye)
- Length Compressed: 70mm (eye-to-eye)
- Body Diameter: 9mm
- Piston: 7mm (3-slot)
- Shaft: 3mm hard chrome
- Preload Adjustment: 4mm
- Recommended Oil: 30wt/350cSt
Fitment
- 1/10 scale rock crawlers
- Scale trucks
- Most platforms requiring 90mm shocks
What's Included
- (2) Reef's RC XP Aluminum Shocks 90mm
- (2) Medium (Yellow) Springs - installed
Summary
The Reef's RC XP 90mm Aluminum Shocks deliver premium suspension with adjustable preload and leak-proof design for serious crawlers.
