Overview

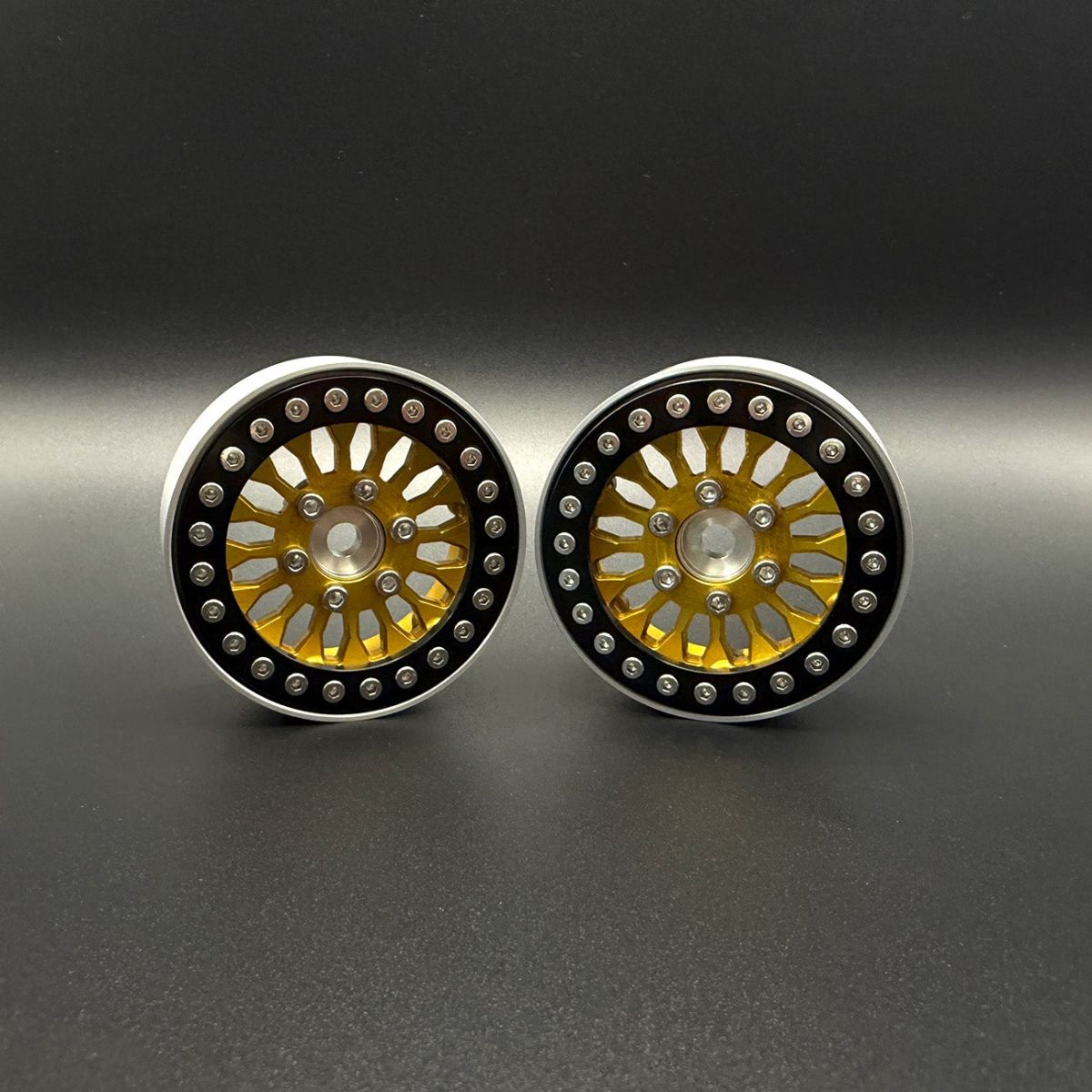

The Reef's RC 1.9" Shield Aluminum Beadlock Wheels with Hubs in Gold upgrade your crawler's performance and style with precision-machined aluminum construction. Designed for serious RC crawling, these premium beadlock wheels deliver exceptional strength, secure tire mounting, and a bold anodized finish built to handle demanding trail and rock conditions.
Each set includes machined aluminum hubs for proper fitment and simplified installation. The Shield design features a deep dish, low-offset configuration that remains compatible with portals up to 43mm in diameter, while the narrow 19mm tire mounting width reduces tire and foam side-to-side movement for improved handling.
Key Features
- 1.9" CNC machined aluminum beadlock wheels
- Shield design with gold anodized finish
- Includes machined aluminum hubs

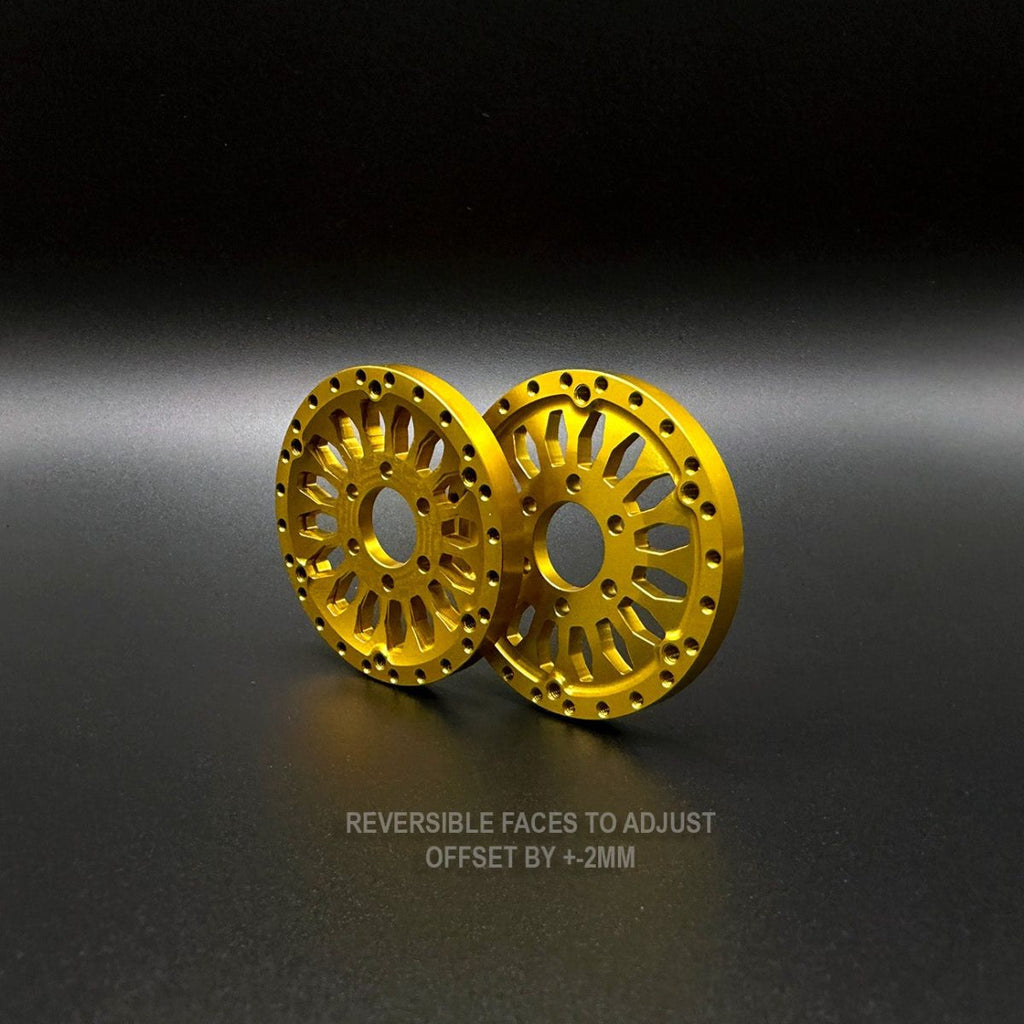

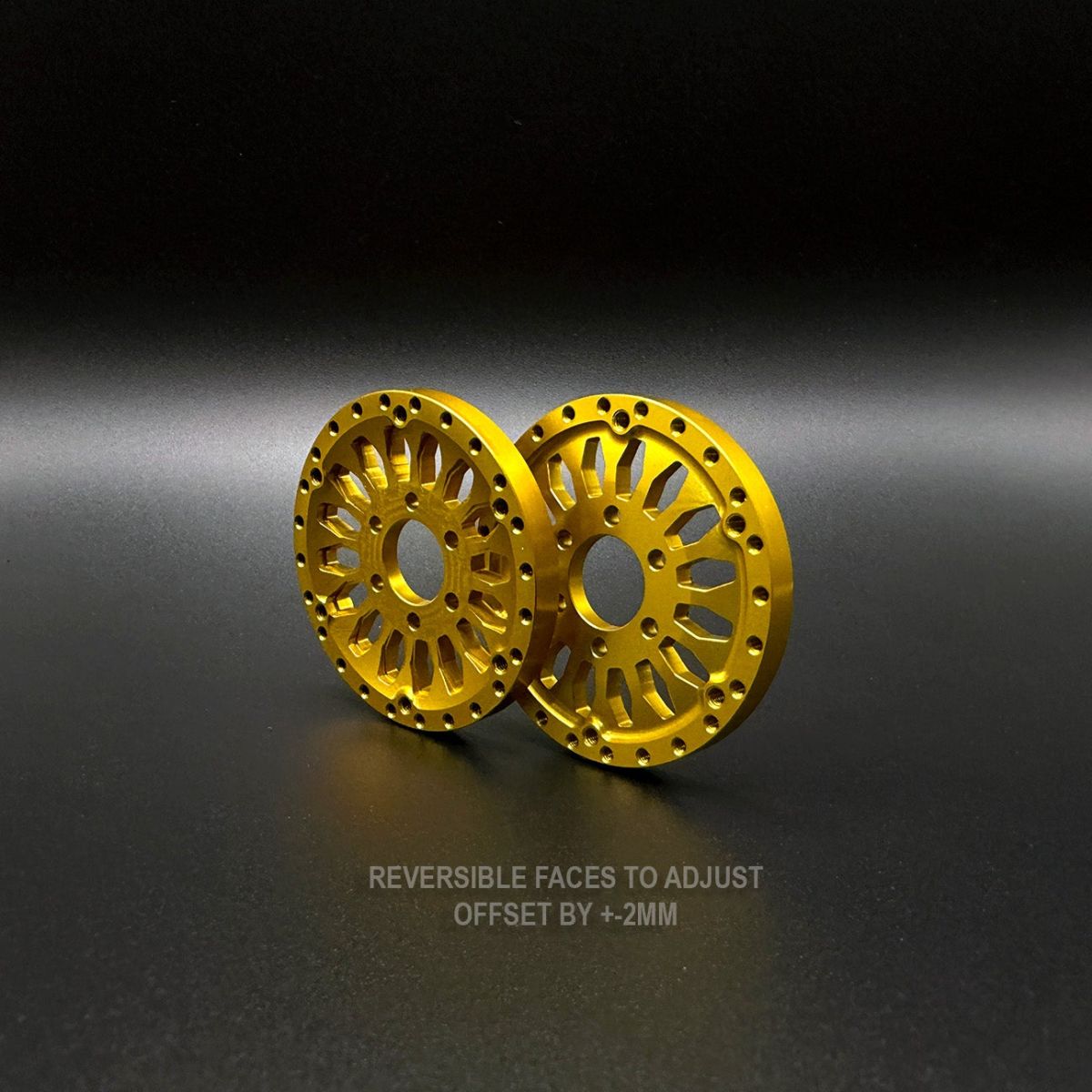

- 2mm adjustable offset (reversible faces)
- Portal-friendly up to 43mm covers
- 6-screw quick tire change system
- Narrow 19mm mounting width
Performance Benefits
- Secure tire clamping under high torque
- Reduced tire/foam movement
- Quick tire changes
- Durable aluminum construction
- Premium scale appearance
Usage Notes
Designed for 1/10 scale rock crawlers running 1.9" tires. Compatible with standard crawler hex configurations. Reversible wheel faces allow 2mm offset adjustment without additional parts.
Technical Specs
- Wheel Diameter: 1.9"
- Wheel Width: 19mm (0.75")
- Overall Width: 25mm (0.98")
- Offset: 2mm (adjustable)
- Material: CNC Machined Aluminum
- Color: Gold Anodized
Fitment
- 1/10 scale rock crawlers
- 1.9" crawler tires
- Portal covers up to 43mm diameter
What's Included

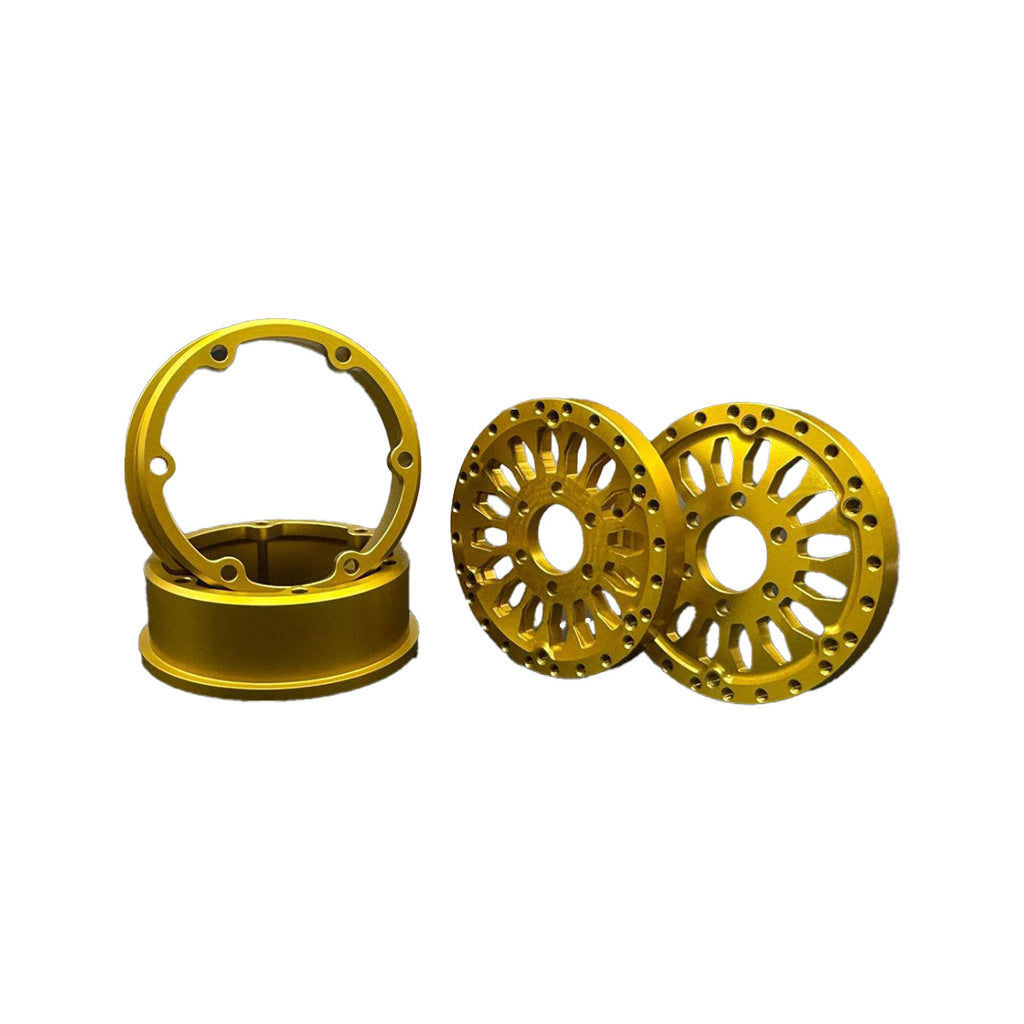

- (2) Shield 1.9" Reversible Offset Gold Wheel Faces
- (2) 4mm Machined Aluminum 6-Hole Hubs

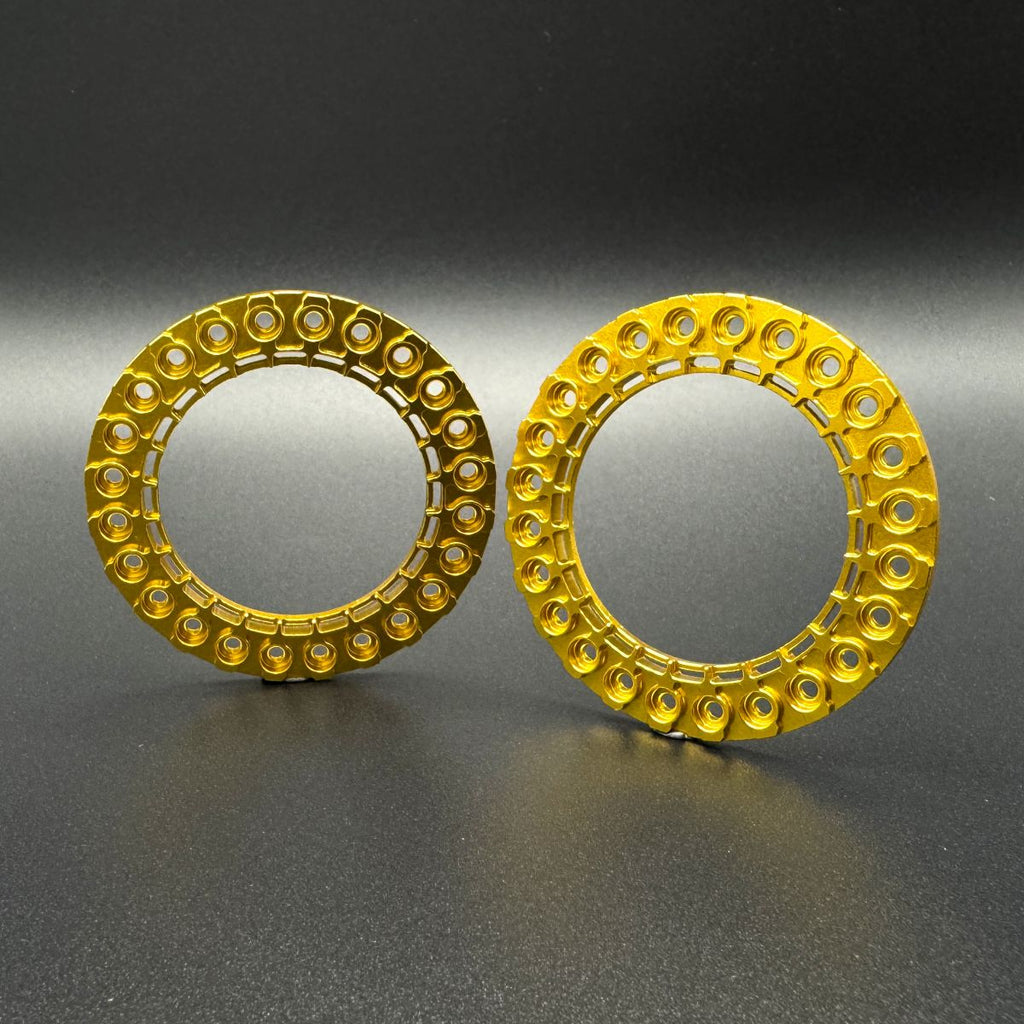

- (2) Black Anodized Beadlock Rings
- (2) 1.9" Aluminum Back Rings
- (2) Machined Aluminum Internal Clamping Rings
- (48) M2 Stainless Steel Beadlock Screws
- (24) M2.5 Stainless Steel Hub Screws
Summary
The Reef's RC Shield Beadlock Wheels deliver premium performance with secure tire mounting, adjustable offset, and bold gold styling for serious crawler builds.
