Overview
The Reef's RC XP Aluminum Shocks 80mm deliver premium suspension performance for 1/10 scale rock crawlers in a compact package. Featuring a slim 9mm CNC-machined aluminum body and hard chrome 3mm shock shaft, these shocks provide smooth, adjustable damping for technical crawling applications.
Innovative threaded spring cups offer 4mm of tool-free preload adjustment for quick suspension tuning on the trail. X-ring seals ensure leak-proof operation, while the E-clip-free design simplifies maintenance. Pre-assembled with medium springs and ready for oil filling.
Key Features

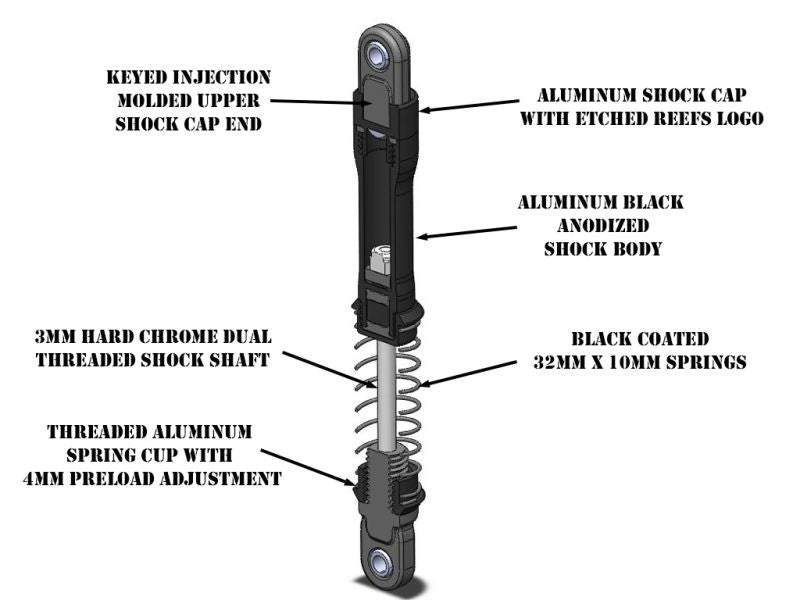

- 80mm eye-to-eye fully extended
- 9mm CNC machined aluminum body
- 3mm hard chrome shock shaft

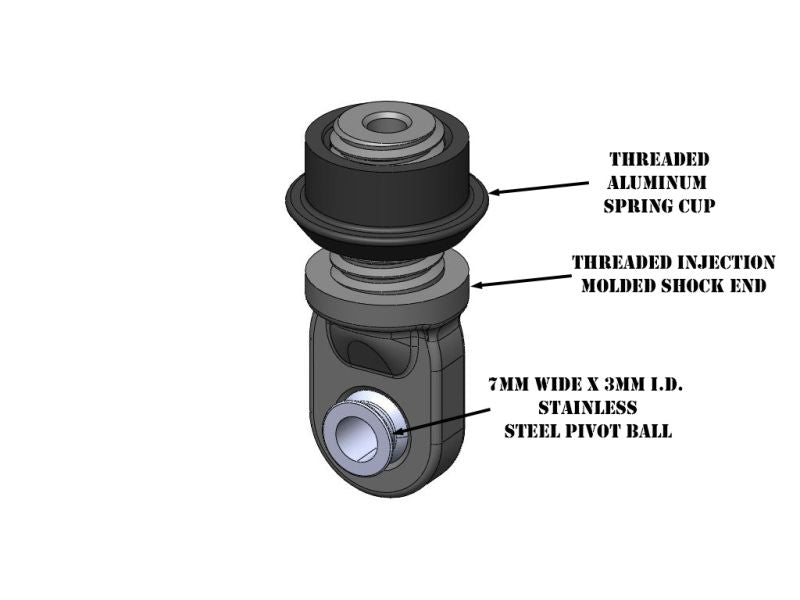

- Threaded spring cups with 4mm preload adjustment

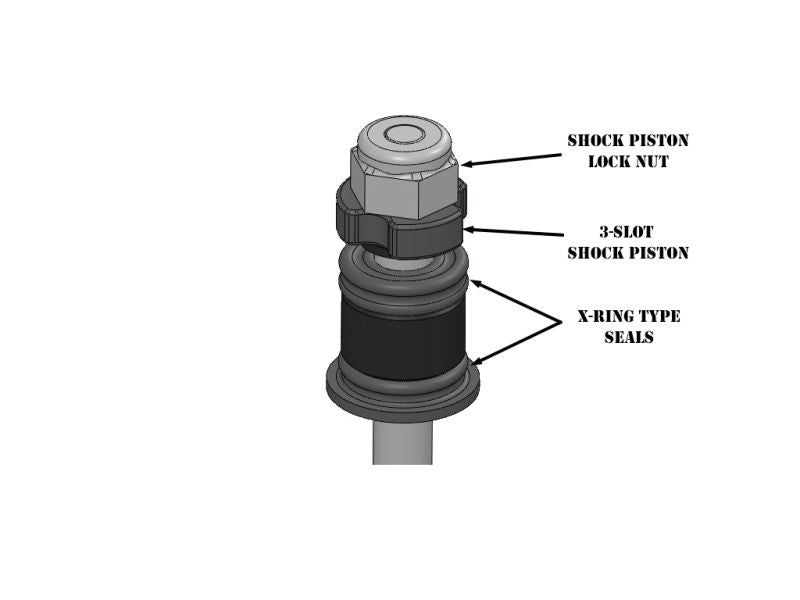

- 3-slot 7mm piston
- X-ring seals - leak proof
- E-clip free construction

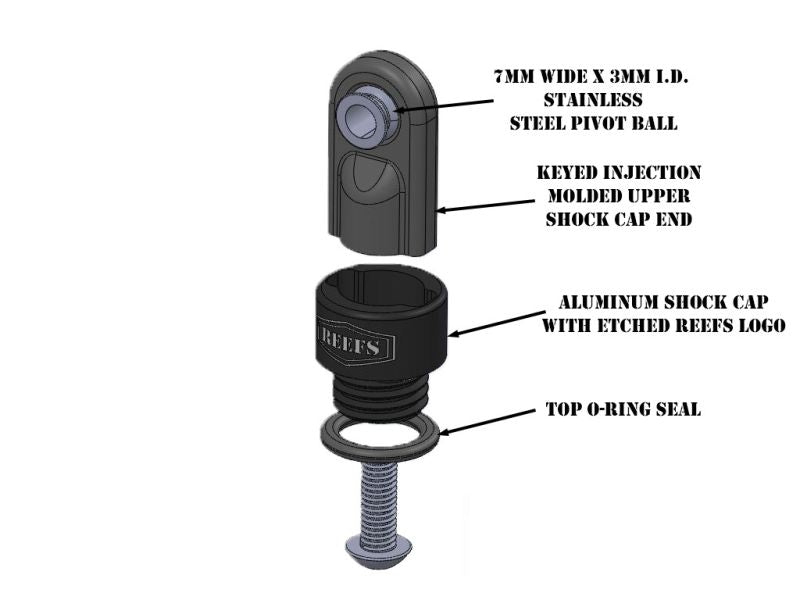

- Keyed-in upper rod end
Performance Benefits
- Smooth, consistent damping
- Tool-free preload adjustment
- Leak-resistant sealing
- Easy maintenance
- Compact form factor
Usage Notes
Optimized for 30wt/350cSt silicone shock oil (not included). Compatible with XP Shock Spring Set for tuning options. Ideal for 1/10 scale crawlers requiring shorter shock length.
Technical Specs
- Length Extended: 80mm (eye-to-eye)
- Length Compressed: 60mm (eye-to-eye)
- Body Diameter: 9mm
- Piston: 7mm (3-slot)
- Shaft: 3mm hard chrome
- Preload Adjustment: 4mm
- Recommended Oil: 30wt/350cSt
Fitment
- 1/10 scale rock crawlers
- Compact crawler builds
- Builds requiring 80mm shock length
What's Included

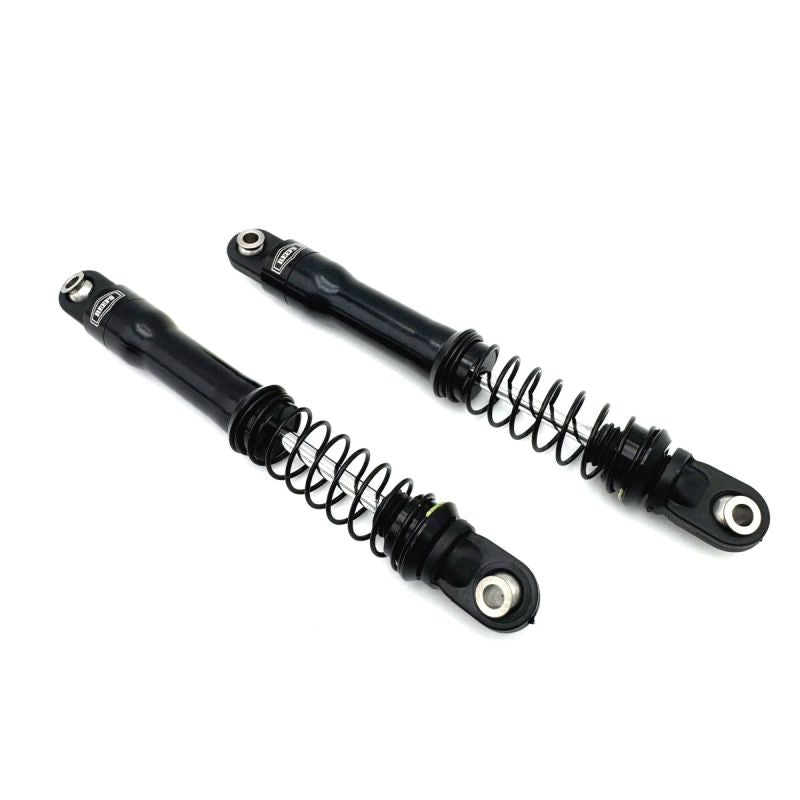

- (2) Reef's RC XP Aluminum Shocks 80mm
- (2) Medium (Yellow) Springs - installed
Summary
The Reef's RC XP 80mm Aluminum Shocks deliver smooth, adjustable suspension performance in a compact package for technical crawler builds.
