Overview
The Reef's RC XP Aluminum Shocks 100mm deliver precision suspension performance for 1/10 scale rock crawlers. Featuring a slim 9mm CNC-machined aluminum body and hard chrome 3mm shock shaft, these shocks provide smooth, adjustable damping with superior durability across any terrain.
The innovative threaded spring cups offer 4mm of preload adjustment without tools, allowing quick suspension tuning anywhere. X-ring seals provide leak-proof reliability, while the E-clip-free design simplifies maintenance. Pre-assembled and ready for oil filling, these shocks deliver competition-grade performance out of the box.

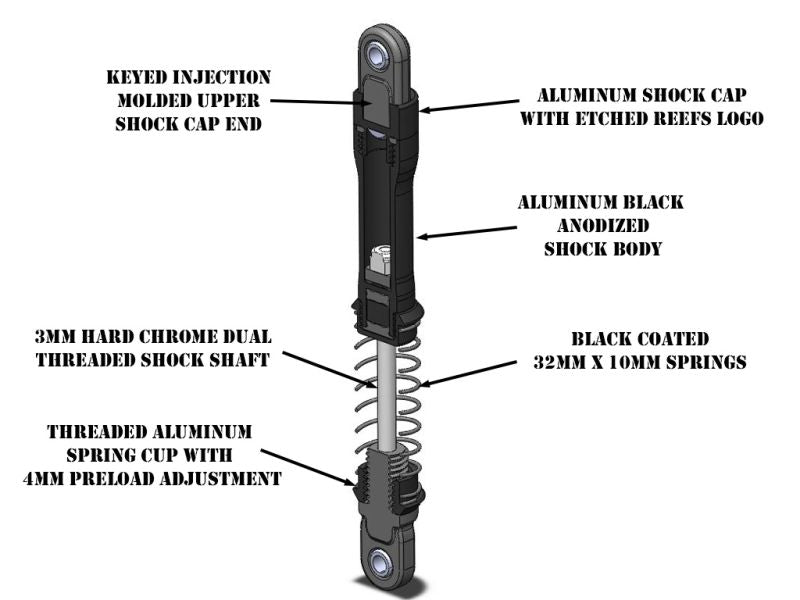

Key Features
- 100mm eye-to-eye fully extended
- 9mm CNC machined aluminum body
- 3mm hard chrome shock shaft

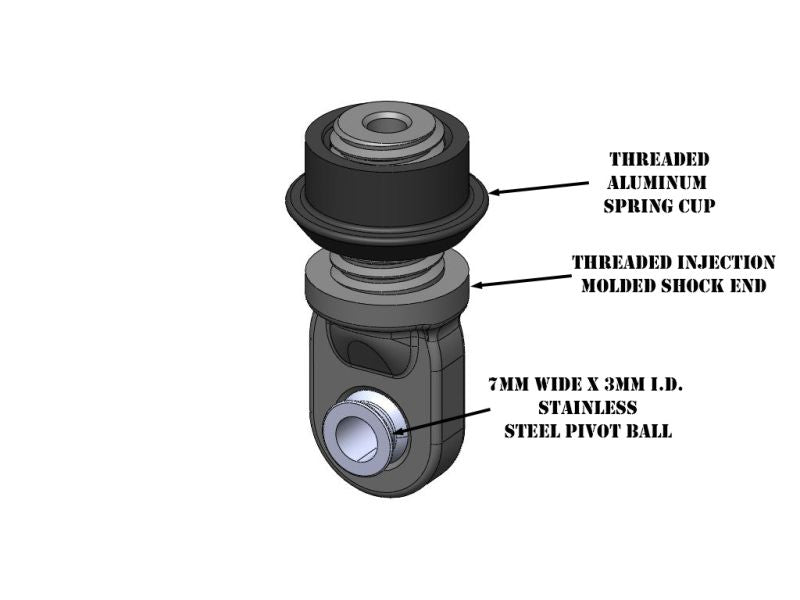

- Threaded spring cups with 4mm preload adjustment

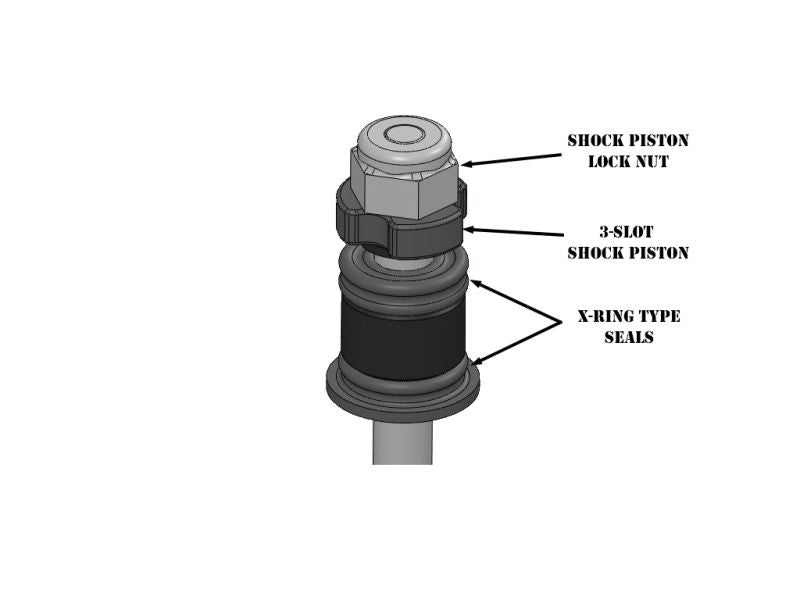

- 3-slot 7mm piston for optimal fluid flow
- X-ring seals - leak proof design
- E-clip free construction
- Keyed-in upper rod end
Performance Benefits
- Smooth, consistent damping
- Tool-free preload adjustment
- Leak-resistant sealing
- Easy maintenance
- Balanced performance across terrain
Usage Notes
Optimized for 30wt/350cSt silicone shock oil (not included). Compatible with XP Long Shock Spring Set for additional tuning options. Ideal for 1/10 scale rock crawlers and scale trucks requiring 100mm shock length.
Technical Specs
- Length Extended: 100mm (eye-to-eye)
- Length Compressed: 80mm (eye-to-eye)
- Body Diameter: 9mm
- Piston Diameter: 7mm (3-slot)
- Shaft: 3mm hard chrome
- Preload Adjustment: 4mm
- Recommended Oil: 30wt/350cSt
Fitment
- 1/10 scale rock crawlers
- Scale trucks requiring 100mm shocks
- Builds needing extended travel suspension
What's Included
- (2) Reef's RC XP Aluminum Shocks 100mm
- (2) Medium (Yellow) Springs - installed
Summary
The Reef's RC XP 100mm Aluminum Shocks deliver premium suspension performance with adjustable preload, leak-proof sealing, and smooth damping for serious crawlers.
