Overview
Reef's RC XP XL Rod Ends are injection-molded ball cups designed for 4mm threaded links. At 31mm long they are 10mm longer than Reef's standard XP rod ends, letting you build longer links or extend existing ones without cutting new rod.
Each rod end comes with a machined stainless steel pivot ball (7mm wide, 3mm hole) for a secure, precise fit with smooth articulation. The pack contains 8 rod ends and 8 pivot balls.
Key Features

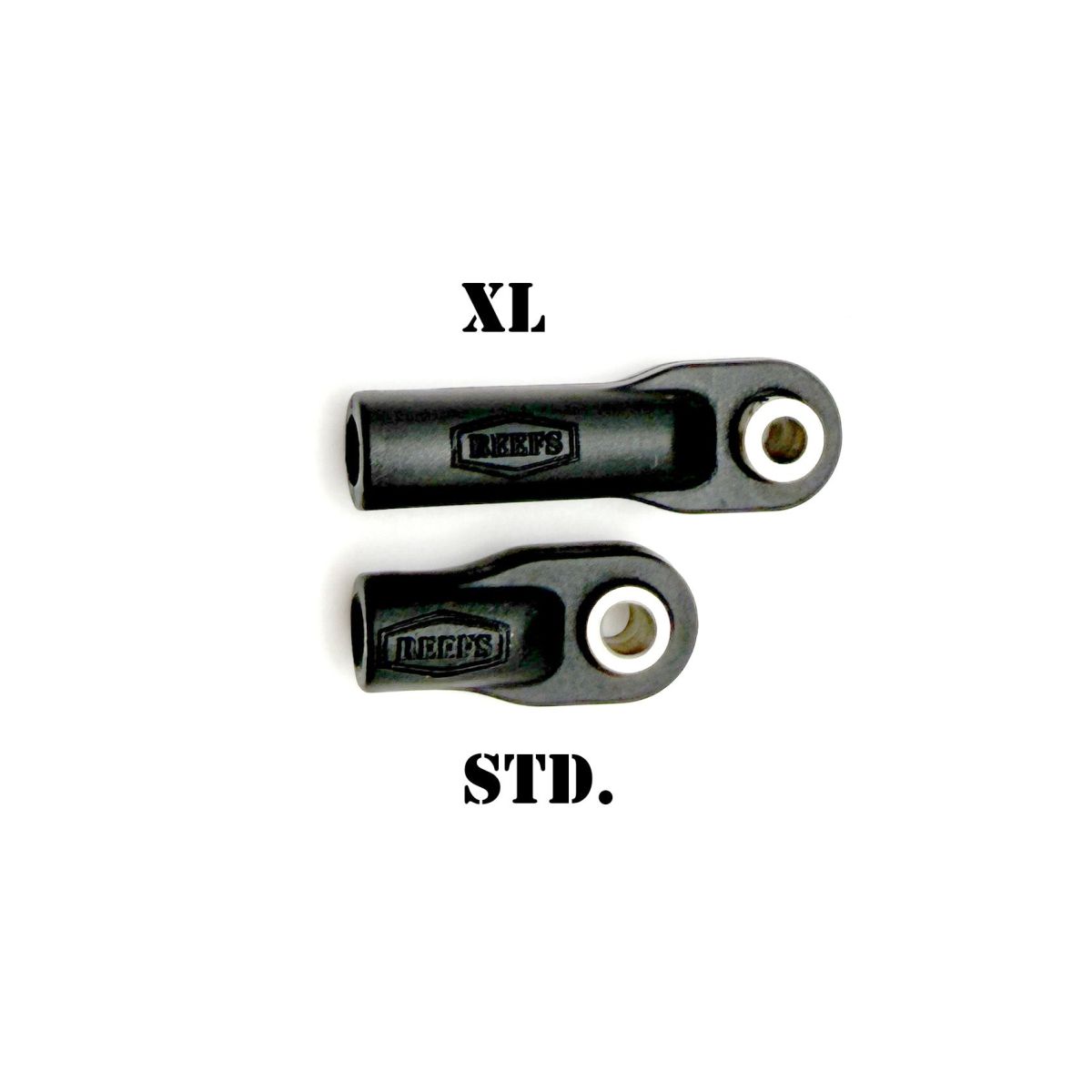

- 31mm overall length – 10mm longer than standard Reef's XP rod ends
- Threads onto 4mm threaded links
- Injection molded from high-quality material
- Machined stainless steel pivot balls included
- 7mm pivot ball with 3mm bore for standard M3 screws
Performance Benefits
- Tight fit between ball and cup reduces slop in steering and suspension links
- Smooth articulation through the full range of suspension travel
- Stainless steel balls resist corrosion and wear
- Extra length allows longer links and more setup adjustment range
Usage Notes
- For use with 4mm threaded links only
- Check that the extra 10mm of length fits your link geometry and does not bind at full droop, compression or steering lock
- Press the pivot balls into the cups before mounting and set link lengths equally side to side
Technical Specs
- Brand: Reef's RC
- Line: XP XL
- Rod end length: 31mm
- Thread: 4mm
- Pivot ball: machined stainless steel, 7mm wide
- Pivot ball hole: 3mm
- Quantity: 8 rod ends, 8 pivot balls

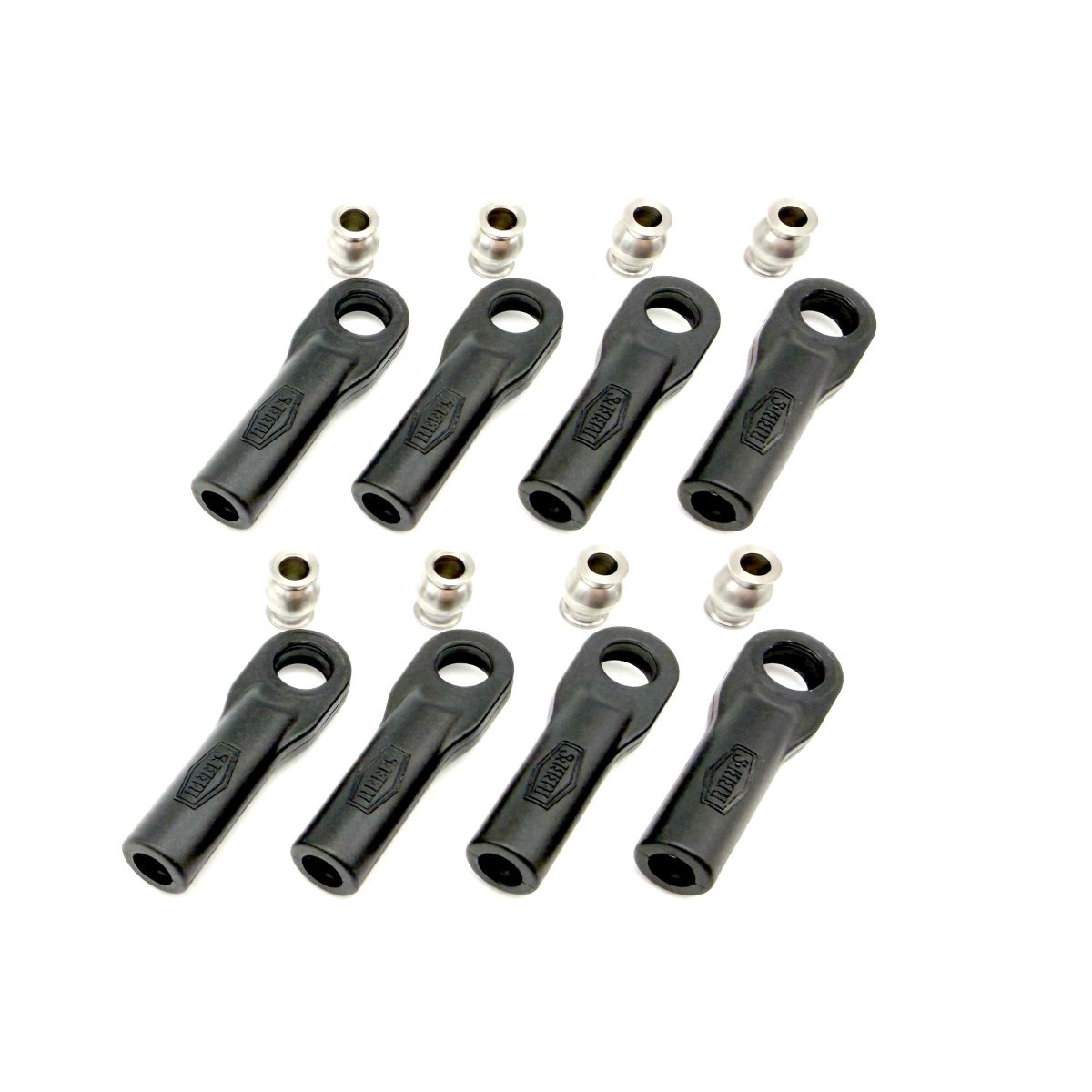

What's Included
- (8) XP XL rod ends, 31mm
- (8) Machined stainless steel pivot balls, 7mm
Fitment
Compatible RC vehicles: Universal fit – RC vehicles using 4mm threaded links with 3mm (M3) ball mounting screws, such as scale crawlers and trail trucks.
Summary
- Extra-long 31mm rod ends for 4mm threaded links
- Machined stainless steel 7mm pivot balls included
- Precise, low-slop fit for suspension and steering links
- 8 rod ends and 8 pivot balls per pack
