Overview

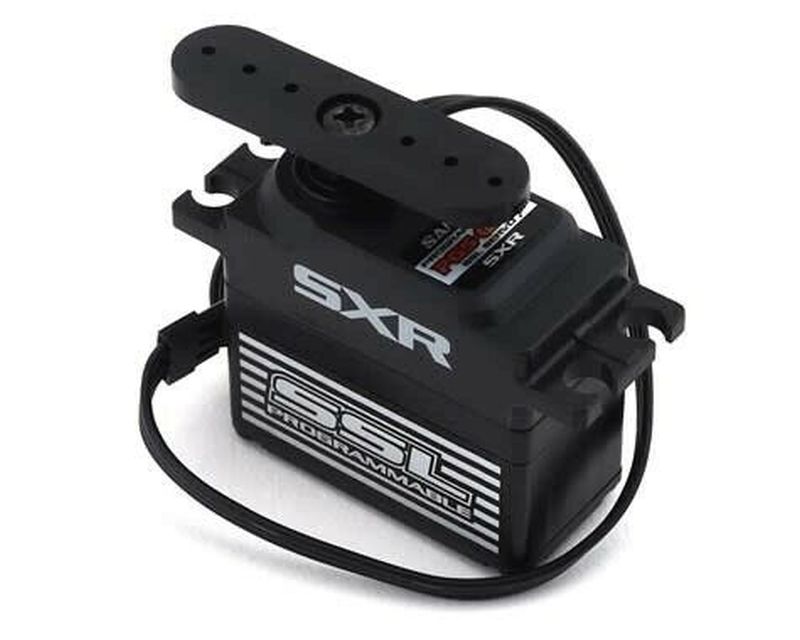

The Sanwa PGS-CX II is a programmable high-torque servo engineered for RC racers and enthusiasts who demand exceptional precision, power, and flexibility. Featuring durable metal gears, a coreless motor, and advanced programmability via SSL (Sanwa Serial Link), this servo delivers outstanding torque and smooth responsiveness for demanding applications where accuracy and strength matter most.
With programmable parameters that allow fine-tuning to match your driving style, track conditions, and chassis setup, the PGS-CX II is a versatile tool for serious competitors. The aluminum heatsink ensures cool operation even during extended sessions, while the waterproof design (IPX4 rated) provides protection in wet conditions.
Key Features
- High-torque output: 26.5 kg-cm @ 7.4V
- Fast response: 0.11 sec/60° @ 7.4V
- SSL compatible for wireless programming
- Durable metal gear train
- Coreless motor for smooth operation
- Aluminum heatsink for thermal management
- Waterproof design (IPX4 rated)
- SSR and SHR mode compatible
- LiPo 2-cell battery compatible
Performance Benefits
- Powerful torque handles aggressive steering demands
- Customizable response via programmability
- Consistent precision lap after lap
- Cool-running aluminum heatsink extends servo life
- Waterproof protection for all-weather racing
Usage Notes
- Ideal for 1/10 scale on-road and off-road racing
- Suitable for 1/8 scale applications requiring high torque
- SSL compatible with CODE 10 transmitters (M12S, M12S RS, EXZES ZZ, MT-44)
- Not compatible with CODE 5 transmitters
- Requires Multi Setting Gear for advanced programming (not compatible with PGS Setting Gear)
Technical Specs
-
Brand: Sanwa
-
Model: PGS-CX II
-
Speed: 0.11 sec/60° @ 7.4V | 0.13 sec/60° @ 6.0V
-
Torque: 26.5 kg-cm (368 oz-in) @ 7.4V | 23.3 kg-cm (324 oz-in) @ 6.0V
-
Dimensions: 40.5 x 20.5 x 37.2mm
-
Weight: 59g
-
Motor Type: Coreless
-
Gear Type: Metal
-
Operating Voltage: 6.0V - 7.4V
-
Water Resistance: IPX4
-
Part Number: 107A54525A
What's Included
- (1) Sanwa PGS-CX II Programmable Servo
- Servo horn with mounting hardware
Summary
The Sanwa PGS-CX II delivers the perfect combination of high torque, fast response, and programmable flexibility for competitive RC racing. With premium construction, waterproof protection, and SSL compatibility for wireless tuning, this servo is built for racers who want the ultimate in performance and reliability.
