Overview

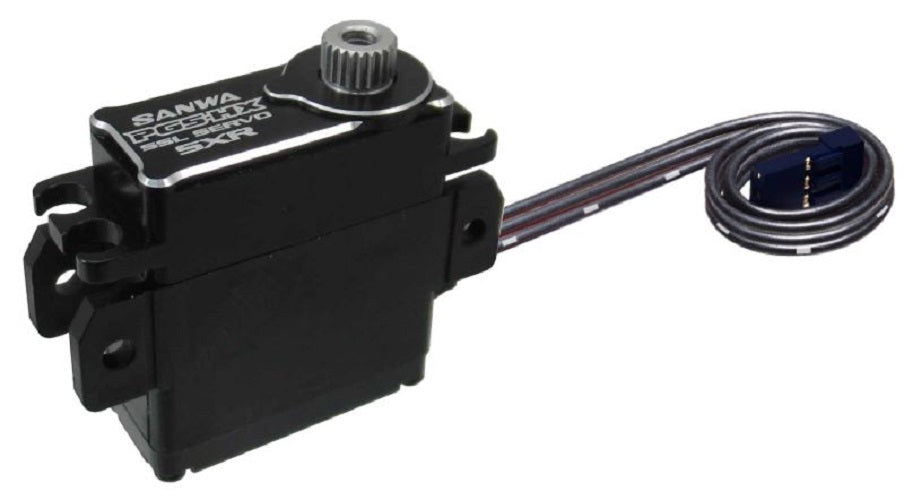

The Sanwa PGS-HX Mini Servo is a compact, high-performance digital servo purpose-built for 1/12 scale RC racing. Delivering an impressive 0.10 sec/60° response time and 5.8 kg-cm of torque at 6.0V, this mini servo provides the precise, powerful control that competitive 1/12 scale racers demand for sharp steering and agile handling.
Featuring Sanwa's renowned PGS (Programmable Gear System) technology, the PGS-HX Mini is SSL compatible for wireless programming and telemetry when paired with compatible Sanwa transmitters. Its compact form factor preserves critical chassis balance while delivering millisecond-accurate steering response where every fraction of a second counts.
Key Features
- Mini form factor optimized for 1/12 scale chassis
- Fast 0.10 sec/60° transit speed at 6.0V
- 5.8 kg-cm torque output at 6.0V
- SSL compatible for wireless programming
- SXR (Sanwa Xtreme Response) mode compatible
- Full metal gear train
- Coreless motor design
- Aluminum upper case for durability
- LiPo 1S and 2S battery compatible
Performance Benefits
- Sharp, responsive steering for competitive racing
- Compact fit preserves 1/12 scale chassis balance
- Consistent Sanwa precision lap after lap
- Programmable settings for personalized response
- Telemetry feedback on servo temperature and voltage
Usage Notes
- Specialized for 1/12 scale on-road racing
- Compatible with micro touring and pan-car chassis
- SSL compatible with CODE 10 transmitters (M17, MT-5, MT-R, M12S, EXZES ZZ, MT-44)
- Not compatible with CODE 5 transmitters
- Requires Multi Setting Gear for advanced programming features
Technical Specs
-
Brand: Sanwa
-
Model: PGS-HX Mini
-
Speed: 0.10 sec/60° @ 6.0V | 0.16 sec/60° @ 3.7V
-
Torque: 5.8 kg-cm @ 6.0V | 3.8 kg-cm @ 3.7V
-
Dimensions: 27.0 x 12.1 x 30.5mm
-
Weight: 23.0g
-
Motor Type: Coreless
-
Gear Type: Full Metal
-
Operating Voltage: 3.7V - 6.0V
-
Part Number: 107A54763A
What's Included
- (1) Sanwa PGS-HX Mini Servo
- Servo horn with mounting hardware
Summary
The Sanwa PGS-HX Mini Servo delivers elite-level performance in a compact package specifically designed for 1/12 scale RC racing. With its fast response, programmable features, and premium Sanwa engineering, this servo is the choice for serious competitors who demand the best.
