Overview
The SRT Low-Profile HV Brushless Servo combines a fast 0.065 sec/60° transit with 23.0 kg-cm of stall torque at 8.4V in a compact low-profile case. This version has a 180mm JR lead, designed specifically for nitro car steering installations.
It is a programmable, high-torque brushless servo with a CNC-machined aluminum case for excellent cooling, titanium and steel gears and a 25T output shaft. It is ideal for 1/10 on-road cars and also suits animatronics and other scale projects.
Key Features
- Low-profile programmable brushless servo
- 23.0 kg-cm torque and 0.065 sec at 8.4V
- TC4 titanium and steel gears
- CNC aluminum case for cooling
- Supports SXR, SUR, SR and SFR high-speed modes
- 180mm JR lead for nitro cars
Performance Benefits
- Fast, precise steering response
- Strong holding torque
- Efficient brushless motor with low power use
Usage Notes
- Operating voltage 6.0-8.4V; match your BEC or receiver pack
- 180mm lead suits nitro chassis layouts
- 25T output: use a matching 25T servo horn
- Operating temperature -10 to +60°C
Technical Specs
-
Brand: SRT
-
Item No.: SRTBHX2180MM
-
Type: Digital, low-profile
-
Motor: 4-pole brushless
-
Gears: TC4 titanium & steel
-
Bearings: Dual
-
Output Shaft: 25T
-
Voltage: 6.0-8.4V
-
Speed: 0.080 / 0.073 / 0.065 sec/60° at 6.0 / 7.4 / 8.4V
-
Torque: 15.0 / 18.0 / 23.0 kg-cm (208.3 / 250.0 / 319.4 oz-in) at 6.0 / 7.4 / 8.4V
-
Frequency: 1520us / 330Hz
-
Dead Band: 2 usec
-

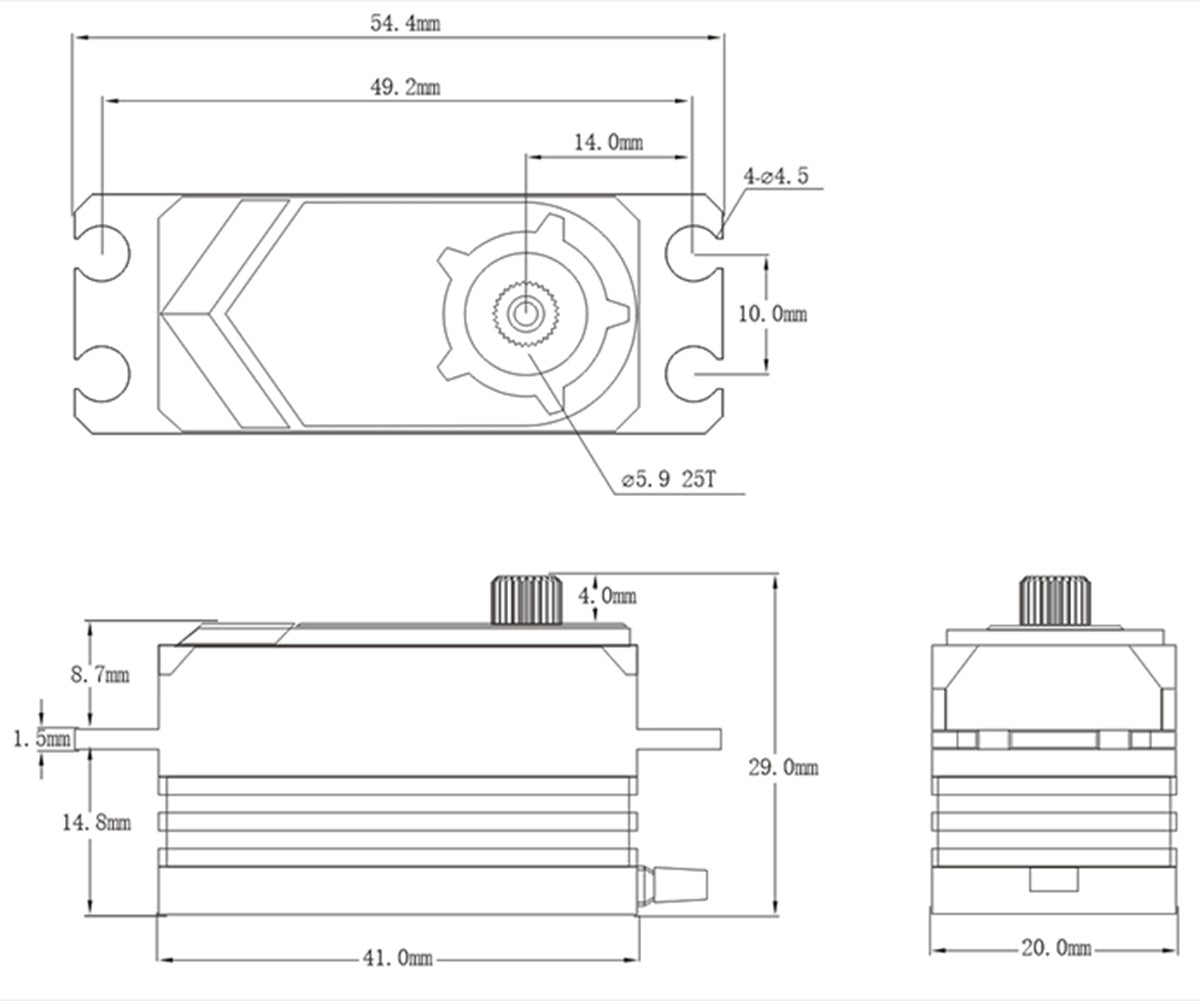

Dimensions: 41.0 x 20.0 x 24.8mm
-
Weight: 52.0g
-
Lead: JR, 180mm (for nitro car steering)
-
Warranty: 1-year limited
What's Included
- (1) SRT Low-Profile HV Brushless Servo with 180mm lead
Fitment
Compatible RC vehicles: 1/10 nitro on-road cars and other 1/10 RC vehicles that take a low-profile servo with a 25T output and a 6.0-8.4V supply.
Summary
- Low-profile HV brushless servo
- 23kg-cm and 0.065 sec at 8.4V
- Titanium gears and aluminum case
- 180mm lead for nitro cars
