Overview

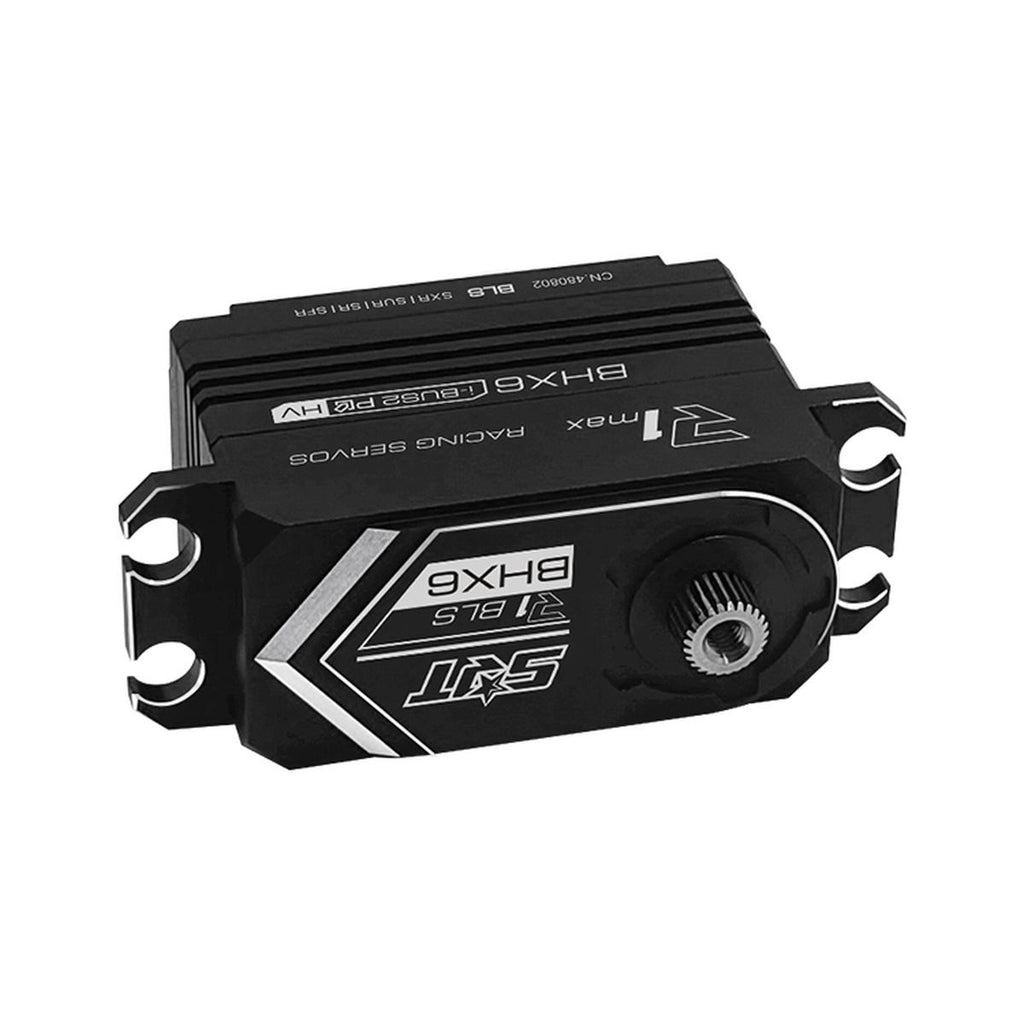

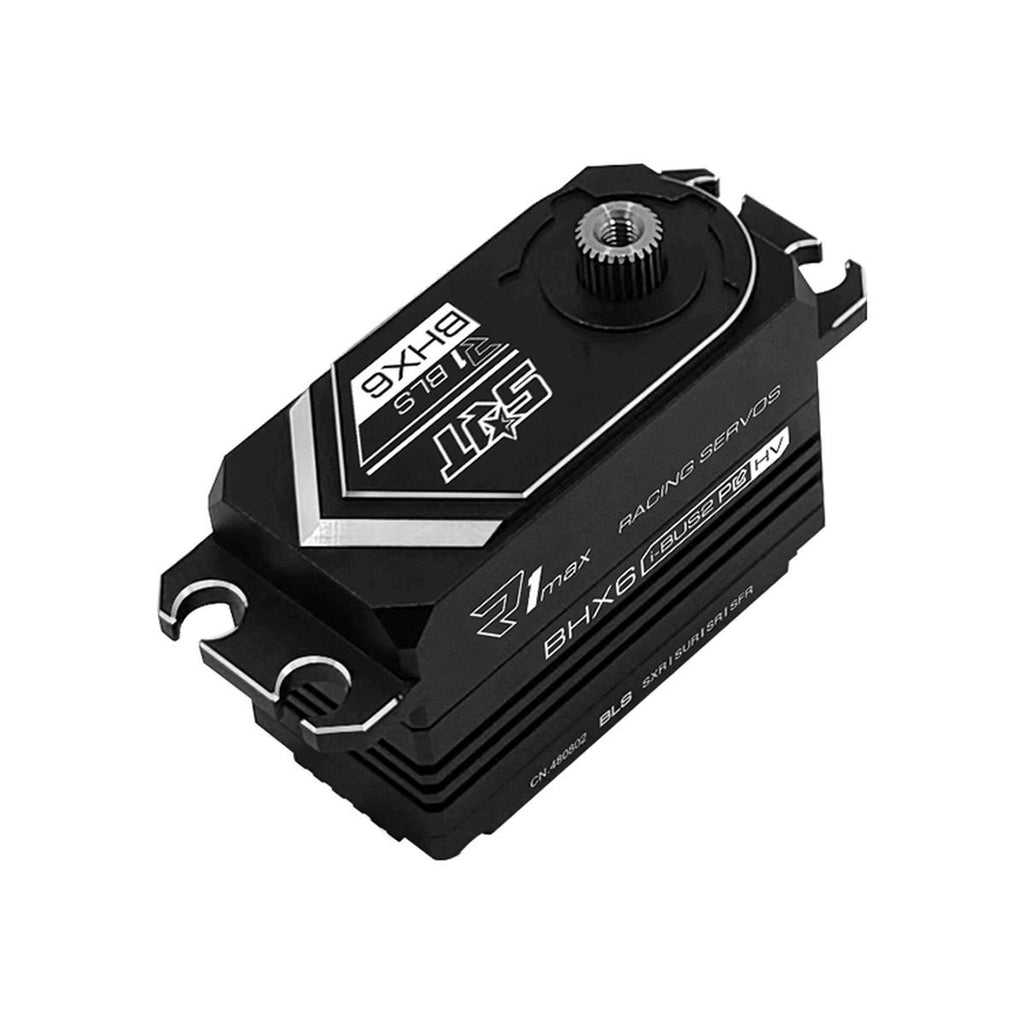

The SRT BHX6 is a standard size, high-voltage brushless digital servo built for 1/10 to 1/8 scale vehicles. It produces up to 486.1 oz-in (35.0 kg-cm) of stall torque with a 0.053 sec/60 degree transit at 8.4V.

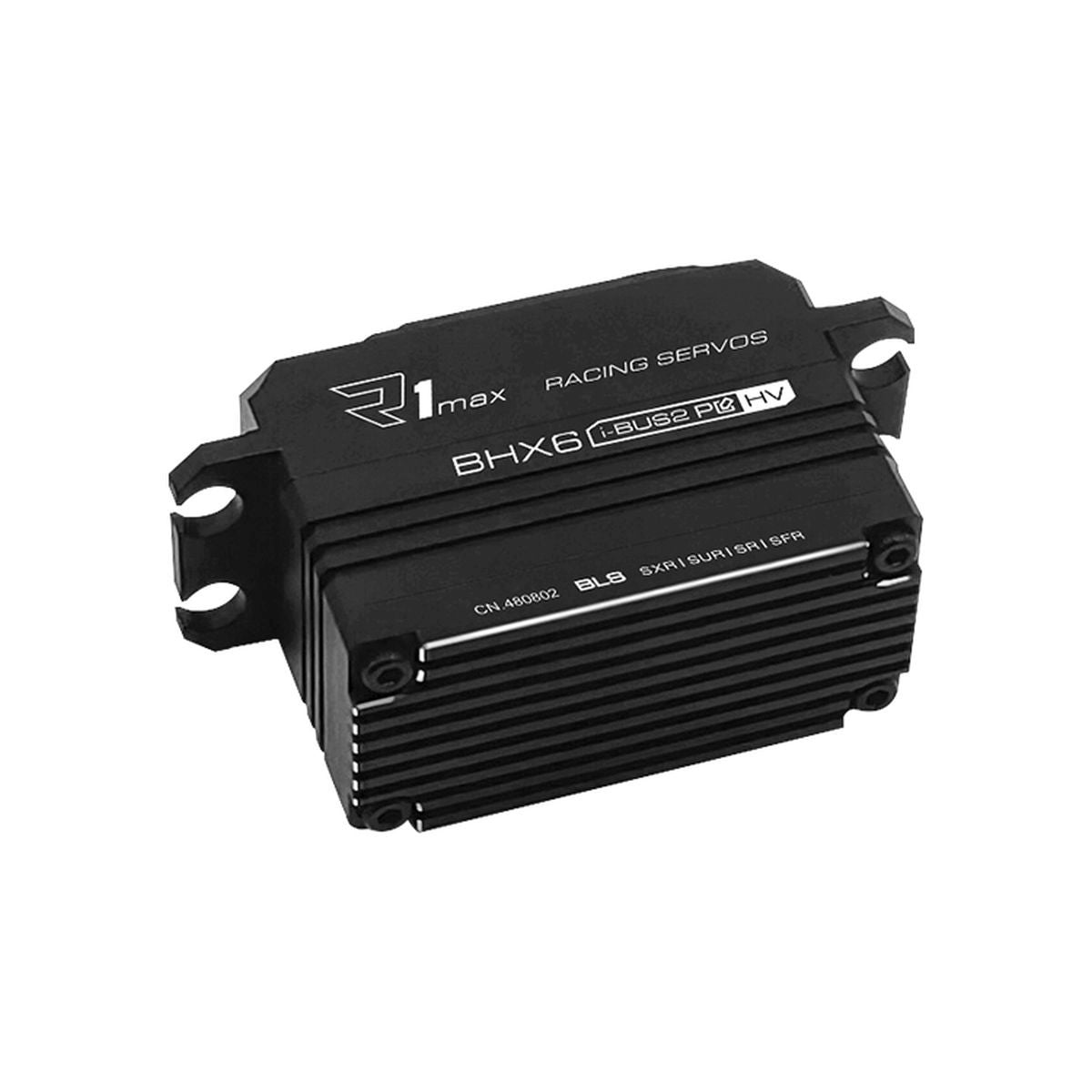

Its CNC machined aluminum case aids cooling, titanium and steel gears handle heavy loads, and SRT's removable wire lead allows custom lead lengths and easier maintenance.
Key Features
- Brushless motor with direct-drive potentiometer
- Titanium and steel metal gear train
- CNC machined aluminum case for exceptional cooling
- Removable wire lead for custom length and easy service
- All-metal servo mounting tabs
- 25T output shaft
- Supports SXR, SUR, SR and SFR ultra-high-speed modes
Performance Benefits
- Superior holding torque keeps steering precise under load
- High efficiency and low power consumption
- Fast response sharpens steering feel
- Mounting tabs stay put in extreme conditions
Usage Notes
- Operating voltage DC 6.0-8.4V; a high-voltage BEC or receiver pack is recommended for full performance
- Uses a 25T servo horn
- Set endpoints on your transmitter to avoid binding at full lock
- 180-degree limit angle range of motion
Technical Specs
- Brand: SRT
- Item No.: SRTBHX6180MM
- Motor type: Brushless
- Gear material: Titanium & steel
- Control system: Pulse width control, 1520us / 330Hz
- Operating voltage: DC 6.0-8.4V
- Speed: 0.08 sec/60 deg @ 6.0V; 0.065 sec @ 7.4V; 0.053 sec @ 8.4V (no load)
- Stall torque: 347.2 oz-in (25.0 kg-cm) @ 6.0V; 416.6 oz-in (30.0 kg-cm) @ 7.4V; 486.1 oz-in (35.0 kg-cm) @ 8.4V
- Dimensions: 41.0 x 20.0 x 30.0 mm (1.61 x 0.79 x 1.18 in)
- Weight: 66.0 g (2.33 oz)
- Lead: JR, 180 mm
- Operating temperature: -10 to +60 C
- Warranty: 1-year limited
What's Included
- (1) SRT BHX6 brushless digital servo with 180 mm JR lead
Fitment
Compatible RC vehicles: Universal standard size servo for 1/10 and 1/8 scale RC cars and trucks with a standard servo mount.
Summary
- Standard size HV brushless digital servo
- 486.1 oz-in and 0.053 sec at 8.4V
- Titanium/steel gears, aluminum case, removable lead
- Ideal for 1/10 to 1/8 scale vehicles
