Overview

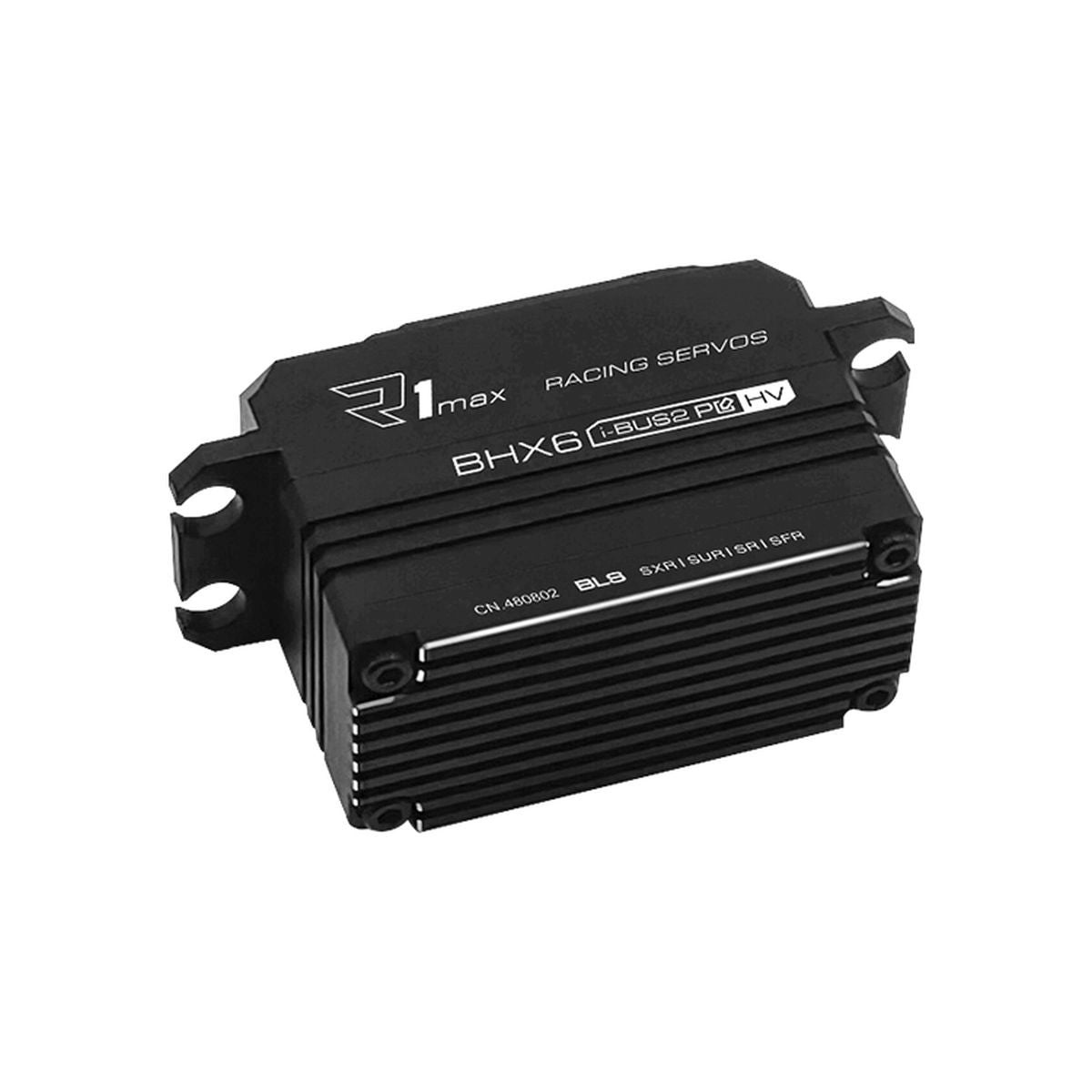

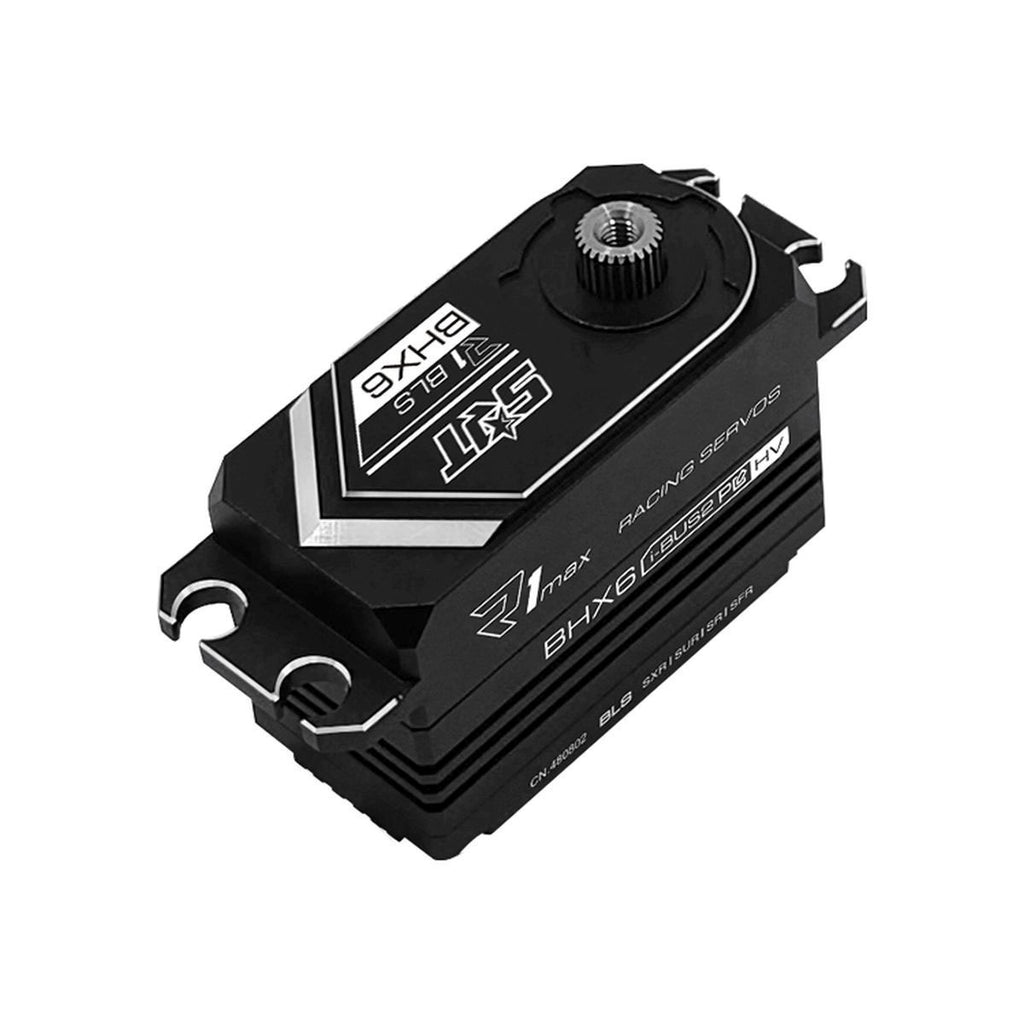

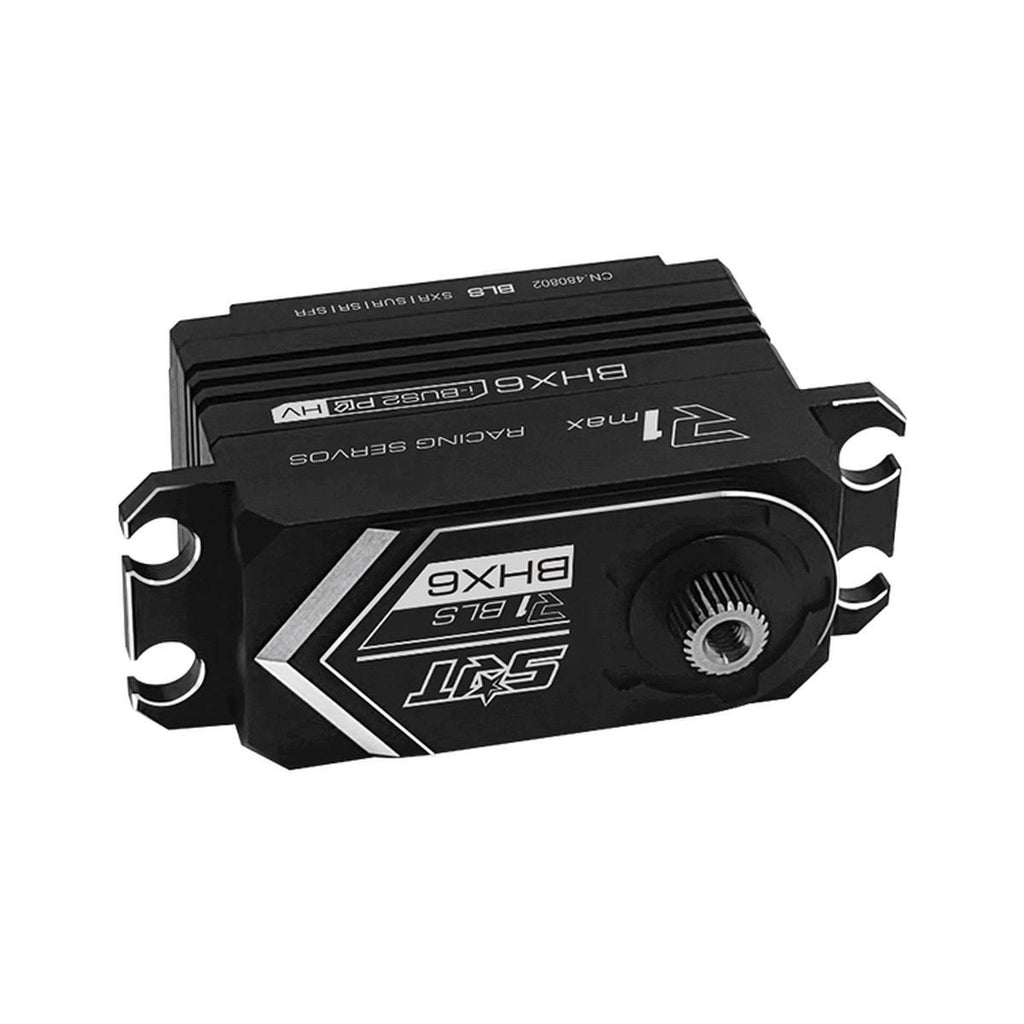

The SRT BHX6 is a standard-size high-voltage brushless digital servo built for demanding 1/10 and 1/8 scale RC vehicles, running on 6.0-8.4V.
A titanium and steel geartrain, CNC machined aluminum case and all-metal mounting tabs deliver strong holding torque, efficient operation and durability under hard use.
Key Features
- Brushless motor with direct-drive potentiometer
- Titanium and steel metal gears
- CNC machined aluminum case for cooling
- Removable wire lead for custom lead length and easy maintenance
- All-metal servo mounting tabs
- Supports SXR, SUR, SR and SFR ultra-high-speed modes; 25T output shaft
Performance Benefits
- Up to 486.1 oz-in (35.0 kg-cm) of stall torque at 8.4V for precise steering under load
- Fast 0.053 sec/60 deg transit at 8.4V
- Low power consumption and good heat dissipation for consistent performance
Usage Notes
- Requires a 6.0-8.4V supply; confirm your receiver/BEC voltage before installing
- Select a matching 25T servo horn or saver for your vehicle
- Check that the operating mode suits your radio system
Technical Specs
- Brand: SRT
- Item No.: SRTBHX680MM
- Size: Standard
- Motor: Brushless
- Gears: Titanium & steel
- Operating voltage: DC 6.0-8.4V
- Speed: 0.08 / 0.065 / 0.053 sec/60 deg (6.0 / 7.4 / 8.4V)
- Stall torque: 347.2 / 416.6 / 486.1 oz-in (25.0 / 30.0 / 35.0 kg-cm) at 6.0 / 7.4 / 8.4V
- Control: PWM, 1520us / 330Hz
- Operating temperature: -10 to +60 C
- Dimensions: 41.0 x 20.0 x 30.0mm
- Weight: 66.0g (2.33 oz)
- Output: 25T
- Lead: JR, 80mm
- Warranty: 1-year limited
What's Included
- (1) SRT BHX6 standard HV brushless digital servo
Fitment
Compatible RC vehicles: 1/10 to 1/8 scale RC cars and trucks that accept a standard-size servo and a 6.0-8.4V supply
Summary
- Standard-size HV brushless servo for 1/10 to 1/8 scale vehicles
- 486.1 oz-in and 0.053 sec at 8.4V
- Titanium/steel gears in a CNC aluminum case
