Overview
The SRT CH7015 HV Coreless Digital Servo is a low-profile, standard-size servo for high-voltage applications up to 8.4V, delivering 208.3 oz-in of torque and a 0.07 sec transit speed. It is built for RC drivers who want sharper steering response, dependable holding power and a precise control feel.
Its compact low-profile case makes it ideal for 1/10 on-road touring, drift and race platforms where space efficiency and chassis balance matter, and it suits upgrading from a stock RTR servo or refreshing a competition build.
Key Features
- Low-profile standard-size case
- High-voltage operation up to 8.4V
- Coreless motor with digital control
- Durable metal-geared construction
- 208.3 oz-in torque and 0.07 sec speed at 8.4V
Performance Benefits
- Strong steering authority under load
- Quick steering response
- Precise centering and repeatable feel
- Low profile helps keep chassis weight low and balanced
Usage Notes
- Best used with 1/10 on-road touring, drift and race vehicles; SRT rates this series for 1/10 to 1/8 scale applications
- Verify servo size, spline compatibility, receiver/BEC voltage and steering-linkage clearance before installation
- Set endpoints carefully and use an external BEC when the vehicle electronics require additional current capacity
Technical Specs
-
Brand: SRT
-
Item No.: CH7015
-
Scale: 1/10
-
Motor Type: Coreless
-
Control: Digital
-
Case: Low-profile, standard size
-
Operating Voltage: Up to 8.4V (HV)
-
Torque @ 8.4V: 208.3 oz-in
-
Speed @ 8.4V: 0.07 sec

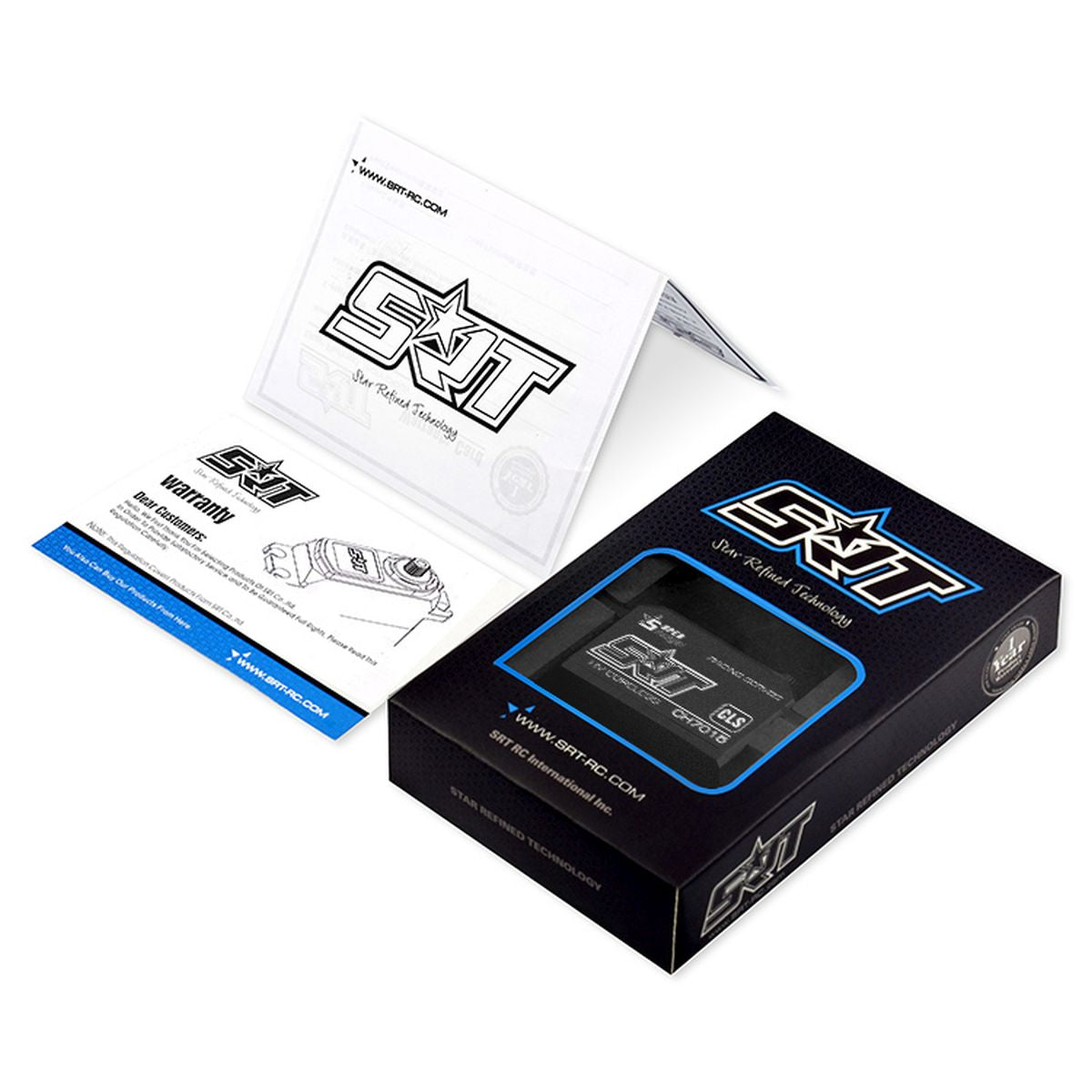

What's Included
- (1) SRT CH7015 digital servo
- Factory servo lead and case hardware as supplied by SRT
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Summary
- Low-profile HV coreless digital servo
- 208.3 oz-in / 0.07 sec at 8.4V
- Metal gears for durability
- Built for 1/10 on-road touring, drift and race
