Overview

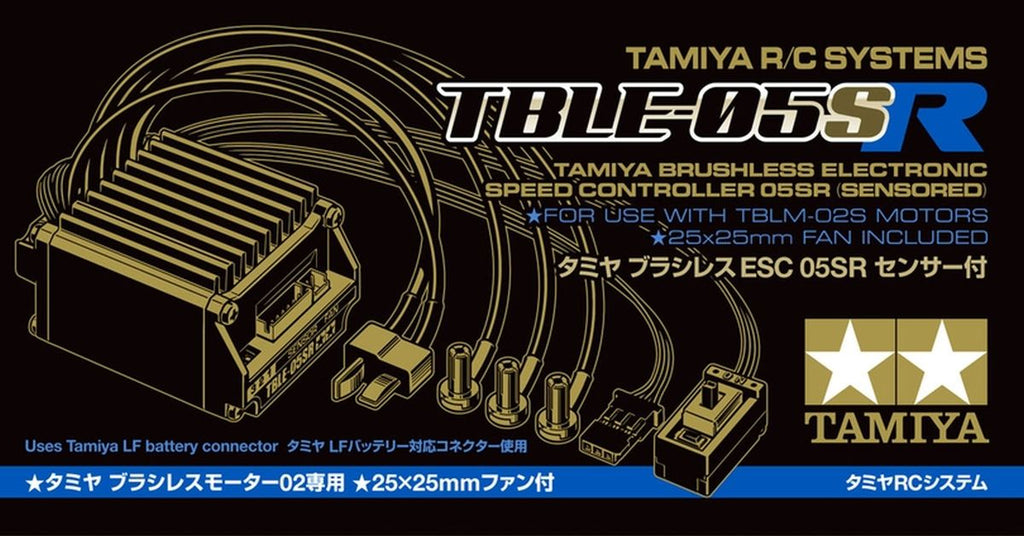

The Tamiya TBLE-05SR is a high-performance sensored brushless electronic speed controller designed exclusively for use with Tamiya sensored brushless motors. Featuring dedicated brushless motor connectors for efficient power supply and direct motor connection, the 05SR delivers incredibly smooth throttle response from a standstill and consistent power delivery across the entire RPM range.
Building on the success of the TBLE-04SR, this upgraded ESC features a black anodized aluminum case that serves as a heat sink for improved thermal management, with provisions for mounting a 25mm cooling fan. The reinforced FET layout handles sustained high-current loads with ease, while comprehensive protection features safeguard your investment.
Key Features
- Sensored brushless operation for ultra-smooth throttle control
- Dedicated brushless motor connectors for efficient power delivery
- Direct motor connection—no soldering required
- 90A maximum continuous current capacity
- Black anodized aluminum heat sink case
- 25mm cooling fan compatible (fan sold separately)
- Parallelized FET layout for high current resistance
- Overheat and overload protection
- Programmable settings via set button
- LED and audio feedback for setup confirmation
- 270mm sensor cable included
Performance Benefits
- Zero cogging—smooth, linear throttle from standstill
- Efficient power transfer via dedicated connectors
- Superior heat dissipation with aluminum case
- Customizable settings for different driving conditions
- Built-in protection prevents equipment damage
Usage Notes
This ESC is designed ONLY for use with Tamiya sensored brushless motors (such as the 54612 Brushless Motor 02 15.5T). Not compatible with sensorless motors or non-Tamiya brushless systems. Pair with a 6.6V-7.2V battery pack.
Recommended RC Scales: 1/10 scale on-road and off-road RC vehicles
Technical Specs
ESC Specifications
- Type: Sensored Brushless ESC
- Maximum Continuous Current: 90A
- Input Voltage: 6.6V - 7.2V
- Weight: 76g (including cables)
- Dimensions: 42.5 x 33.5 x 24.5mm (without fan)
- Dimensions with Fan: 42.5 x 33.5 x 33.5mm
- Case Material: Black anodized aluminum
- Sensor Cable: 270mm included
- Fan Mount: 25mm square (fan sold separately)
- Programmable Settings: Battery cutoff, reverse, brake, soft start, neutral brake
- Item Number: 45071
What's Included
- 1x Tamiya TBLE-05SR Sensored Brushless ESC
- 1x 270mm Sensor Cable
- Receiver switch with protective case
Summary
The Tamiya TBLE-05SR delivers professional-grade sensored brushless performance with the reliability and build quality Tamiya is known for. Ideal for RC enthusiasts upgrading from brushed systems or seeking smooth, efficient brushless power for their Tamiya builds.
