Overview

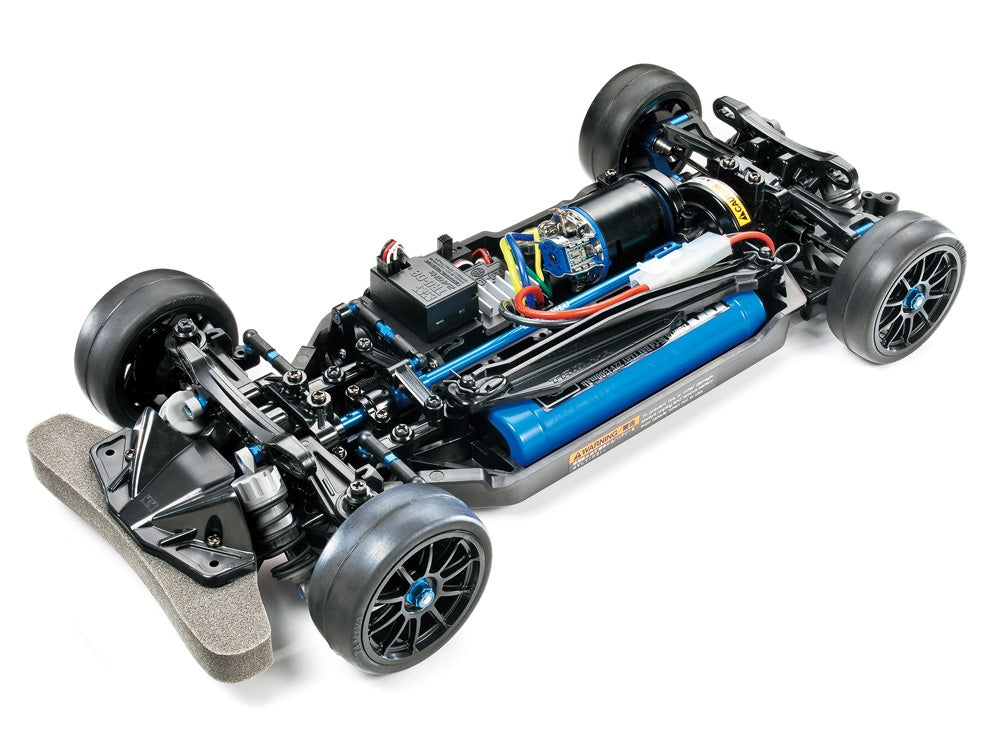

The Tamiya TT-02R is a race-ready 1/10 scale touring car chassis kit designed as a high-performance evolution of the popular TT-02 platform. By combining the proven simplicity and balance of the TT-02 with a comprehensive set of factory-installed hop-up components, the TT-02R delivers improved rigidity, drivetrain efficiency, and suspension performance straight out of the box. This chassis is the ideal foundation for club racing, spec classes, or builders who want performance upgrades without purchasing them separately.
The TT-02R includes many of Tamiya's most popular option parts as standard equipment, including aluminum motor mount, aluminum propeller shaft, aluminum rear uprights with 3-degree toe-in, CVA oil-filled dampers, and a full ball bearing drivetrain. These factory upgrades dramatically enhance performance over the base TT-02, making the TT-02R an excellent choice for competitive racing and serious enthusiast driving.
Key Features
- 1/10 scale RC 4WD touring car chassis kit with 257mm wheelbase
- Race-spec TT-02R with factory hop-up components

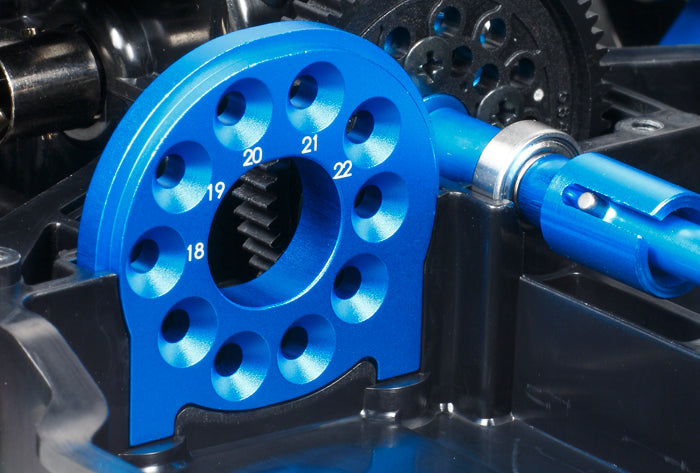

- Aluminum motor mount for improved rigidity and heat dissipation
- Aluminum propeller shaft and joints for smoother drivetrain

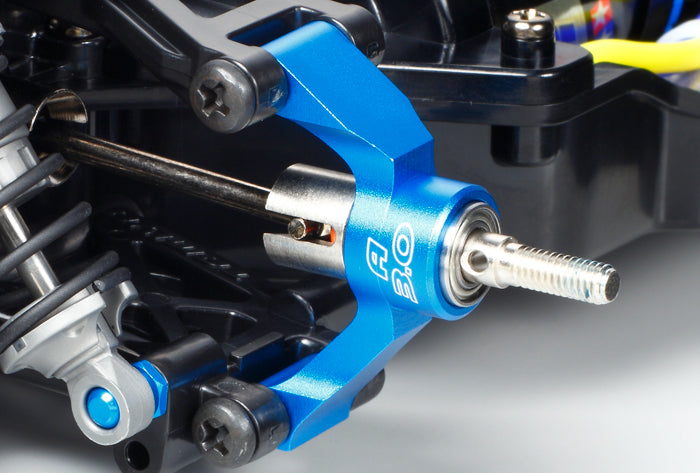

- Aluminum rear uprights with 3-degree toe-in for stability
- Full ball bearing drivetrain throughout

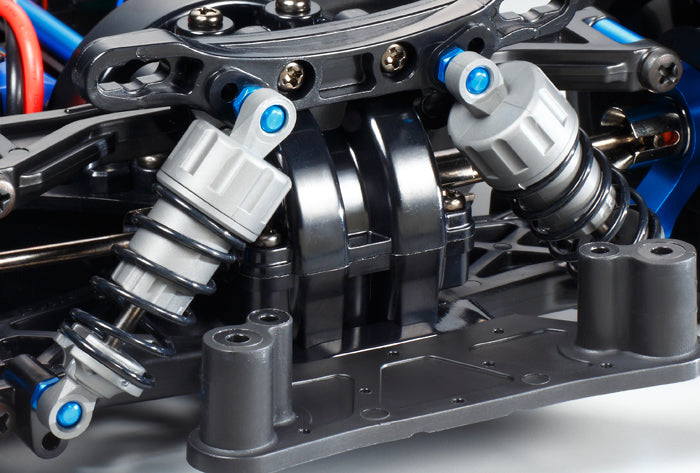

- CVA oil-filled dampers with performance springs
- High-speed gear set included
- 10-spoke wheels with slick tires
- Compatible with 190mm touring car bodies
Chassis Features
- Shaft-driven 4WD with longitudinal layout
- Front and rear gear differentials
- Reinforced ABS chassis with aluminum components
- Metal drive shafts and reinforced joint cups
- 4-wheel independent double wishbone suspension
- Adjustable camber and toe settings
- Multiple gear ratio options
- 257mm wheelbase for 190mm body compatibility
Performance Benefits
- Aluminum components reduce flex and improve response
- Full ball bearings minimize friction and power loss
- Oil-filled dampers provide superior shock absorption
- 3-degree toe-in rear uprights enhance high-speed stability
- Metal drivetrain components ensure durability
- Race-ready setup minimizes break-in time
- Proven TT-02 platform with established tuning knowledge
Usage Notes
The TT-02R is designed for on-road racing on smooth paved surfaces including club tracks and parking lots. The chassis-only kit requires a separate 190mm touring car body (polycarbonate, sold separately). Compatible with both brushed and brushless motor setups. The aluminum components and oil dampers provide immediate performance benefits over standard TT-02 kits. Recommended for intermediate to advanced builders ages 14 and up.
Technical Specs
| Specification |
Detail |
| Scale |
1/10 |
| Wheelbase |
257mm |
| Body Compatibility |
190mm Touring Car Bodies |
| Chassis |
Reinforced ABS with Aluminum Components |
| Drive |
Shaft-Driven 4WD |
| Differential |
Gear Type (Front & Rear) |
| Suspension |
Independent Double Wishbone |
| Dampers |
CVA Oil-Filled |
| Bearings |
Full Ball Bearing Set |
| Manufacturer |
Tamiya |
| Item Number |
47326 |
What's Included
- TT-02R chassis assembly kit
- Aluminum motor mount
- Aluminum propeller shaft and joints
- Aluminum rear uprights (3° toe-in)
- CVA oil-filled dampers with springs
- Full ball bearing set
- High-speed gear set
- 10-spoke wheels
- Slick tires
- Comprehensive instruction manual
Needed to Complete
- 190mm touring car body (polycarbonate)
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- Electronic Speed Controller (ESC)
- Type 540 brushed or brushless motor
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya TT-02R delivers race-ready performance with factory-installed hop-up components on the proven TT-02 platform. This competition-focused chassis features aluminum drivetrain components, CVA oil-filled dampers, full ball bearings, and 3-degree toe-in rear uprights for immediate competitive advantage. Perfect for club racers, spec class competitors, and serious enthusiasts seeking a performance-focused 4WD touring car chassis with extensive tuning potential and proven reliability.
