Description
Overview
The Tamiya Manta Ray 2018 is a limited edition re-release of one of the most beloved beginner-friendly yet highly upgradeable buggies in RC history. Originally released in 1990, the Manta Ray earned its reputation as both an accessible entry point for newcomers and a capable platform for veteran hobbyists seeking endless customization options. This 2018 re-release faithfully recreates the iconic design while adding modern electronics, making it ready for a new generation of RC enthusiasts.
The body design draws inspiration from the sleek, curved shape of manta rays, creating an instantly recognizable silhouette that remains stunning three decades later. Built on the proven DF-01 bathtub chassis with honeycomb-ribbed construction for excellent rigidity, the Manta Ray features shaft-driven 4WD, CVA oil dampers, and sealed gearboxes with quick-access maintenance hatches. All-terrain spike tires mounted on aero dish wheels provide excellent traction on grass, dirt, and rough surfaces.
Key Features
- 1/10 scale R/C model assembly kit with 395mm length, 250mm width, 145mm height
- Iconic manta ray-inspired polycarbonate body design
- Large polycarbonate rear wing for downforce
- DF-01 bathtub chassis with honeycomb rib pattern
- Shaft-driven 4WD drivetrain
- CVA oil dampers for smooth suspension action
- Sealed front and rear gearboxes with quick-access hatches
- Aero dish wheels with all-terrain spike tires
- 540-Type motor included
- HobbyWing THW 1060 ESC included
- Limited edition Special Project release
Historical Significance
- Original model released in 1990
- Re-released in 2005 (58360) and 2018 (47367)
- One of Tamiya's most popular beginner buggies
- Renowned for being highly upgradeable
- Iconic bio-inspired body design
- Limited edition 2018 Special Project release

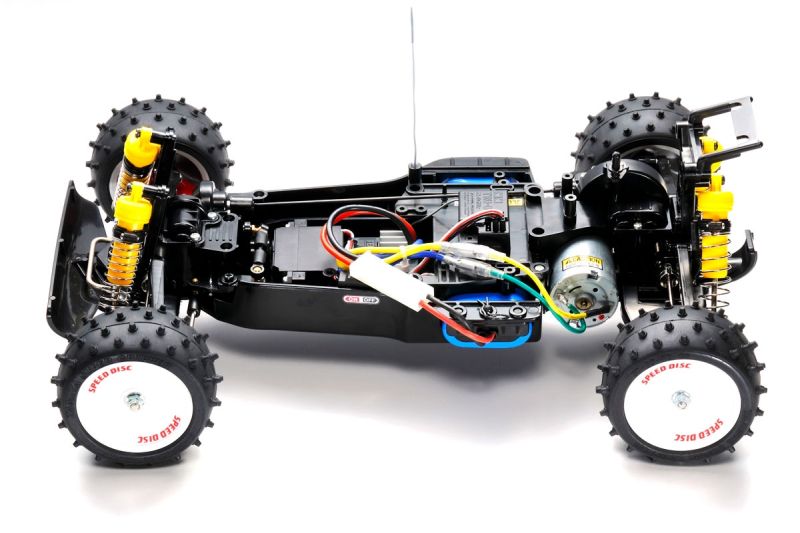

Chassis Features
- Sturdy bathtub frame with honeycomb rib pattern
- Center-mounted battery and RC mechanisms for balance
- 270mm wheelbase with 207mm tread
- Shaft-driven 4WD system
- Front and rear sealed gearboxes
- Quick-access maintenance hatches
- Front and rear 3-bevel differential gears
- 3-piece steering tie rod with ball adjusters
Performance Benefits
- Optimum balance from center-mounted components
- Stable off-road running from CVA oil dampers
- 4-wheel independent double wishbone suspension
- Smooth cornering from internal differential gears
- Excellent rigidity from honeycomb bathtub frame
- Easy maintenance from quick-access gearbox hatches
- All-terrain capability from spike tires
- Extensive hop-up parts availability
Usage Notes
The Manta Ray excels on off-road surfaces including dirt, grass, gravel, and packed earth. The spike tires provide excellent grip on varied terrain. CVA oil dampers should be checked periodically for oil level. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints. Ball bearings upgrade highly recommended for improved performance.
Technical Specs
- Scale: 1/10
- Length: 395mm
- Width: 250mm
- Height: 145mm
- Wheelbase: 270mm
- Tread: 207mm (front and rear)
- Tire Width/Diameter: 40/84mm
- Weight: 1,100g (excluding RC equipment)
- Drive: Shaft-driven 4WD
- Chassis: DF-01 bathtub
- Body Material: Polycarbonate
- Motor: 540-Type Brushed
- ESC: HobbyWing THW 1060 (2-3S compatible)
- Suspension: 4-wheel double wishbone
- Dampers: CVA oil-filled
- Differentials: 3-bevel gear type
- Gear Ratio: 8.59:1 (with 21T pinion)
- Manufacturer: Tamiya
- Item Number: 47367
What's Included
- Complete unassembled DF-01 chassis kit
- Polycarbonate Manta Ray body (clear)
- Polycarbonate rear wing
- Aero dish wheels (4)
- All-terrain spike tires (4)
- CVA short oil shock units (4)
- Original sticker designs
- 540-Type brushed motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Recommended Upgrades
- Full ball bearing set
- Item 47373 Hard Propeller Shaft & Aluminum Motor Mount
- Item 53070 Manta Ray Ball Diff Set
- Item 53791 DF-02 Assembly Universal Shaft
- Item 53926 DF-03 Aluminum Damper Set
Summary
The Tamiya Manta Ray 2018 Limited Edition brings the iconic 1990 buggy back for a new generation with modern electronics and proven DF-01 4WD performance. With its distinctive bio-inspired body, CVA oil dampers, included motor and ESC, and extensive upgrade compatibility, this Special Project release delivers the perfect blend of nostalgic design and contemporary capability. Ideal for beginners seeking an accessible yet upgradeable platform, or collectors wanting a piece of RC history.
