Description
Overview

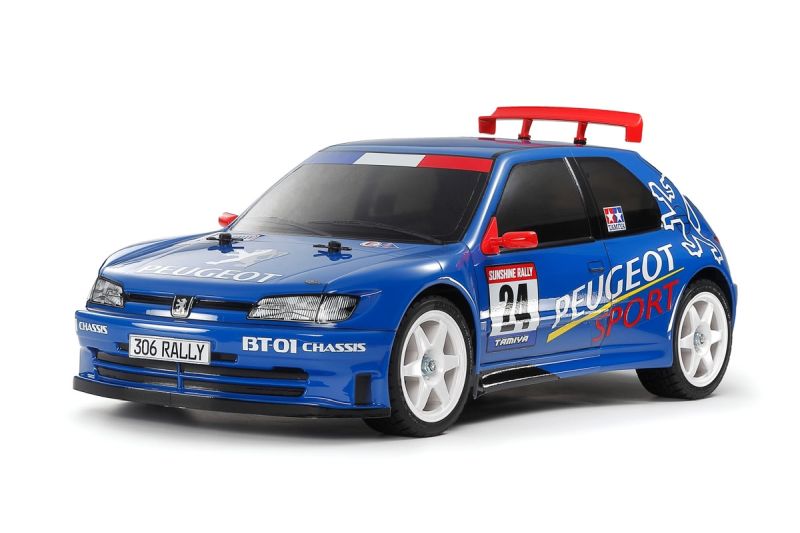

The Tamiya Peugeot 306 Maxi brings the legendary French rally champion to the RC world. Based upon the front-wheel-drive Peugeot 306 hatchback, the 306 Maxi was developed with dedicated components specifically for rallying. The full-scale car featured a naturally aspirated 2.0-liter engine producing an impressive 280 horsepower, along with enlarged fenders, a roof spoiler, and a lightened body optimized for competition. This dominant machine achieved victories in the 1996 and 1997 French rally championships, the class championship at the 1996 Monte Carlo Rally, and third place finishes in the 1997 World Rally Championship.
This limited edition assembly kit features a polycarbonate body pre-painted in Brilliant Blue (PS-30) with Smoke (PS-31) windows, pre-cut wheel arches, and pre-made body mount holes. The aggressive wide-body styling with its bulging fenders is faithfully captured, and the model includes a Tamiya original livery design. Mounted on the versatile BT-01 chassis in front-motor, front-wheel-drive configuration to match the real car, this model delivers authentic rally-inspired handling characteristics.
Key Features
- Pre-painted polycarbonate body in Brilliant Blue with Smoke windows
- Pre-cut wheel arches and pre-made body mount holes
- Distinctive wide fenders faithfully recreating the rally car's aggressive stance
- Separately molded ABS plastic side mirrors and rear wing
- 6-spoke wheels paired with racing radial tires
- 540-Type Torque Tuned brushed motor included
- HobbyWing THW 1060 ESC included
- Tamiya original fictitious team livery stickers
Chassis Features
- BT-01 versatile 2WD chassis with front-wheel drive configuration
- Two wheelbase options: Standard (257mm) and adjustable
- Convertible between front-wheel drive and rear-wheel drive
- Front (FR) or Midship Rear (MR) motor position for RWD setups
- 4-wheel double wishbone suspension with symmetrical structure
- Friction dampers front and rear
- Plastic 4-bevel differential gear (compatible with TT-02 hop-ups)
- 3-piece steering tie-rod for smooth handling
- Unitized motor mount, final gears, and suspension sections
- Flip-up battery holders for quick battery changes
Racing Heritage
- Dominant force in F2 Kit Car rallying during the 1990s
- Multiple victories in FIA 2-Litre World Rally Cup
- French Rally Championship winner in 1996 and 1997
- Class champion at 1996 Monte Carlo Rally
- Driven to iconic victories by Gilles Panizzi on tarmac stages
- Recognized for superior handling and agility
Performance Benefits
- Pre-painted body accelerates build time significantly
- FWD configuration provides authentic rally car handling
- BT-01 chassis compatible with TT-02 differential hop-up options
- Torque Tuned motor delivers improved acceleration
- Unitized sections simplify assembly and maintenance
- Double wishbone suspension offers precision handling
- Rear wheels gain toe-in during cornering for improved stability
Usage Notes
- Designed for on-road use on smooth surfaces
- Pre-painted body requires only sticker application and cutting
- FWD recommended for this body to match real car configuration
- Compatible with ball differentials and oil-filled differentials from TT-02 line
- Upgrade to oil-filled dampers for improved suspension control
- Consider ball bearings for reduced friction
Technical Specs
- Scale: 1/10
- Length: 404mm
- Width: 187mm
- Height: 155mm
- Wheelbase: 257mm (standard)
- Tread: 157mm (front and rear)
- Tire Width/Diameter: 27/67mm (front and rear)
- Drivetrain: Front-wheel Drive
- Gear Ratio: 8.27:1 (with kit standard 22T pinion)
- Motor: 540-Type Torque Tuned brushed
- ESC: HobbyWing THW 1060 included
- Chassis: BT-01
What's Included
- Peugeot 306 Maxi pre-painted polycarbonate body
- BT-01 chassis kit (FWD configuration)
- 6-spoke wheels with racing radial tires
- 540-Type Torque Tuned brushed motor
- HobbyWing THW 1060 Electronic Speed Controller
- ABS plastic side mirrors and rear wing
- Tamiya original livery sticker sheet
- Window masking tape
- Assembly instruction manual
Needed to Complete
- 2-channel radio transmitter and receiver
- Steering servo
- 7.2-7.4V battery pack
- Compatible battery charger
- Tamiya PS paint (for any touch-ups)
Summary
The Tamiya Peugeot 306 Maxi with pre-painted Blue body celebrates one of the most successful F2 Kit Cars in rally history. This limited edition kit captures the aggressive wide-body styling and front-wheel-drive dynamics of the legendary French rally machine. The versatile BT-01 chassis offers authentic handling while maintaining compatibility with TT-02 hop-up options for future upgrades. Whether you're a rally enthusiast, a fan of 1990s motorsport, or seeking a unique FWD driving experience, the 306 Maxi delivers championship-winning style and engaging performance in a quick-build package.
