Description
Overview

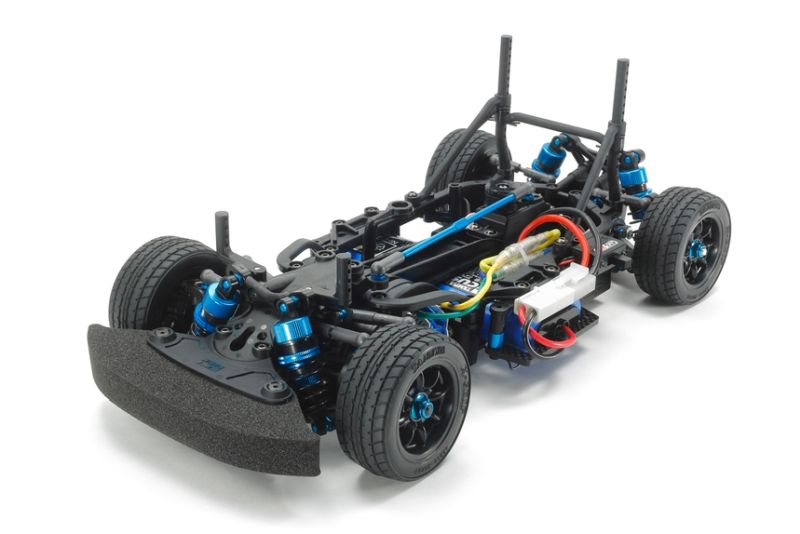

The Tamiya M-07R is the ultimate factory-tuned front-wheel-drive competition chassis, engineered for racers who demand podium-ready performance straight from the box. This limited-edition 1/10 scale chassis kit takes the revolutionary M-07 Concept platform and elevates it with a carefully curated selection of TRF (Tamiya Racing Factory) option parts, eliminating the guesswork of building a competitive FWD racer. Every upgrade has been selected by Tamiya's professional racing team to deliver maximum performance and value.
The M-07R arrives loaded with premium components including TRF Special Dampers, a carbon fiber battery holder, high-traction lower deck, titanium-coated suspension shafts, and 33mm double cardan joint shafts—upgrades that would cost significantly more if purchased separately. This is the ideal choice for serious M-Chassis racers who want to compete immediately, or enthusiasts who appreciate the engineering excellence of a fully-specced competition platform without the complexity of selecting individual hop-up parts.
Key Features
- 1/10 scale FWD competition chassis kit
- Based on M-07 Concept with TRF-selected option parts

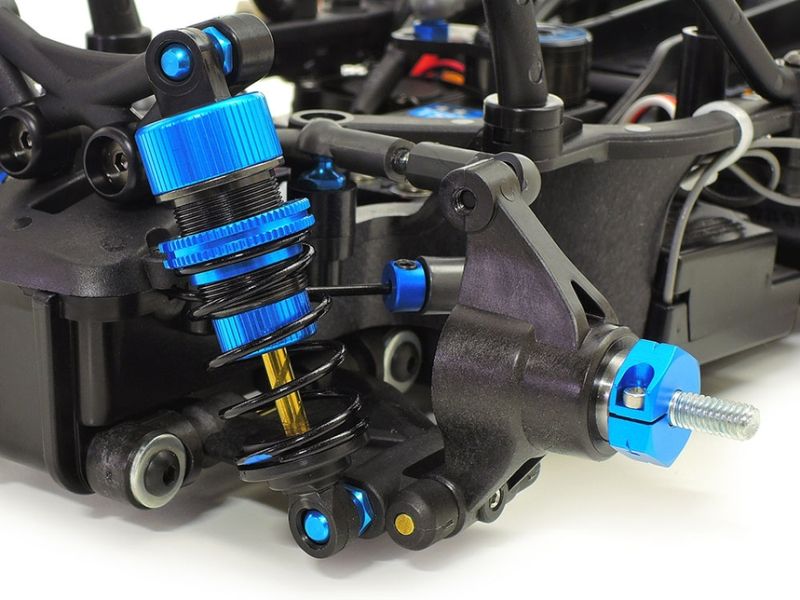

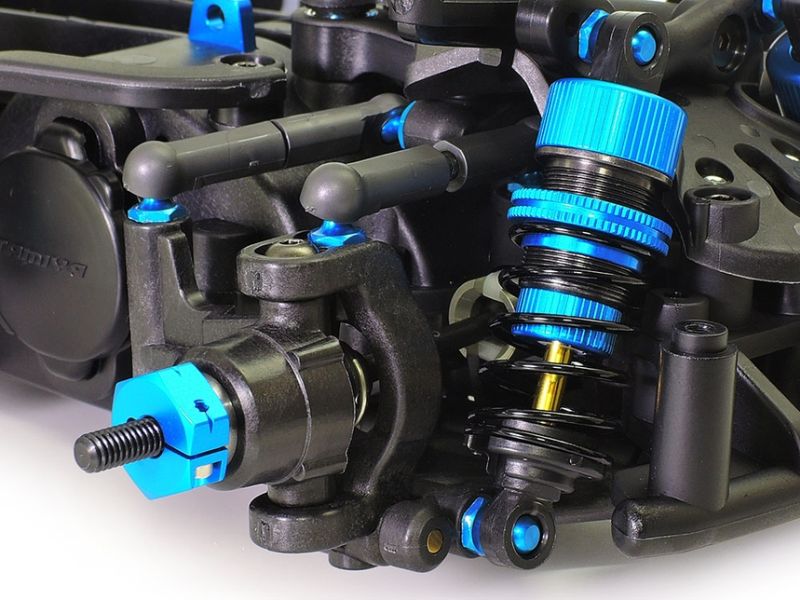

- TRF Special Dampers for premium suspension performance

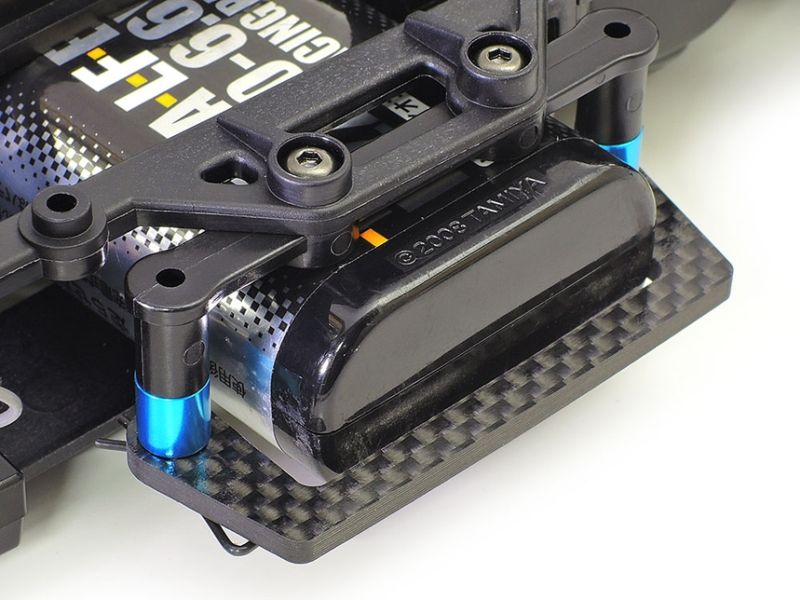

- Carbon fiber battery holder for lightweight rigidity
- High-traction lower deck for enhanced chassis stiffness
- Titanium-coated suspension shafts reduce friction
- 33mm double cardan joint shafts for efficient power delivery
- Aluminum cup joints for drivetrain precision
- Hard fluorine-coated 20T aluminum pinion gear
- Full ball bearing set included
- Aluminum clamp-style wheel hubs
- Long aluminum turnbuckle shaft
- Reinforced uprights and suspension arms
- Rear stabilizer for balanced cornering
- Limited edition release
TRF Racing Upgrades Included
- TRF Special Dampers with aluminum bodies
- Carbon fiber reinforced battery holder
- High-traction lower deck plate
- Titanium-coated 3x32mm suspension shafts
- 33mm double cardan universal shafts
- Aluminum cup joints
- 20T hard fluorine-coated aluminum pinion
- Aluminum wheel hubs with clamp design
- Long aluminum turnbuckle steering shaft
- Reinforced front uprights
- Heavy-duty suspension arms
- Rear stabilizer bar
Chassis Features
- Front-wheel-drive (FWD) layout for M-Chassis racing
- Fully independent double wishbone suspension
- Motor mounted in front for optimal FWD weight distribution
- Multiple wheelbase adjustment options
- Adjustable suspension geometry
- Oil-filled aluminum dampers
- Efficient drivetrain with minimal power loss
- Compatible with M-Chassis body shells
Performance Benefits
- Race-ready performance straight from the box
- TRF Special Dampers provide consistent, adjustable handling
- Carbon fiber components reduce weight while adding rigidity
- Titanium-coated shafts minimize friction for smoother suspension action
- Double cardan shafts deliver efficient power transfer
- Full ball bearings eliminate drivetrain drag
- Reinforced components handle competitive racing loads
- Rear stabilizer reduces body roll in high-speed corners
- Exceptional value vs. purchasing upgrades separately
Usage Notes
The M-07R is designed for competitive M-Chassis racing on smooth paved surfaces and indoor carpet tracks. The FWD layout requires different driving techniques than 4WD cars—smooth throttle inputs and trail braking work best. This is a chassis-only kit; a compatible M-Chassis body shell is required (sold separately). Recommended for experienced builders and racers ages 14 and up who are familiar with competition RC car setup and tuning.
Technical Specs
| Scale: | 1/10 |
| Drive: | Front-wheel-drive (FWD) |
| Chassis: | M-07R (M-07 Concept based) |
| Chassis Material: | FRP/Carbon composite |
| Suspension: | Fully independent double wishbone |
| Dampers: | TRF Special aluminum oil-filled |
| Drivetrain: | 33mm double cardan shafts |
| Bearings: | Full ball bearing set |
| Pinion: | 20T hard fluorine-coated aluminum |
| Battery Holder: | Carbon fiber |
| Wheel Hubs: | Aluminum clamp-style |
| Suspension Shafts: | Titanium-coated 3x32mm |
| Power Source: | 7.2V-7.4V (2S LiPo) |
| Manufacturer: | Tamiya |
| Item Number: | 47520 |
What's Included
- Complete M-07R competition chassis kit
- TRF Special Dampers (4)
- Carbon fiber battery holder
- High-traction lower deck
- Titanium-coated suspension shafts
- 33mm double cardan joint shafts
- Aluminum cup joints
- 20T fluorine-coated aluminum pinion gear
- Full ball bearing set
- Aluminum clamp-style wheel hubs
- Long aluminum turnbuckle shaft
- Reinforced uprights and suspension arms
- Rear stabilizer
- Comprehensive instruction manual
Needed to Complete
- M-Chassis polycarbonate body shell
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 1/10 electronic speed controller (ESC)
- 540-size electric motor
- 7.2V-7.4V battery pack (2S LiPo recommended)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints for body
- M-Chassis wheels and tires
Summary
The Tamiya M-07R Limited Edition delivers competition-ready FWD performance with TRF-selected upgrades that would cost significantly more if purchased separately. This factory-tuned chassis kit includes premium components like TRF Special Dampers, carbon fiber battery holder, titanium-coated suspension shafts, and full ball bearings—everything serious M-Chassis racers need for immediate competitive success. Perfect for experienced racers who demand excellence and value from their equipment.
