Description
Overview

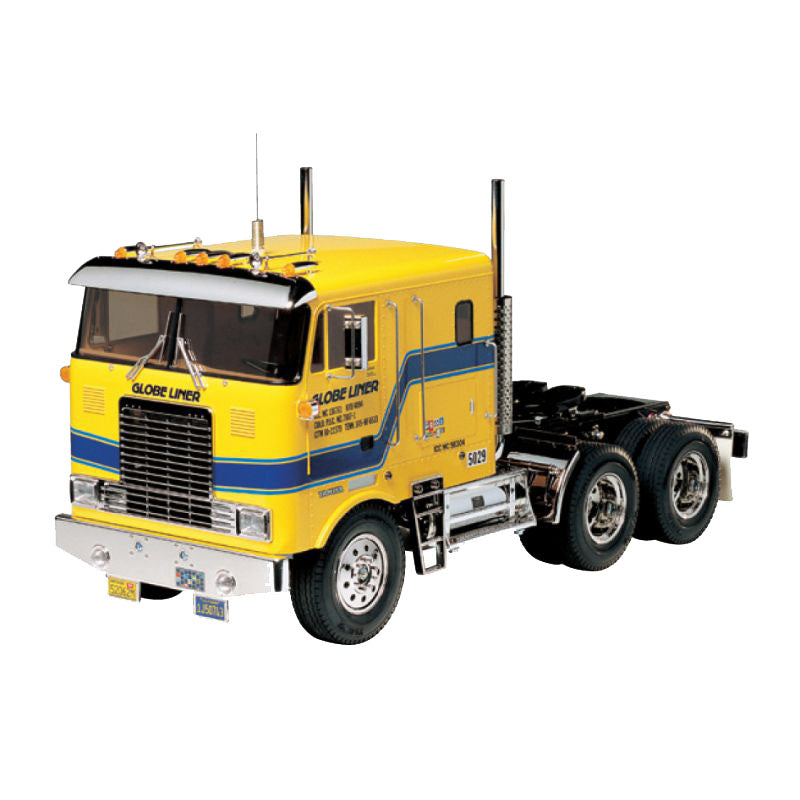

The Tamiya Globe Liner is a classic 1/14 scale RC cab-over tractor truck assembly kit that captures the timeless appeal of compact cab-over-engine semi trucks seen worldwide. This versatile design combines an upright cab profile with heavy-duty stance, reflecting trucking styles common across Europe, Asia, and North America. The Globe Liner has become a cornerstone model in Tamiya's 1/14 Big Truck Series, delivering proven engineering and extensive trailer compatibility.
Built on Tamiya's legendary tractor truck platform, the Globe Liner features an aluminum ladder-frame chassis, metal leaf spring suspension, and a servo-shifted 3-speed transmission that provides authentic trucking dynamics. The front-mounted motor powers dual rear axles via rigid propeller shafts, while built-in differential gears ensure smooth cornering. Whether building for display, scale driving, or hauling Tamiya's extensive 1/14 trailer lineup, the Globe Liner delivers reliable performance and classic styling.
Key Features
- 1/14 scale RC cab-over tractor truck assembly kit with 500mm length, 183mm width, 263mm height
- Classic cab-over-engine design with compact proportions
- Precision-molded ABS plastic cab body
- Detailed interior with roof visor
- Extensive chrome-plated detail parts (grille, mirrors, exhaust, horns)
- Aluminum ladder-frame chassis with resin cross members
- Metal leaf spring suspension front and rear

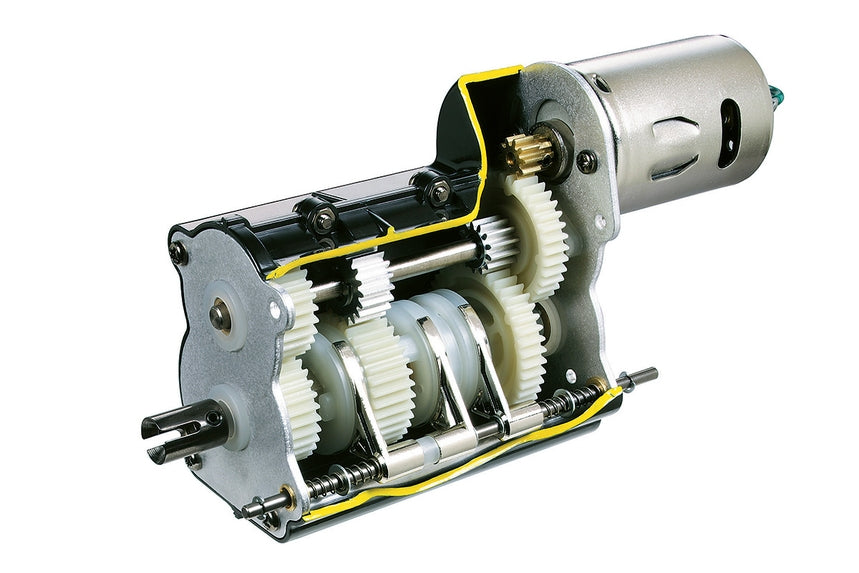

- Servo-shifted 3-speed transmission
- Dual driven rear axles with differential gears
- Type 540 brushed motor included
- Compatible with all Tamiya 1/14 trailers
Chassis Features
- Aluminum side channels with resin cross members
- Front-mounted motor with propeller shaft drivetrain
- Dual rear axle drive via rigid propeller shafts
- 3-bevel differential gears in each rear axle
- Friction dampers front and rear
- Metal leaf springs for realistic suspension
- Constant-mesh 3-speed transmission
Performance Benefits
- Authentic cab-over truck driving dynamics
- Smooth cornering from dual differential-equipped rear axles
- Three gear ratios: 32.49:1, 17.76:1, 10.66:1
- Compact size maneuvers easily in tight spaces
- Stable towing performance with all 1/14 trailers
- Compatible with MFC light, sound, and vibration systems
Usage Notes
The Globe Liner is designed for on-road driving on smooth, hard surfaces. The ABS cab is supplied unpainted in white, allowing builders to create custom fleet liveries or show-truck paint schemes. A minimum 4-channel radio system is required for gear shifting control. The optional Tamiya MFC-01 or MFC-03 Multi-Function Control Unit adds engine sounds, LED lights, turn signals, and vibration effects. Recommended for experienced builders ages 14 and up. Tamiya TS spray paints recommended for the ABS body.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/14 |
| Length | 500mm |
| Width | 183mm |
| Height | 263mm |
| Chassis | Aluminum & Polycarbonate Ladder Frame |
| Drive | Dual Rear Axle Drive |
| Transmission | 3-Speed Constant-Mesh |
| Gear Ratios | 32.49:1, 17.76:1, 10.66:1 |
| Differential | 3-Bevel Gear |
| Motor | Type 540 Brushed |
| Suspension | Leaf Springs with Friction Dampers |
| Manufacturer | Tamiya |
| Item Number | 56304 |
What's Included
- Globe Liner ABS cab (unpainted white)
- Aluminum ladder-frame chassis components
- Metal leaf spring suspension
- Friction dampers
- 3-speed transmission assembly
- Type 540 brushed motor
- Chrome-plated detail parts
- Wheels and tires
- Trailer coupler
- Decal sheet
- Comprehensive instruction manual
Needed to Complete
- 4-channel radio system (transmitter and receiver)
- Electronic Speed Controller (ESC) or Tamiya MFC unit
- Standard-size steering servo
- Shift servo for transmission
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- Tamiya TS spray paints for ABS body
- AA batteries for transmitter
Summary
The Tamiya Globe Liner delivers classic cab-over styling with proven 1/14 scale engineering. This compact tractor truck features an aluminum ladder-frame chassis, metal leaf spring suspension, and a 3-speed transmission for authentic trucking dynamics. With its versatile cab-over design, dual driven rear axles, and comprehensive trailer compatibility, the Globe Liner is perfect for cab-over enthusiasts, fleet builders, and anyone seeking a distinguished European/Asian-style semi truck with legendary Tamiya quality.
