Description
Overview

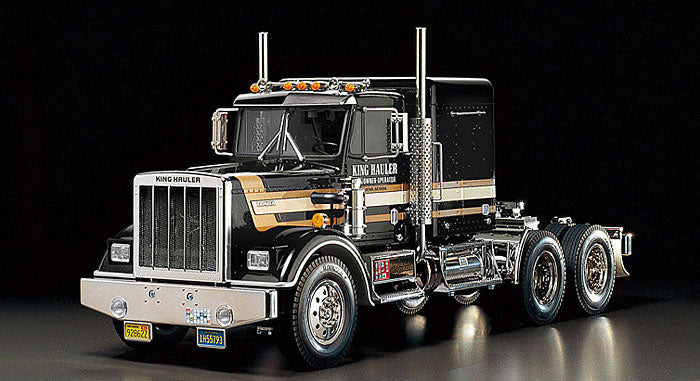

The Tamiya King Hauler Black Edition is a special edition 1/14 scale RC tractor truck that pays homage to one of the most historic models in RC history. First introduced in 1993, the King Hauler was the very first model in Tamiya's legendary 1/14 Tractor Truck Series, setting the standard for scale realism and mechanical authenticity that continues today. This Black Edition features factory pre-painted metallic black body parts that contrast beautifully with the extensive chrome-plated components.
Built on Tamiya's proven ladder-frame platform, the King Hauler Black Edition combines classic American sleeper-cab styling with authentic trucking mechanics. The tough chassis features metal leaf spring suspension, a front-mounted motor with propeller shaft drivetrain, and a servo-shifted 3-speed transmission—mirroring the systems found on actual road-going trucks. This special edition is perfect for collectors and enthusiasts who appreciate both RC history and premium factory-finished styling.
Key Features
- 1/14 scale RC tractor truck assembly kit with 692mm length, 192mm width, 330mm height
- Historic King Hauler platform—Tamiya's first 1/14 scale semi truck (1993)
- Factory pre-painted metallic black ABS body parts
- Extensive chrome-plated detail parts including grille, air cleaners, mirrors
- Classic American sleeper-cab styling
- Aluminum ladder-frame chassis with resin cross members
- Metal leaf spring suspension front and rear
- Servo-shifted 3-speed transmission with transmitter control
- Dual driven rear axles with differential gears
- Type 540 brushed motor included
- LED-ready light buckets
Historical Significance
- First model in Tamiya's 1/14 Tractor Truck Series (1993)
- Established the template for all subsequent Tamiya 1/14 trucks
- Set the standard for scale realism in RC trucking
- Black Edition exclusive finish for collectors
- Continues to be a benchmark for 1/14 scale engineering
Chassis Features
- Aluminum side channels with polycarbonate resin cross members
- Front-mounted motor with propeller shaft drivetrain
- Dual rear axle drive configuration
- 3-bevel differential gears in each rear axle
- Aluminum friction dampers front and rear
- Metal leaf springs provide realistic suspension action
- Wheelbase: 433mm + 103mm dual axle spacing
- Tread: 156mm front, 138mm rear (double tire)
Performance Benefits
- Authentic full-scale truck driving dynamics
- Smooth cornering from dual differential-equipped rear axles
- Three gear ratios for versatile operation: 32.49:1, 17.76:1, 10.66:1
- Metal construction ensures durability and realism
- Excellent stability when towing 1/14 scale trailers
- Compatible with optional MFC light, sound, and vibration systems
Usage Notes
The King Hauler Black Edition is designed for on-road driving on smooth, hard surfaces. The factory pre-painted body eliminates complex paintwork while delivering a premium finish. A minimum 4-channel radio system is required for gear shifting control. The optional Tamiya MFC-01 or MFC-03 Multi-Function Control Unit adds digitally recorded engine sounds, air horn, headlights, brake lights, turn signals, and synchronized chassis vibration. Recommended for experienced builders ages 14 and up.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/14 |
| Length | 692mm |
| Width | 192mm |
| Height | 330mm |
| Weight | Approx. 3.9kg (equipped) |
| Wheelbase | 433mm + 103mm |
| Tread (Front) | 156mm |
| Tread (Rear) | 138mm (double tire) |
| Chassis | Aluminum & Polycarbonate Resin Ladder Frame |
| Drive | Rear 2-Axle Drive |
| Transmission | 3-Speed (transmitter controlled) |
| Gear Ratios | 1st: 32.49:1, 2nd: 17.76:1, 3rd: 10.66:1 |
| Differential | 3-Bevel Gear |
| Motor | Type 540 Brushed |
| Tire Diameter | 83mm |
| Tire Width | 22mm |
| Manufacturer | Tamiya |
| Item Number | 56336 |
What's Included
- Pre-painted King Hauler Black Edition ABS body parts
- Aluminum ladder-frame chassis components
- Metal leaf spring suspension
- Aluminum friction dampers
- 3-speed transmission assembly
- Type 540 brushed motor
- Chrome-plated detail parts (grille, air cleaners, mirrors, horns)
- Wheels and tires
- Trailer coupler
- Decal sheet
- Comprehensive instruction manual
Needed to Complete
- 4-channel radio system (transmitter and receiver)
- Electronic Speed Controller (ESC) or Tamiya MFC unit
- Standard-size steering servo
- Shift servo for transmission
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- AA batteries for transmitter
Summary
The Tamiya King Hauler Black Edition celebrates the legacy of Tamiya's first-ever 1/14 scale tractor truck with a premium factory-finished metallic black appearance. This historic platform combines classic American sleeper-cab styling with proven ladder-frame engineering, metal leaf spring suspension, and a 3-speed transmission for authentic trucking dynamics. With pre-painted body parts, extensive chrome detailing, and comprehensive trailer compatibility, this special edition is perfect for collectors, RC history enthusiasts, and builders seeking a premium American-style semi truck with legendary Tamiya quality.
