Description
Overview

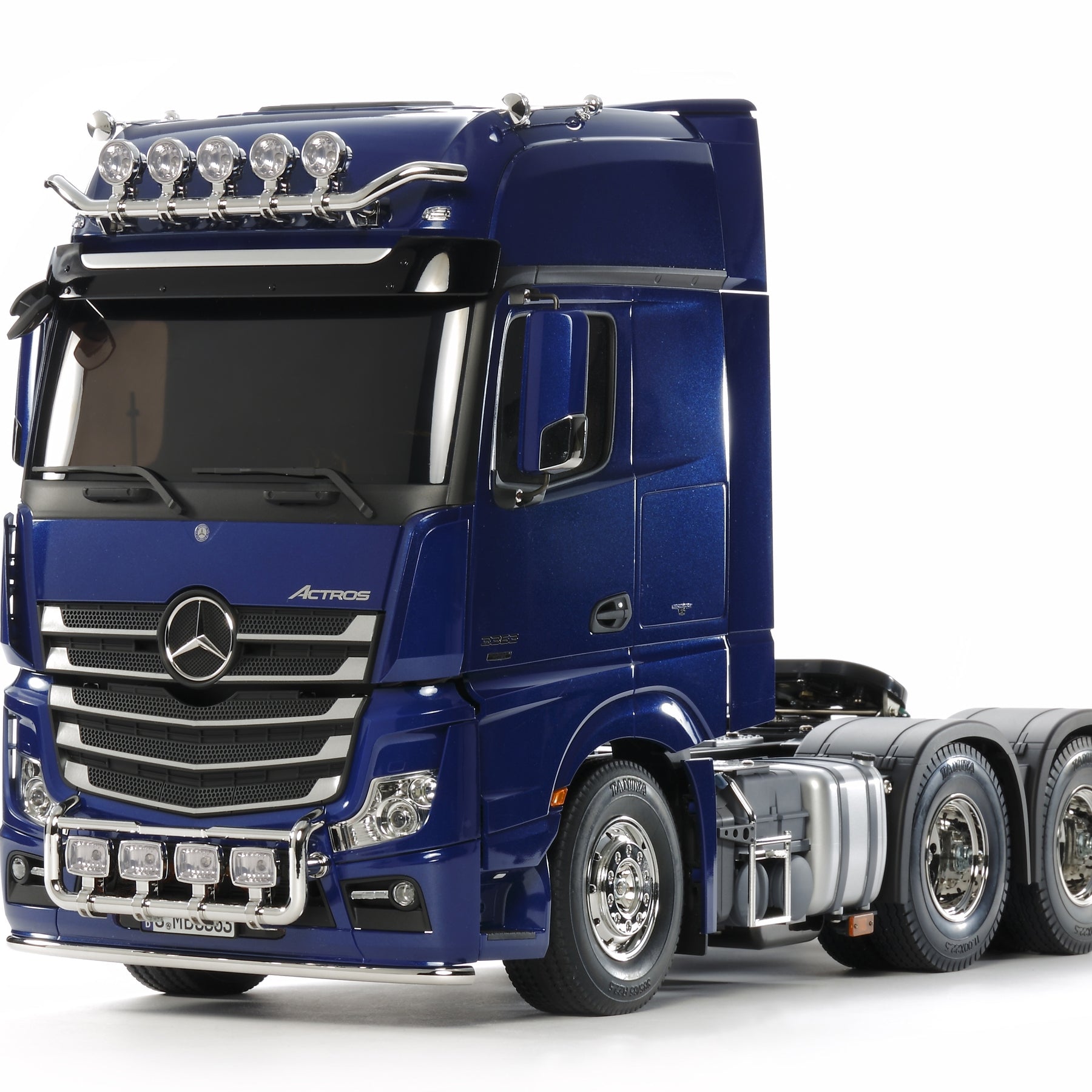

The Tamiya Mercedes-Benz Actros 3363 6x4 GigaSpace Pearl Blue Edition is a premium 1/14 scale RC tractor truck assembly kit that recreates Daimler's flagship heavy hauler in stunning detail. This special edition features factory pre-painted body parts finished in Pearl Blue (Tamiya TS-89) with a protective clear topcoat, delivering a showroom-quality appearance without requiring complex paintwork. The Actros 3363 was named 2012 Truck of the Year and represents the pinnacle of European trucking technology.
Built on Tamiya's proven 1/14 scale tractor truck platform, the Actros Pearl Blue Edition features a highly detailed 3-axle configuration with dual driven rear axles, metal ladder-frame chassis construction, and a servo-shifted 3-speed transmission. The model faithfully captures the Actros's modern aerodynamic form, including the distinctive GigaSpace high-roof cab with roof and bumper auxiliary light details. This kit is perfect for builders who want European trucking excellence with a factory-finished premium appearance.
Key Features
- 1/14 scale RC tractor truck assembly kit with 538mm length, 195mm width, 305mm height
- Official Mercedes-Benz Actros 3363 6x4 GigaSpace replica
- Factory pre-painted Pearl Blue body with urethane clear topcoat
- Detailed GigaSpace high-roof cab with auxiliary light details
- Metal transfers depicting Mercedes-Benz emblems and badges
- Aluminum ladder-frame chassis with resin cross members
- 3-axle configuration with dual driven rear axles
- Servo-shifted 3-speed transmission
- Type 540 brushed motor included
- Compatible with Tamiya MFC-03 Multi-Function Control Unit
Historical Significance
- 2012 International Truck of the Year award winner
- Powered by 15.6-liter inline-6 turbocharged diesel (630hp actual truck)
- Capable of hauling up to 250 tons in real-world applications
- Flagship of Daimler AG's commercial vehicle lineup
- Represents cutting-edge European trucking technology
Chassis Features
- Aluminum side channels with resin cross members
- Front-mounted motor with propeller shaft drivetrain
- Dual rear axle drive with 3-bevel differential gears
- Metal leaf spring suspension front and rear
- Friction dampers with integrated coil springs
- Wheelbase: 237mm + 103mm dual axle spacing
- Tread: 155mm front, 138mm rear (double tire)
Performance Benefits
- Authentic European heavy-hauler driving dynamics
- Smooth cornering from dual differential-equipped rear axles
- Three selectable gear ratios: 32.49:1, 17.76:1, 10.66:1
- Stable handling when towing Tamiya 1/14 trailers
- Optional MFC integration for lights, sounds, and vibration
- Durable metal construction for long-term reliability
Usage Notes
The Actros Pearl Blue Edition is designed for on-road driving on smooth, hard surfaces. The pre-painted body requires only assembly of small parts painted in semi-gloss black. A minimum 4-channel radio system is required for gear shifting control. For enhanced realism, the optional Tamiya MFC-03 Multi-Function Control Unit adds digitally recorded diesel engine sounds, air brake effects, LED lighting, and synchronized vibration. Recommended for experienced builders ages 14 and up.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/14 |
| Length | 538mm |
| Width | 195mm |
| Height | 305mm |
| Weight | Approx. 3.9kg |
| Wheelbase | 237mm + 103mm |
| Tread (Front) | 155mm |
| Tread (Rear) | 138mm (double tire) |
| Chassis | Aluminum & Polycarbonate Resin Ladder Frame |
| Drive | Rear Double Axle Drive |
| Transmission | 3-Speed (transmitter controlled) |
| Gear Ratios | 1st: 32.49:1, 2nd: 17.76:1, 3rd: 10.66:1 |
| Differential | 3-Bevel Gear |
| Motor | Type 540 Brushed |
| Tire Diameter (Front) | 85mm |
| Tire Diameter (Rear) | 83mm |
| Manufacturer | Tamiya |
| Item Number | 56354 |
What's Included
- Pre-painted Mercedes-Benz Actros Pearl Blue ABS body parts
- Aluminum ladder-frame chassis components
- Metal leaf spring suspension
- Friction dampers with coil springs
- 3-speed transmission assembly
- Type 540 brushed motor
- Metal transfers for emblems and badges
- Wheels and tires
- Trailer coupler
- Decal sheet
- Comprehensive instruction manual
Needed to Complete
- 4-channel radio system (transmitter and receiver)
- Electronic Speed Controller (ESC) or Tamiya MFC unit
- Standard-size steering servo
- Shift servo for transmission
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- AA batteries for transmitter
Summary
The Tamiya Mercedes-Benz Actros 3363 6x4 GigaSpace Pearl Blue Edition delivers European trucking excellence with factory-finished premium styling. This award-winning tractor truck features pre-painted Pearl Blue body parts, authentic GigaSpace cab detailing, and proven Tamiya 1/14 scale engineering. With its 3-axle configuration, 3-speed transmission, and comprehensive trailer compatibility, this kit is perfect for Mercedes-Benz enthusiasts, scale truck collectors, and experienced builders seeking a premium European heavy hauler.
