Overview

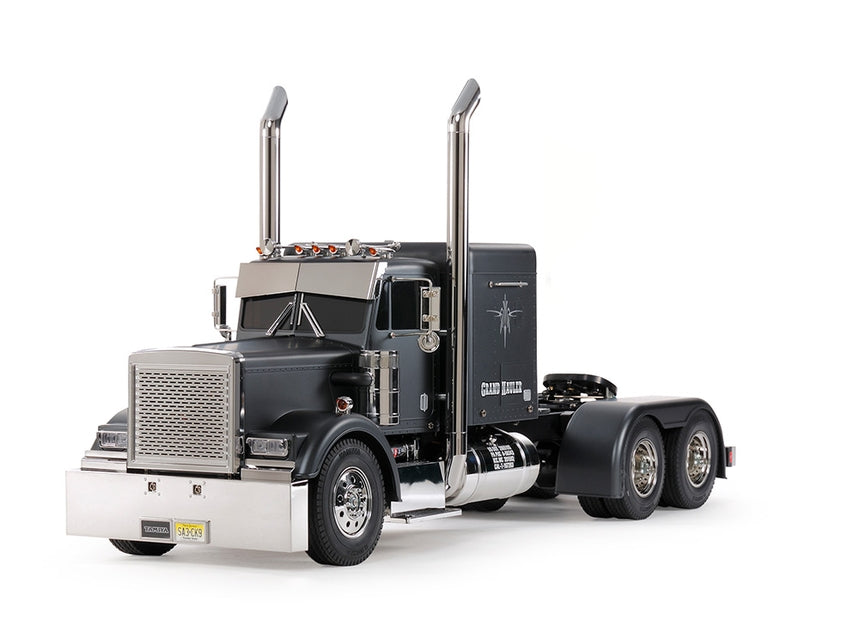

The Tamiya Grand Hauler Matte Black Edition is a stunning 1/14 scale RC tractor truck assembly kit that recreates the massive, boxy custom trucks seen on North American highways. This special edition features factory pre-painted body parts finished in metallic black (Tamiya TS-40) with a matte topcoat that contrasts superbly with the numerous chrome-plated detail parts. The result is a show-truck appearance that captures current automotive trends without requiring complex paintwork.
Built on Tamiya's legendary 1/14 scale tractor truck platform, the Grand Hauler Matte Black Edition delivers exceptional scale realism through its aluminum ladder-frame chassis, metal leaf spring suspension, and servo-shifted 3-speed transmission. Whether you're building for display, scale driving, or hauling Tamiya's extensive range of 1/14 trailers, this kit provides an immersive trucking experience that rivals full-scale rigs.
Key Features
- 1/14 scale RC tractor truck assembly kit with 692mm length, 192mm width, 330mm height
- Factory pre-painted metallic black body with matte topcoat finish

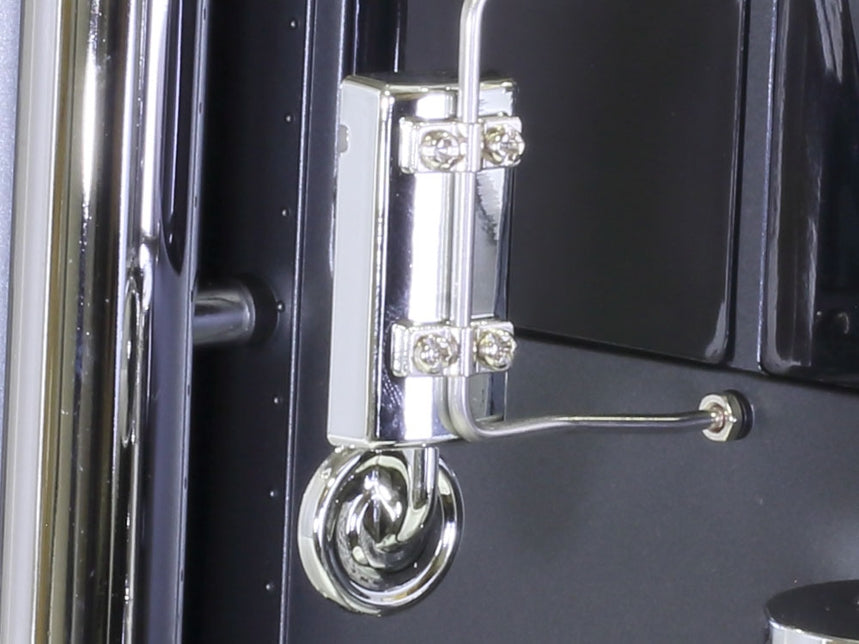

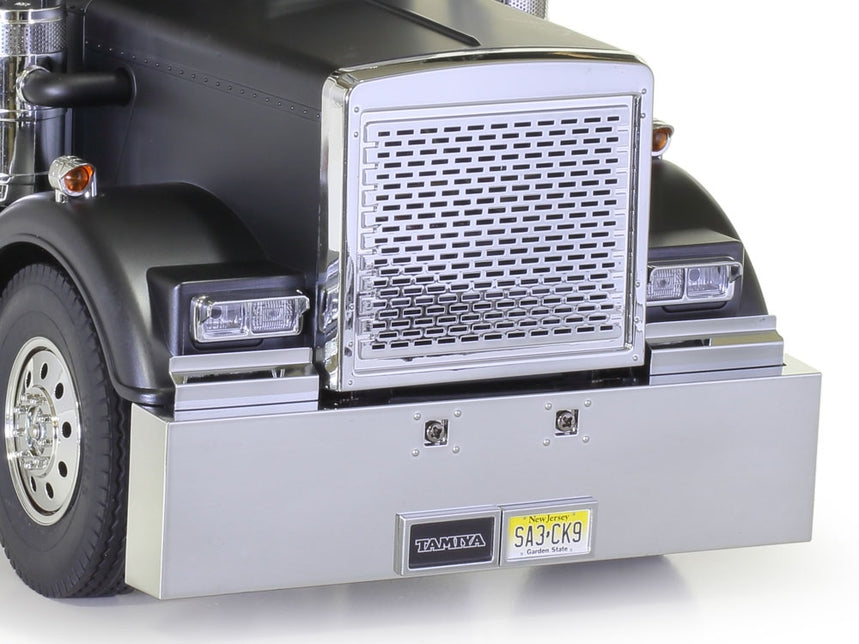

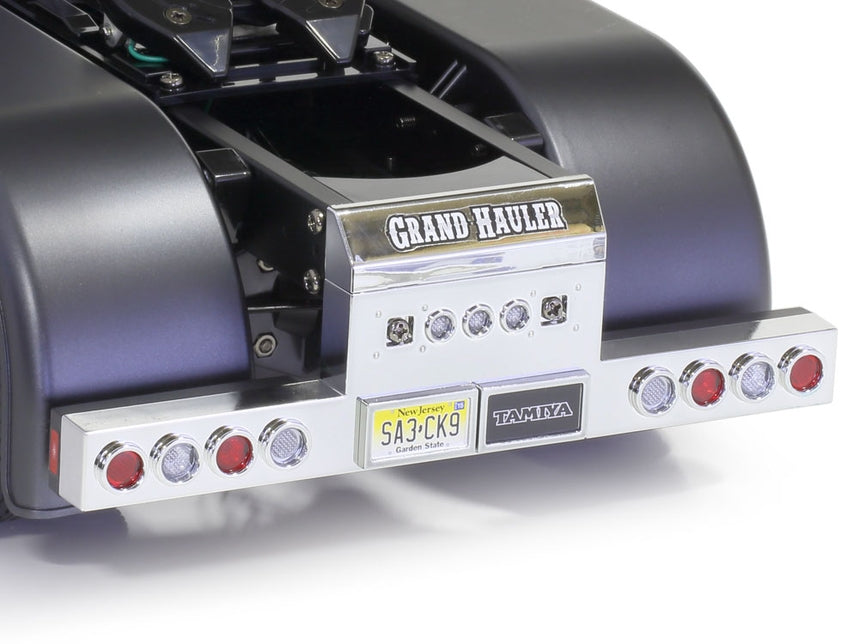

- Extensive chrome-plated detail parts including grille, bumper, mirrors, and trim
- Aluminum ladder-frame chassis with resin cross members
- Metal leaf spring suspension front and rear
- Servo-shifted 3-speed transmission with transmitter control
- Dual driven rear axles with differential gears
- Type 540 brushed motor included
- Compatible with Tamiya MFC-01/MFC-03 Multi-Function Control Units

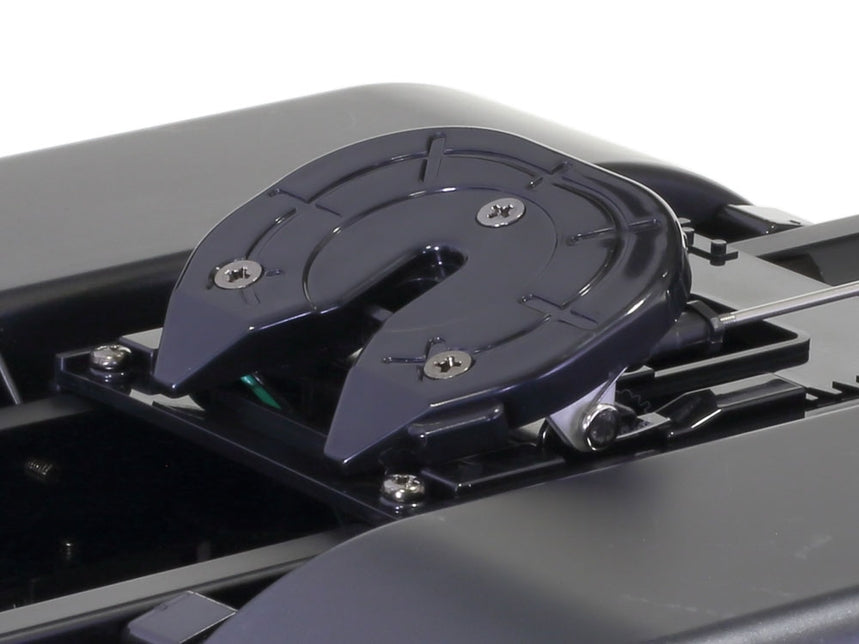

- Coupler included for all Tamiya 1/14 scale trailers
Chassis Features
- Aluminum side channels with polycarbonate resin cross members
- Front-mounted motor with propeller shaft drivetrain
- Dual rear axle drive configuration (10x8)
- 3-bevel differential gears in each rear axle
- Aluminum friction dampers front and rear
- Metal leaf springs provide realistic suspension action
- Wheelbase: 433mm + 103mm dual axle spacing
- Tread: 156mm front, 138mm rear (double tire)
Performance Benefits
- Realistic driving dynamics from authentic drivetrain layout
- Smooth cornering from dual differential-equipped rear axles
- Three gear ratios for versatile speed and torque: 32.49:1, 17.76:1, 10.66:1
- Metal construction ensures durability under load
- Excellent stability when towing trailers over a meter in length
- Compatible with optional light, sound, and vibration systems
Usage Notes
The Grand Hauler Matte Black Edition is designed for on-road driving on smooth, hard surfaces. The 3-speed transmission requires a minimum 4-channel radio system to operate gear shifting via transmitter. For maximum realism, install the optional Tamiya MFC-01 or MFC-03 Multi-Function Control Unit (sold separately) which adds digitally recorded engine sounds, air horn, gear shifting effects, headlights, brake lights, turn signals, and synchronized chassis vibration. Recommended for experienced builders ages 14 and up.
Technical Specs
| Specification |
Detail |
| Scale |
1/14 |
| Length |
692mm |
| Width |
192mm |
| Height |
330mm |
| Weight |
Approx. 3.9kg (equipped) |
| Wheelbase |
433mm + 103mm |
| Tread (Front) |
156mm |
| Tread (Rear) |
138mm (double tire) |
| Chassis |
Aluminum & Polycarbonate Resin Ladder Frame |
| Drive |
Rear 2-Axle Drive |
| Transmission |
3-Speed (transmitter controlled) |
| Gear Ratios |
1st: 32.49:1, 2nd: 17.76:1, 3rd: 10.66:1 |
| Differential |
3-Bevel Gear |
| Motor |
Type 540 Brushed |
| Tire Diameter |
83mm |
| Tire Width |
22mm |
| Manufacturer |
Tamiya |
| Item Number |
56356 |
What's Included
- Pre-painted Grand Hauler Matte Black ABS body parts
- Aluminum ladder-frame chassis components
- Metal leaf spring suspension
- Aluminum friction dampers
- 3-speed transmission assembly
- Type 540 brushed motor

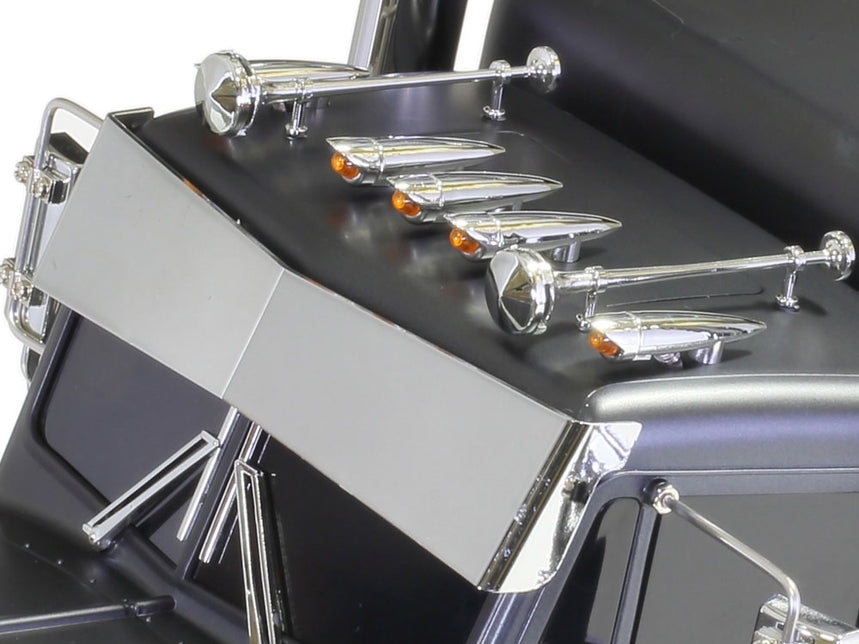

- Chrome-plated detail parts (grille, bumper, mirrors, horns, trim)

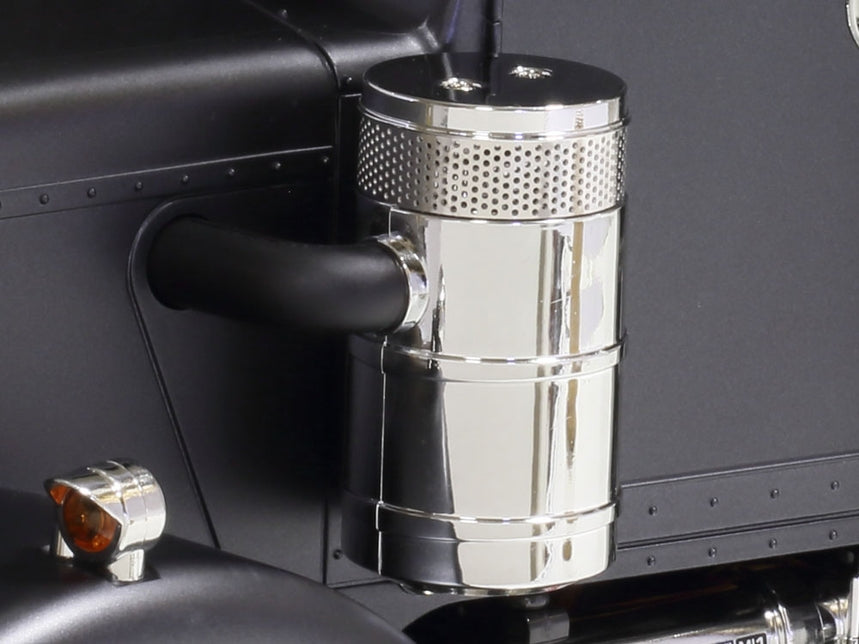

- Photo-etched air intake parts
- Wheels and tires
- Trailer coupler
- Decal sheet
- Comprehensive instruction manual
Needed to Complete
- 4-channel radio system (transmitter and receiver)
- Electronic Speed Controller (ESC) or Tamiya MFC unit
- Standard-size steering servo
- Shift servo for transmission
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- AA batteries for transmitter (typically 4)
Summary
The Tamiya Grand Hauler Matte Black Edition delivers show-truck styling with legendary 1/14 scale engineering. The factory pre-painted metallic black finish with matte topcoat eliminates complex paintwork while providing stunning visual impact. Built on a metal ladder-frame chassis with leaf spring suspension, 3-speed transmission, and dual driven rear axles, this kit offers authentic trucking dynamics and extensive trailer compatibility. Perfect for scale truck enthusiasts, experienced builders, and collectors seeking a premium American-style big rig with unmatched Tamiya quality.
