Description
Overview

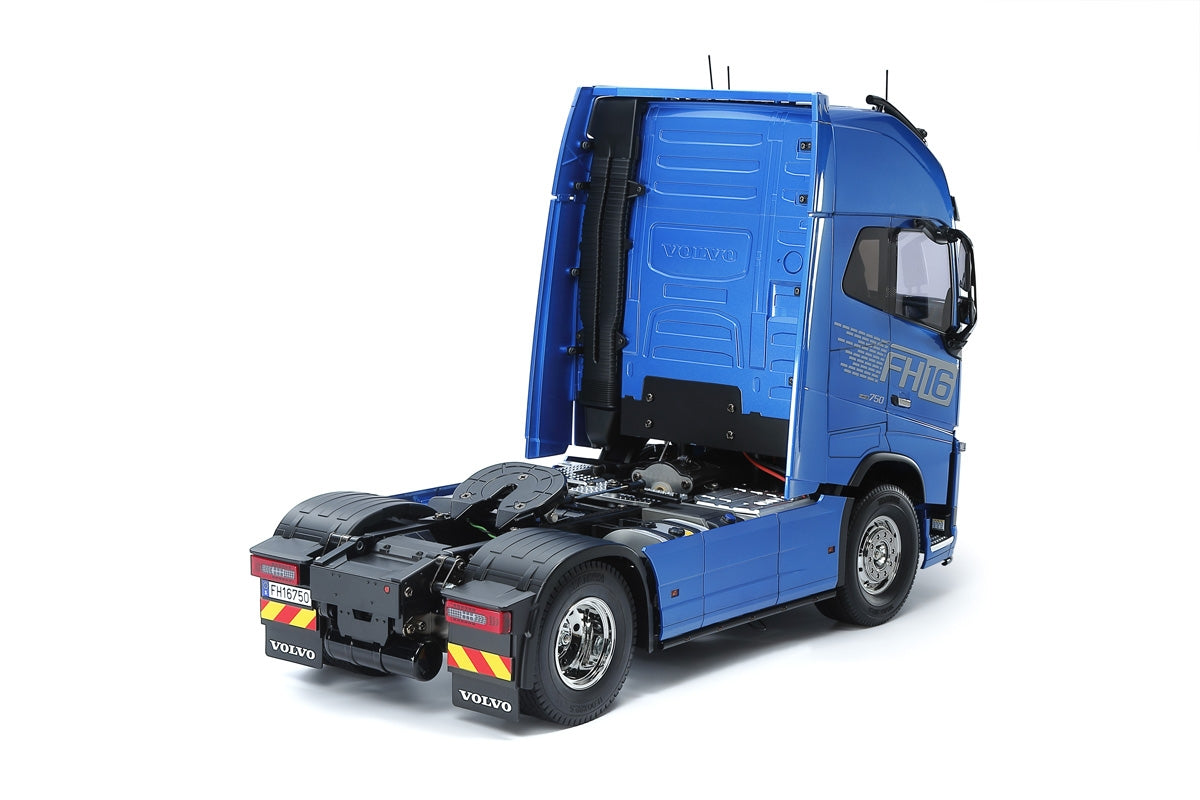

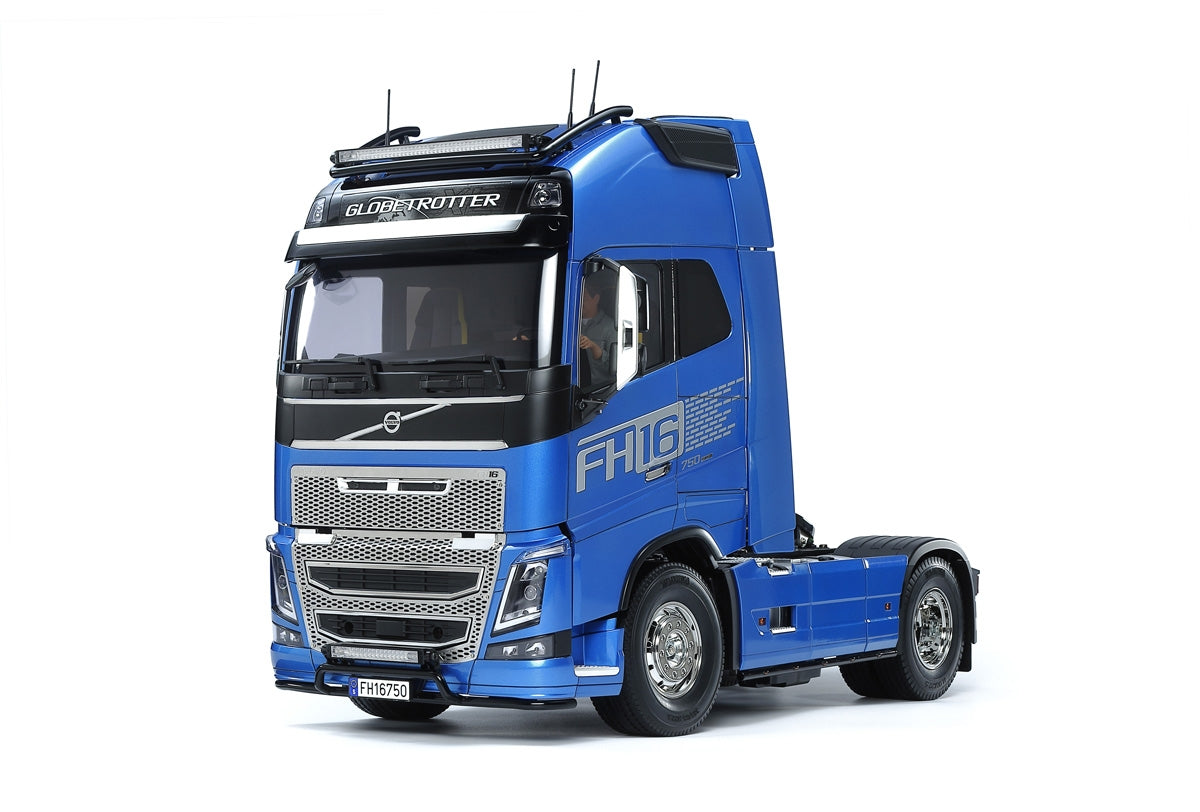

The Tamiya Volvo FH16 Globetrotter XL 750 4x2 Tractor is a masterpiece of scale semi-truck modeling, recreating one of the most prestigious heavy-duty trucks in the world. Volvo Trucks is a commercial vehicle manufacturer that enjoys a top-class reputation globally, and the FH series represents their flagship lineup following a comprehensive model change in 2012. The Globetrotter XL variant features the highest roof option in the FH16 range, offering comfortable interior space and superior aerodynamics for long-distance hauling paired with a monstrous 16.1-liter inline-six turbo engine producing 750 horsepower.
This 1/14 scale R/C assembly kit faithfully recreates the FH16 Globetrotter XL 750 with a highly realistic ABS plastic body, numerous metal chassis components, and an assembly-type three-speed transmission that allows gear changes via transmitter. The model includes parts to render popular customizations such as a roof bar with light pods, low bar, and side bars—all of which are LED-compatible for stunning night-time realism. With its massive 462mm length and incredible attention to detail including a driver figure and realistic interior, this truck delivers the ultimate scale trucking experience.
Key Features
- 1/14 scale R/C semi-truck assembly kit with 462mm length, 193mm width, 309mm height
- Authentic Volvo FH16 Globetrotter XL 750 cab design
- Highest roof Globetrotter XL configuration
- Photo-etched stainless steel front grille for scale detail
- Customization parts: roof bar with light pods, low bar, side bars
- LED-compatible headlights, fog lamps, and roof lights
- Aluminum and polycarbonate resin ladder frame chassis
- Rear-axle drive 4x2 configuration (realistic single drive axle)
- Assembly-type 3-speed transmission with transmitter gear shifting
- Metal leaf spring suspension front and rear
- Detailed interior with modern dashboard and seats
- 1/14 scale driver figure included
- 540-Type motor included
- Compatible with MFC-03 Multi-Function Control Unit
Chassis Features
- Aluminum side channel ladder frame for strength and realism
- 4x2 rear-axle drive configuration (motor and transmission at front)
- Metal ladder frame with realistic proportions
- Metal leaf spring suspension with friction dampers
- Aluminum dummy dampers for scale appearance
- 3-bevel differential gears

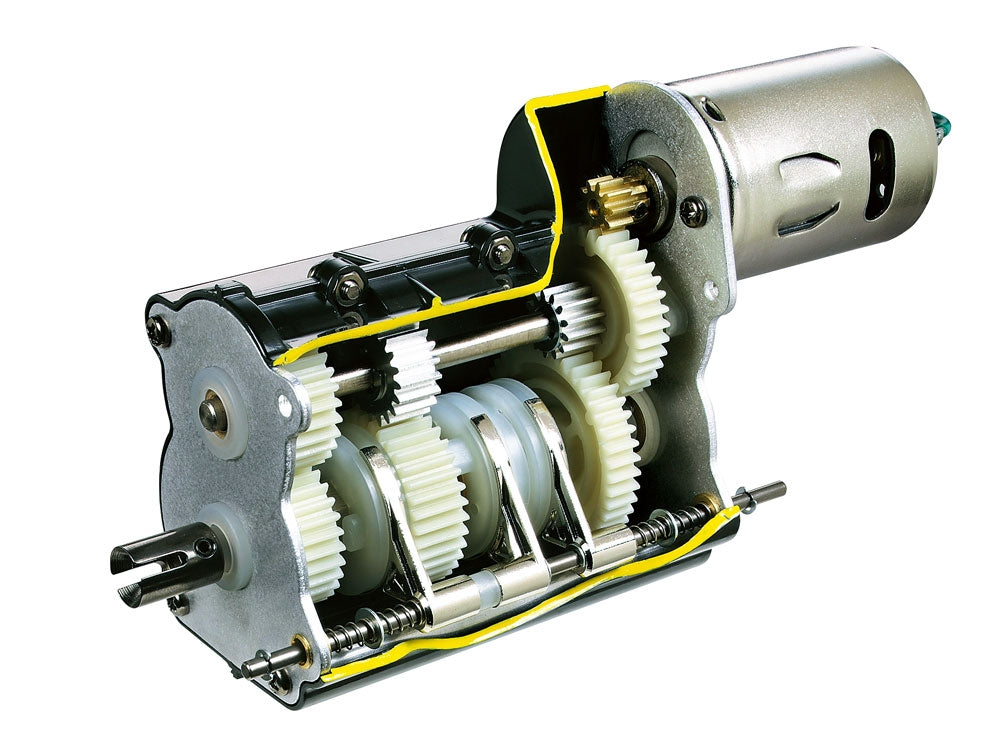

- Assembly-type 3-speed transmission
- 272mm wheelbase
- 155mm front tread, 138mm rear tread (double tire)
- Semi-trailer coupler for towing
Scale Detail Features
- Roof and cab-side deflectors for aerodynamic realism
- Stainless steel photo-etched front grille
- Multi-section side mirrors with moving plastic stays
- Metal-plated steps with anti-slip pattern
- Air duct detailing on cab side
- Horn parts as separate components
- Fuel tank and air tank detailing
- Battery box and rear accessories
- FH16 cab sticker and 750 metal transfer emblem
Performance Benefits
- 3-speed transmission provides realistic gear changes (32.49:1, 17.76:1, 10.66:1)
- Smooth, controlled driving optimized for scale trucking
- Metal leaf spring suspension delivers realistic truck movement
- Excellent stability when towing Tamiya semi-trailers
- Compatible with MFC-03 for lights, sounds, and vibration effects
- LED-ready design throughout for enhanced realism
Usage Notes
The Volvo FH16 is designed for scale trucking, trailer towing, and realistic driving rather than high-speed operation. Best suited for smooth surfaces where the realistic suspension and drivetrain can be fully appreciated. The 3-speed transmission requires a 4-channel transmitter (Tamiya Attack recommended) for gear shifting operation. Compatible with Tamiya's extensive lineup of 1/14 semi-trailers. For the ultimate experience, add the optional MFC-03 Multi-Function Control Unit for digitally recorded engine sounds, air horn, gear shifting sounds, lights, and vibration effects. Body requires painting with Tamiya TS spray paints and acrylic/lacquer bottle paints for detail work.
Fitment
Compatible RC vehicles: Tamiya Volvo FH16.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/14 |
| Length | 462mm |
| Width | 193mm |
| Height | 309mm (excluding mirrors/antenna) |
| Weight | Approx. 3.5kg (without optional parts) |
| Wheelbase | 272mm |
| Tread (Front) | 155mm |
| Tread (Rear) | 138mm (double tire) |
| Drive | 4x2 (rear axle drive) |
| Chassis | Aluminum & polycarbonate ladder frame |
| Transmission | 3-speed (gear ratios: 32.49:1, 17.76:1, 10.66:1) |
| Motor | 540-Type brushed |
| Suspension | Metal leaf spring (front and rear) |
| Dampers | Friction dampers with leaf springs |
| Tire Size (Front) | 30mm width / 85mm diameter |
| Tire Size (Rear) | 22mm width / 83mm diameter (double) |
| Differentials | 3-bevel gear type |
| Caster/Camber/Toe | 0° all around |
| Manufacturer | Tamiya |
| Item Number | 56375 |
What's Included
- Complete unassembled 1/14 scale chassis kit
- ABS plastic Volvo FH16 Globetrotter XL cab (unpainted)
- Photo-etched stainless steel front grille
- Customization parts (roof bar, light pods, low bar, side bars)
- Aluminum ladder frame components
- 3-speed transmission assembly
- Metal leaf spring suspension
- 540-Type motor
- Front and rear wheels with realistic tires
- Detailed interior parts (dashboard, seats)
- 1/14 scale driver figure
- Stickers and metal transfers
- Semi-trailer coupler
- Comprehensive instruction manual
Needed to Complete
- 4-channel radio system (Tamiya Attack recommended)
- 2 servos (steering and transmission)
- Electronic speed controller (ESC) or MFC-03
- 7.2V battery pack
- Compatible battery charger
- AA batteries for transmitter
- Tamiya TS spray paints for cab
- Tamiya acrylic/lacquer paints for details
- Basic assembly tools
Optional Accessories
- Tamiya MFC-03 Multi-Function Control Unit (Item 56523)
- LED light sets for headlights, fog lamps, roof bar
- Various Tamiya 1/14 semi-trailers
- Tractor Truck Option Parts
Summary
The Tamiya Volvo FH16 Globetrotter XL 750 4x2 Tractor delivers the ultimate 1/14 scale semi-truck experience with its authentic cab design, photo-etched details, 3-speed transmission, and extensive customization options. The LED-compatible design and MFC-03 compatibility enable stunning realism with lights, sounds, and vibration effects. Perfect for serious RC truck enthusiasts, scale modelers, and collectors seeking the flagship Volvo experience with Tamiya's renowned engineering quality.
