Description
Overview

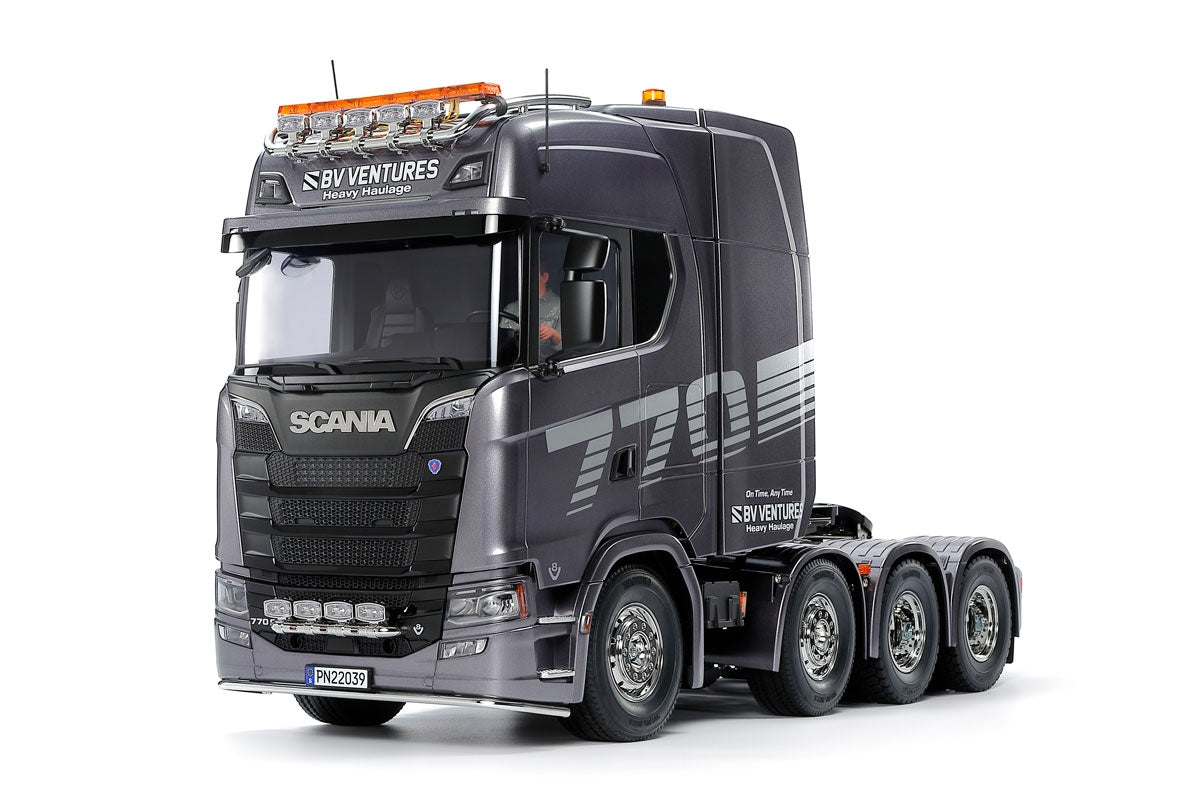

The Tamiya Scania 770 S 8x4/4 Gun Metal Edition is a breathtaking 1/14 scale semi-truck assembly kit that recreates one of the most powerful and sophisticated heavy trailer heads in the world. This premium R/C model faithfully depicts the flagship Scania 770 S, equipped with a massive 16.4-liter V8 turbo engine producing 770 horsepower in the real vehicle. Added to Scania's top-grade S Series in 2020, this truck represents the pinnacle of Swedish commercial vehicle engineering and heavy-haul capability.
What makes this Gun Metal Edition truly special is the factory pre-painted cab finished in stunning Tamiya TS-38 Gun Metal with a protective urethane top coating. The highly realistic cab, along with side deflectors, roof, bumper, and other exterior parts arrive ready to assemble, significantly reducing build time while delivering a showroom-quality finish. Inside the cab, you'll find a detailed interior with a rounded dashboard and authentic appointments. The massive 610mm length and impressive chassis engineering make this one of Tamiya's most ambitious and rewarding RC truck projects.
Key Features
- 1/14 scale R/C semi-truck assembly kit with 610mm length, 196mm width, 320mm height
- Officially licensed Scania 770 S 8x4/4 heavy trailer head design
- Pre-painted Gun Metal cab with urethane top coating
- Double front-axle steering with double rear-axle drive (8x4/4 configuration)
- Aluminum and polycarbonate resin ladder frame chassis
- Assembly-type 3-speed transmission with gear shifting via transmitter
- Realistic leaf spring suspension with metal springs
- Functional lift axle on second front axle
- TR Mighty-Tuned Motor (35T) included
- Detailed interior with dashboard and seats
- 1/14 scale driver figure included
- Compatible with Tamiya MFC-03 Multi-Function Control Unit
Chassis Features
- Aluminum side channel ladder frame for strength and realism
- Double rear-axle drive with front-mounted motor and transmission
- Double front-axle steering controlled by single servo
- Second axle is a lift axle that can be manually raised and lowered
- Metal leaf spring suspension front and rear
- Aluminum dummy dampers for scale appearance
- 3-bevel differential gears
- Coupler for semi-trailer attachment
- Pole trailer pintle hook included
Performance Benefits
- 3-speed transmission provides realistic gear changes (32.49:1, 17.66:1, 10.66:1)
- Smooth, controlled driving optimized for scale trucking
- Excellent stability when towing Tamiya semi-trailers
- Leaf spring suspension delivers realistic truck movement
- Heavy-duty construction handles scale trailer loads
- Dual rear axle drive provides strong pulling power
- Lift axle function adds operational realism
Usage Notes
The Scania 770 S is designed for scale trucking, trailer towing, and realistic driving rather than high-speed operation. Best suited for smooth surfaces where the realistic suspension and drivetrain can be fully appreciated. The 3-speed transmission requires a 4-channel transmitter for gear shifting operation. Compatible with Tamiya's extensive lineup of semi-trailers, tank trailers, and pole trailers. For the ultimate experience, add the optional MFC-03 Multi-Function Control Unit for realistic engine sounds, horn, lights, and vibration effects. Recommended for experienced builders ages 14 and up.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/14 |
| Length | 610mm |
| Width | 196mm |
| Height | 320mm (excluding mirrors/antenna) |
| Weight | Approx. 4.2kg (without optional parts) |
| Wheelbase | 183mm + 109mm + 103mm |
| Tread (Front) | 155mm |
| Tread (Rear) | 138mm (double tire) |
| Drive | 8x4/4 (dual rear axle drive, dual front axle steering) |
| Chassis | Aluminum & polycarbonate ladder frame |
| Transmission | 3-speed (gear ratios: 32.49:1, 17.66:1, 10.66:1) |
| Motor | TR Mighty-Tuned Motor (35T) |
| Suspension | Metal leaf spring (front and rear) |
| Tire Size (Front) | 30mm width / 85mm diameter |
| Tire Size (Rear) | 22mm width / 84mm diameter (dual) |
| Differentials | 3-bevel gear type |
| Manufacturer | Tamiya |
| Item Number | 56376 |
What's Included
- Complete unassembled 1/14 scale chassis kit
- Pre-painted Gun Metal Scania 770 S cab with urethane coating
- Detailed interior parts (dashboard, seats)
- Aluminum ladder frame components
- 3-speed transmission assembly
- Metal leaf spring suspension
- TR Mighty-Tuned Motor (35T)
- Front and rear wheels with realistic tires
- 1/14 scale driver figure
- Metal transfers and cab stickers
- Semi-trailer coupler and pintle hook
- Comprehensive instruction manual
Needed to Complete
- 4-channel radio system (transmitter and receiver) - Tamiya Attack recommended
- 2 steering servos
- Electronic speed controller (ESC) or MFC-03 Multi-Function Control Unit
- 7.2V battery pack
- Compatible battery charger
- AA batteries for transmitter
- Tamiya paints for detail body work
- Basic assembly tools
Optional Accessories
- Tamiya MFC-03 Multi-Function Control Unit (Item 56523) for lights, sounds, and vibration
- Various Tamiya 1/14 semi-trailers, tank trailers, and pole trailers
- LED light sets for enhanced realism
Summary
The Tamiya Scania 770 S 8x4/4 Gun Metal Edition represents the pinnacle of 1/14 scale semi-truck modeling. With its pre-painted premium cab, authentic 8x4/4 drivetrain configuration, functional 3-speed transmission, and incredible attention to detail, this kit delivers an unmatched scale trucking experience. Perfect for serious RC truck enthusiasts, collectors, and scale modelers who demand the ultimate in realism and quality. Compatible with the full range of Tamiya trailers and the MFC-03 control unit for the most immersive RC trucking experience available.
