Description
Overview

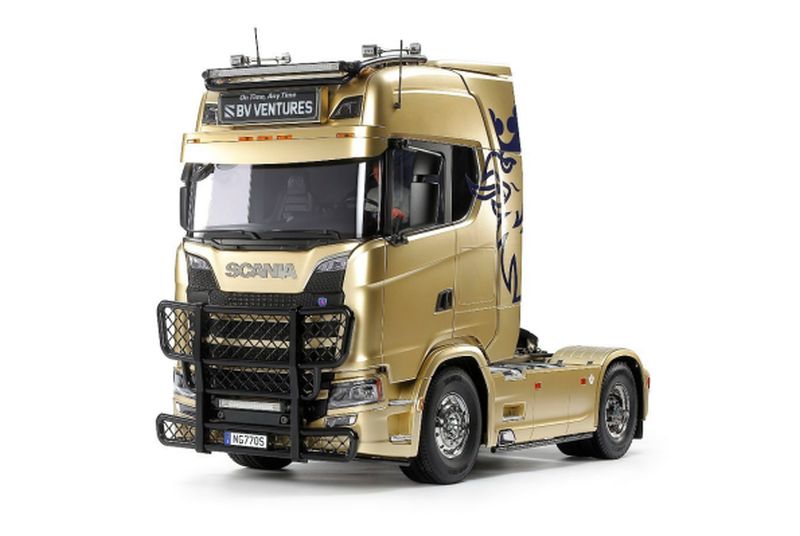

The Tamiya Scania 770 S 4x2 is a masterpiece of RC scale modeling, recreating the flagship of Swedish manufacturer Scania's top-grade S Series in stunning 1/14 scale detail. The full-size Scania 770 S, introduced in 2020, is a two-axle high-roof heavy trailer head powered by a massive 16.4-liter V8 turbo engine producing an impressive 770 horsepower. This kit captures the majestic presence of these "King of the Road" trucks with unprecedented authenticity and functional features.
This ultra-realistic R/C model features a working 3-speed transmission that allows gear changes via the transmitter, just like shifting gears in a real truck. The high-roof form is faithfully captured with an extensive array of customization options including LED light bar, horns, nameboard, drop visor, bullbar, low bar, and side bars—allowing you to create a customized show truck like those trendy in Europe. When paired with Tamiya's Multi-Function Control Unit (sold separately), you can enjoy realistic engine sounds digitally recorded from actual trucks, working lights, and vibration effects.
Key Features
- Authentic 1/14 scale recreation of the Scania 770 S 4x2 flagship truck
- High-roof cab design with extensive customization options
- Working 3-speed transmission with transmitter-controlled gear changes
- Aluminum ladder frame chassis with resin cross members
- LED-compatible light bar, roof bar, and marker lamps
- Detailed bullbar, low bar, and side bars included
- Metal-plated horns, steps, and accent details
- 2-section adjustable side mirrors
- Kerb mirrors recreated for authentic appearance
- Included 1/14 scale driver figure
- Compatible with Tamiya semi-trailers via included coupler
Chassis Features
- Single front steering, single rear-axle drive (4x2) configuration
- Front-mounted motor with transmission layout matching actual truck
- Aluminum side channels with resin cross members
- Power delivered via propeller shaft to rear axle
- 3-speed transmission (gear ratios: 32.49:1, 17.66:1, 10.66:1)
- 3-bevel differential gear
- Front and rear leaf spring rigid suspension
- Aluminum dummy dampers front and rear
- 272mm wheelbase (35mm longer than Item 56368)
- Die-cast and metal components for rigidity
Customization Options
- Choice between normal and fully customized versions
- Roof high bar with LED light bar compatibility
- Nameboard with 4 decorative sticker options
- Drop visor for cab front
- Bullbar with ABS-PC frame and mesh components
- Side skirts and auxiliary machinery parts included
- Fuel tank details with side marker lamp positions
- Interior dashboard and seats for cabin detail
Multi-Function Control Unit Compatibility
- Compatible with MFC-03 (Item 56523, sold separately)
- Digitally recorded actual truck engine sounds
- Air horn, gear shifting, and operational sounds
- Working headlights, brake lights, and fog lamps
- Hazard lights and turn signal operation
- Engine vibration simulation
- Control box fits inside exhaust box/fuel tank assembly
Performance Benefits
- 3-speed transmission provides realistic driving experience
- Leaf spring suspension handles trailer weight realistically
- TR Mighty-Tuned Motor (35T) for strong pulling power
- Dual rear tires provide excellent traction
- Extensive option parts catalog for upgrades
- Creates combinations over 1 meter long with trailers
Usage Notes
- 4-channel transmitter required for gear shifting function
- 2 servos required (steering and gear shifting)
- Body requires painting with Tamiya TS and acrylic-lacquer paints
- LEDs sold separately for light bar and markers
- Compatible with extensive range of Tamiya 1/14 trailers
- Recommend MFC-03 for full sound and light experience
Technical Specs
| Specification | Value |
|---|---|
| Scale | 1/14 |
| Length | 469mm |
| Width | 193mm |
| Height | 315mm (excl. mirrors/antenna) |
| Weight | Approx. 3.5kg |
| Wheelbase | 272mm |
| Tread (Front) | 155mm |
| Tread (Rear) | 138mm (dual tire) |
| Tire Width/Diameter (Front) | 30mm / 85mm |
| Tire Width/Diameter (Rear) | 22mm / 83-84mm |
| Drivetrain | Rear Axle Drive (4x2) |
| Transmission | 3-Speed |
| Gear Ratios | 1st: 32.49:1, 2nd: 17.66:1, 3rd: 10.66:1 |
| Differential | 3-bevel gear |
| Suspension | Front/Rear Leaf Spring Rigid |
| Motor | TR Mighty-Tuned (35T) |
| Frame | Aluminum & Polycarbonate Resin Ladder |
What's Included
- 1/14 Scania 770 S 4x2 cab and chassis kit
- Aluminum ladder frame with resin cross members
- 3-speed transmission assembly
- TR Mighty-Tuned Motor (35T)
- Customization parts (bullbar, light bar, side bars, etc.)
- Metal-plated detail parts (horns, steps)
- Dual rear tires and wheels
- Front tires and wheels
- Semi-trailer coupler
- 1/14 scale driver figure
- Detailed sticker sheets
- Assembly instruction manual
Needed to Complete
- 4-channel radio system (Tamiya Attack recommended)
- Steering servo
- Gear shifting servo
- Electronic speed controller (ESC) or Multi-Function Control Unit
- 7.2V battery pack
- Battery charger
- AA batteries for transmitter
- Tamiya TS and acrylic-lacquer paints
- Optional: LEDs for lights
- Optional: Semi-trailer (sold separately)
Summary
The Tamiya Scania 770 S 4x2 is the ultimate 1/14 scale semi truck kit for enthusiasts who demand the highest level of realism and detail. This flagship model captures the majesty of Scania's most powerful production truck with working 3-speed transmission, extensive customization options, and compatibility with Tamiya's Multi-Function Control Unit for authentic sounds and lights. Whether displayed as a show truck or driven with a loaded trailer, this kit delivers an unmatched trucking experience that will provide countless hours of building enjoyment and driving satisfaction.
