Description
Overview

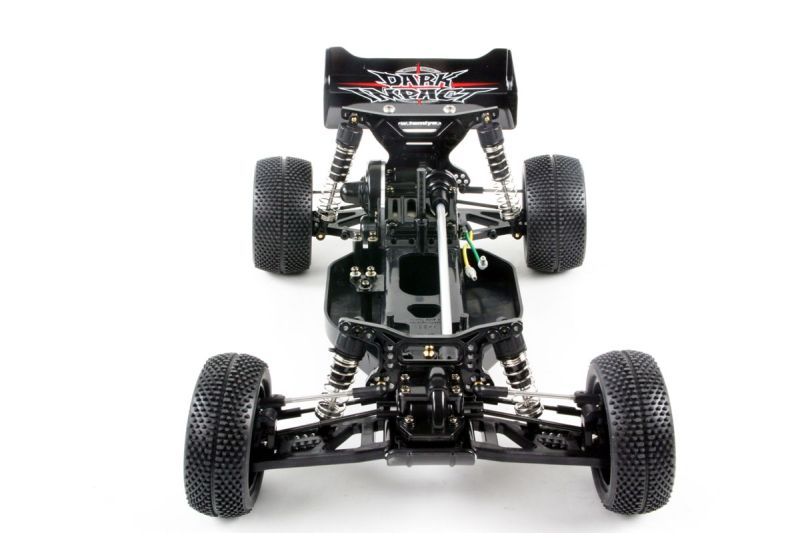

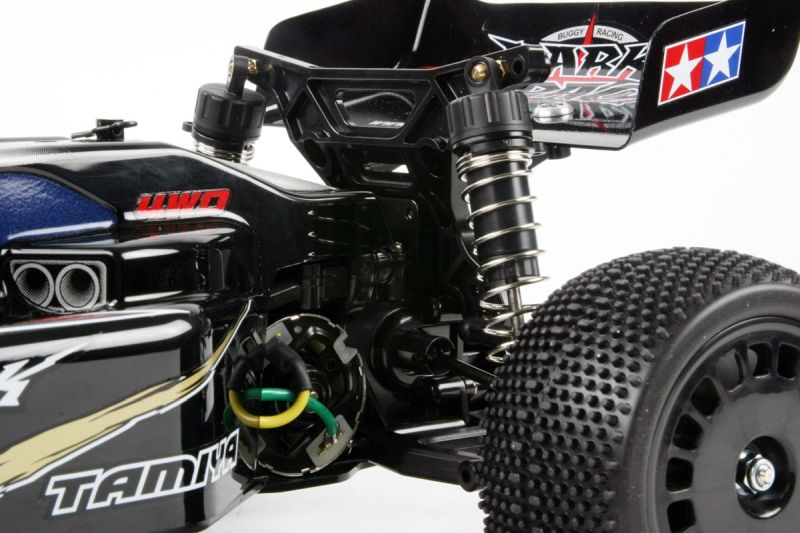

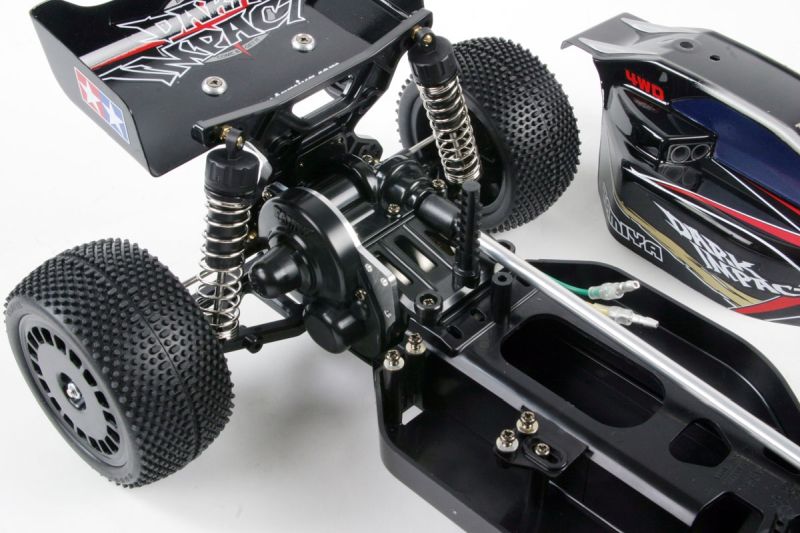

The Tamiya Dark Impact is a high-performance 1/10 scale 4WD off-road buggy that was born and bred on the racing circuit. Even while still in prototype form, this buggy was already hitting the track at competitions as part of Tamiya's rigorous research and development process. The result is a race-focused machine built on the refined DF-03 shaft-driven 4WD chassis, featuring optimized vehicle balance, efficient power transmission, and aggressive styling that commands attention at any track or trail.
The DF-03 chassis represents Tamiya's refined approach to shaft-driven 4WD buggies, with a durable monocoque bathtub frame that positions heavy components low and central for optimal balance. The mid-rear mounted motor and longitudinally placed battery create excellent weight distribution for confident jumping and aggressive cornering. With ball differentials, extra-long suspension arms, CVA oil dampers, full ball bearings, and high-density spike tires, the Dark Impact delivers serious off-road performance right out of the box—with extensive upgrade potential for competitive racing.
Key Features
- 1/10 scale R/C model assembly kit with 387mm length, 250mm width, 145mm height
- High-performance DF-03 shaft-driven 4WD chassis
- Mid-rear mounted motor for optimized jumping balance
- Longitudinally mounted battery for optimal weight distribution
- Bottom-loading battery eliminates body removal for maintenance
- Durable monocoque bathtub frame construction
- Ball differentials front and rear
- CVA oil dampers (Mini front, Short rear)
- Extra-long suspension arms for superior shock absorption
- Full ball bearing drivetrain
- High-density spike tires (K compound) on all four corners
- Sleek polycarbonate body with large rear wing
- RS-540 motor included
Chassis Features
- Monocoque bathtub frame with low center of gravity
- Heavy components (battery, RC gear) mounted low and central
- Oil dampers located within wheelbase for stability
- Compact gearboxes with ball differentials
- Propeller shaft directly links to front bevel gear
- Sealed diff gearbox for off-road protection
- 3-piece steering tie-rod for precise response
- 272mm wheelbase with 24mm ground clearance
- Multiple suspension attachment positions for tuning
Performance Benefits
- Efficient shaft-driven 4WD reduces power loss
- Ball differentials provide smooth, consistent power delivery
- Mid-rear motor position improves jump stability
- Extra-long suspension arms absorb big impacts
- CVA oil dampers deliver controlled damping
- Full ball bearings reduce friction throughout drivetrain
- High-density spike tires maximize traction on hard dirt
- Multiple tuning positions allow setup optimization
- Sealed gearbox protects internals from debris
Usage Notes
The Dark Impact excels on hard-packed dirt tracks, gravel, and technical off-road terrain where its balanced 4WD system and long-travel suspension can be fully utilized. The bottom-loading battery design means you don't need to remove the body for routine battery changes—a welcome convenience during race days. The DF-03 chassis has excellent upgrade potential, supporting optional aluminum components, high-performance shocks, and brushless power systems. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/10 |
| Length | 387mm |
| Width | 250mm |
| Height | 145mm |
| Wheelbase | 272mm |
| Tread (Front) | 217mm |
| Tread (Rear) | 203mm |
| Ground Clearance | 24mm |
| Weight | Approx. 1,156g (assembled) |
| Tire Size (Front) | 33mm width / 87mm diameter |
| Tire Size (Rear) | 43mm width / 87mm diameter |
| Drive | Shaft-driven 4WD |
| Chassis | DF-03 Monocoque |
| Frame | ABS Plastic Monocoque |
| Differentials | Ball type (front and rear) |
| Suspension | 4-wheel independent double wishbone |
| Dampers | CVA Mini (front), CVA Short (rear) |
| Gear Ratio | 9.17:1 |
| Internal Gear Ratio | 2.94:1 |
| Motor | RS-540 Type |
| Bearings | Full ball bearings (shielded) |
| Manufacturer | Tamiya |
| Item Number | 58370 |
What's Included
- Complete unassembled DF-03 chassis kit
- Polycarbonate Dark Impact body (clear)
- Polycarbonate rear wing
- Large dish wheels - Front (62/25) and Rear (62/35)
- High-Density Spike Tires K - Front and Rear
- CVA oil dampers (Mini front, Short rear)
- Ball differentials (front and rear)
- Full ball bearing set
- RS-540 brushed motor
- Decal sheet
- Comprehensive instruction manual
Needed to Complete
- Electronic speed controller (ESC)
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Recommended Upgrades
- Aluminum motor mount for improved heat dissipation
- Aluminum suspension components for rigidity
- TRF dampers for enhanced suspension performance
- Brushless motor and ESC for increased power
- Aluminum propeller shaft for durability
Summary
The Tamiya Dark Impact DF-03 is a race-bred 4WD off-road buggy that delivers serious performance straight from the box. Its refined shaft-driven chassis, ball differentials, long-travel suspension, and optimized weight distribution create a capable platform for both club racing and backyard bashing. With full ball bearings, CVA oil dampers, and extensive upgrade potential, the Dark Impact offers an excellent entry point into competitive 4WD buggy racing while remaining accessible for intermediate builders.
