Description
Overview

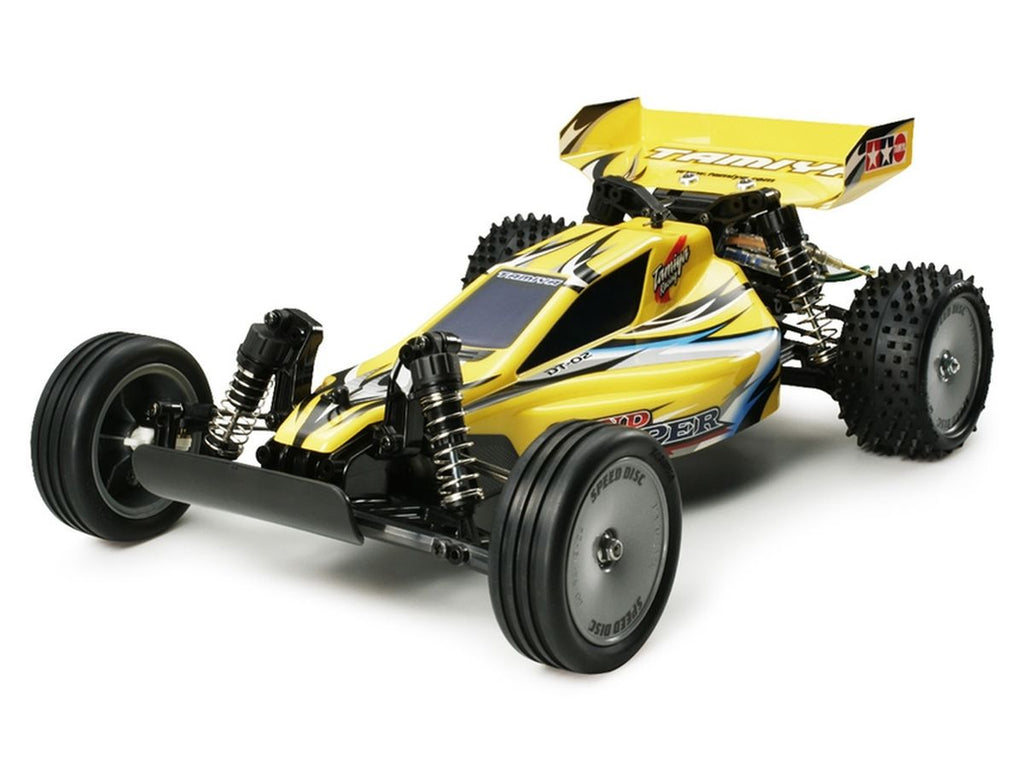

The Tamiya Sand-Viper DT-02 is a high-performance 2WD off-road buggy that delivers thrilling all-terrain action in a stylish, aggressive package. This kit features the proven DT-02 chassis with its low center of gravity bathtub frame, CVA oil damper-equipped 4-wheel double wishbone suspension, and full ball bearing drivetrain. The result is an exciting, nimble buggy that handles everything from backyard dirt to local off-road tracks with confidence.
The edgy, futuristic polycarbonate body gives the Sand-Viper instant visual appeal, while the functional design includes optimized tire choices—grooved front tires for directional control and rear spike tires for maximum traction. With 14 ball bearings, metal drive shafts, and adjustable suspension geometry, the DT-02 chassis offers a perfect balance of beginner-friendly assembly and room for performance upgrades. This is the ideal kit for newcomers entering the exciting world of off-road RC racing.
Key Features
- 1/10 scale R/C model assembly kit with 384mm length, 248mm width, 140mm height
- Edgy, stylish polycarbonate Sand-Viper body
- Large polycarbonate rear wing for aerodynamic downforce
- DT-02 2WD bathtub frame chassis
- Low center of gravity design for stability
- CVA oil dampers on all four corners
- Full ball bearing drivetrain (14 bearings)
- Metal drive shafts and joint cups
- Grey dish wheels with dual tire compound setup
- 540-Type brushed motor included
Chassis Features
- Bathtub frame with vertically-mounted battery for low CG
- RC mechanisms mounted flat for optimal weight distribution
- 4-wheel independent double wishbone suspension
- Long suspension arms for superior bump absorption
- Adjustable camber via upper arm screw shaft
- Sealed gearbox with 3-bevel differential
- 2-piece steering tie rod system
- 9.28:1 gear ratio
- 260mm wheelbase with 26mm ground clearance
Performance Benefits
- Light, nimble 2WD handling characteristics
- CVA oil dampers provide excellent shock absorption
- Full ball bearings reduce friction and power loss
- Sealed differential protects against dirt and debris
- Metal drivetrain components ensure durability
- Adjustable suspension for terrain optimization
- Grooved front/spiked rear tire setup maximizes traction
- Easy assembly with straightforward rugged design
Usage Notes
The Sand-Viper excels on dirt, sand, gravel, and packed surfaces, while also capable of on-road driving thanks to its versatile tire setup. The 2WD rear-wheel-drive layout rewards smooth throttle control and allows exciting drift-style driving. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints—the yellow color scheme shown pairs perfectly with the grey wheels.
Technical Specs
- Scale: 1/10
- Length: 384mm
- Width: 248mm
- Height: 140mm
- Wheelbase: 260mm
- Ground Clearance: 26mm
- Weight: 1,042g (assembled)
- Tread: 216mm front / 208mm rear
- Drive: 2WD Rear-wheel drive
- Chassis: DT-02
- Body Material: Polycarbonate
- Motor: 540-Type brushed
- Suspension: 4-wheel independent double wishbone
- Dampers: CVA oil-filled
- Differential: 3-bevel gear type (sealed)
- Gear Ratio: 9.28:1
- Bearings: Full ball bearings (14 total)
- Manufacturer: Tamiya
- Item Number: 58374
What's Included
- Complete unassembled DT-02 chassis kit
- Polycarbonate Sand-Viper body (clear)
- Polycarbonate rear wing
- Grey dish wheels (4)
- Grooved front tires (2)
- Spike rear tires (2)
- CVA oil dampers (4)
- Full ball bearing set (14)
- Metal drive shafts and joint cups
- Decal sheet
- 540-Type brushed motor
- Comprehensive instruction manual
Needed to Complete
- Electronic speed controller (ESC)
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V battery pack (NiMH recommended)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Sand-Viper DT-02 delivers exciting 2WD off-road performance in a stylish, aggressive package. With its low CG bathtub frame, CVA oil dampers, full ball bearings, and included motor, this kit offers excellent performance potential at an accessible price point. Perfect for newcomers seeking an entry into off-road RC racing, or experienced builders wanting a proven platform for backyard bashing and club competition.
