Overview

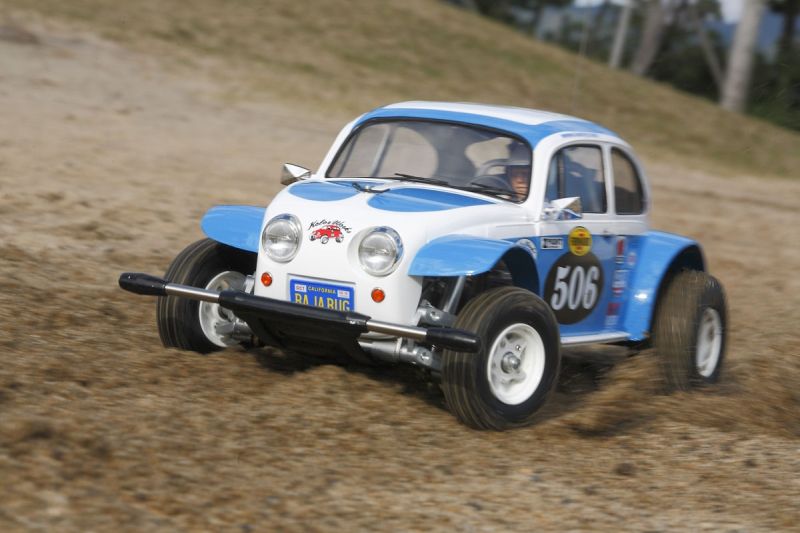

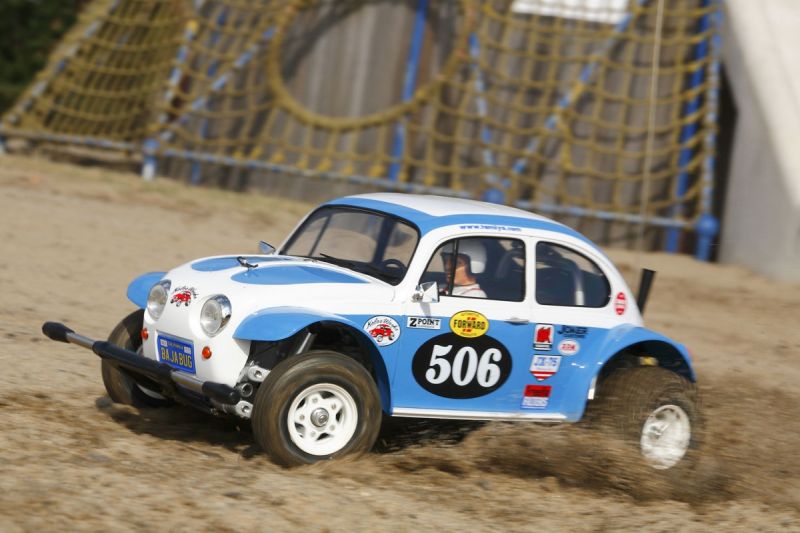

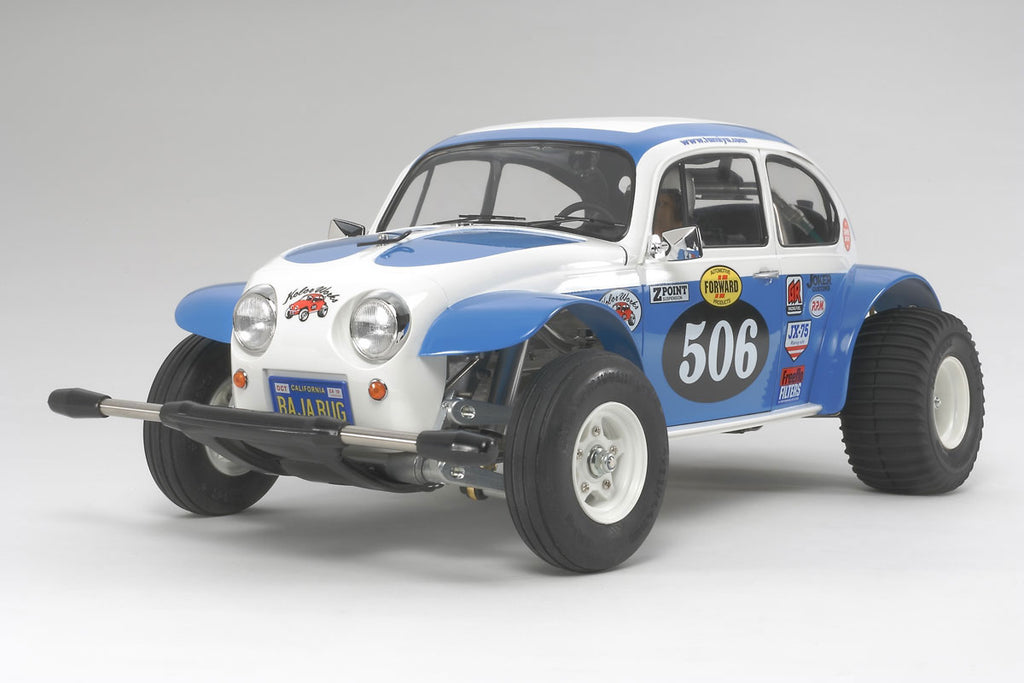

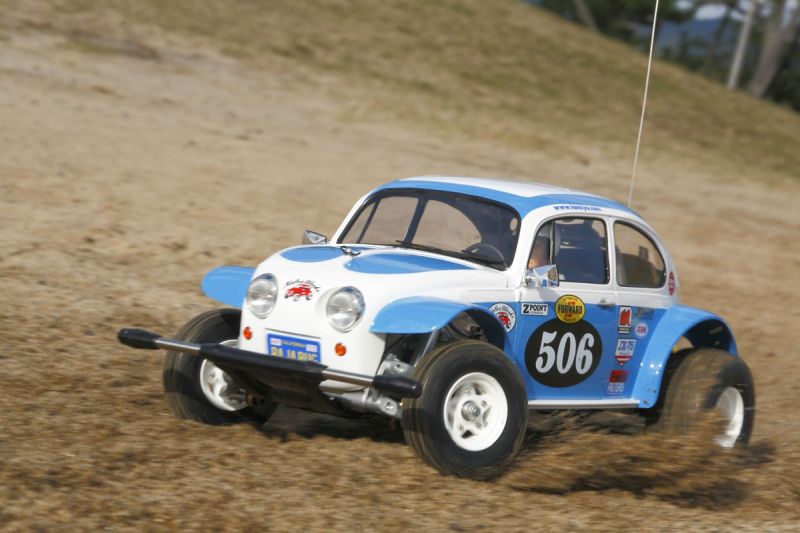

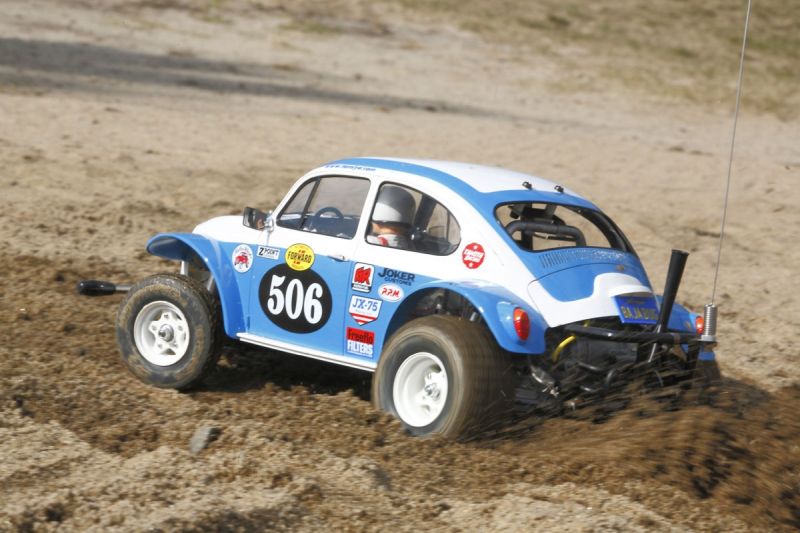

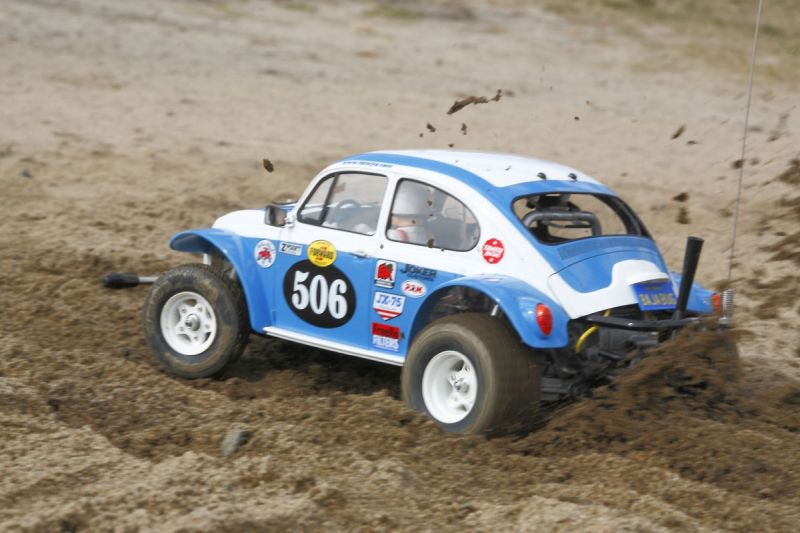

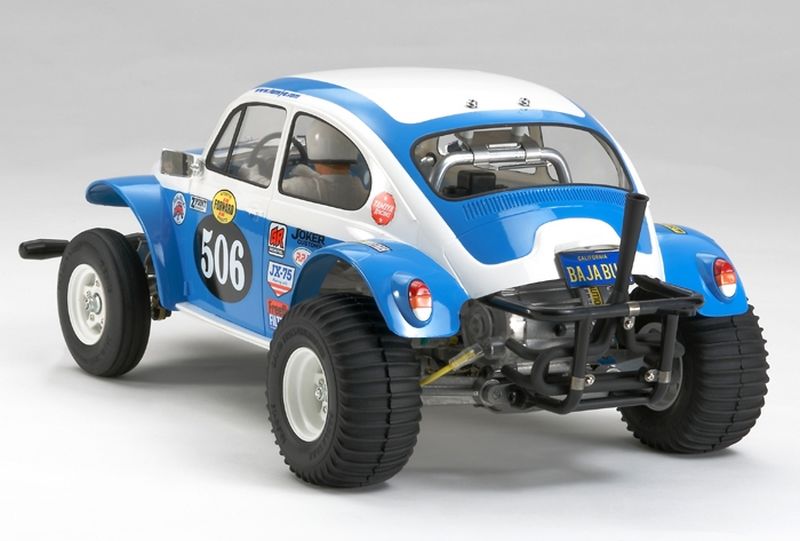

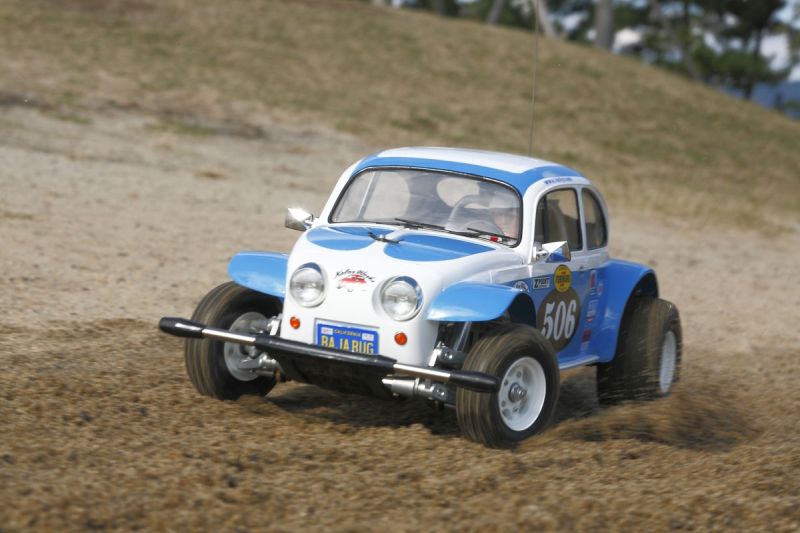

The Tamiya Sand Scorcher returns after 30 years with this highly anticipated 2010 re-release of the legendary 1979 original. The Sand Scorcher captured the hearts of RC enthusiasts worldwide with its unique Volkswagen Beetle-based buggy design, inspired by the one-make race vehicles that competed at the famous Baja 1000 in California. This re-release maintains the beloved character of the original while incorporating refined components and modern manufacturing for improved durability and performance.
The model realistically reproduces the distinctive form of these classic desert racers with a white polystyrene body that can be painted with standard Tamiya plastic model paints. The rear-wheel-drive chassis delivers exciting, aggressive driving performance with its combination of a robust FRP plate frame, aluminum reinforcement, die-cast suspension components, and oil-filled dampers. This is a must-have for collectors and enthusiasts who appreciate RC history.
Key Features
- Faithful recreation of the iconic 1979 Sand Scorcher design
- White polystyrene body paintable with Tamiya plastic model paints
- Die-cast metal front and rear suspension arms for durability
- Full ball bearing set included to reduce friction loss
- Oil-filled dampers on all four corners for superior suspension control
- 3-piece center-lock wheels with grooved front and ribbed rear tires
- Clear plastic mechanism box protecting electronics and battery
- Weather-resistant switch cover
Chassis Features
- 2mm thick FRP (Fiberglass Reinforced Plastic) plate chassis
- Aluminum reinforcing plate for added strength and flexibility
- 4-wheel independent suspension system
- Front double trailing arm suspension
- Rear swing axle suspension
- No differential gears (solid axle rear)
- Metal gearbox housing with Type 540 motor
- Enclosed radio box for electronics protection
- Rear roll cage for body protection
Historical Significance
- Original 1979 release was one of Tamiya's most beloved vintage buggies
- Based on real Baja 1000 racing VW Beetle buggies
- Part of Tamiya's classic "rough rider" style off-road series
- Re-release preserves original design aesthetics with modern improvements
Performance Benefits
- Oil-filled dampers provide excellent bump absorption and control
- Full ball bearings reduce drivetrain friction for improved efficiency
- FRP plate with aluminum reinforcement offers ideal flex for off-road terrain
- Die-cast suspension arms handle impacts without damage
- Rear paddle tires deliver excellent traction in loose conditions
- Two gear ratio options (6.5:1 or 9.3:1) for different terrain
Usage Notes
- Designed for off-road use on sand, dirt, and loose surfaces
- Polystyrene body uses Tamiya TS spray paints (not PS polycarbonate paints)
- Compatible only with kit-included motor or Tamiya 540J motor (Item 53689)
- ESC sold separately (not included in some versions)
- Rear tire assembly requires careful attention - tires should be mirror-mounted
- Soak tires in hot water before assembly for easier installation
Technical Specs
- Scale: 1/10
- Length: 400mm
- Width: 230mm
- Height: 180mm
- Wheelbase: 250mm
- Tread: Front 170mm, Rear 175mm
- Tire Width/Diameter: Front 21/73mm, Rear 41/82mm
- Chassis Weight: Approximately 1,730g
- Drivetrain: Rear-wheel Drive
- Gear Ratio: 6.5:1 or 9.3:1
- Motor: Type 540 brushed (included)
- Chassis: FRP Plate with Aluminum Reinforcement
What's Included
- Sand Scorcher polystyrene body (white, unpainted)
- FRP plate chassis with aluminum reinforcement
- Die-cast metal suspension arms
- Oil-filled dampers (4)
- Full ball bearing set
- 3-piece center-lock wheels
- Grooved front tires and ribbed rear tires
- Type 540 brushed motor
- HobbyWing THW 1060 ESC (export versions)
- Clear mechanism box
- Sticker sheet
- Assembly instruction manual
Needed to Complete
- 2-channel radio transmitter and receiver
- Steering servo
- 7.2-7.4V battery pack
- Compatible battery charger
- Tamiya TS spray paint for body
- Electronic Speed Controller (if not included)
Summary
The Tamiya Sand Scorcher 2010 re-release is a triumphant return of one of RC history's most beloved vehicles. Combining the nostalgic charm of the 1979 original with modern improvements like full ball bearings and quality oil dampers, this kit offers both collectors and drivers an authentic vintage RC experience. The detailed polystyrene body, die-cast suspension components, and aggressive off-road performance make this an essential addition to any serious RC collection. For those who remember the original or want to experience RC history, the Sand Scorcher delivers memories and excitement in equal measure.
