Description
Overview

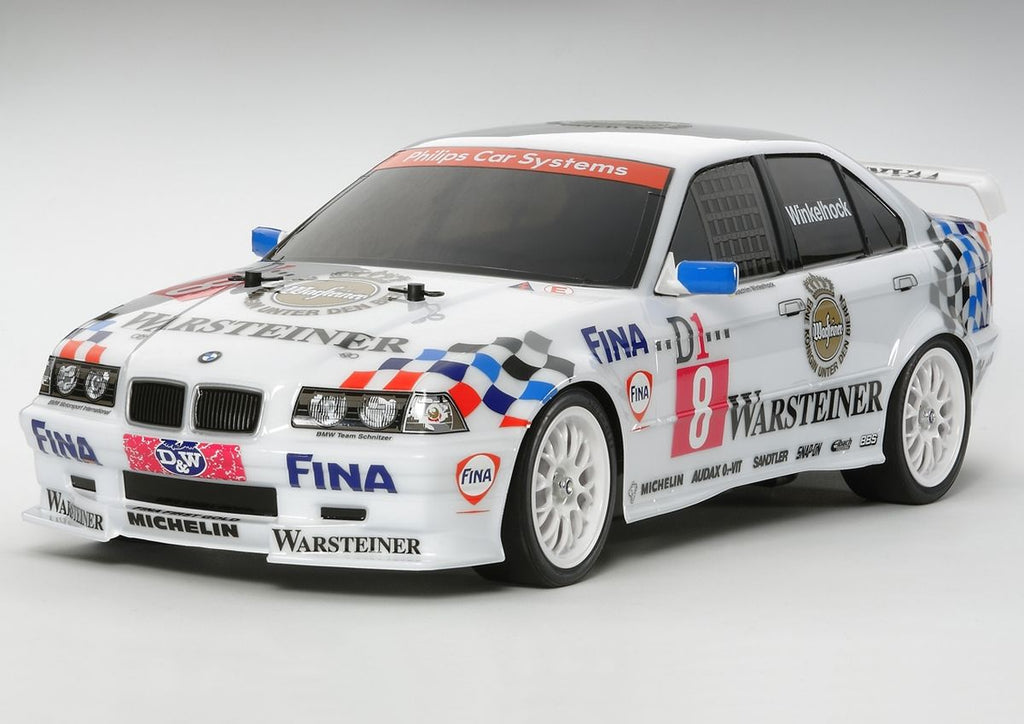

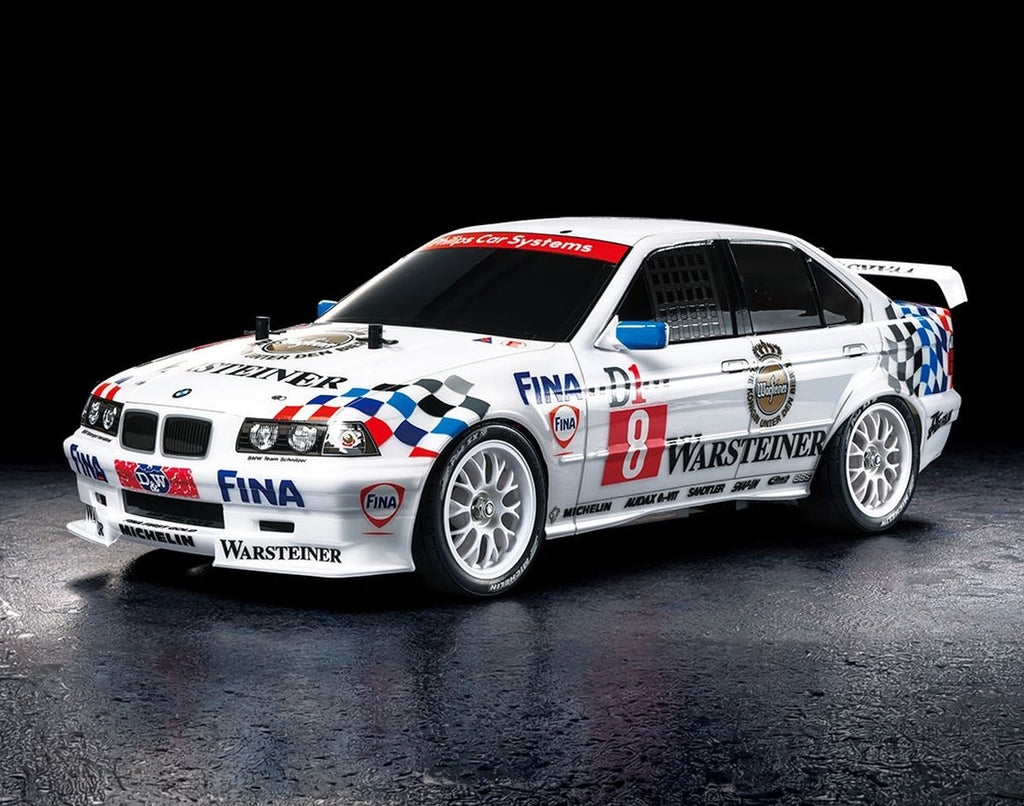

The Tamiya BMW 318i STW RC assembly kit resurrects a classic Super Touring Car era racer in stunning 1/10 scale detail. This limited production re-release depicts the BMW 318i STW as it competed in the Super Touring Car Cup series during the mid-1990s, built on the legendary E36-generation BMW 3-series sedan platform that defined an era of touring car competition. The authentic body shell captures every line of this beloved race car, now paired with Tamiya's evolved TT-01 Type E chassis.
The TT-01 Type E represents the refined evolution of Tamiya's popular entry-level touring car platform, featuring a bathtub frame design with low center of gravity, improved rigidity through fiberglass reinforced components, and smooth steering action via a 3-piece tie rod system. This limited edition re-release includes updated markings and window masking tape, making it an excellent choice for both nostalgic collectors and newcomers seeking a proven, upgradeable platform with classic motorsport styling.
Key Features
- 1/10 scale R/C model assembly kit with 445mm length, 310mm width, 238mm height
- Authentic BMW 318i STW Super Touring body design
- 1.0mm thick polycarbonate body shell
- White ABS plastic rear wing and side mirrors
- TT-01 Type E evolved shaft-driven 4WD chassis
- White mesh type wheels paired with racing slick tires
- Updated markings for this limited re-release
- Window masking tape included
- 540-Type Torque Tuned motor included
- Electronic speed controller included
- Limited production collector's edition
Chassis Features
- Evolved bathtub frame design with low center of gravity
- Motor and battery positioned close to ground for optimal balance
- Fiberglass reinforced nylon upper deck for improved rigidity
- Fiberglass reinforced gear covers
- 3-piece tie rod for smooth steering action
- 257mm standard wheelbase
- Multiple gear ratio options including 8.35:1 with 19T pinion
- Extensive hop-up parts availability
Performance Benefits
- Excellent 4WD on-road running from balanced design
- Low center of gravity improves stability
- 4-wheel double wishbone suspension system
- Front and rear gear differentials for smooth cornering
- Highly adaptable with extensive hop-up options
- Easy to build and maintain
- Proven chassis with established tuning knowledge base
Usage Notes
Optimized for on-road driving on smooth paved surfaces. The TT-01E chassis is an excellent platform for learning RC car setup and driving techniques. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints. Note that LED light components are not included and are not compatible with this body.
Technical Specs
- Scale: 1/10
- Length: 445mm
- Width: 310mm
- Height: 238mm
- Wheelbase: 257mm (standard)
- Drive: Shaft-driven 4WD
- Chassis: TT-01 Type E
- Body Material: 1.0mm Polycarbonate
- Motor: 540-Type Torque Tuned Brushed
- ESC: Included
- Suspension: Fully independent double wishbone
- Dampers: Friction dampers
- Differentials: Gear type
- Gear Ratio: 8.35:1 (with included 19T pinion)
- Bearings: Plastic bushing (upgradeable)
- Manufacturer: Tamiya
- Item Number: 58516
What's Included
- Complete unassembled TT-01 Type E chassis kit
- 1.0mm polycarbonate BMW 318i STW body (clear)
- White ABS plastic rear wing
- White ABS plastic side mirrors
- White mesh type wheels (4)
- Racing slick tires (4)
- Updated livery decal sheet
- Window masking tape
- 540-Type Torque Tuned brushed motor
- Electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya BMW 318i STW TT-01E Limited Re-Release perfectly captures the spirit of 1990s Super Touring Car racing. This collector's edition combines authentic E36 BMW styling with the evolved, beginner-friendly TT-01 Type E platform, offering low center of gravity, excellent stability, and extensive upgrade potential. With updated markings, included motor and ESC, and proven chassis performance, this limited production kit is ideal for touring car enthusiasts and BMW collectors seeking a rewarding build with classic racing heritage.
