Overview

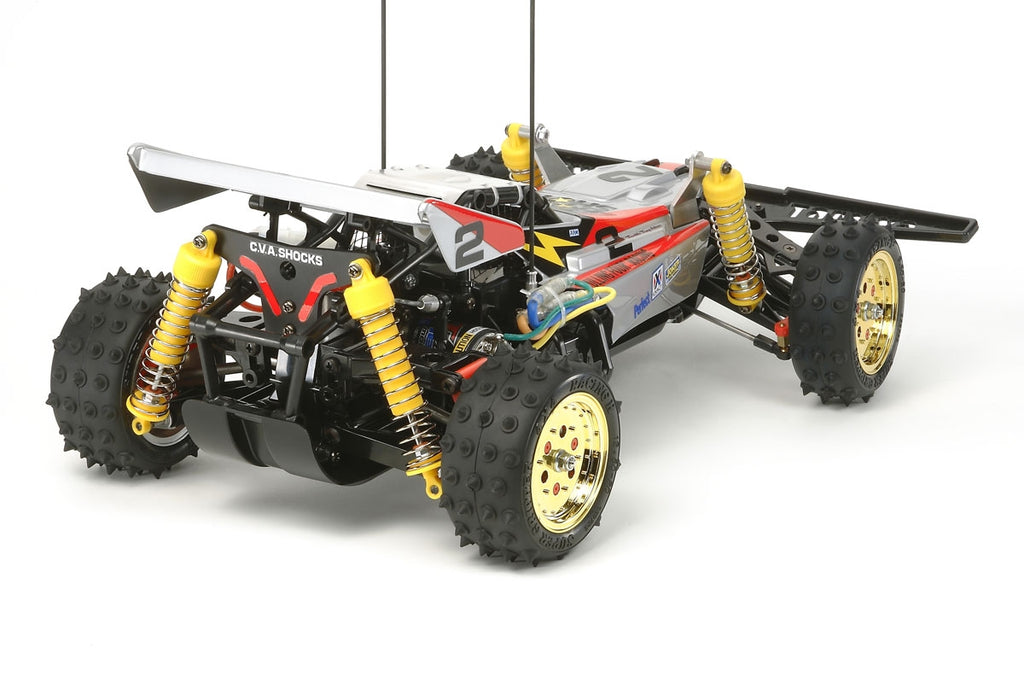

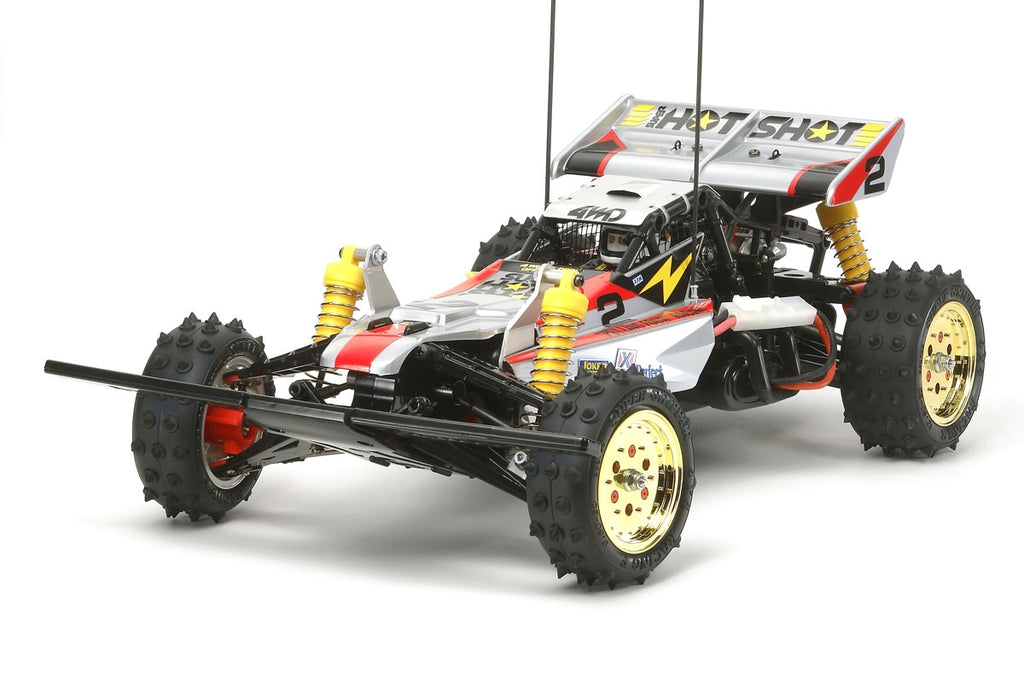

The Tamiya Super Hotshot 2012 is a triumphant return of one of RC racing's most celebrated icons. Originally released in 1986 as a special version of the legendary Hotshot, the Super Hotshot captivated enthusiasts with its silver body, gold wheels, and distinctive styling. This 2012 re-release faithfully preserves those iconic features while incorporating modern improvements that bring this classic up to contemporary performance standards, making it both a collector's treasure and a capable performer.
The chassis maintains the original Super Hotshot's core features—the durable ABS monocoque frame, protective roll cage, and under guard—while adding full ball bearings, oil dampers with three adjustable spring tensions, and a powerful GT-Tuned Motor (25T). The combination of nostalgic styling with modern engineering creates a buggy that honors its heritage while delivering genuine performance on today's off-road tracks.
Key Features
- 1/10 scale R/C model assembly kit with 390mm length, 235mm width, 150mm height
- Classic silver polycarbonate body with distinctive styling
- Matching silver rear wing
- Yellow oil dampers with 3 adjustable spring tensions
- Gold metal-plated wheels
- Spiked off-road tires
- ABS monocoque chassis frame with roll cage and under guard
- Shaft-driven 4WD drivetrain
- Full ball bearing specification
- GT-Tuned Motor (25T) included
- TEU-104BK ESC included

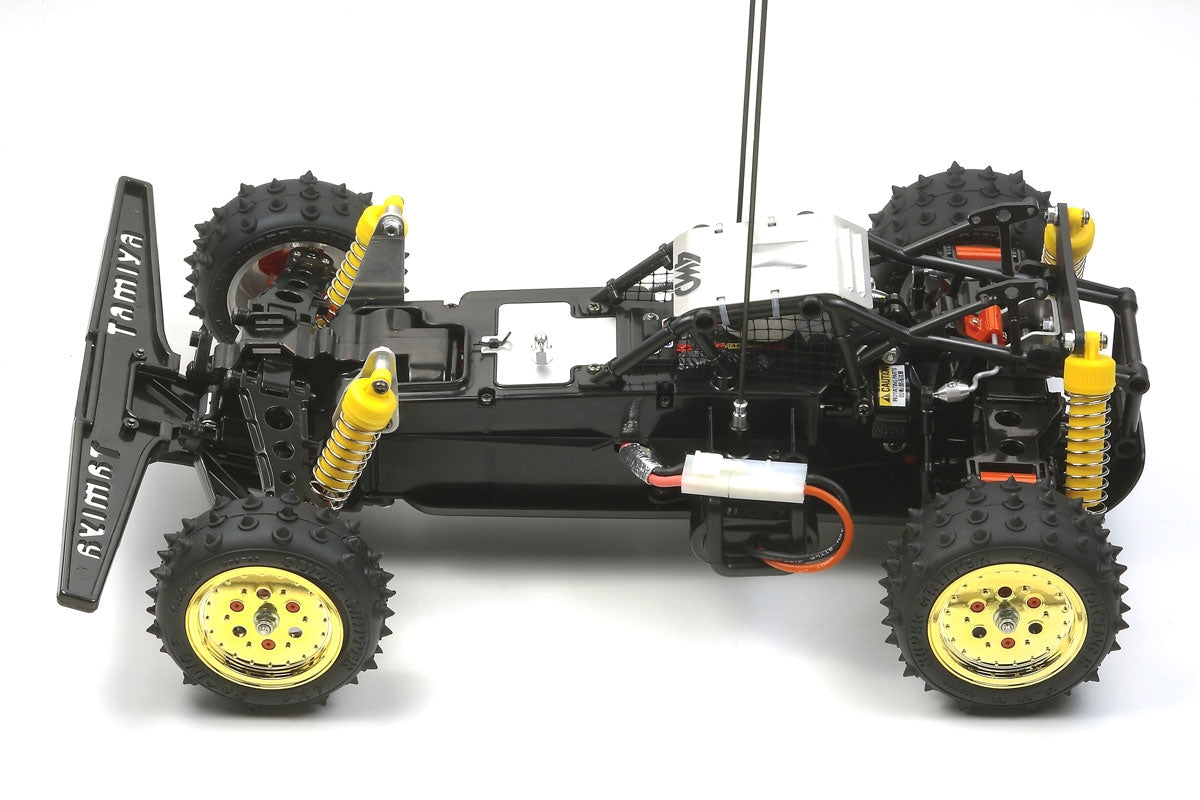

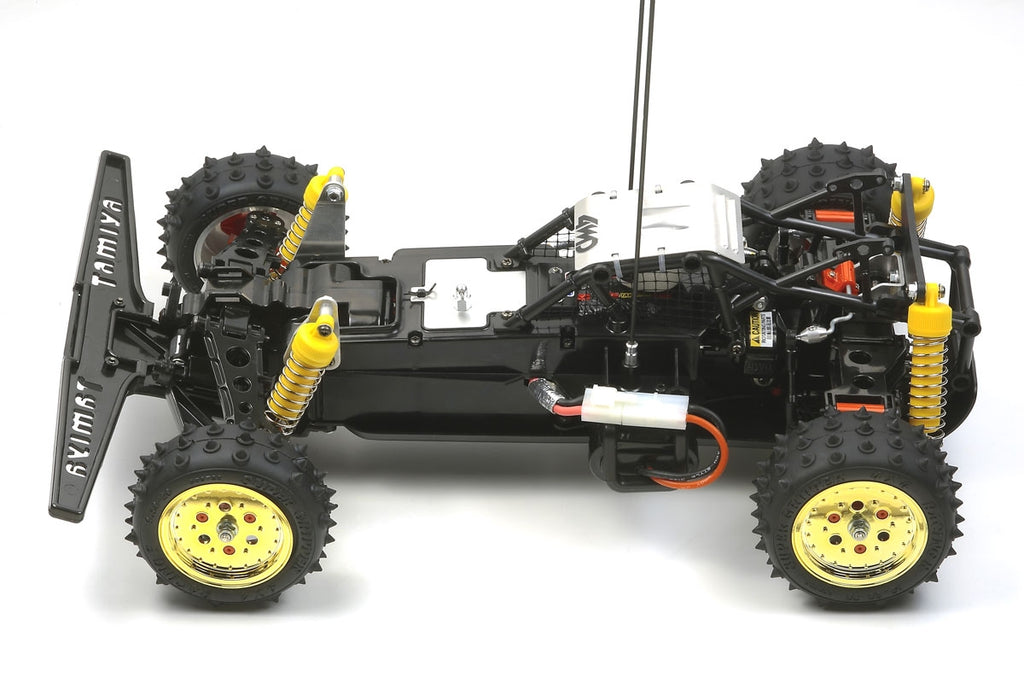

Chassis Features
- Durable ABS monocoque frame construction
- Protective roll cage included
- Chassis under guard for protection
- Horizontally-mounted motor for low CG
- Dog-bone type drive shafts
- Front and rear 3-bevel differentials
- 4-wheel double wishbone suspension
- Oil-filled dampers with 3 spring tension settings
- 2-piece steering tie-rod system
Performance Benefits
- Full ball bearings minimize friction loss
- Oil dampers provide superior suspension tuning
- 3 adjustable spring tensions for track conditions
- GT-Tuned motor delivers powerful performance
- Balanced 4WD traction
- Under guard protects from debris
- Two gear ratio options (8.1:1 or 10.04:1)
Usage Notes
The Super Hotshot excels on dirt, sand, and off-road tracks. The adjustable oil dampers allow fine-tuning for various track conditions. The spiked tires provide excellent grip on loose surfaces. Recommended for builders ages 14 and up with intermediate experience. Body requires painting with Tamiya PS polycarbonate spray paints—silver is the classic choice.
Technical Specs
| Specification |
Detail |
| Scale |
1/10 |
| Length |
390mm |
| Width |
235mm |
| Height |
150mm |
| Weight |
1,330g (without RC/battery) |
| Tread (Front) |
205mm |
| Tread (Rear) |
208mm |
| Tire Width/Diameter (Front) |
31/88mm |
| Tire Width/Diameter (Rear) |
38/88mm |
| Drive |
Shaft-driven 4WD |
| Chassis |
Super Hotshot |
| Chassis Material |
ABS Plastic |
| Body Material |
Polycarbonate |
| Motor |
GT-Tuned (25T) |
| ESC |
TEU-104BK (included) |
| Suspension |
4-wheel double wishbone |
| Dampers |
Oil-filled (adjustable) |
| Differentials |
3-bevel gear (front/rear) |
| Gear Ratio |
8.1:1 or 10.04:1 |
| Bearings |
Full ball bearings |
| Manufacturer |
Tamiya |
| Item Number |
58517-A |
What's Included
- Complete unassembled Super Hotshot chassis kit
- Silver polycarbonate body (clear)
- Silver rear wing
- Roll cage and under guard parts
- Yellow oil dampers (4)
- Gold metal-plated wheels (4)
- Spiked off-road tires (4)
- Full ball bearing set
- GT-Tuned Motor (25T)
- TEU-104BK electronic speed controller
- Decal sheet
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Super Hotshot 2012 Edition brings the legendary 1986 classic into the modern era with full ball bearings, adjustable oil dampers, and the powerful GT-Tuned motor. Featuring the iconic silver body, gold wheels, and distinctive styling that made the original famous, this re-release delivers both nostalgic appeal and genuine off-road performance. Perfect for collectors, vintage buggy enthusiasts, and anyone seeking a proven 4WD platform with timeless style.
