Overview

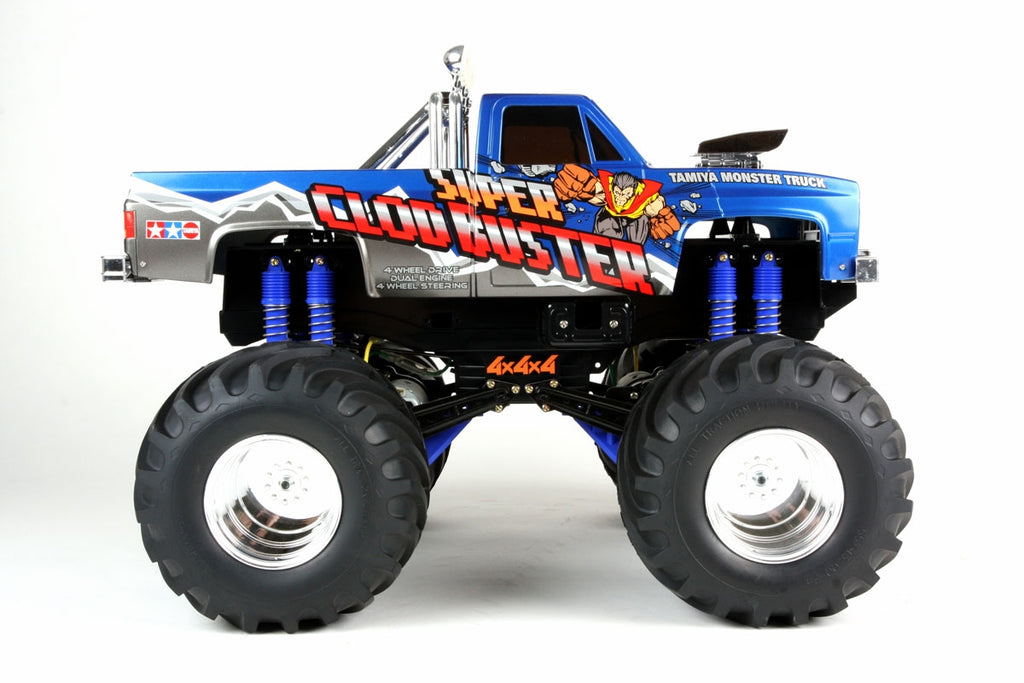

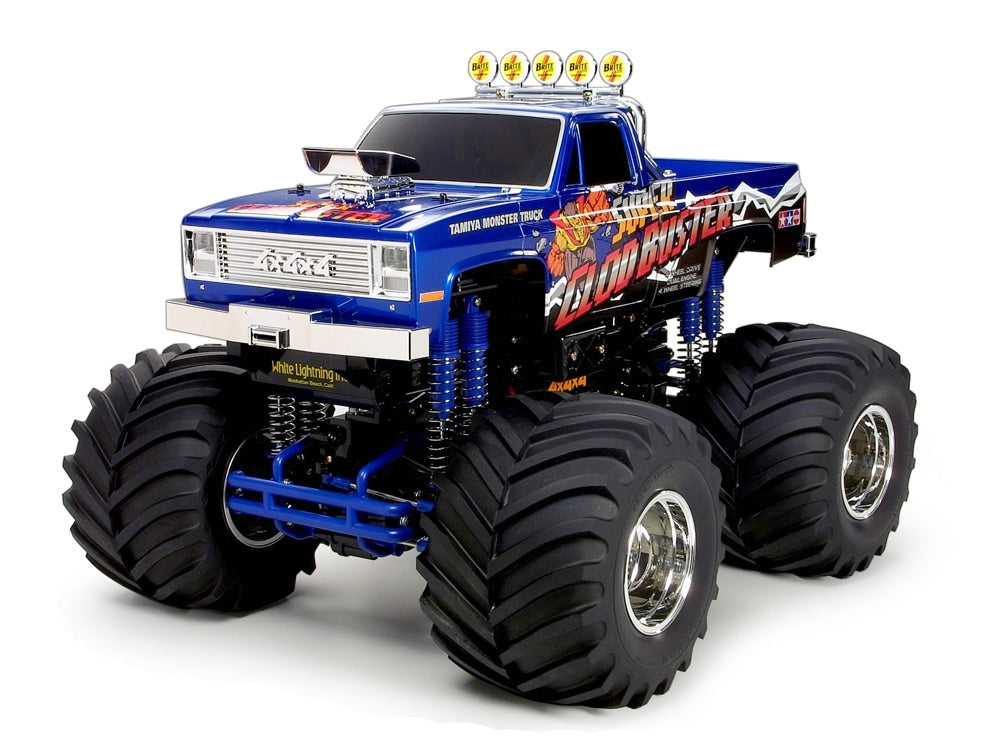

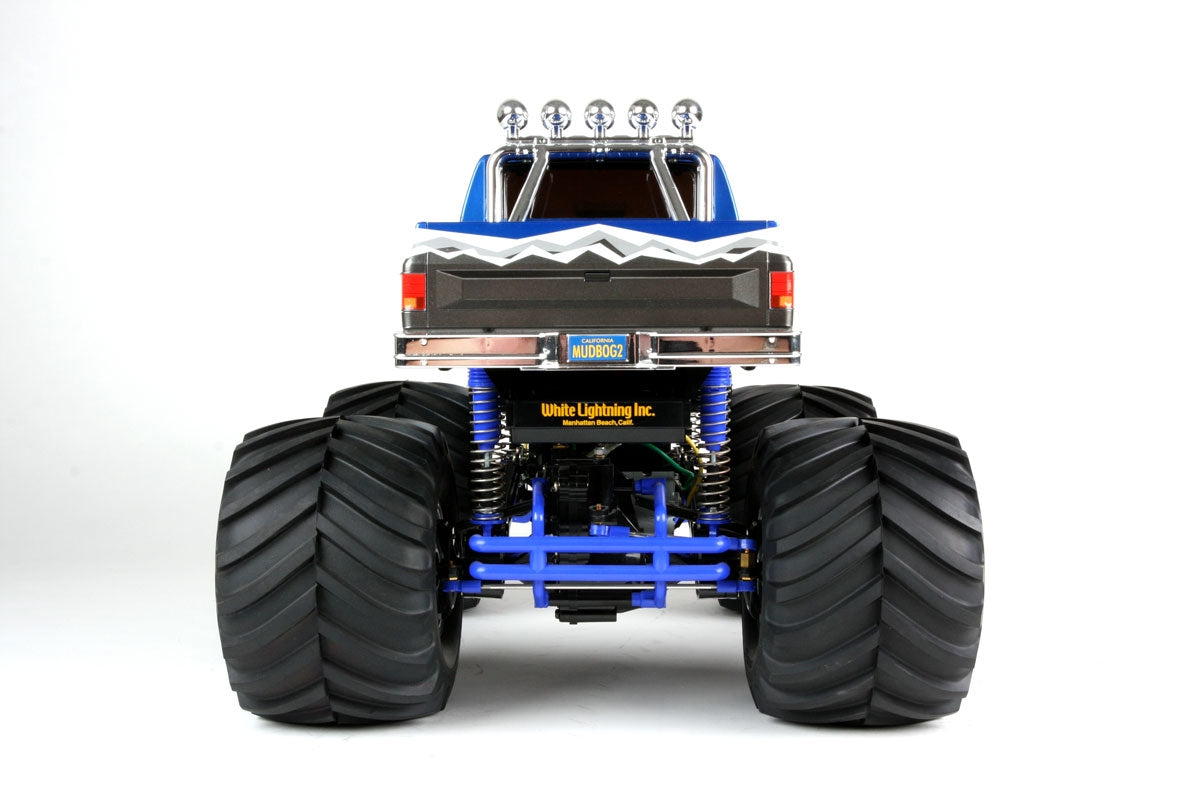

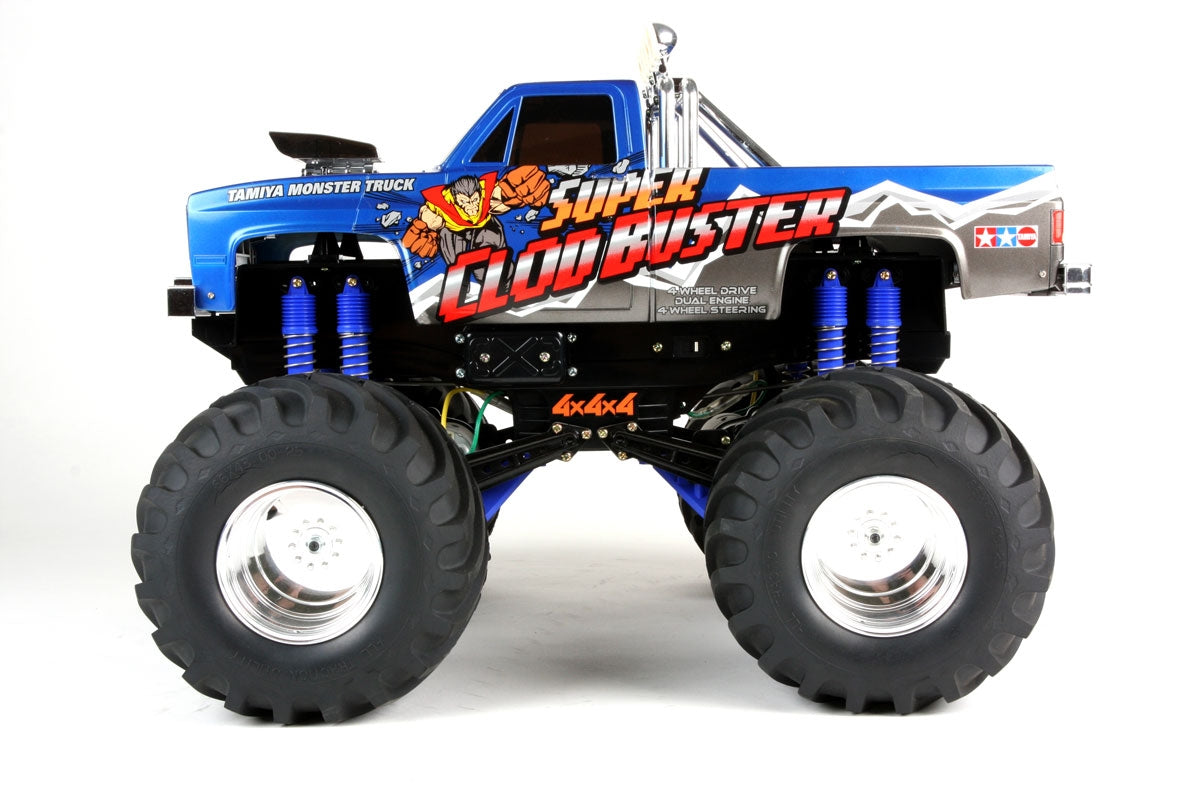

The Tamiya Super Clod Buster is a legendary 1/10 scale monster truck that has defined the genre since its original release. This assembly kit recreates a massive American pickup truck with an authentic customized appearance that captures the spirit of real monster truck competitions. With its lifted body, massive 165mm diameter tires, and aggressive stance, the Super Clod Buster commands attention and dominates terrain with equal authority.
What makes the Super Clod Buster truly special is its twin-motor 4WD drivetrain with independent front and rear gearboxes, providing exceptional power and traction. The heavy-duty link-arm rigid suspension features 8 coil springs (2 per wheel) for impressive shock absorption and terrain handling. This kit includes the HobbyWing THW 0880 dual motor ESC, making it ready to crawl over obstacles and conquer any terrain you put in front of it.
Key Features
- 1/10 scale R/C monster truck assembly kit with 480mm length, 380mm width, 340mm height

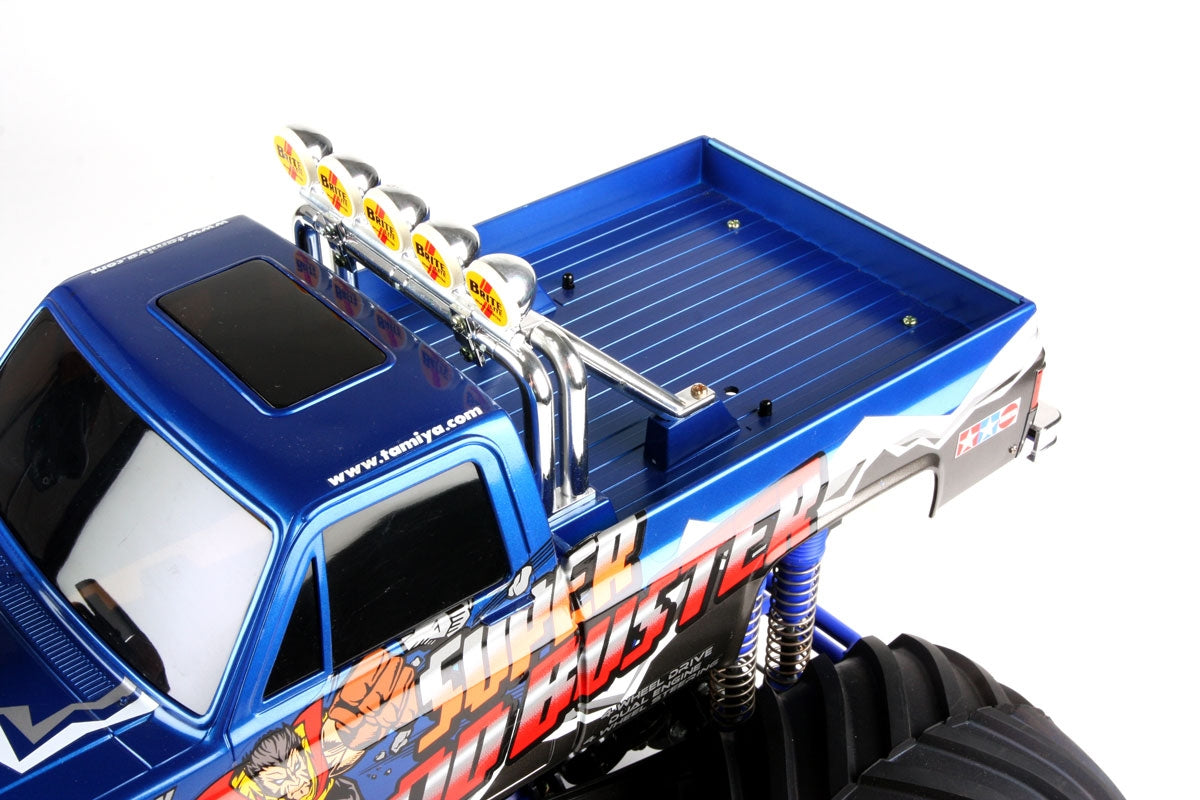

- American pickup truck-inspired polycarbonate body
- Metal-plated front grille, air intake, and roll bar
- Massive 165mm diameter x 110mm wide tires
- Twin-motor 4WD drivetrain
- Independent front and rear sealed gearboxes
- Link-arm rigid suspension with 8 coil springs
- 4-wheel steering (4WS) capability
- Two 540-type brushed motors included
- HobbyWing THW 0880 dual motor ESC included
- 55mm minimum ground clearance
Chassis Features
- ABS resin bathtub-type frame
- Twin motor configuration (front and rear)
- Sealed gearboxes integrated with axle housings
- Gear train system for efficient power transmission
- Built-in differential gears front and rear
- 4-link rigid axle suspension front and rear
- 8 coil springs (2 per wheel) for heavy-duty capability
- Reverse-phase 4-wheel steering system
Performance Benefits
- Exceptional power from twin motor setup
- Superior traction across all terrain types
- Heavy-duty suspension handles extreme obstacles
- 4WS enables tight turning radius
- Massive tires provide excellent ground clearance
- Differential gears ensure smooth cornering
- Sealed gearboxes protect from debris
Usage Notes
The Super Clod Buster excels at crawling, obstacle navigation, and backyard monster truck fun. The twin motor system and 4WS require a compatible multi-channel radio system. The heavy-duty suspension is designed for rough terrain and obstacle climbing rather than high-speed running. Recommended for intermediate to advanced builders. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
| Specification |
Detail |
| Scale |
1/10 |
| Length |
480mm |
| Width |
380mm |
| Height |
340mm |
| Ground Clearance |
55mm |
| Tire Diameter/Width |
165mm / 110mm |
| Drive |
Twin-motor 4WD |
| Steering |
Reverse-phase 4WS |
| Chassis Material |
ABS Resin |
| Body Material |
Polycarbonate |
| Motors |
2x 540-type brushed |
| ESC |
HobbyWing THW 0880 dual motor |
| Suspension |
4-link rigid axle (front and rear) |
| Springs |
8 coil springs (2 per wheel) |
| Differentials |
Gear type (front and rear) |
| Manufacturer |
Tamiya |
| Item Number |
58518-A |
What's Included
- Complete unassembled chassis kit
- Polycarbonate pickup truck body (clear)
- Metal-plated front grille, air intake, roll bar
- Monster truck wheels (4)
- 165mm diameter tires (4)
- Two 540-type brushed motors
- HobbyWing THW 0880 dual motor ESC
- Decal sheet
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Super Clod Buster delivers legendary monster truck performance with its twin-motor 4WD system, massive 165mm tires, and heavy-duty 8-spring suspension. Featuring reverse-phase 4-wheel steering, included dual motor ESC, and authentic American pickup styling, this kit is the ultimate platform for monster truck enthusiasts seeking crawling capability and backyard domination.
