Overview

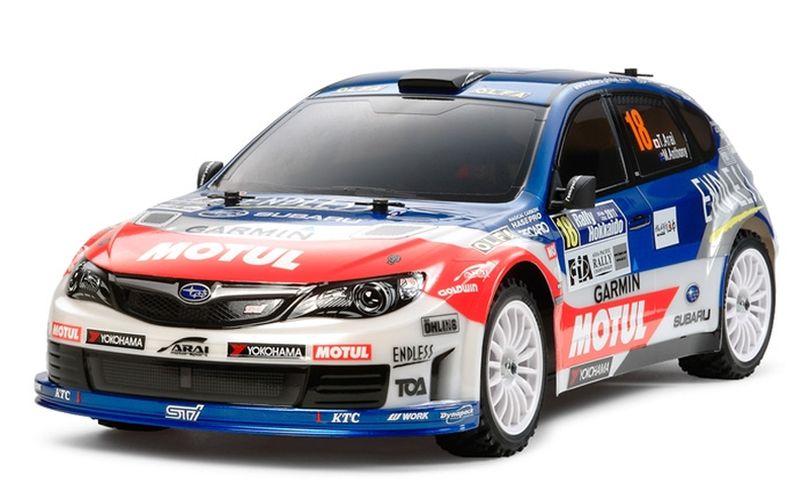

The Tamiya Subaru Impreza WRX STI Team Arai RC assembly kit reproduces the championship-winning rally car that took victory at Round 5 Rally Hokkaido during the 2011 Asia-Pacific Rally Championship. This 1/10 scale model faithfully recreates the sporty form of the Impreza with its distinctive roof intake, square-shaped side mirrors, and aggressive rally-ready stance. The included stickers capture the distinctive Team Arai markings for authentic race livery reproduction.
Built on the rally-ready XV-01 chassis, this kit delivers exciting RC driving action on both tarmac and gravel surfaces. The front-motor, belt-driven 4WD layout features comprehensive protection with covers over the gearboxes, drive belt, battery, and RC unit areas to guard against dirt and debris. Rally block tires with inner sponges matched with 16-spoke wheels provide the grip needed for dynamic off-road rally driving across varied terrain.
Key Features
- 1/10 scale R/C rally car assembly kit with 434mm length, 188mm width, 150mm height
- Authentic Subaru Impreza WRX STI Team Arai championship body
- Detailed polycarbonate body with sporty Impreza form
- Separate roof intake for scale realism
- Square-shaped side mirrors as separate parts
- XV-01 belt-driven 4WD rally chassis
- Front-motor layout with protected drivetrain

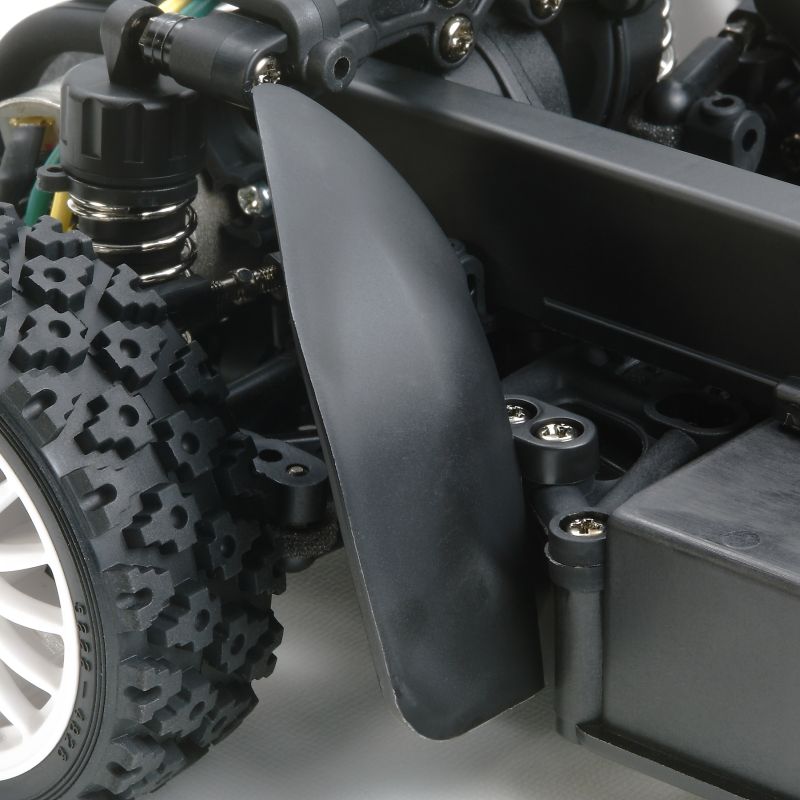

- Detachable wheel well liners prevent mud intrusion
- Rally block tires with inner sponges
- 16-spoke wheels for authentic rally appearance

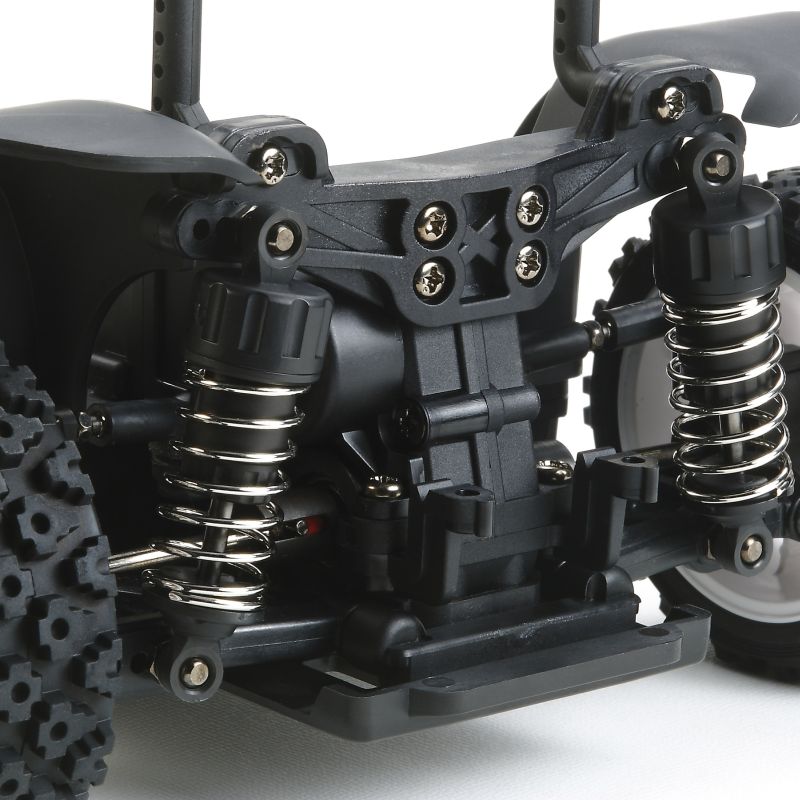

- CVA oil-filled shock units for superior absorption
- Full ball bearings throughout
- 540-Type brushed motor included
- Comprehensive Team Arai sticker sheet
Performance Benefits
- Belt-driven 4WD ensures smooth, efficient power delivery
- Front-motor layout provides excellent weight distribution
- Monocoque chassis frame for rigidity and strength
- 4-wheel independent double wishbone suspension
- CVA oil-filled shock units for excellent bump absorption
- Gear differentials with customizable oil viscosity
- 3-piece steering tie-rod for precise response
- Debris holes in chassis bottom ensure unhindered off-road performance
- Protected electronics for worry-free rally driving
Usage Notes
The XV-01 chassis excels on both tarmac and gravel surfaces, making it a true multi-surface rally platform. The comprehensive dust and debris protection allows confident driving through dirt, mud, and gravel. Gear differentials can be tuned with different viscosity oils for varied conditions. Rally block tires with sponge inserts provide optimal grip across multiple surfaces. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
-
Scale: 1/10
-
Length: 434mm
-
Width: 188mm
-
Height: 150mm
-
Wheelbase: 257mm
-
Frame: Monocoque chassis
-
Drive: Belt-driven 4WD
-
Motor Position: Front-mounted
-
Chassis: XV-01
-
Chassis Material: FRP (Fiberglass Reinforced Plastic)
-
Body Material: Polycarbonate
-
Motor: 540-Type brushed
-
Suspension: 4-wheel independent double wishbone
-
Dampers: CVA oil-filled
-
Differentials: Gear type (oil-filled, adjustable)
-
Gear Ratio: 8.04:1 (with 68T spur and 22T pinion)
-
Bearings: Full shielded ball bearings
-
Terrain: Multi-purpose (tarmac and gravel)
-
Manufacturer: Tamiya
-
Item Number: 58528
What's Included
- Complete unassembled XV-01 chassis kit
- Polycarbonate Subaru Impreza WRX STI body (clear)
- Separate roof intake
- Square-shaped side mirror parts
- 16-spoke wheels (4)
- Rally block tires with inner sponges (4)
- Detachable wheel well liners
- CVA oil-filled shock units (4)
- Full ball bearing set
- Team Arai sticker sheet
- Window masking tape
- 540-Type brushed motor
- Comprehensive instruction manual
Needed to Complete
- Electronic speed controller (ESC)
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools (screwdrivers, pliers, hobby knife)
Summary
The Tamiya Subaru Impreza WRX STI Team Arai XV-01 brings Asia-Pacific Rally Championship victory to your RC collection. Built on the purpose-designed XV-01 belt-driven 4WD rally chassis with comprehensive debris protection, CVA oil dampers, and full ball bearings, this kit delivers authentic multi-surface rally performance. Perfect for Subaru enthusiasts, rally fans, and RC hobbyists seeking a serious off-road capable platform with genuine championship pedigree.
