Overview

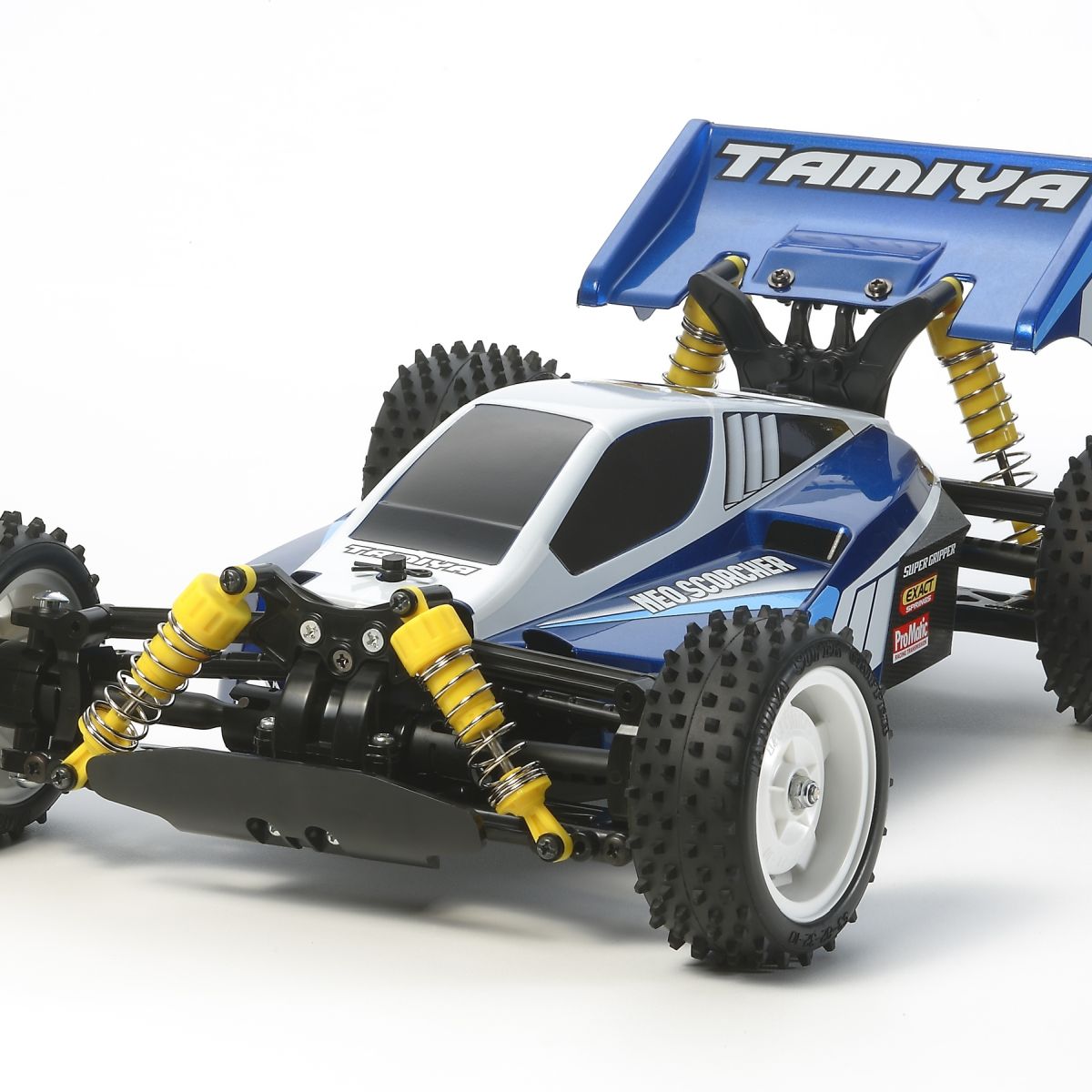

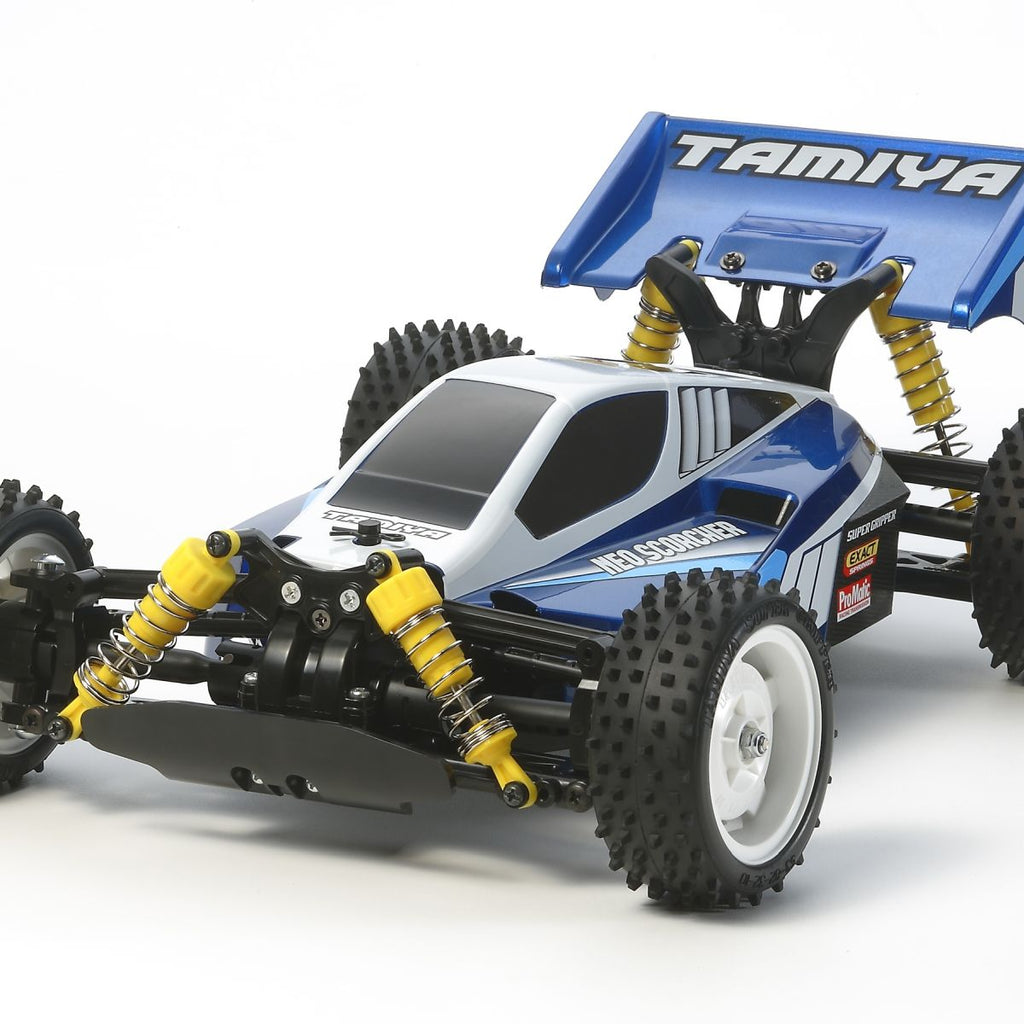

The Tamiya Neo Scorcher is a classic-inspired 4WD off-road buggy that combines nostalgic Tamiya styling with modern performance capabilities. This 1/10 scale RC assembly kit revives the spirit of the popular Scorcher—a speedy 4WD racing buggy from the late-1980s Tamiya lineup—with a new name and updated body design. Made from durable polycarbonate and featuring a stylish large rear wing, the body design drew heavily upon the original Scorcher for inspiration and delivers instant visual impact on any off-road track.
Built on the easy-assembly shaft-driven 4WD TT-02B chassis, the Neo Scorcher marries proven controllability with square spike tires for superior grip on rough surfaces. The suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA oil shock units for assured handling over challenging terrain. This off-road veteran is back with new features to scorch your rivals, whether you're blasting through backyard dirt or competing at local off-road tracks.
Key Features
- 1/10 scale 4WD off-road buggy assembly kit with 380mm length, 250mm width, 145mm height
- Classic Tamiya Scorcher-inspired polycarbonate body design
- Stylish large polycarbonate rear wing
- Large stickers included for easy decoration
- TT-02B shaft-driven 4WD buggy chassis
- Skid-shaped frame design

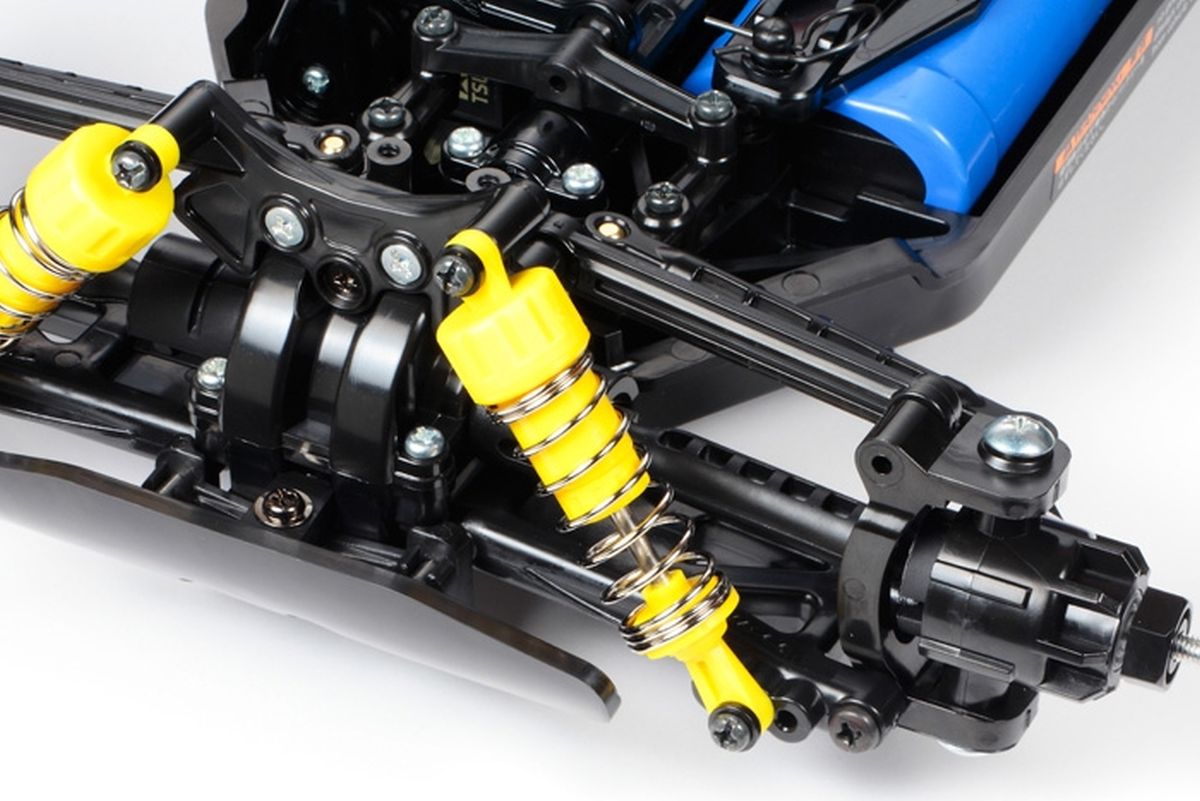

- CVA oil-filled shock dampers on all four corners

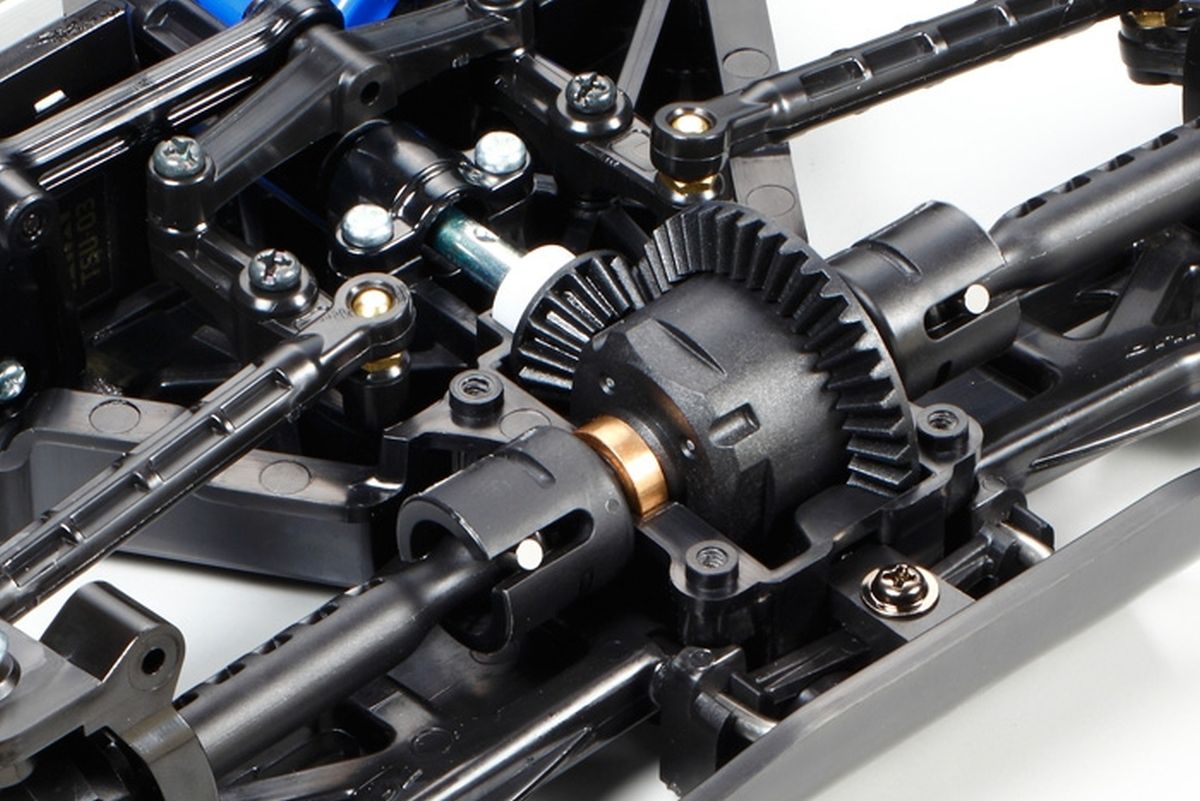

- Sealed front and rear gearboxes with 4-bevel differentials
- Square spike tires for superior off-road grip

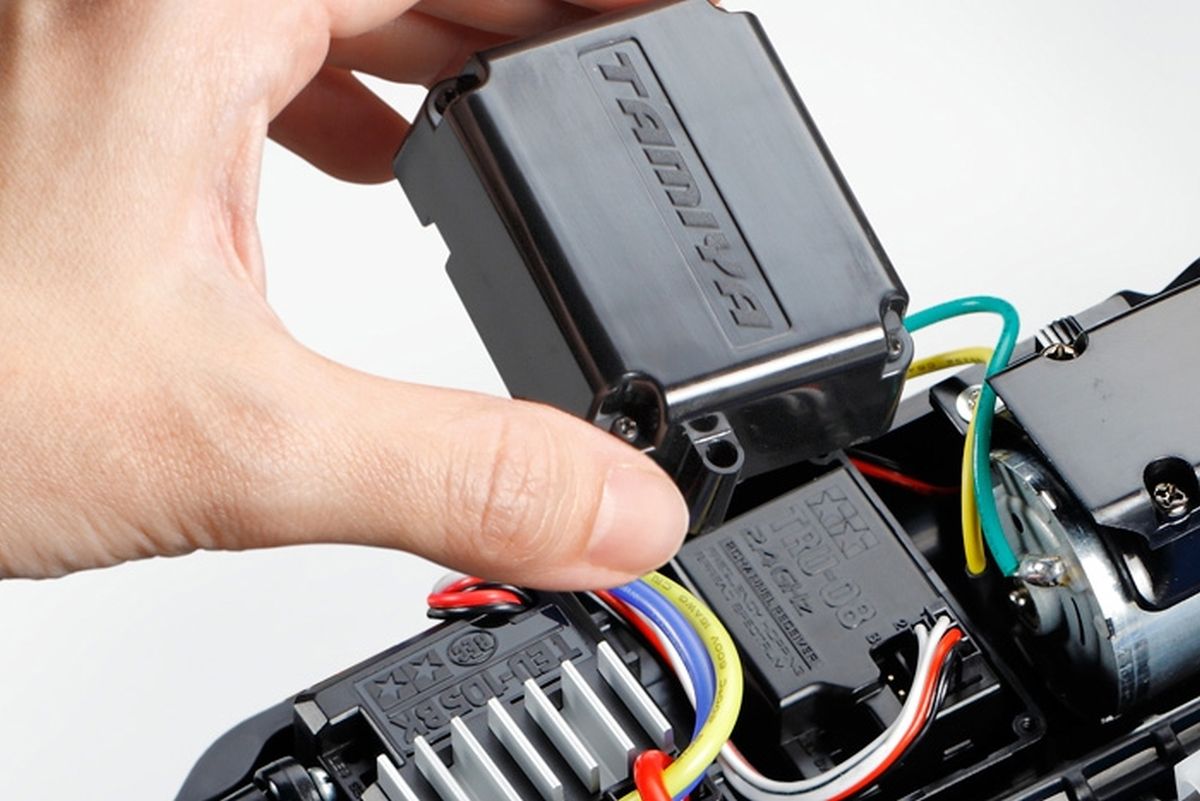

- Receiver case and motor cover protect electronics from debris
- 540-Type brushed motor included
- HobbyWing THW 1060 ESC included
Performance Benefits
- Assured handling from shaft-driven 4WD system
- 4-wheel independent double wishbone suspension with long arms
- CVA oil shock units provide excellent bump absorption
- Sealed gearboxes prevent dust from entering drivetrain
- 4-bevel resin differentials for smooth operation
- 3-piece steering tie-rod for precise response
- Top removable with four screws for easy maintenance
- Four gear ratios available with separately-sold pinion gears
- Identical left and right suspension components for hassle-free assembly
Usage Notes
The Neo Scorcher excels on dirt, gravel, grass, and rough off-road terrain. The square spike tires provide superior grip on loose surfaces while the CVA oil dampers handle bumps and jumps with confidence. The TT-02B chassis is beginner-friendly with easy assembly and straightforward maintenance. Four different gear ratios can be applied using three separately-sold pinion gear types to match conditions. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
-
Scale: 1/10
-
Length: 380mm
-
Width: 250mm
-
Height: 145mm
-
Wheelbase: 266mm
-
Tread: 217mm front / 208mm rear
-
Tire Size: 32mm × 82mm front / 41mm × 82mm rear
-
Frame: Bathtub (skid) type
-
Drive: Shaft-driven 4WD
-
Chassis: TT-02B
-
Body Material: Polycarbonate
-
Motor: 540-Type brushed
-
ESC: HobbyWing THW 1060 (2-3S compatible)
-
Suspension: 4-wheel independent double wishbone with long arms
-
Dampers: CVA oil-filled
-
Differentials: 4-bevel resin type (sealed)
-
Gear Ratio: 10.71:1 (3 additional ratios available)
-
Manufacturer: Tamiya
-
Item Number: 58568
What's Included
- Complete unassembled TT-02B chassis kit
- Polycarbonate Neo Scorcher body (clear)
- Polycarbonate rear wing
- CVA oil-filled shock dampers (4)
- Square spike tires and wheels (4 each)
- Receiver case and motor cover
- Large decoration sticker sheet
- 540-Type brushed motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools (screwdrivers, pliers, hobby knife)
Summary
The Tamiya Neo Scorcher TT-02B delivers classic Tamiya buggy styling with modern 4WD off-road performance. Built on the proven TT-02B platform with CVA oil dampers, sealed differentials, and included motor and ESC, this kit offers excellent value for first-time kit builders and experienced hobbyists alike. Perfect for backyard bashing, park running, and beginner off-road racing with extensive upgrade potential through Tamiya's comprehensive hop-up parts ecosystem.
