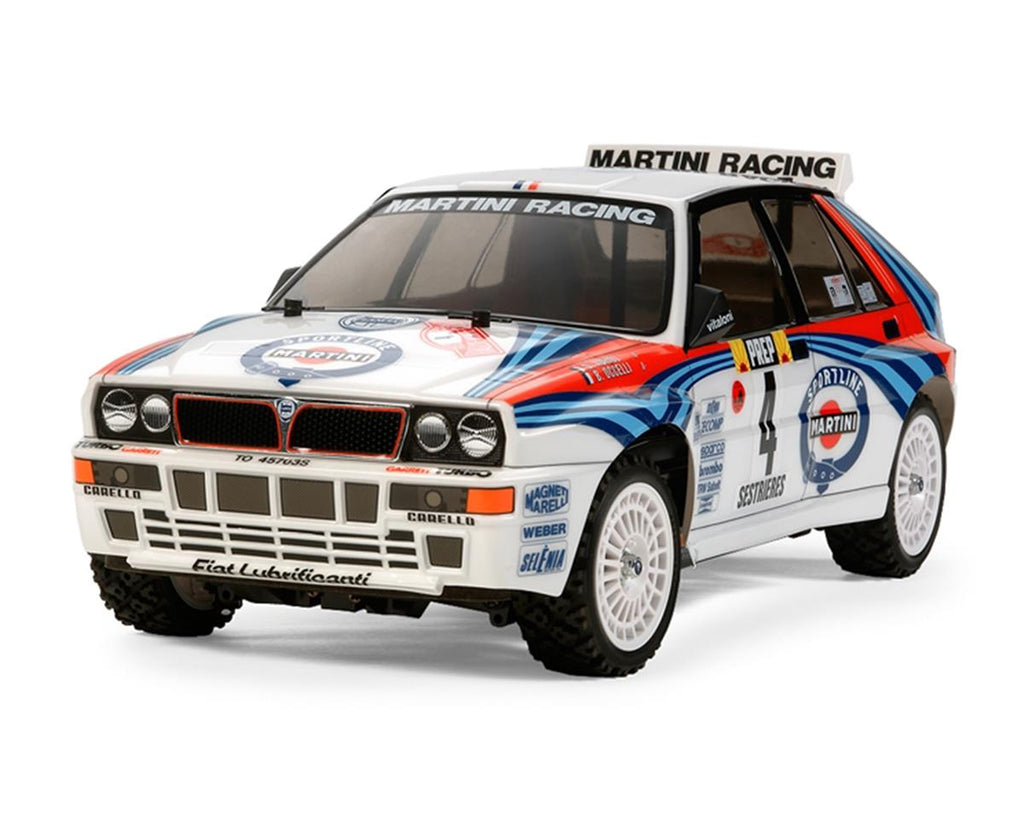

The Tamiya Lancia Delta Integrale 1/10 4WD Electric Rally Car Kit is an detailed kit that depicts the winner of the 1992 World Rally Championship. The polycarbonate body recreates the look of the angular 4-door hatchback, complete with front/rear blister fenders and down to details such as the bulge on the front bonnet and the numerous air intakes in the front bumper. The kit also includes separate parts to depict the side mirrors and roof spoiler. Stickers recreate the markings, including the famous Martini Racing stripes. This specific kit includes a Hobbywing THW-1060 Brushed ESC for incredible performance.
TT-02 Chassis:
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports
NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- Bathtub-type Frame

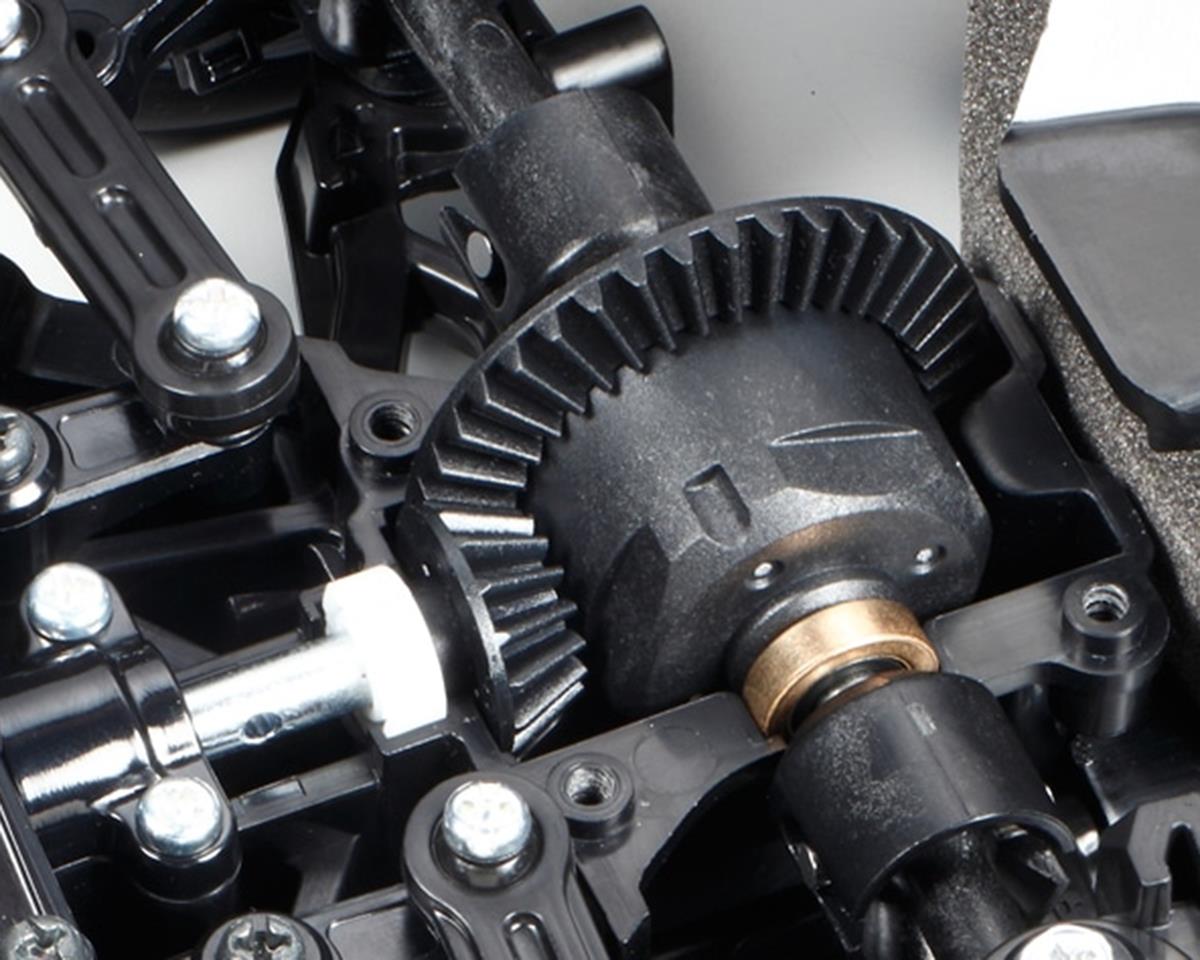

- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension

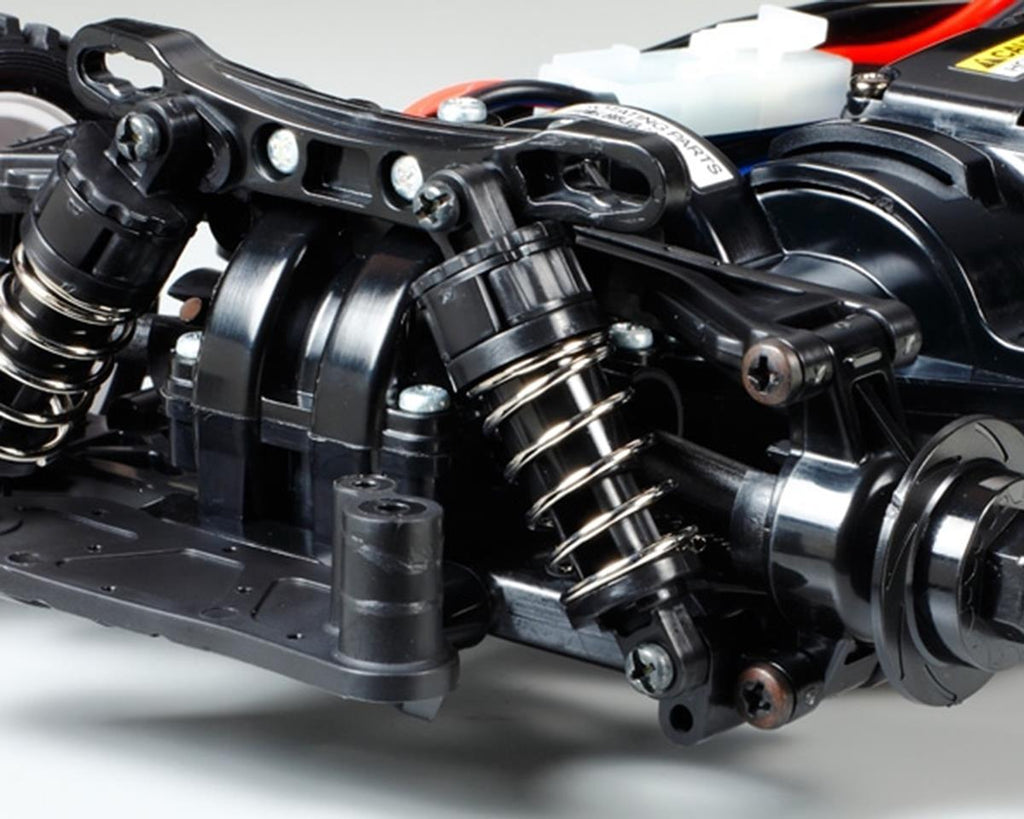

- Front and Rear Friction Dampers
- Includes a 540-Brushed Motor and a Hobbywing THW-1060 brushed ESC
Specifications:
Length: 407mm
Width: 186mm
Height: 159mm
Wheelbase: 257mm
Tire Width/Diameter (Front and Rear): 27/69mm
Gear Ratio: 9.58:1 (Ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Includes:
- (1) Lancia Delta Integrale 1/10 4WD Electric Rally Car Kit
Needed to Complete:
- 2 channel radio system
- Steering servo
- Polycarbonate paint for body
- 7.2 - 7.4 volt battery
- Compatible Charger
