Overview

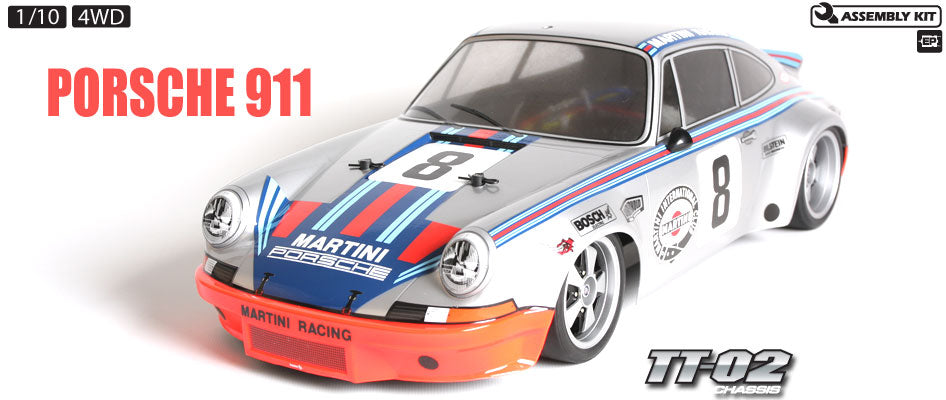

The Tamiya Porsche 911 Carrera RSR RC assembly kit celebrates one of motorsport's most iconic and successful race cars from a legendary year. 1973 was a dream year for the Porsche 911 Carrera RSR—the legendary Group 4 car won no fewer than three international races along with seven domestic victories, capping a glorious twelve months with victory in the famed Targa Florio race held on the challenging roads of Sicily. This kit recreates that championship-winning machine with its unmistakable wide-body form and legendary Martini Racing livery.
Built on Tamiya's versatile TT-02 shaft-driven 4WD chassis, this kit delivers authentic 1970s sports car racing heritage with proven RC performance. The polycarbonate body accurately replicates the RSR's distinctive silhouette with its wide front and rear fenders, integrated ducktail spoiler, and aggressive racing proportions. The famous Martini stripe marking scheme can be recreated using the included decals for sponsor logos, numbers, and racing details, while 2-piece assembly wheels capture the period-correct Porsche five-spoke design.
Key Features
- 1/10 scale R/C model assembly kit with 457mm length, 204mm width, 136mm height

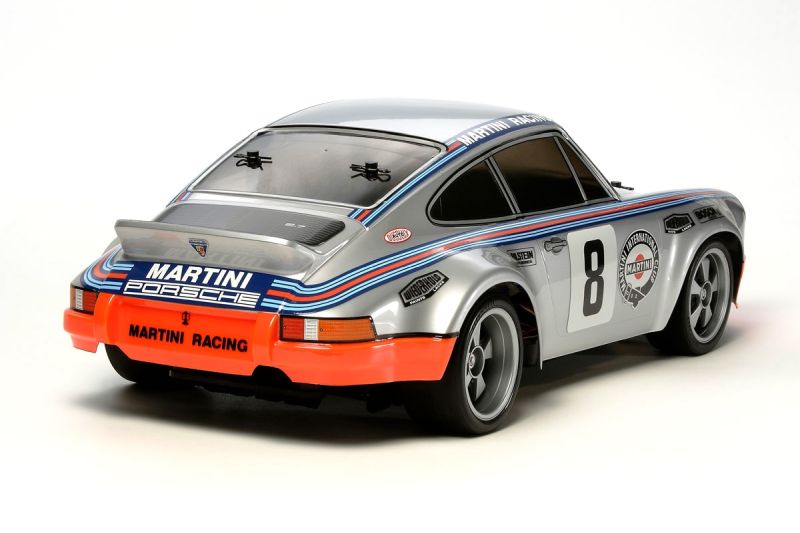

- Authentic Porsche 911 Carrera RSR polycarbonate body
- Wide front and rear fenders for aggressive Group 4 appearance
- Integrated ducktail rear spoiler
- Separate side mirror parts

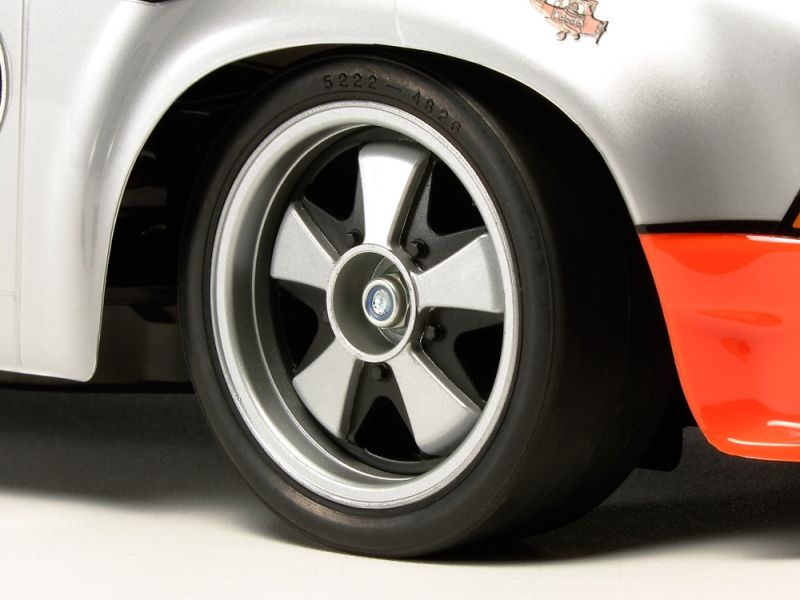

- 2-piece assembly Porsche five-spoke design wheels
- TT-02 shaft-driven 4WD chassis
- Front 27mm and rear 32mm width racing slick tires
- 540-Type Torque Tuned motor included
- Tamiya TBLE-02S ESC included (brushless compatible)
- Martini Racing decal sheet included
Racing Heritage
- 1973 Targa Florio victory
- Three international race wins
- Seven domestic victories
- Group 4 homologation special
- Legendary Martini Racing livery
- Pinnacle of 911 racing development
Chassis Features
- Shaft-driven 4WD with longitudinal layout

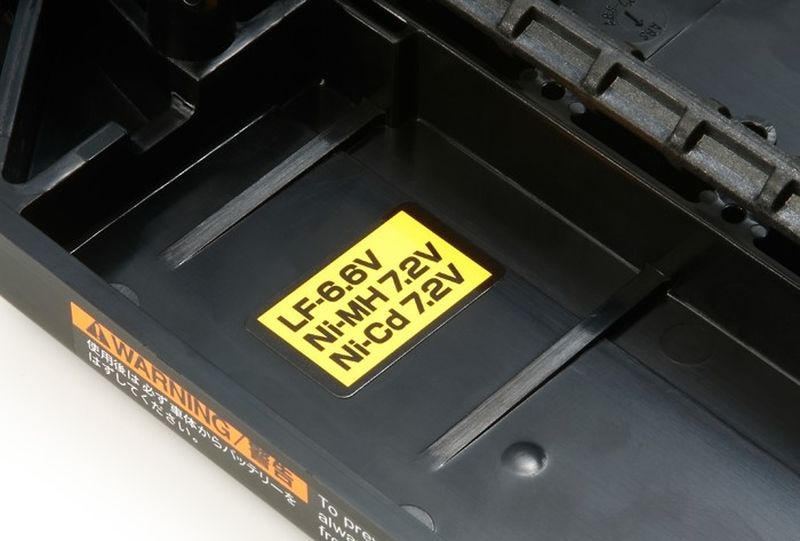

- Battery on left, motor on right for balance
- Identical left/right suspension arms for easy assembly

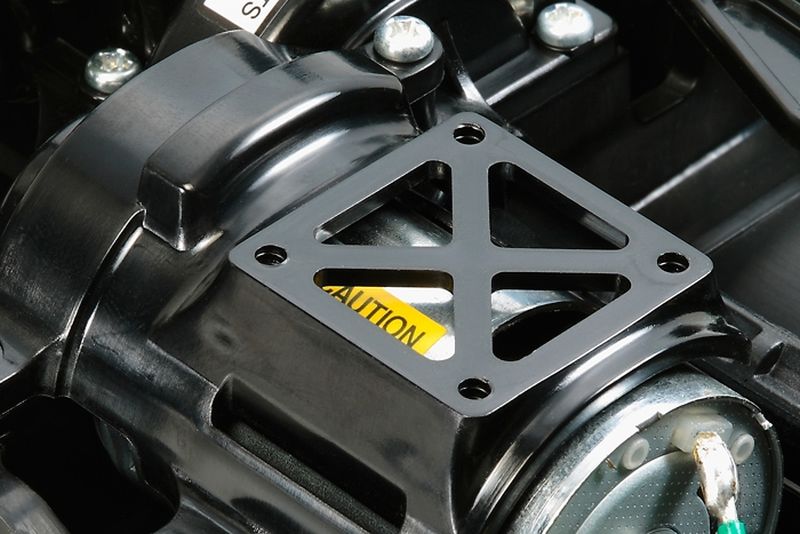

- Easy-to-maintain gearboxes
- 251mm wheelbase
- 2 wheelbase options available
- 2 ground clearance settings
- 2 tread setup options
- 10 possible gear ratios

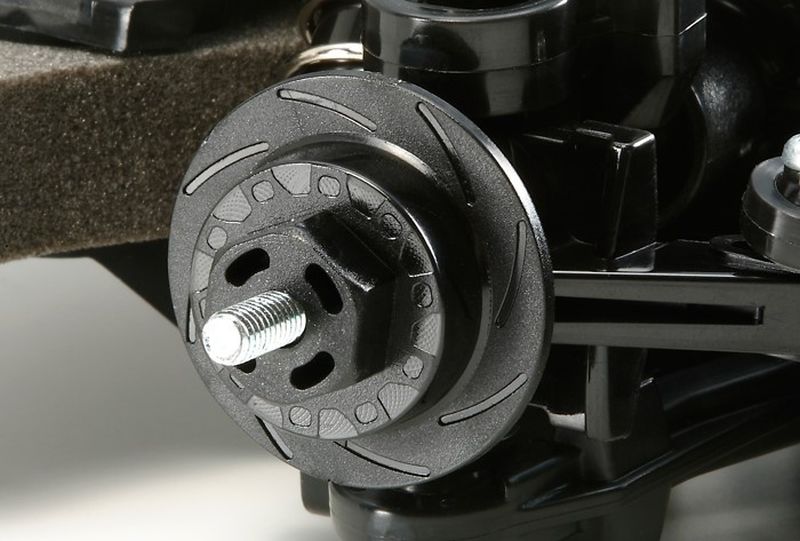

- Brake disc-shaped wheel hubs
Performance Benefits
- Excellent stability from balanced 4WD layout
- 4-wheel double wishbone suspension

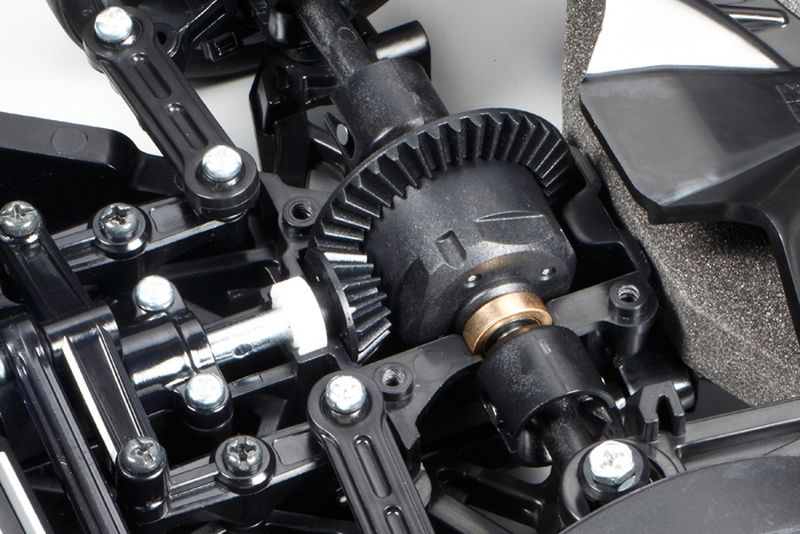

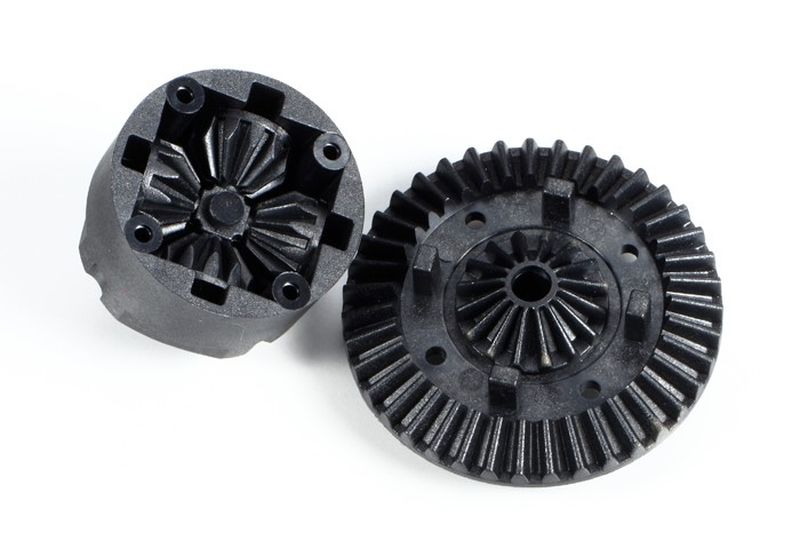

- Front and rear 4-bevel resin differentials

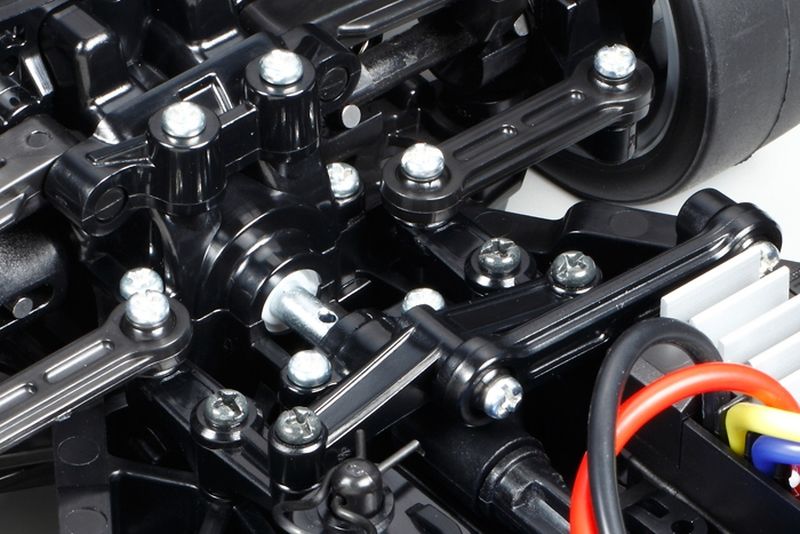

- 3-piece steering tie-rod for smooth response
- Friction dampers for predictable handling
- Staggered tire widths for authentic RSR stance
- Racing slick tires maximize tarmac grip
- TBLE-02S ESC compatible with brushless motors
Usage Notes
Designed for on-road driving on smooth paved surfaces. The racing slick tires provide excellent grip on tarmac. The included TBLE-02S ESC supports both brushed and sensored brushless motors (21.5 turn limit) for future upgrades. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints to recreate the iconic Martini Racing colors.
Technical Specs
-
Scale: 1/10
-
Length: 457mm
-
Width: 204mm
-
Height: 136mm
-
Wheelbase: 251mm
-
Tire Width/Diameter: 27/67mm (front), 32/67mm (rear)
-
Drive: Shaft-driven 4WD
-
Chassis: TT-02
-
Body Material: Polycarbonate
-
Motor: 540-Type Torque Tuned Brushed
-
ESC: Tamiya TBLE-02S (brushless compatible)
-
Suspension: 4-wheel double wishbone
-
Dampers: Friction dampers
-
Differentials: 4-bevel resin type
-
Gear Ratio: 8.27:1 (9 additional ratios available)
-
Manufacturer: Tamiya
-
Item Number: 58571
What's Included
- Complete unassembled TT-02 chassis kit
- Polycarbonate Porsche 911 Carrera RSR body (clear)
- Separate side mirror parts
- 2-piece assembly five-spoke wheels (4)
- Racing slick tires - 27mm front, 32mm rear
- Martini Racing decal sheet with stripes, numbers, and logos
- Window masking stickers
- 540-Type Torque Tuned brushed motor
- Tamiya TBLE-02S electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Porsche 911 Carrera RSR TT-02 celebrates the legendary 1973 championship-winning Group 4 racer with authentic wide-body styling and iconic Martini Racing livery. Built on the versatile TT-02 4WD platform with included motor, brushless-compatible ESC, and period-correct five-spoke wheels, this kit delivers classic sports car racing heritage for display or spirited on-road driving. Perfect for Porsche enthusiasts, vintage racing fans, and collectors seeking an iconic piece of motorsport history.
