Description
Overview
The Tamiya Nismo R34 GT-R Z-Tune is a purpose-built 1/10 scale drift RC assembly kit that combines one of JDM culture's most legendary vehicles with Tamiya's proven TT-02D Drift Spec chassis. The R34 GT-R Z-Tune debuted at the 2005 Tokyo Auto Salon, representing the ultimate evolution of Nissan's iconic Skyline GT-R series. With only 20 full production cars ever built by NISMO (Nissan's motorsports division), the Z-Tune is among the most coveted performance vehicles in the world—and now you can experience its spirit in RC form.
This kit features Tamiya's shaft-driven 4WD TT-02D chassis, specifically tuned for drift performance with dedicated drift tires, CVA oil dampers, full ball bearings, and a sport-tuned motor. The polycarbonate body accurately captures the Z-Tune's aggressive wide-body styling, including the distinctive front bumper outlets, bonnet vents, and flared fenders that defined NISMO's hand-built masterpiece. Whether you're new to drifting or an experienced slide enthusiast, this kit delivers accessible yet rewarding drift action.
Key Features
- 1/10 scale electric 4WD drift car assembly kit
- TT-02D Drift Spec shaft-driven chassis

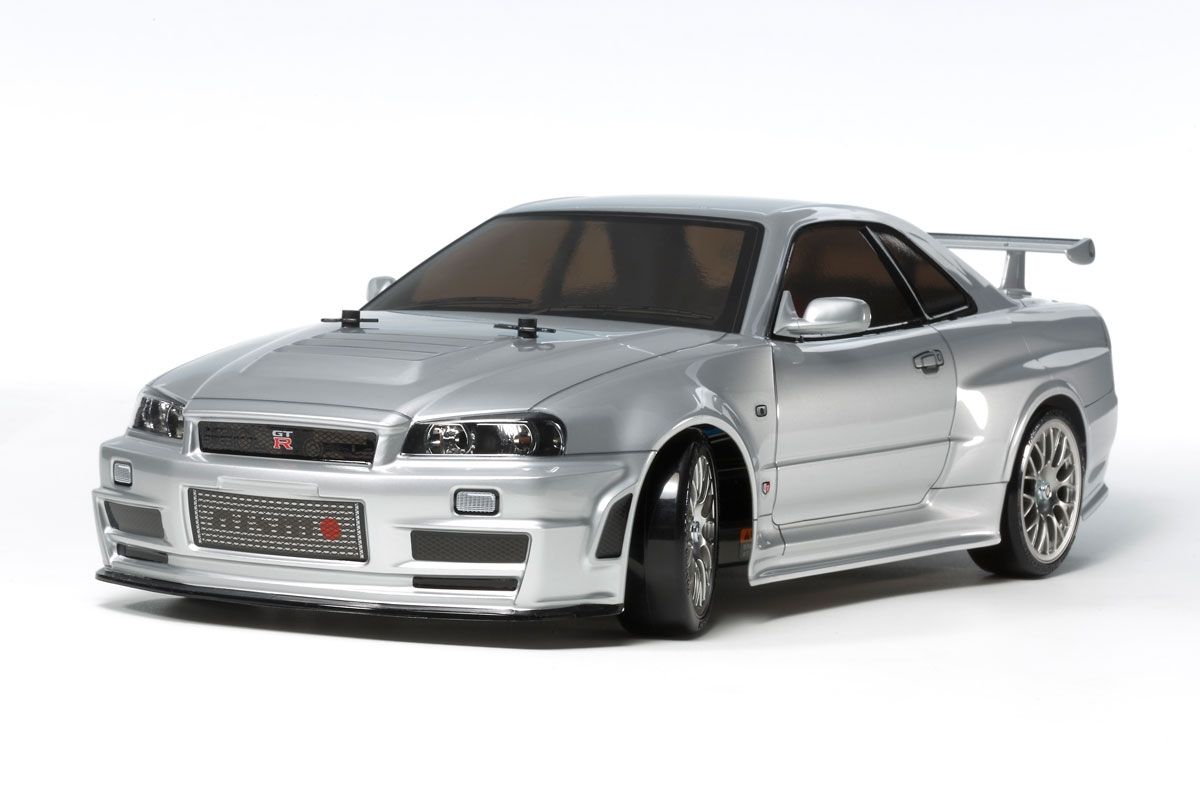

- Iconic Nismo R34 GT-R Z-Tune polycarbonate body
- 24mm width drift-spec tires for controlled slides
- Matte-finish metal-plated wheels

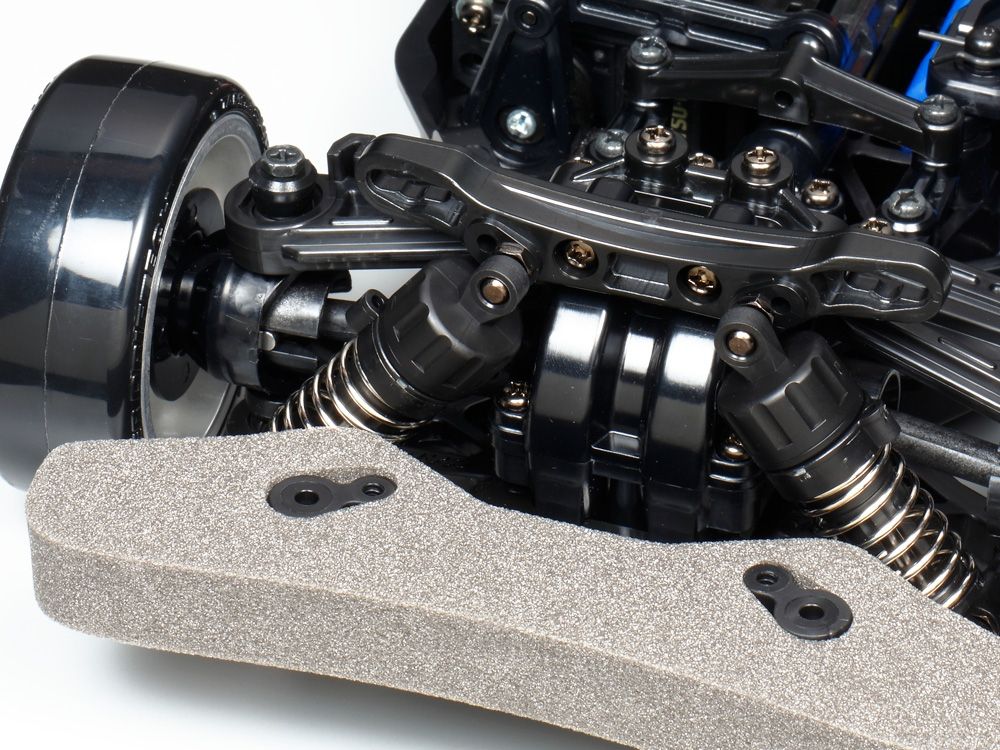

- CVA oil-filled shock absorbers (front and rear)
- Full ball bearings throughout drivetrain
- 4-wheel fully independent double wishbone suspension

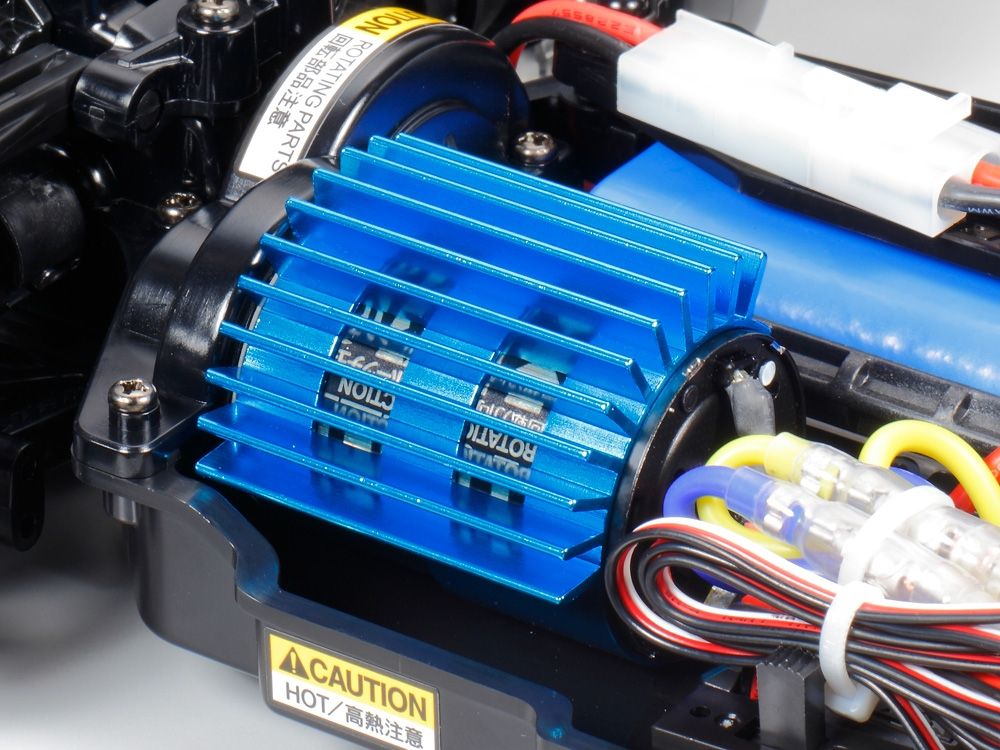

- Aluminum motor heat sink
- 540 Sport-Tuned brushed motor included
- TBLE-02S ESC included (brushless compatible)
- LED light buckets included for realistic lighting
- Front/rear 4-bevel resin differentials
- Adjustable gear ratios (10 options available)
JDM Legend Status
The R34 GT-R Z-Tune represents NISMO's no-compromise approach to performance. Each of the 20 production cars was built around a 2.8-liter RB engine producing 500 horsepower, paired with SACHS adjustable suspension and Brembo brakes developed specifically for this model. The body modifications included wider fenders, aerodynamic vents, and the signature Z-Tune Silver paint. Tamiya's RC body faithfully recreates these high-performance hallmarks, making this kit a must-have for JDM enthusiasts and drift fans alike.
Chassis Features
- Bathtub-type frame for durability and easy maintenance
- Shaft-driven 4WD for stable, predictable drifting
- 257mm wheelbase optimized for touring car bodies
- 3-piece steering tie-rod for responsive control
- Sport-tuned suspension geometry
- Multiple gear ratio options (8.27:1 standard, 7.28:1 to 11.38:1 range)
- ABS plastic construction
- Easy access to all serviceable components
Performance Benefits
- Drift-spec tires provide consistent, controllable slides
- 4WD layout offers stability and forgiveness for beginners
- CVA oil dampers deliver smooth suspension action
- Full ball bearings reduce friction for better response
- Aluminum heat sink extends motor life during extended sessions
- Sport-Tuned motor provides smooth, manageable power
- Adjustable gear ratios for speed or torque tuning
Usage Notes
- Designed for smooth paved surfaces (parking lots, indoor tracks)
- Drift tires work best on polished concrete or smooth asphalt
- Ideal for learning and refining drift technique
- LED lights can be connected for realistic appearance
- ESC supports brushless motor upgrades (21.5T BL / 23T brushed limit)
- Polycarbonate body requires painting before assembly
- Regular tire inspection recommended (drift tires wear faster)
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/10 |
| Length | 442mm (17.4") |
| Width | 187mm (7.4") |
| Height | 134mm (5.3") |
| Wheelbase | 257mm |
| Drivetrain | 4WD Shaft-Driven |
| Chassis | TT-02D Drift Spec |
| Motor | 540 Sport-Tuned (included) |
| ESC | TBLE-02S (brushless compatible) |
| Suspension | 4-Wheel Independent Double Wishbone |
| Dampers | CVA Oil-Filled (F/R) |
| Differential | 4-Bevel Resin (F/R) |
| Gear Ratio | 8.27:1 (adjustable) |
| Tire Width/Diameter | 24mm / 63mm |
| Bearings | Full Ball Bearings |
What's Included
- Tamiya Nismo R34 GT-R Z-Tune TT-02D assembly kit
- Polycarbonate body with wide-body details
- 540 Sport-Tuned brushed motor
- TBLE-02S electronic speed controller
- Matte-finish metal-plated wheels
- 24mm drift-spec tires
- CVA oil-filled dampers
- Aluminum motor heat sink
- LED light buckets
- Full ball bearing set
- Decal sheet
- Illustrated instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo
- 7.2V battery pack and compatible charger
- Tamiya PS polycarbonate spray paint
- AA batteries for transmitter
- Optional: LED lights for light buckets
Summary
The Tamiya Nismo R34 GT-R Z-Tune TT-02D Drift Spec delivers the ultimate JDM drift experience in 1/10 scale. With its iconic Z-Tune body, purpose-built drift chassis, and comprehensive included features like full ball bearings, CVA dampers, and LED light buckets, this kit offers exceptional value and performance. Whether you're learning to drift or looking to add a legendary Skyline to your collection, the R34 Z-Tune provides accessible thrills and authentic styling that celebrates one of automotive history's most revered performance machines.
